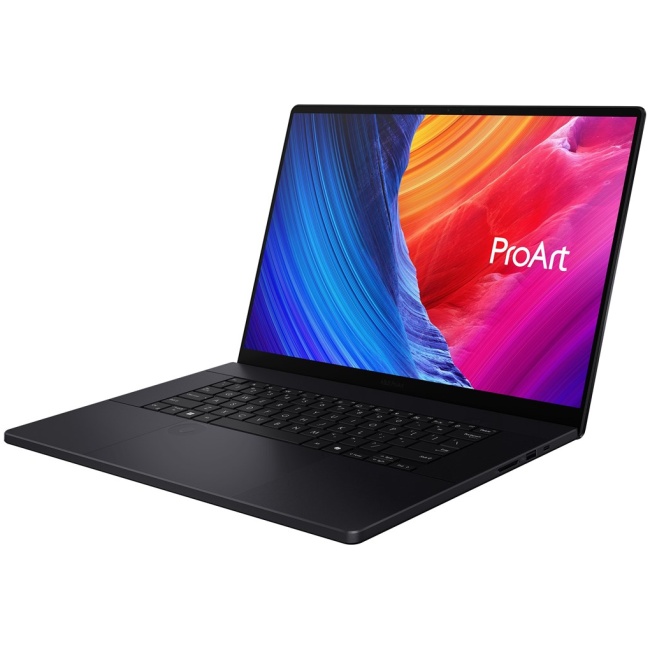

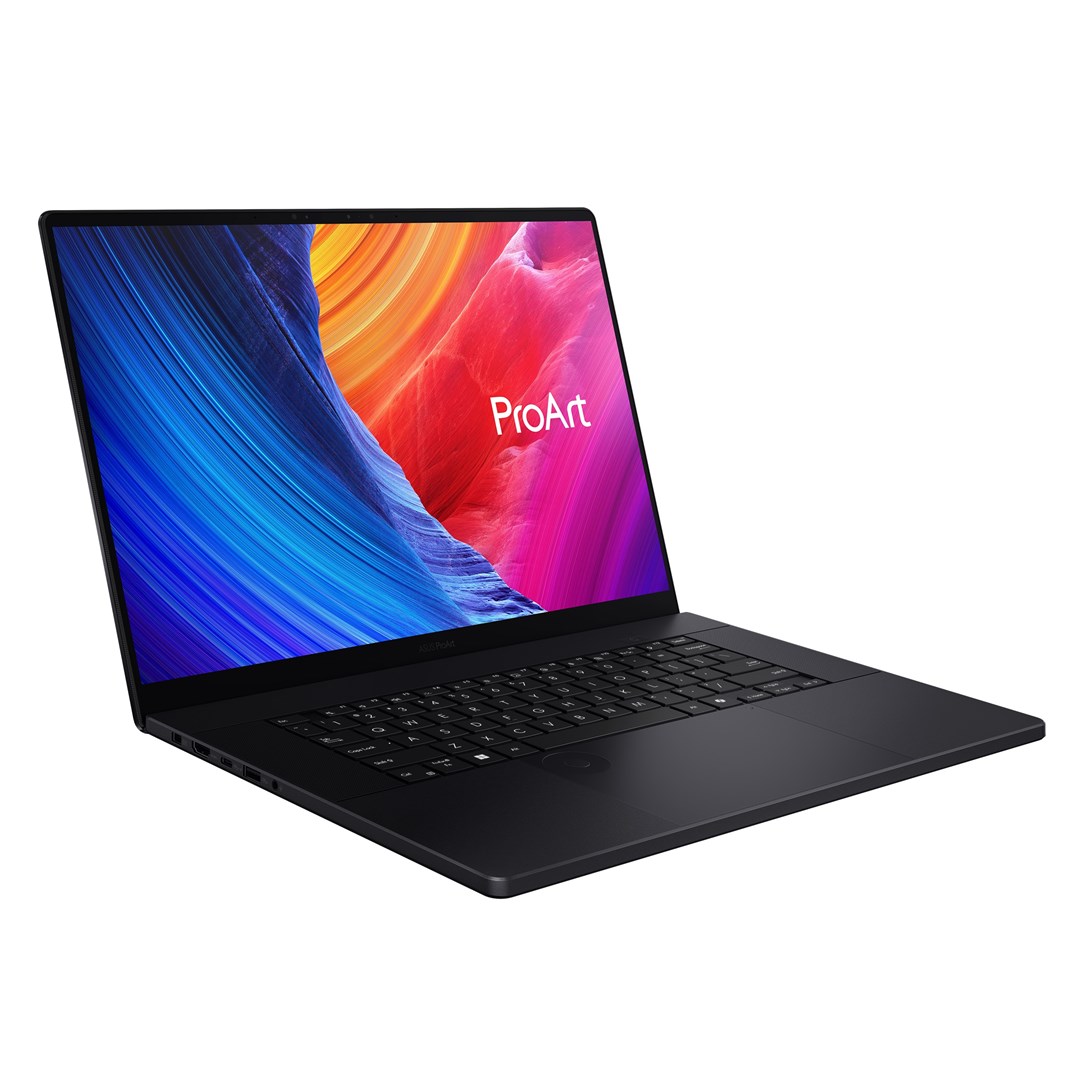

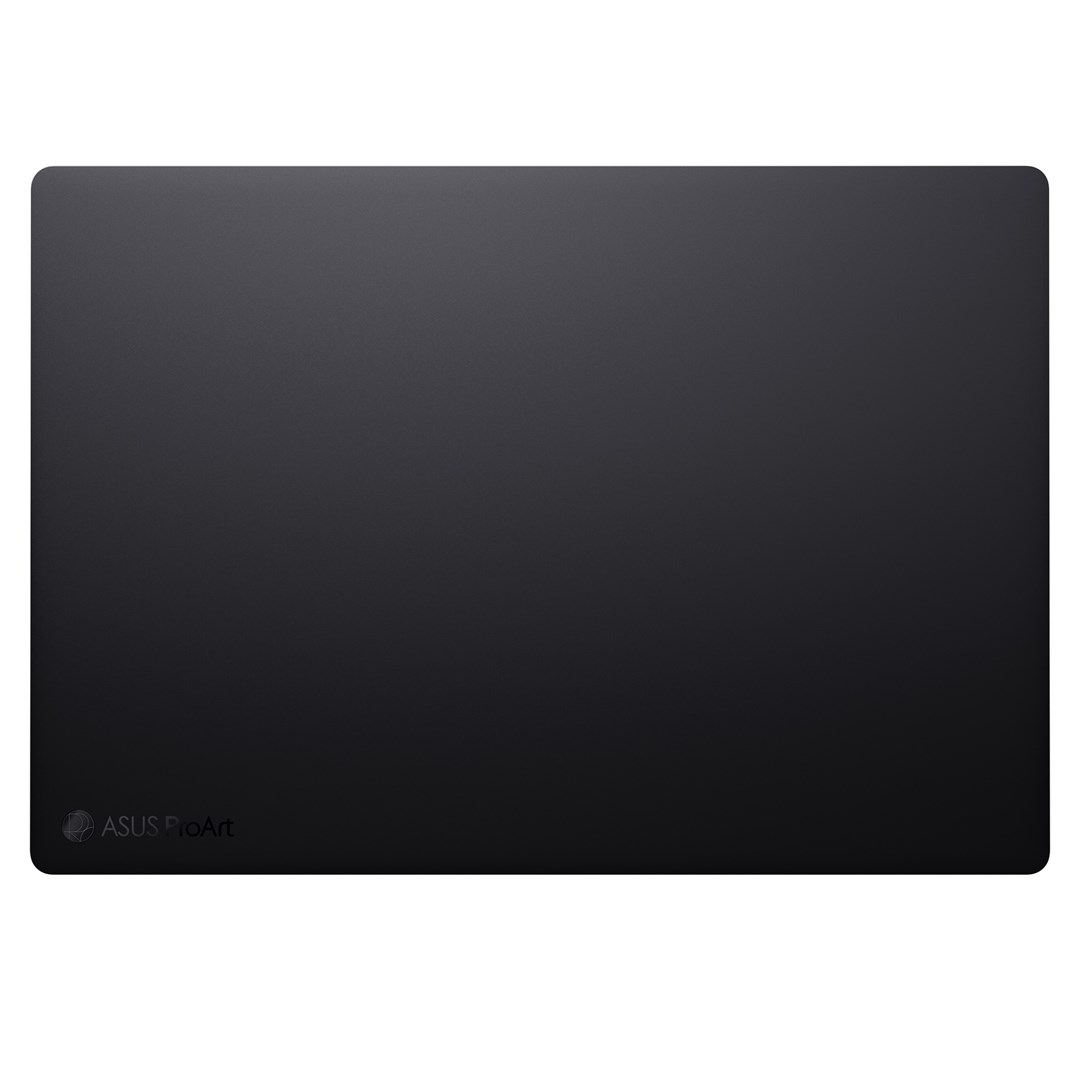

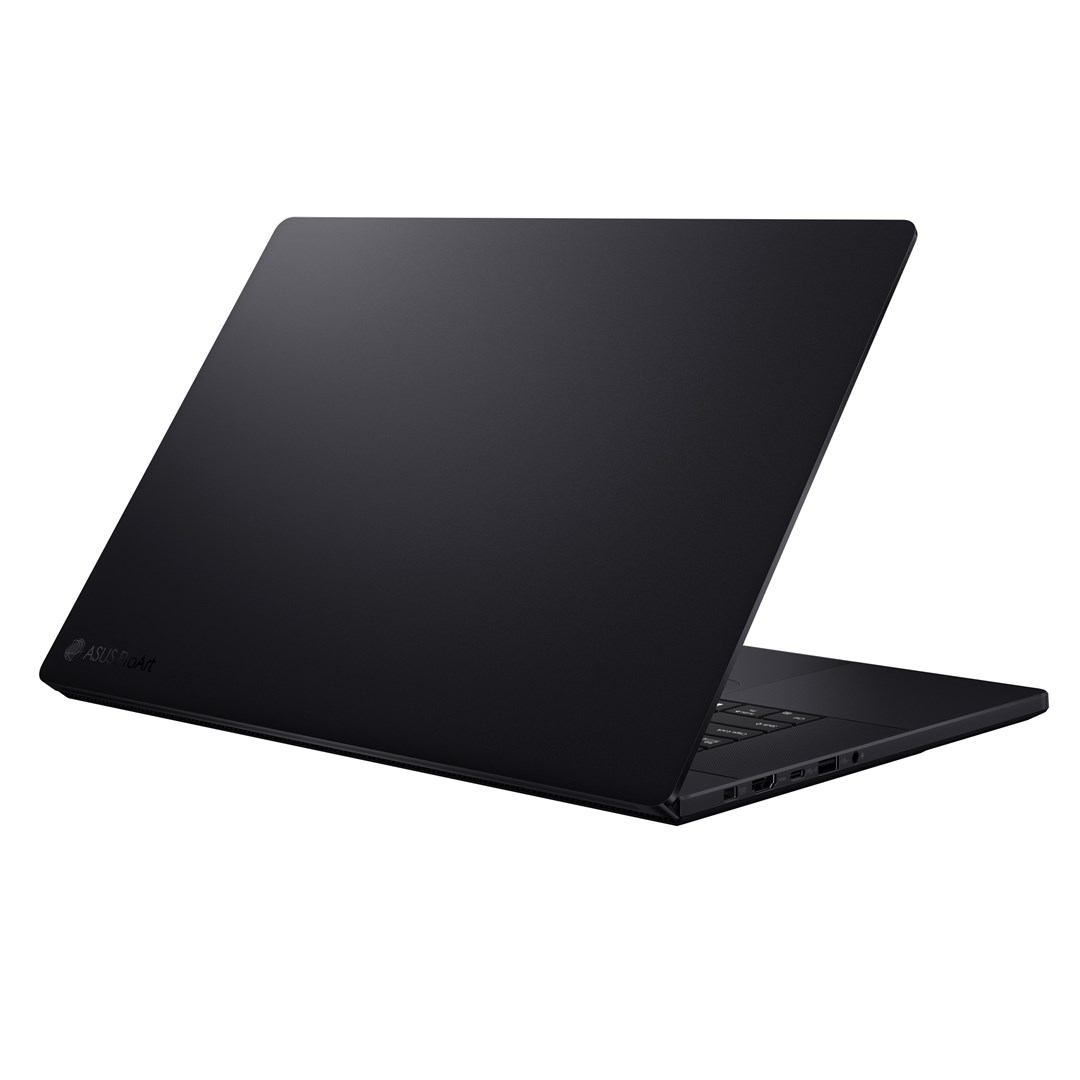

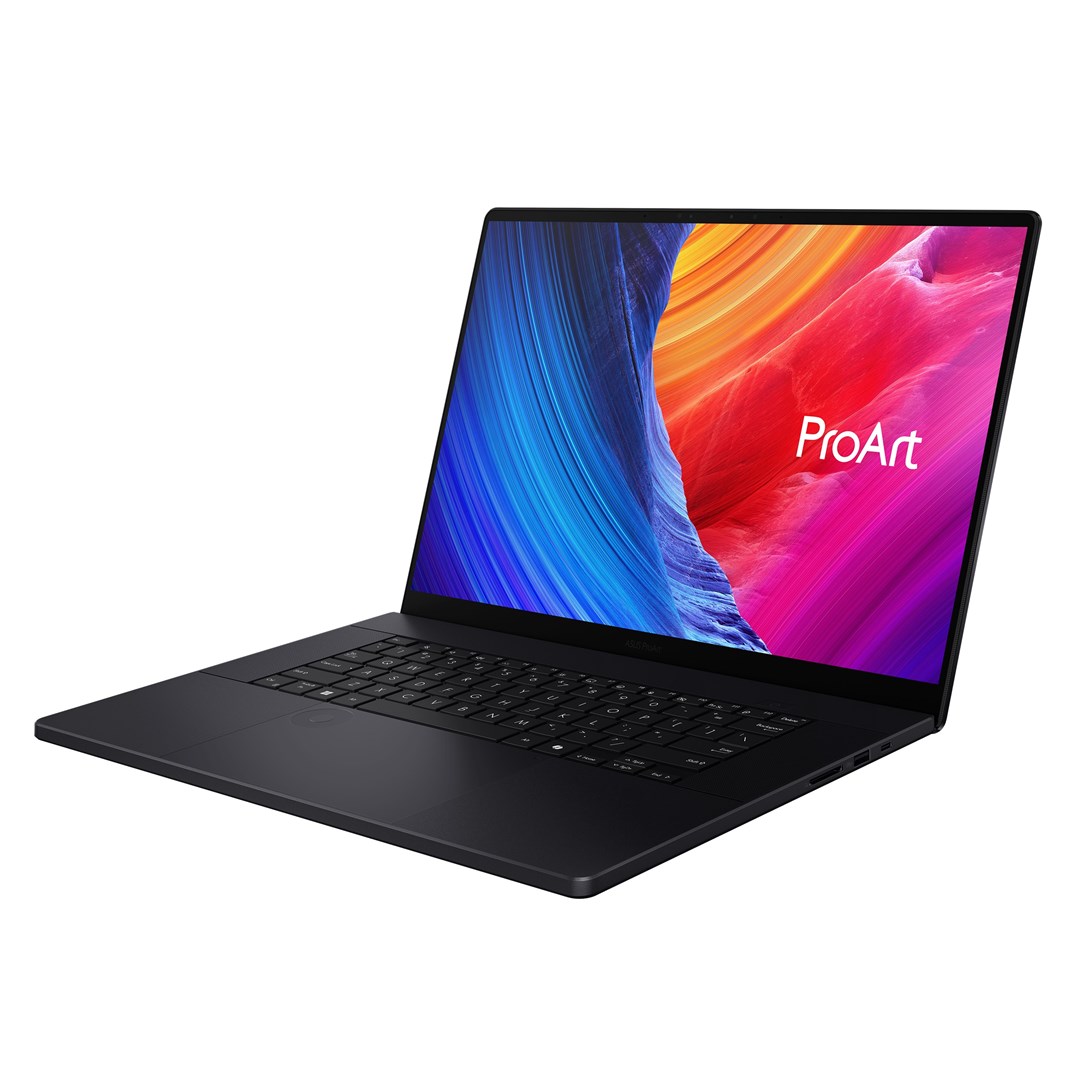

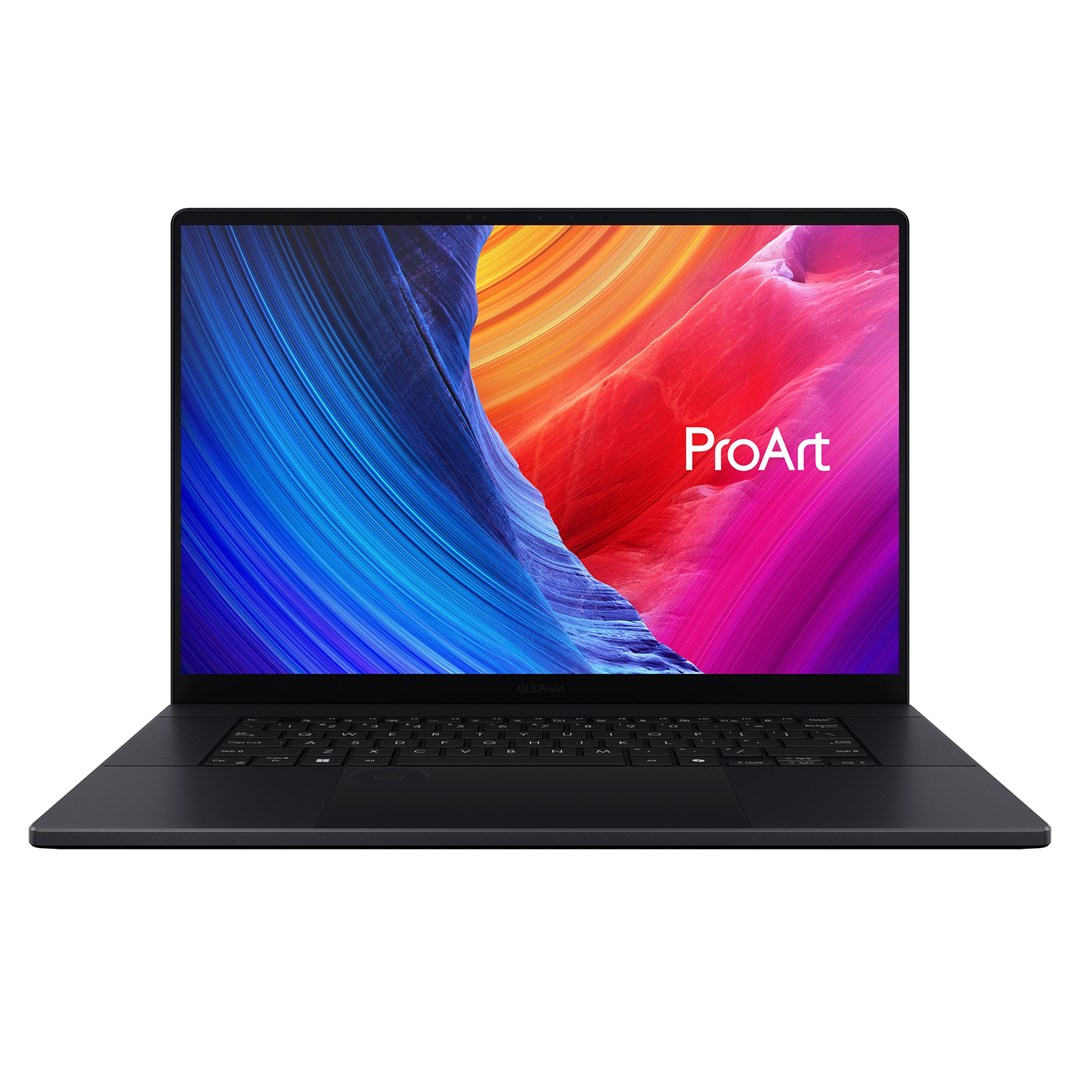

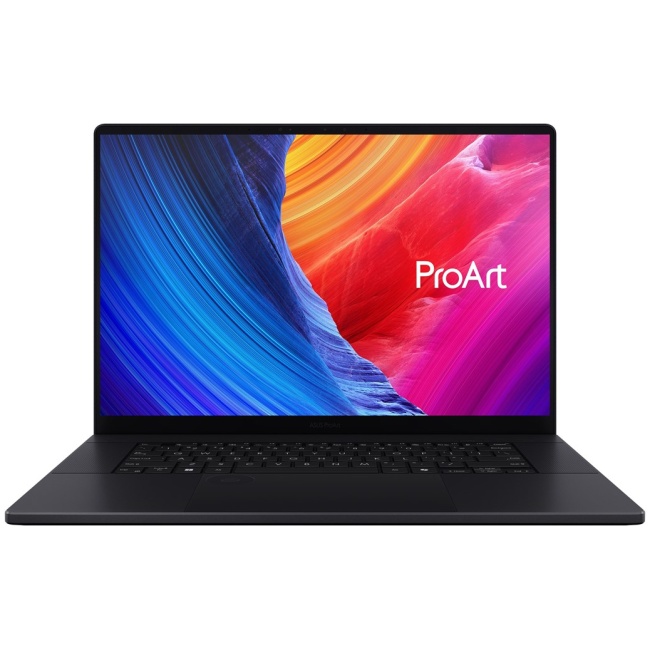

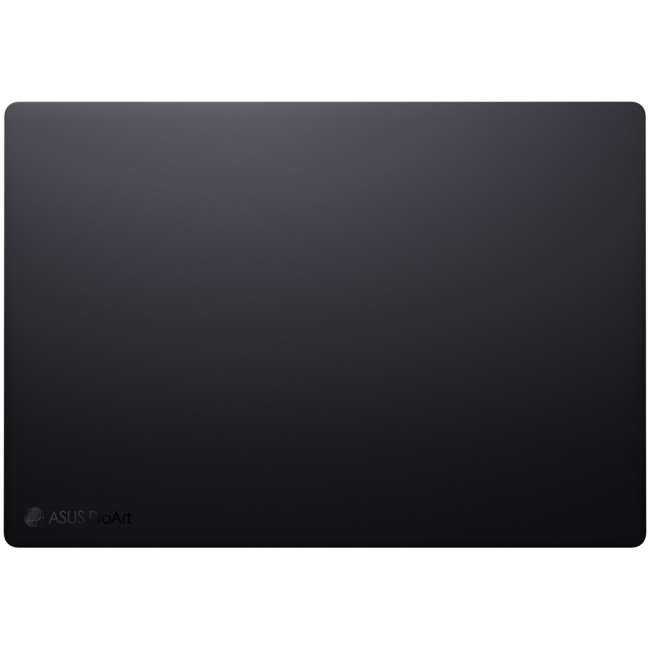

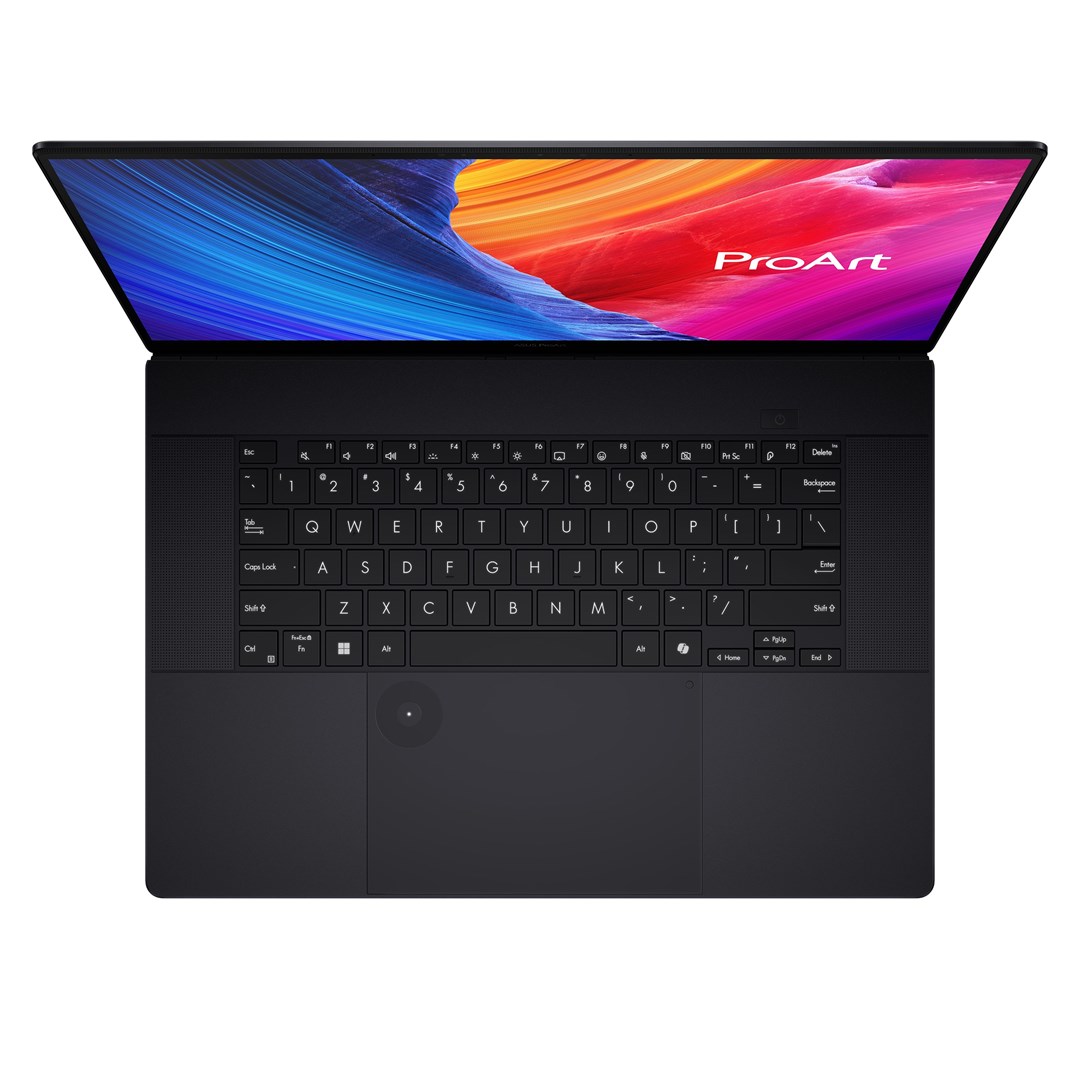

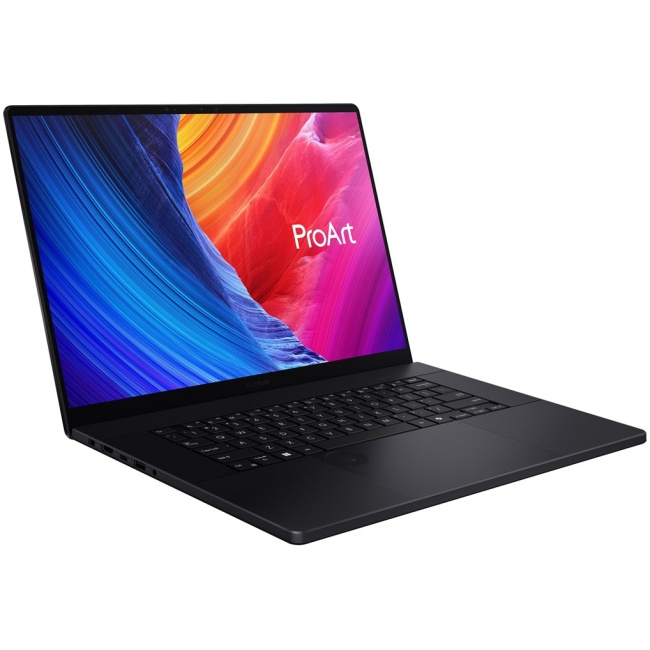

ASUS ProArt P16 H7606WM-SR122X Ryzen AI 9 HX 370 16.0" 3K OLED touchscreen 120Hz 500 nits AG 32GB LPDDR5X 1TB SSD GeForce RTX 5060 8GB Wi-Fi + Bluetooth FHD webcam 90Wh Windows 11 Pro Nano Black

Technical Specifications

Processor

Processor threads: 24

Processor boost frequency: 5.1 GHz

Processor cores: 12

Processor model: 370

Processor cache type: L2 & L3

Processor frequency: 2 GHz

Processor family: AMD Ryzen AI 9 HX

Processor manufacturer: AMD

L3 cache: 24 MB

L2 cache: 12 MB

Graphics

On-board graphics card model: AMD Radeon 890M

Discrete graphics card memory: 8 GB

Discrete graphics card model: NVIDIA GeForce RTX 5060

On-board graphics card family: AMD Radeon

On-board graphics card: Yes

Discrete graphics card: Yes

Discrete GPU manufacturer: NVIDIA

Discrete graphics memory type: GDDR7

On-board GPU manufacturer: AMD

:

:

:

:

:

:

Memory

Maximum internal memory: 32 GB

Internal memory type: LPDDR5x-SDRAM

Memory form factor: On-board

Internal memory: 32 GB

:

:

:

:

:

:

Design

Product colour: Black

Product type: Laptop

Colour name: Nano Black

:

:

:

:

:

:

:

Power

AC adapter input voltage: 100 – 240 V

Power supply: 200 W

AC adapter frequency: 50 – 60 Hz

:

:

:

:

:

:

:

Security

Trusted Platform Module (TPM): Yes

Windows Hello: Yes

:

:

:

:

:

:

:

:

Weight & dimensions

Weight: 1.85 kg

Width: 354.9 mm

Depth: 246.9 mm

Height (front): 1.49 cm

Height (rear): 1.73 cm

:

:

:

:

:

Network

Antenna type: 2×2

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Bluetooth: Yes

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

:

:

:

:

:

Display

HD type: 3K

Display resolution: 2880 x 1800 pixels

Display diagonal: 40.6 cm (16")

Native aspect ratio: 16:10

Touchscreen: Yes

Panel type: OLED

High Dynamic Range (HDR) supported: Yes

High Dynamic Range (HDR) technology: DisplayHDR True Black 500

Colour gamut: 100%

Maximum display brightness (HDR): 1000 cd/m²

Software

Operating system installed: Windows 11 Pro

Operating system architecture: 64-bit

:

:

:

:

:

:

:

:

Audio

Built-in microphone: Yes

:

:

:

:

:

:

:

:

:

Certificates

Compliance certificates: RoHS

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Storage

Total storage capacity: 1 TB

Storage media: SSD

SSD form factor: M.2

NVMe: Yes

SSD capacity: 1 TB

Number of SSDs installed: 1

SSD interface: PCI Express 4.0

Total SSDs capacity: 1 TB

:

:

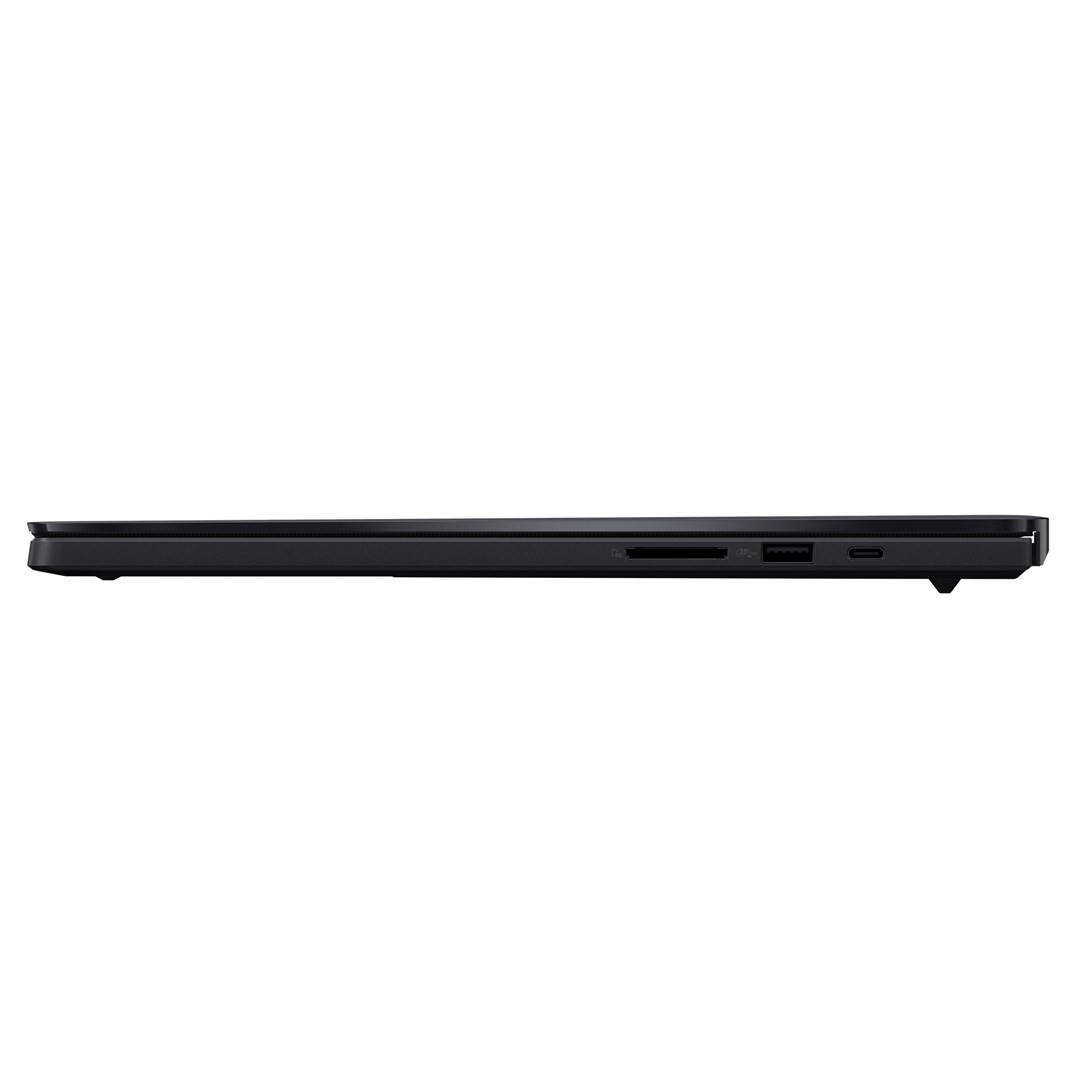

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Combo headphone/mic port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI ports quantity: 1

HDMI version: 2.1 FRL

USB4 Gen 3×2 ports quantity: 1

:

:

:

:

Camera

Front camera: Yes

Infrared (IR) camera: Yes

Front camera HD type: Full HD

:

:

:

:

:

:

:

Battery

Battery technology: Lithium-Ion (Li-Ion)

Battery capacity: 90 Wh

Number of battery cells: 4

:

:

:

:

:

:

:

Keyboard

Pointing device: Touchpad

Numeric keypad: No

Keyboard backlit: Yes

:

:

:

:

:

:

:

Neural processor unit (NPU)

NPU performance up to: 50 TOPs

Neural processor unit (NPU): AMD Ryzen AI

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
