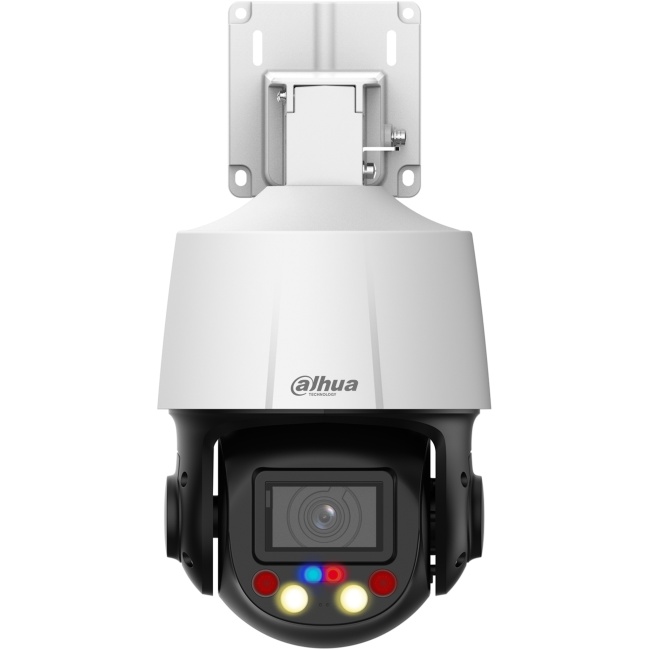

Dahua IP 4.0MP PTZ 5x Optical Zoom Wizsense TIOC PTZCE405-A-PV1

• 1/2.8" 4Megapixel CMOS
• 5x optical zoom
• Max. 25/30fps@4M
• IR distance up to 50 m
• Warm light illumination distance up to 30 m
• SMD 3.0
• Perimeter protection
• Face detection
• Alarm : 1 in / 1 out / Audio : 1 in / 1 out
• Built-in Mic and Speaker for Two-way Talk
• 12 VDC/PoE power supply
• IP66
• Sound and light alarm (red and blue lights)

—

Camera

Image Sensor : 1/2.8" CMOS

Pixel : 4 MP

• Max. Resolution : 2560 (H) × 1440 (V)
• ROM : 128 MB
• RAM : 512 MB
• Electronic Shutter Speed : 1/1 s–1/30,000 s
• Scanning System : Progressive
• Min. Illumination : Color: 0.005 [email protected] / B/W: 0.0005 [email protected] / 0 lux (IR light on)
• Illumination Distance : 50 m (164.04 ft) (IR) / 30 m (98.43 ft) (Warm light)
• Illuminator On/Off Control : Zoom Prio / Manual / Auto / Off
• Illuminator Number : 2 (IR) / 2 (Warm light) / 1 (Red light) / 1 (Blue light)

Lens

• Focal Length : 2.7 mm–13.5 mm
• Max. Aperture : F1.6–F3.0
• Field of View : H: 94.9°–30.1° / V: 51°–17.1° / D: 112.3°–34.6°
• Optical Zoom : 5×
• Focus Control : Auto / semi-auto / manual
• Close Focus Distance : 1.5 m
• Iris Control : Fixed

PTZ

• Pan/Tilt Range : Pan: 0° to 355° / Tilt: –15° to +90°
• Manual Control Speed : Pan: 0.1°/s–36°/s / Tilt: 0.1°/s–25.8°/s
• Preset Speed : Pan: 35.7°/s / Tilt: 27.1°/s
• Preset : 300
• Power-off Memory : Yes
• Idle Motion : Preset

Intelligence

• IVS (Perimeter Protection) : Tripwire / intrusion / crossing fence detection / loitering detection / abandoned/missing object / fast moving / parking detection / people gathering / vehicle/human alarm classification / linkage tracking
• Face Detection : Supports face detection / snapshot / face enhancement / Supports face cutout: Face, one-inch photo / Capturing strategies include real-time capturing and quality first
• Auto Tracking Lite : Yes
• SMD : Yes

Active Deterrence

• Light Warning : Red and blue light warning / Flash duration: 5 s–30 s / Flash frequency: high / medium / low
• Sound Warning : Offers 11 types of sound alarms / supports importing up to 10 custom sound alarms. The sound alarm can be set to play 1 to 10 times

Video

• Video Compression : H.264H / H.264B /Smart H.265+ / H.264 / H.265 /MJPEG(Sub Stream) / Smart H.264+
• Streaming Capability : 3 streams
• Resolution : 4M (2560 × 1440) / 3M (2304 × 1296) / 1080p (1920 × 1080) / 1.3M (1280 × 960) / 720p(1280 × 720) / D1 (704 × 576); VGA (640 × 480) / CIF (352 × 288)
• Video Frame Rate : Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) / Sub stream 1: D1/CIF/VGA@ (1–25/30 fps) / Sub stream 2: 720p @(1–25/30 fps)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 96 kbps–14848 kbps / H.265: 38 kbps–8960 kbps
• Day/Night : Auto (ICR) / Color / B/W
• BLC : Yes
• WDR : 120 dB
• HLC : Yes
• White Balance : Auto / indoor / outdoor / tracking / manual / sodium lamp / natural light / street lamp
• Gain Control : Auto / manual
• Noise Reduction : 2D NR / 3D NR
• Motion Detection : Yes
• Region of Interest (RoI) : Yes
• Image Stabilization : Electronic (EIS)
• Defog : Electronic
• Digital Zoom : 16×
• Image Rotation : 180°
• S/N Ratio : ≥55 dB

Audio

• Audio Compression: G.711a / G.711Mu / G.726 / MPEG2-Layer2 / G722.1 / PCM

Network

• Network Port : RJ-45 (10/100 Base-T)
• Network Protocol : FTP / RTMP / IPv6 / Bonjour / IPv4 / DNS / RTCP / PPPoE / NTP / /RTP / 802.1x / HTTPS / SNMP / TCP/IP / DDNS / UPnP / NFS / ICMP / UDP / IGMP / SMB / HTTP / SSL / DHCP / SMTP / Qos / RTSP / ARP
• Interoperability : CGI / SDK / ONVIF (Profile S&G&T) / P2P
• Streaming Method : Unicast/Multicast
• User/Host : 20 (total bandwidth: 64 M)
• Storage : FTP/SFTP / Micro SD card (512 GB) / NAS
• Browser : IE 9 and later versions / Chrome 41 and later versions / Firefox 50 and later versions / Safari 10 and later versions
• Management Software : DMSS / DSS Pro
• Mobile Client : iOS / Android

Certification

• Certifications : CE: EN55032/EN55024/EN50130-4 / FCC: Part15 subpartB, ANSI C63.4-2014

Port

• Audio Input : 1 channel (LINE IN / bare wire / built-in mic (mutually exclusive))
• Audio Output : 1 channel (LINE OUT / bare wire / built-in speaker (mutually exclusive))
• Alarm Linkage : Capture / recording / send email / preset / alarm digital input / audio / warning light
• Alarm Event : Motion/tampering detection / audio detection / network disconnection detection / IP conflict detection / memory card state detection / memory space detection
• Alarm I/O : 1/1
• Audio I/O : 1/1

Power

• Power Supply : 12 VDC / 2 A ± 10% / PoE+ (802.3at)
• Power Consumption : Basic: 4.5 W / Max.: 15 W (illuminator + PTZ + speaker + heating glass)

Environment

• Operating Temperature : –30 °C to +60 °C
• Operating Humidity : ≤95%
• Protection : IP66 / TVS 6000 V lightning proof / surge protection / voltage transient protection

Structure

• Product Dimensions : 142.6 mm × 140 mm × 236.1 mm
• Net Weight : 1.5 kg
• Gross Weight : 2.1 kg

—
