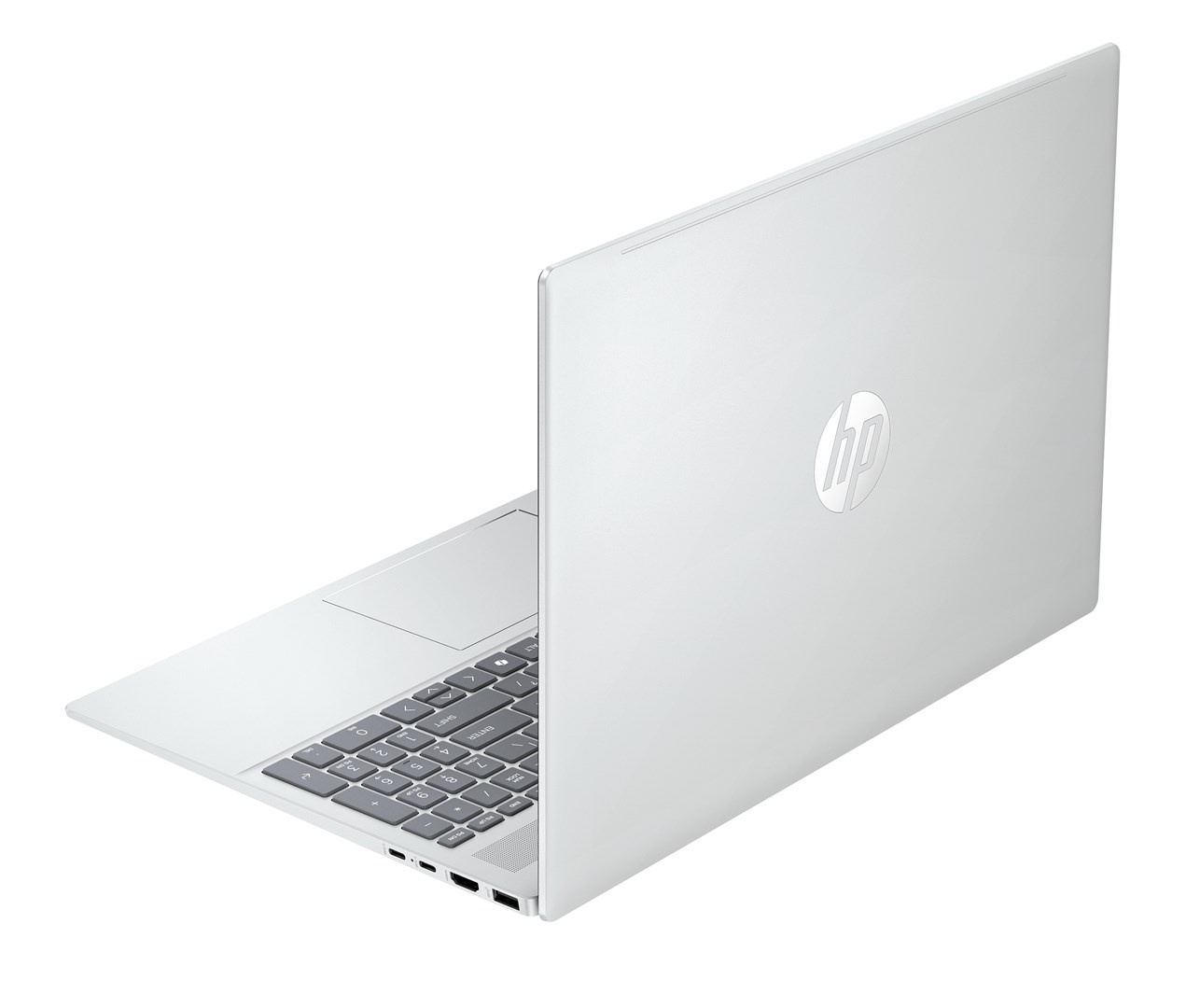

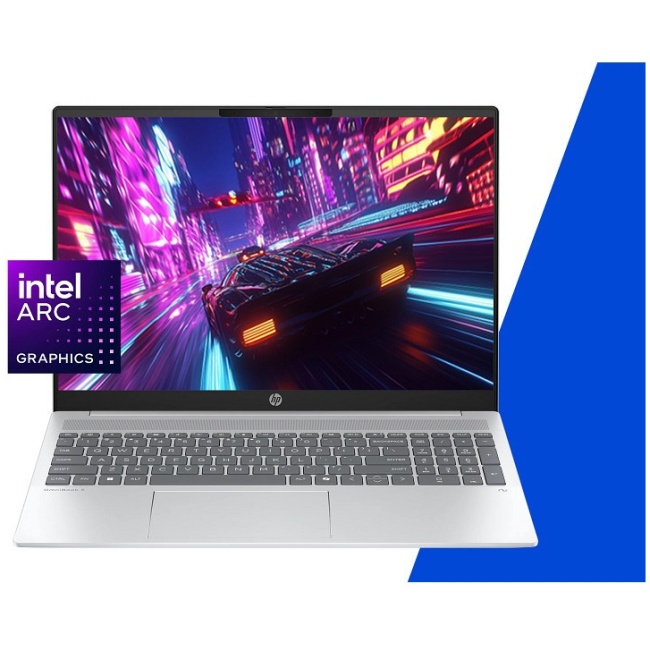

HP OmniBook 5 AI 16-af1072nw Intel Core Ultra 5 225U Laptop 40.6 cm (16") 2K 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) FreeDOS AI PC Silver

Technical Specifications

Technical details

General Product Safety Regulation (GPSR) URL: https://kaas.hpcloud.hp.com/pdf-public/pdf_11069394_en-US-1.pdf

:

:

:

:

:

:

:

:

:

Processor

Processor boost frequency: 4.8 GHz

Processor model: 225U

Processor cache: 12 MB

Processor family: Intel Core Ultra 5

Processor threads: 14

Processor cores: 12

Processor cache type: L3

Maximum turbo power: 57 W

Processor generation: Intel Core Ultra (Series 2)

Performance cores: 2

Low Power Efficient-cores: 2

Performance-core base frequency: 1.5 GHz

Processor base power: 15 W

Processor manufacturer: Intel

Low Power Efficient-core Base Frequency: 700 MHz

Graphics

Discrete graphics card model: Not available

On-board graphics card model: Intel® Graphics

Discrete graphics card: No

On-board graphics card: Yes

On-board graphics card family: Intel® Graphics

On-board GPU manufacturer: Intel

:

:

:

:

Memory

Memory clock speed: 7467 MHz

Memory form factor: On-board

Internal memory: 16 GB

Internal memory type: LPDDR5x-SDRAM

Maximum internal memory: 16 GB

Memory layout (slots x size): Not available

:

:

:

:

Design

Certified refurbished: No

Product colour: Silver

Product design: Modern

Product type: Laptop

Colour name: Glacier Silver

Original brand name: HP

Introduction year: 2025

:

:

:

Power

USB Type-C charging port: Yes

AC adapter input voltage: 100 – 240 V

AC adapter frequency: 50 – 60 Hz

AC adapter power: 65 W

USB Power Delivery (USB PD): Yes

:

:

:

:

:

Security

Trusted Platform Module (TPM): Yes

Password protection: Yes

:

:

:

:

:

:

:

:

Weight & dimensions

Weight: 1.77 kg

Depth: 254.8 mm

Width: 357.7 mm

Height (front): 1.79 cm

:

:

:

:

:

:

Network

Antenna type: 2×2

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Mobile network connection: No

Bluetooth version: 5.3

WLAN controller manufacturer: Intel

Wi-Fi: Yes

WLAN controller model: Intel Wi-Fi 6E AX211

:

Performance

Motherboard chipset: Intel SoC

:

:

:

:

:

:

:

:

:

Packaging data

Package width: 63 mm

Package depth: 504 mm

Package weight: 2.52 kg

Package height: 305 mm

:

:

:

:

:

:

Packaging content

AC adapter included: Yes

Keyboard included: Yes

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Display

Native aspect ratio: 16:10

Display resolution: 1920 x 1200 pixels

Display diagonal: 40.6 cm (16")

HD type: 2K

Panel type: IPS

Display diagonal (metric): 40.6 cm

Display brightness: 300 cd/m²

RGB colour space: sRGB

Touchscreen: No

Colour gamut: 62.5%

Software

Trial software: 25 GB Dropbox storage for 12 months

Operating system installed: FreeDOS

:

:

:

:

:

:

:

:

Audio

Audio system: DTS:X Ultra

Built-in microphone: Yes

Built-in speaker(s): Yes

Number of built-in speakers: 2

Number of microphones: 2

:

:

:

:

:

Storage

Optical drive type: No

Total storage capacity: 512 GB

Storage media: SSD

SSD interface: PCI Express 4.0

SSD capacity: 512 GB

Number of SSDs installed: 1

Total SSDs capacity: 512 GB

NVMe: Yes

SSD form factor: M.2

:

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Combo headphone/mic port: Yes

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

HDMI version: 2.1

Microphone in: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

USB Sleep-and-Charge: Yes

USB Type-C DisplayPort Alternate Mode: Yes

USB Sleep-and-Charge ports: 2

Camera

Front camera: Yes

Front camera resolution: 1920 x 1080 pixels

Front camera HD type: Full HD

:

:

:

:

:

:

:

Battery

Battery capacity: 59 Wh

Number of battery cells: 3

Battery life (max): 13 h

Battery technology: Lithium Polymer (LiPo)

Fast charging time (50%): 30 min

Fast charging: Yes

:

:

:

:

Keyboard

Keyboard backlit: Yes

Pointing device: Touchpad

Numeric keypad: Yes

Full-size keyboard: Yes

:

:

:

:

:

:

Other features

UNSPSC-code: 43211503

:

:

:

:

:

:

:

:

:

Brand-specific features

HP Artificial Intelligence: AI PC

HP GTIN (EAN/UPC): 195161936104, 195161936111, 195161936128, 195161936135

HP Imagepad: Yes

HP Audio Boost: Yes

HP segment: Home

HP front camera: HP TrueVision FHD

HP speaker type: HP Dual Speakers

:

:

:

Sustainability

Sustainability compliance: Yes

:

:

:

:

:

:

:

:

:

Neural processor unit (NPU)

Copilot+ PC: No
