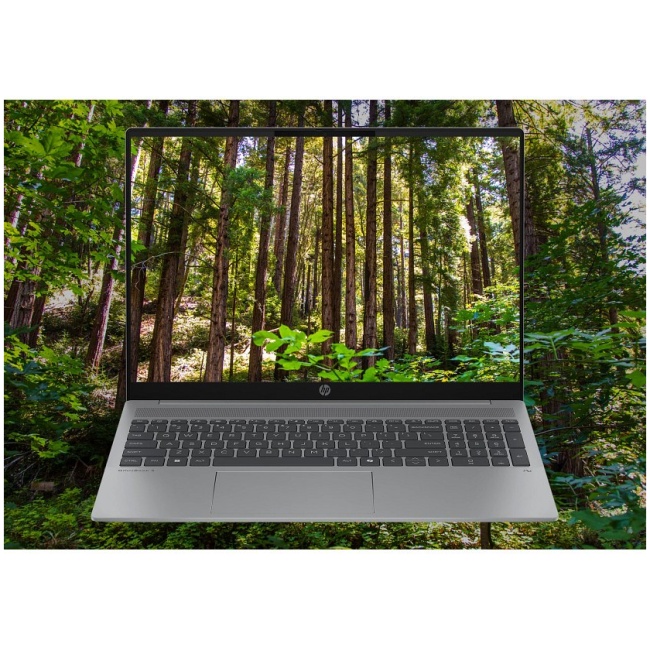

HP OmniBook 5 AI 16-af1220nw Intel Core Ultra 5 225U Laptop 40.6 cm (16") 2K 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home AI PC Silver

Technical Specifications

Technical details

General Product Safety Regulation (GPSR) URL: https://kaas.hpcloud.hp.com/pdf-public/pdf_11069394_en-US-1.pdf

:

:

:

:

:

:

:

:

:

Processor

Processor manufacturer: Intel

Low Power Efficient-cores: 2

Low Power Efficient-core Base Frequency: 700 MHz

Maximum turbo power: 57 W

Low Power Efficient-core Max Turbo Frequency: 2.4 GHz

Efficient-core base frequency: 1.3 GHz

Efficient cores: 8

Processor generation: Intel Core Ultra (Series 2)

Processor base power: 15 W

Performance cores: 2

Efficient-core Max Turbo Frequency: 3.8 GHz

Performance-core base frequency: 1.5 GHz

Performance-core Max Turbo Frequency: 4.8 GHz

Processor model: 225U

Processor threads: 14

Graphics

On-board graphics card: Yes

On-board graphics card family: Intel® Graphics

Discrete graphics card: No

On-board GPU manufacturer: Intel

On-board graphics card model: Intel® Graphics

Discrete graphics card model: Not available

:

:

:

:

Memory

Memory layout (slots x size): Not available

Memory form factor: On-board

Maximum internal memory: 16 GB

Memory clock speed: 7467 MHz

Internal memory: 16 GB

Internal memory type: LPDDR5x-SDRAM

:

:

:

:

Design

Product type: Laptop

Introduction year: 2025

Original brand name: HP

Colour name: Glacier Silver

Product colour: Silver

:

:

:

:

:

Power

AC adapter frequency: 50 – 60 Hz

AC adapter power: 65 W

USB Power Delivery (USB PD): Yes

AC adapter input voltage: 100 – 240 V

USB Type-C charging port: Yes

:

:

:

:

:

Security

Password protection: Yes

Trusted Platform Module (TPM): Yes

:

:

:

:

:

:

:

:

Weight & dimensions

Width: 357.7 mm

Depth: 254.8 mm

Height (front): 1.79 cm

Weight: 1.77 kg

:

:

:

:

:

:

Network

Wi-Fi: Yes

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Bluetooth version: 5.3

WLAN controller manufacturer: Intel

WLAN controller model: Intel Wi-Fi 6E AX211

Mobile network connection: No

Antenna type: 2×2

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth: Yes

:

Performance

Motherboard chipset: Intel SoC

:

:

:

:

:

:

:

:

:

Packaging data

Package width: 63 mm

Package height: 305 mm

Package weight: 2.52 kg

Package depth: 504 mm

:

:

:

:

:

:

Packaging content

Keyboard included: Yes

AC adapter included: Yes

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Display

Colour gamut: 62.5%

Touchscreen: No

Panel type: IPS

Display brightness: 300 cd/m²

Display diagonal (metric): 40.6 cm

RGB colour space: sRGB

sRGB coverage (typical): 62.5%

Display bezel technology: Micro-Edge

Display resolution: 1920 x 1200 pixels

Display diagonal: 40.6 cm (16")

Software

Operating system installed: Windows 11 Home

Pre-installed software: HP Audio Switch; HP Documentation; HP Setup Integrated OOBE Win10; HP Support Assistant; HP System Event Utility; McAfee LiveSafe™; Buy Office (sold separately); HP JumpStarts; Xerox® DocuShare® 90 da

:

:

:

:

:

:

:

:

Audio

Number of microphones: 2

Built-in speaker(s): Yes

Number of built-in speakers: 2

Audio system: DTS:X Ultra

Built-in microphone: Yes

:

:

:

:

:

Storage

Total SSDs capacity: 512 GB

SSD capacity: 512 GB

SSD interface: PCI Express 4.0

SSD form factor: M.2

NVMe: Yes

Number of SSDs installed: 1

Optical drive type: No

Storage media: SSD

Total storage capacity: 512 GB

:

Ports & interfaces

Microphone in: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

HDMI version: 2.1

USB Sleep-and-Charge ports: 2

USB Type-C DisplayPort Alternate Mode: Yes

USB Sleep-and-Charge: Yes

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Combo headphone/mic port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Camera

Front camera resolution: 1920 x 1080 pixels

Front camera HD type: Full HD

Front camera: Yes

:

:

:

:

:

:

:

Battery

Battery technology: Lithium Polymer (LiPo)

Number of battery cells: 3

Battery capacity: 59 Wh

Fast charging: Yes

Battery life (max): 13 h

Fast charging time (50%): 30 min

:

:

:

:

Keyboard

Numeric keypad: Yes

Pointing device: Touchpad

Full-size keyboard: Yes

Keyboard backlit: Yes

:

:

:

:

:

:

Other features

UNSPSC-code: 43211503

Supplied AC adapter type: 197498471389

:

:

:

:

:

:

:

:

Brand-specific features

HP GTIN (EAN/UPC): 190780571095, 199764694669, 199764694676, 190780571118, 199764694683, 199764694690, 199764694706, 190780571101

HP Audio Boost: Yes

HP Software provided: HP 3D DriveGuard; HP Audio Switch; HP CoolSense; HP JumpStart; HP Support Assistant

HP segment: Home

HP Support Assistant: Yes

HP Connection Optimizer: Yes

HP speaker type: HP Dual Speakers

HP Imagepad: Yes

HP Artificial Intelligence: AI PC

:

Sustainability

Sustainability compliance: Yes

:

:

:

:

:

:

:

:

:

Neural processor unit (NPU)

AI software frameworks supported by NPU: ONNX RT
