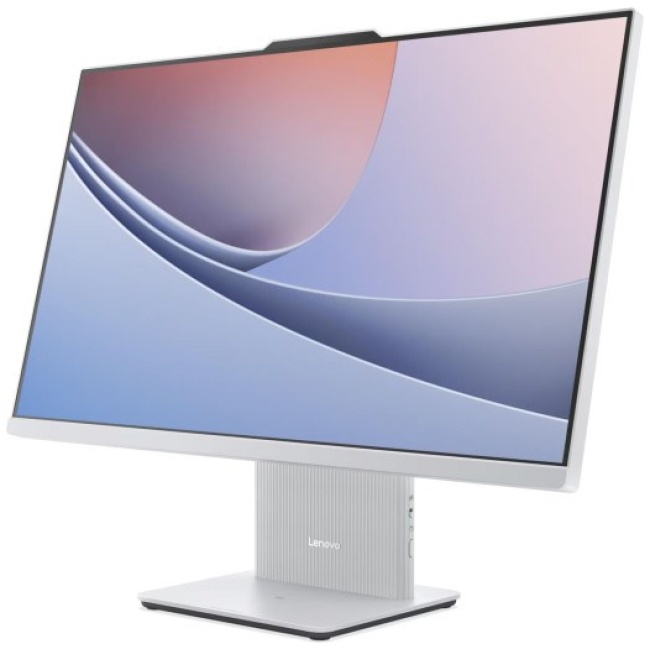

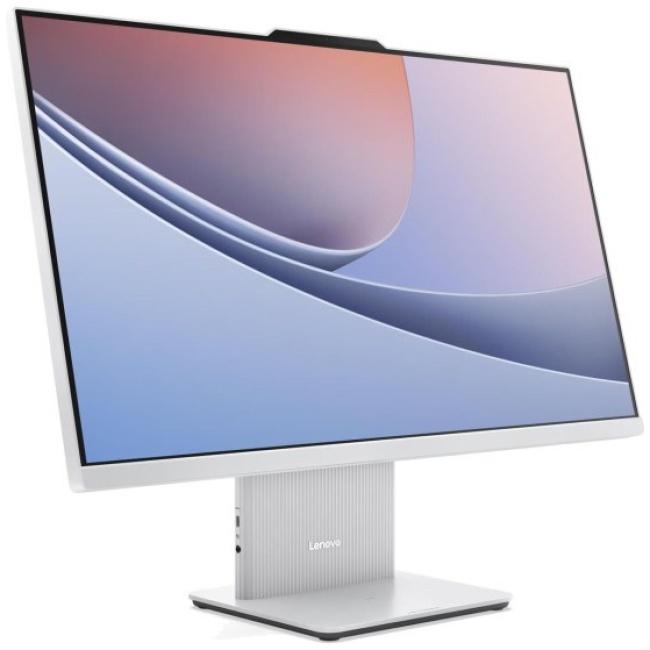

Lenovo IdeaCentre AIO 24ILL11 Ultra 5 226V 23.8" FHD IPS 250 nits 100 Hz AG 16 GB LPDDR5X-8533 512 GB SSD Intel Arc Graphics 130V 5.0 MP webcam Windows 11 Cloud Grey

Technical Specifications

Processor

Processor generation: Intel Core Ultra (Series 2)

Maximum turbo power: 37 W

Low Power Efficient-core Max Turbo Frequency: 3.5 GHz

Low Power Efficient-cores: 4

Low Power Efficient-core Base Frequency: 2100 MHz

Processor base power: 17 W

Performance-core Max Turbo Frequency: 4.5 GHz

Performance cores: 4

Performance-core base frequency: 2.1 GHz

Processor threads: 8

Graphics

On-board GPU manufacturer: Intel

On-board graphics card: Yes

On-board graphics card family: Intel Arc Graphics

On-board graphics card model: Intel Arc Graphics 130V

:

:

:

:

:

:

:

:

:

:

:

Memory

Memory form factor: On-board

Internal memory: 16 GB

Memory clock speed: 8533 MHz

Internal memory type: LPDDR5x-SDRAM

Maximum internal memory: 16 GB

:

:

:

:

:

Design

Colour name: Cloud Grey

Product colour: Grey

:

:

:

:

:

:

:

:

Power

AC adapter power: 90 W

:

:

:

:

:

:

:

:

:

Weight & dimensions

Weight (with stand): 6 kg

Depth (with stand): 192.1 mm

Width (with stand): 539.5 mm

Height (with stand): 431.2 mm

:

:

:

:

:

:

Network

Bluetooth version: 5.3

Wi-Fi standards: Wi-Fi 6 (802.11ax)

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Ethernet LAN: Yes

Antenna type: 2×2

Bluetooth: Yes

:

:

:

Performance

Product type: All-in-One PC

Trusted Platform Module (TPM) version: 2.0

Trusted Platform Module (TPM): Yes

Motherboard chipset: Intel SoC

:

:

:

:

:

:

Display

Display brightness: 250 cd/m²

Panel type: IPS

Touchscreen: No

Maximum refresh rate: 100 Hz

Colour gamut: 99%

RGB colour space: sRGB

HD type: Full HD

Native aspect ratio: 16:9

Display resolution: 1920 x 1080 pixels

Display diagonal: 60.5 cm (23.8")

Software

Operating system installed: Windows 11 Home

:

:

:

:

:

:

:

:

:

Audio

RMS rated power: 6 W

Built-in speaker(s): Yes

Number of speakers: 2

Number of microphones: 2

Built-in microphone: Yes

Audio chip: Realtek ALC233

:

:

:

:

Storage

Total SSDs capacity: 512 GB

Number of SSDs installed: 1

SSD form factor: M.2

SSD interface: PCI Express 4.0

SSD capacity: 512 GB

NVMe:

NVMe: Yes

Total storage capacity: 512 GB

Storage media: SSD

:

:

:

:

:

:

:

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Combo headphone/mic port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 2.0 ports quantity: 2

HDMI version: 2.1 TMDS

:

:

:

Camera

Built-in camera: Yes

Total megapixels: 5 MP

:

:

:

:

:

:

:

:

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost

NPU performance up to: 40 TOPs

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
