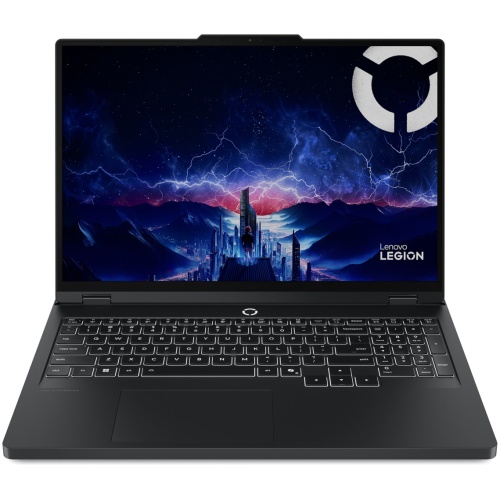

Lenovo Legion Pro 7 16IAX10H Intel Core Ultra 9 275HX Laptop 40.6 cm (16") WQXGA 64 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5080 Wi-Fi 7 (802.11be) NoOS Black

Technical Specifications

Processor

Performance cores: 8

Performance-core Max Turbo Frequency: 5.4 GHz

Processor cores: 24

Processor manufacturer: Intel

Processor base power: 55 W

Processor family: Intel Core Ultra 9

Processor generation: Intel Core Ultra (Series 2)

Efficient-core Max Turbo Frequency: 4.6 GHz

Efficient cores: 16

Processor threads: 24

Graphics

On-board graphics card model: Intel® Graphics

Discrete graphics card memory: 16 GB

NVIDIA G-SYNC: Yes

Discrete graphics memory type: GDDR7

Discrete graphics card: Yes

On-board graphics card: Yes

Discrete GPU manufacturer: NVIDIA

On-board GPU manufacturer: Intel

On-board graphics card family: Intel® Graphics

Discrete graphics card model: NVIDIA GeForce RTX 5080

:

:

:

:

:

Memory

Memory clock speed: 6400 MHz

Internal memory: 64 GB

Memory form factor: SO-DIMM

Memory channels: Dual-channel

Internal memory type: DDR5-SDRAM

Memory layout (slots x size): 2 x 32 GB

Memory slots: 2x SO-DIMM

:

:

:

Design

Product type: Laptop

Colour name: Eclipse Black

Housing material: Aluminium

Product colour: Black

:

:

:

:

:

:

Power

USB Type-C charging port: Yes

AC adapter frequency: 50/60 Hz

USB Power Delivery (USB PD): Yes

AC adapter power: 400 W

AC adapter input voltage: 100 – 240 V

:

:

:

:

:

Security

Fingerprint reader: No

Trusted Platform Module (TPM) version: 2.0

Password protection: Yes

Trusted Platform Module (TPM): Yes

:

:

:

:

:

:

Operational conditions

Operating relative humidity (H-H): 8 – 95%

Operating temperature (T-T): 5 – 35 °C

Storage temperature (T-T): 5 – 43 °C

Maximum shipping altitude: 3048 m

Storage relative humidity (H-H): 5 – 95%

:

:

:

:

:

Weight & dimensions

Depth: 275.9 mm

Height (rear): 2.66 cm

Height (front): 2.19 cm

Weight: 2.57 kg

Width: 364.4 mm

:

:

:

:

:

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Mobile network connection: No

Ethernet LAN: Yes

Wi-Fi standards: Wi-Fi 7 (802.11be)

WWAN: Not installed

Bluetooth version: 5.4

Bluetooth: Yes

Antenna type: 2×2

Ethernet LAN data rates: 2500 Mbit/s

:

Packaging content

Package contents: 4 x interchangeable keycaps

AC adapter included: Yes

:

:

:

:

:

:

:

:

Display

RGB colour space: DCI-P3

Maximum refresh rate: 240 Hz

High Dynamic Range (HDR) technology: Dolby Vision

Display brightness: 500 cd/m²

Panel type: OLED

High Dynamic Range (HDR) supported: Yes

Touchscreen: No

Contrast ratio (typical): 1000000:1

Colour gamut: 100%

Native aspect ratio: 16:10

Software

Operating system installed: N

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Audio

Built-in microphone: Yes

Number of microphones: 2

Number of built-in speakers: 4

Audio chip: Realtek ALC3306

Audio system: Nahimic Audio

:

:

:

:

:

Certificates

Compliance certificates: RoHS

:

:

:

:

:

:

:

:

:

Storage

M.2 SSD size: 2280 (22 x 80 mm)

Total storage capacity: 2 TB

Card reader integrated: No

Optical drive type: No

Storage media: SSD

Number of SSDs installed: 2

NVMe: Yes

SSD form factor: M.2

Total SSDs capacity: 2 TB

SSD interface: PCI Express 4.0

Ports & interfaces

Combo headphone/mic port: Yes

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI ports quantity: 1

USB Sleep-and-Charge: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB Sleep-and-Charge ports: 1

:

Camera

Front camera: Yes

Front camera resolution (numeric): 5 MP

:

:

:

:

:

:

:

:

Battery

Battery technology: Lithium Polymer (LiPo)

Fast charging: Yes

Continuous video playback time: 6.25 h

Battery capacity: 99.9 Wh

:

:

:

:

:

:

Keyboard

Copilot key: Yes

Keyboard backlit zone: Per-key RGB

Pointing device: Touchpad

Keyboard backlit: Yes

Numeric keypad: Yes

Keyboard backlit colour: RGB

:

:

:

:

Safety warning

Hazard pictogram(s): GHS09: Environmental hazard

Warnings: Keep out of reach of children to avoid risk of electric shock.

:

:

:

:

:

:

:

:

Neural processor unit (NPU)

AI software frameworks supported by NPU: OpenVINO

Neural processor unit (NPU): Intel AI Boost

NPU performance up to: 13 TOPs

Total processor performance up to: 36 TOPs

GPU performance up to: 8 TOPs

Sparsity support: Yes

Windows Studio effects support: Yes

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
