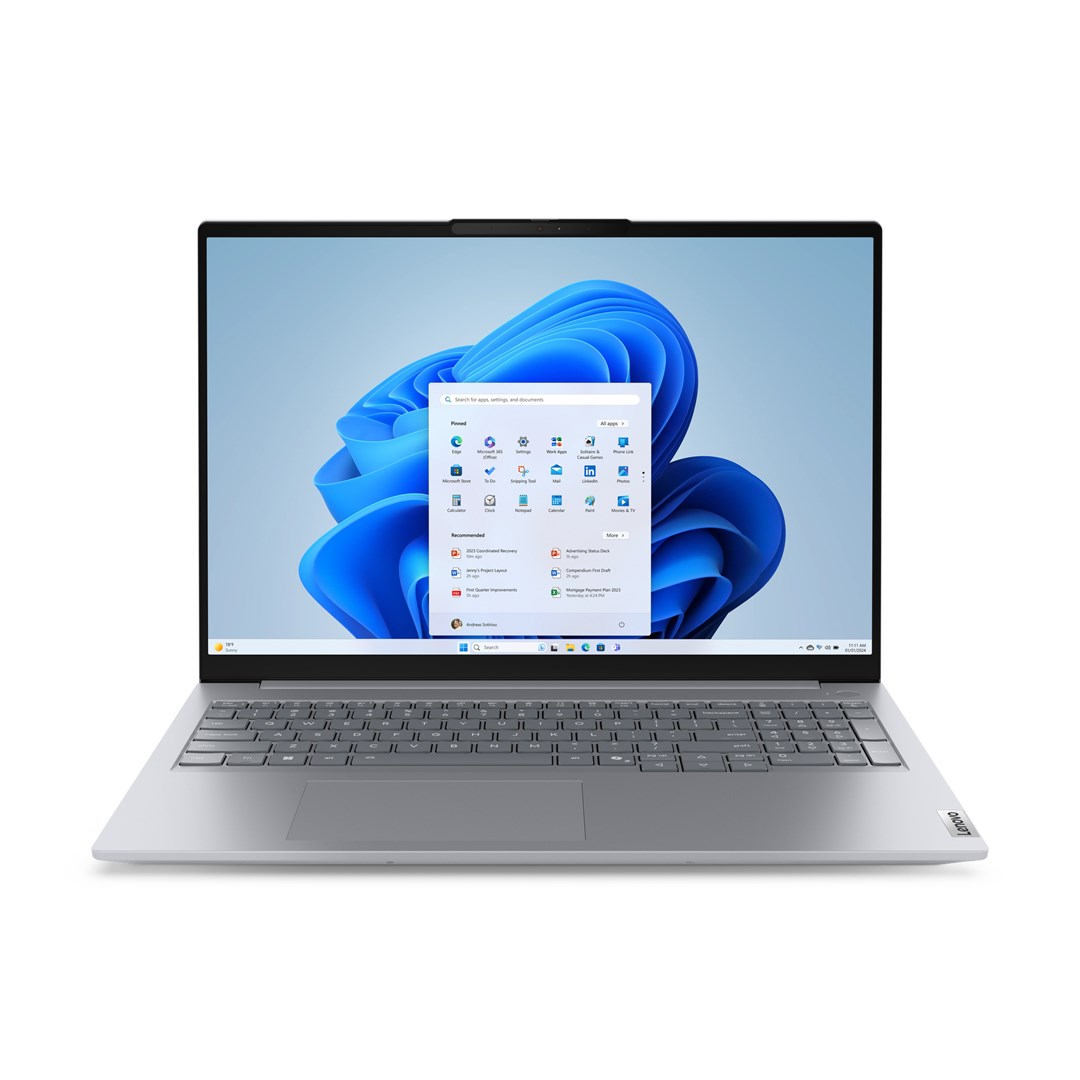

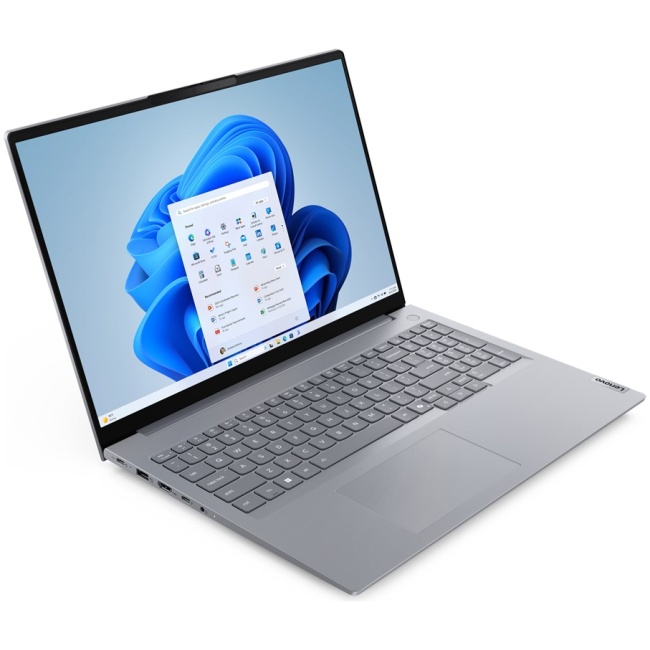

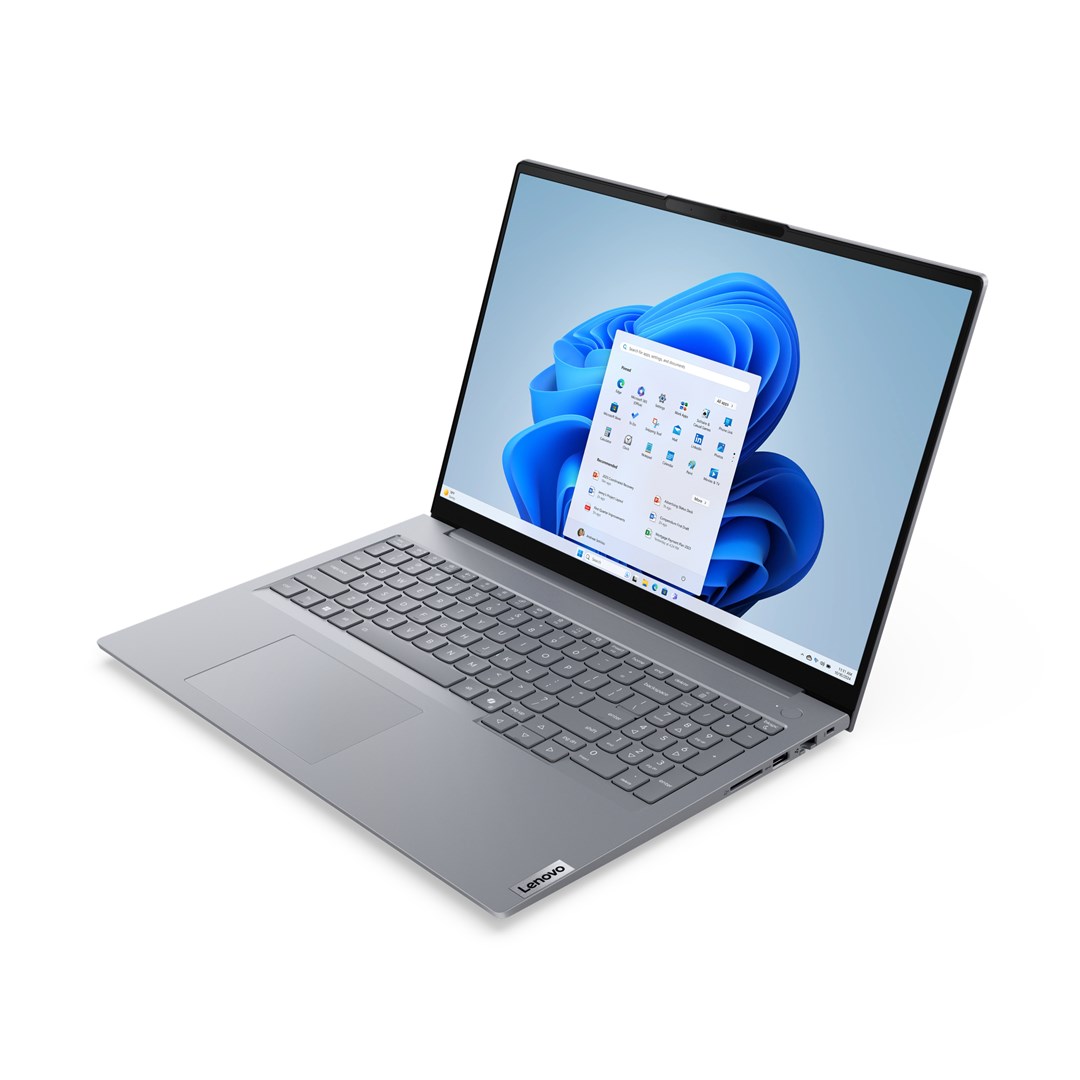

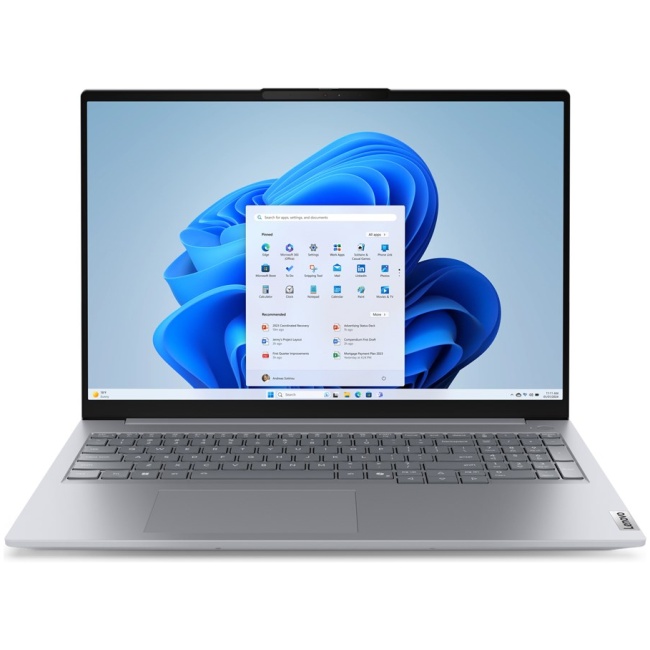

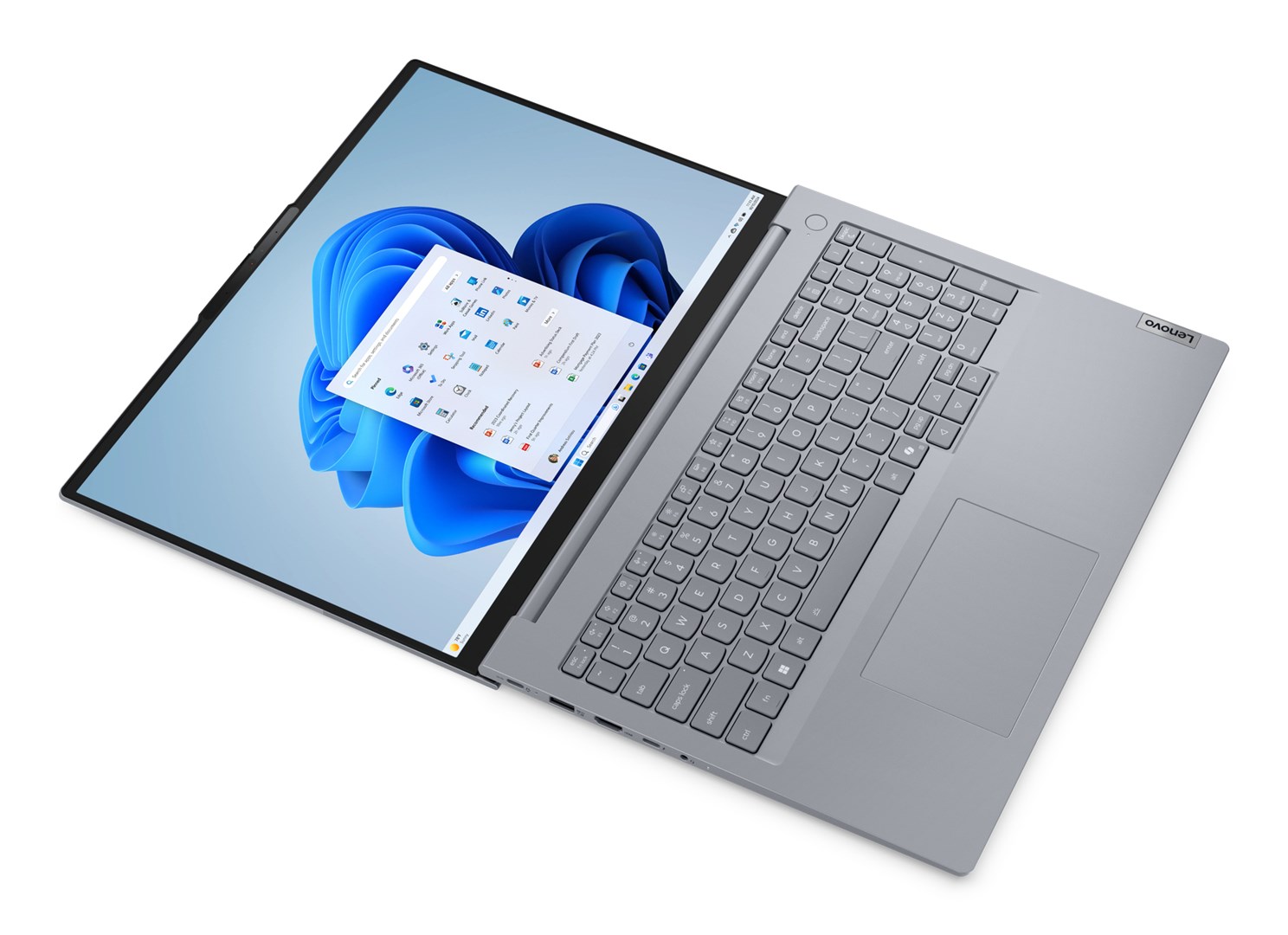

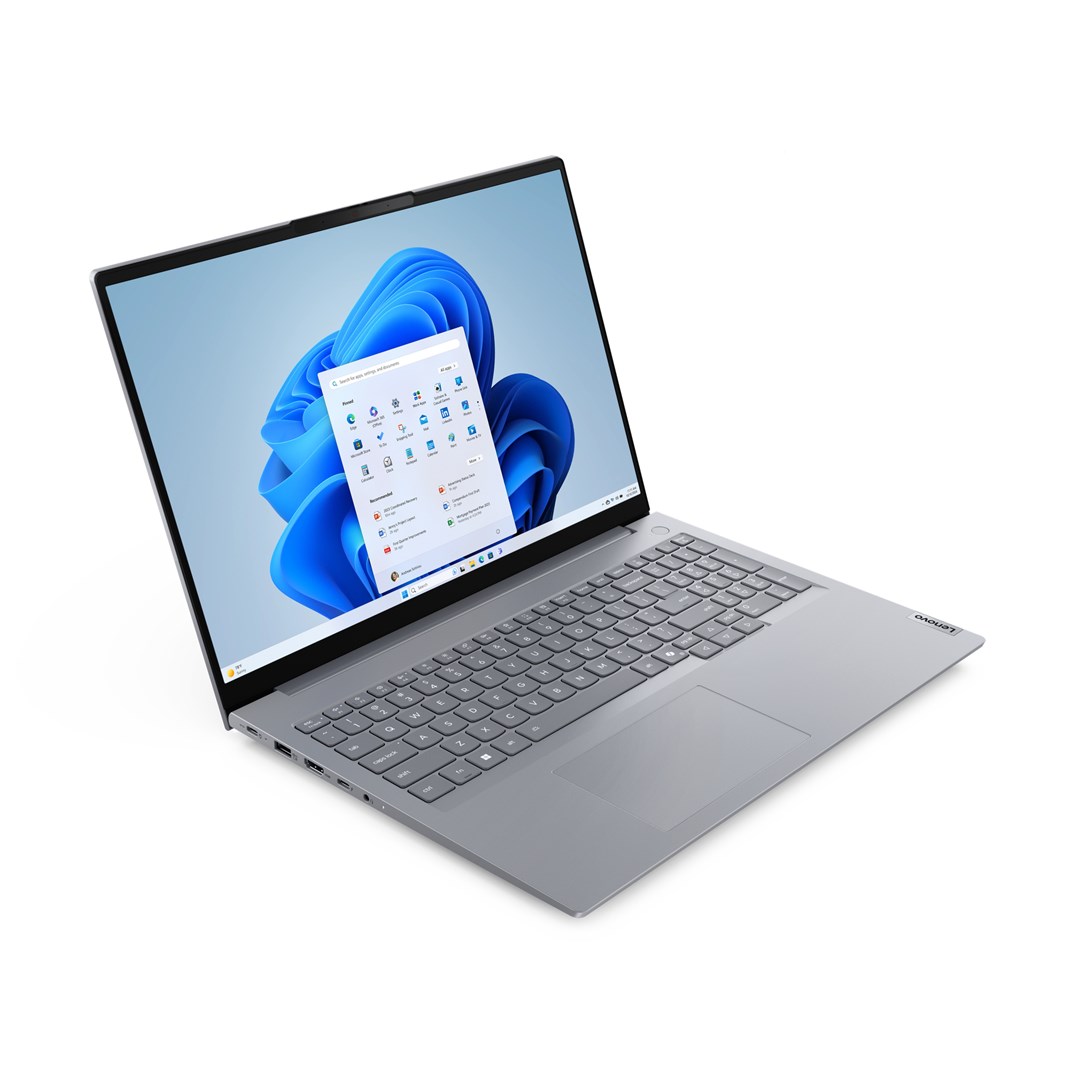

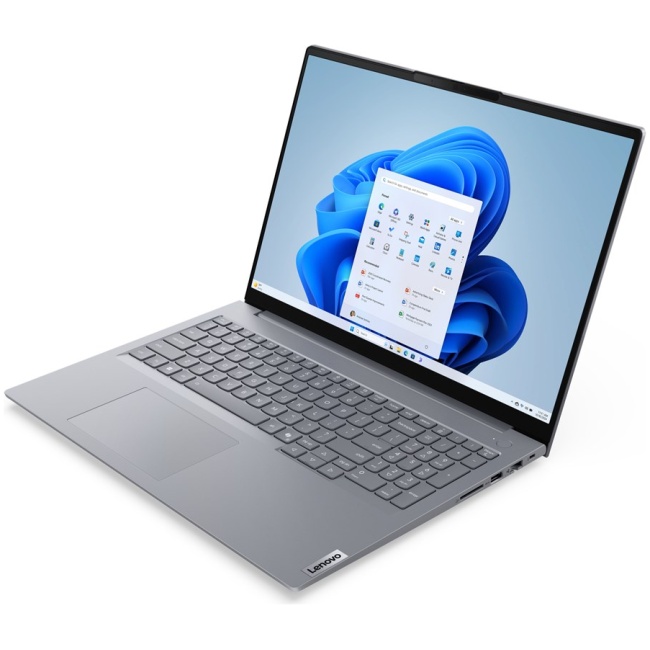

Lenovo ThinkBook 16 G8 IAL Intel Core Ultra 5 225U Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro English Grey

Technical Specifications

Processor

Performance cores: 2

Performance-core base frequency: 1.5 GHz

Efficient cores: 8

Low Power Efficient-core Base Frequency: 700 MHz

Low Power Efficient-core Max Turbo Frequency: 2.4 GHz

Efficient-core base frequency: 1.3 GHz

Low Power Efficient-cores: 2

Performance-core Max Turbo Frequency: 4.8 GHz

Processor manufacturer: Intel

Processor base power: 15 W

Graphics

Discrete graphics card model: Not available

Discrete graphics card: No

On-board graphics card family: Intel® Graphics

On-board graphics card: Yes

On-board GPU manufacturer: Intel

On-board graphics card model: Intel® Graphics

:

:

:

:

:

:

:

:

:

Memory

Maximum internal memory: 64 GB

Memory channels: Single-channel

Memory layout (slots x size): 1 x 16 GB

Memory slots: 2x SO-DIMM

Internal memory type: DDR5-SDRAM

Internal memory: 16 GB

Memory clock speed: 5600 MHz

Memory form factor: SO-DIMM

:

:

Design

Colour name: Arctic grey

Product colour: Grey

Product type: Laptop

Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Form factor: Clamshell

:

:

:

:

:

Power

USB Power Delivery (USB PD): Yes

AC adapter input voltage: 100 – 240 V

USB Type-C charging port: Yes

AC adapter power: 65 W

AC adapter frequency: 50/60 Hz

:

:

:

:

:

Security

Windows Hello: Yes

Password protection type: HDD

Trusted Platform Module (TPM): Yes

Trusted Platform Module (TPM) version: 2.0

Password protection: Yes

Fingerprint reader: Yes

Cable lock slot type: Kensington

Cable lock slot: Yes

:

:

Operational conditions

Maximum shipping altitude: 3048 m

Storage temperature (T-T): 5 – 43 °C

Operating relative humidity (H-H): 8 – 95%

Storage relative humidity (H-H): 5 – 95%

Operating temperature (T-T): 5 – 35 °C

:

:

:

:

:

Weight & dimensions

Width: 356 mm

Depth: 253.5 mm

Height: 17.5 mm

Weight: 1.7 kg

:

:

:

:

:

:

Network

Ethernet LAN data rates: 1000 Mbit/s

Mobile network connection: No

WWAN: Not installed

Bluetooth: Yes

Antenna type: 2×2

Ethernet LAN: Yes

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth version: 5.3

:

Performance

Motherboard chipset: Intel SoC

:

:

:

:

:

:

:

:

:

Packaging content

AC adapter included: Yes

:

:

:

:

:

:

:

:

:

Display

LED backlight: Yes

Maximum refresh rate: 60 Hz

Anti-glare screen: Yes

Display diagonal: 40.6 cm (16")

Colour gamut: 45%

Display resolution:

Display resolution: 1920 x 1200 pixels

RGB colour space: NTSC

Contrast ratio (typical): 1000:1

Panel type: IPS

Display brightness: 300 cd/m²

Touchscreen: No

HD type: WUXGA

Native aspect ratio: 16:10

:

:

Software

Operating system language: French

Trial software: Office

Operating system architecture: 64-bit

Operating system installed: Windows 11 Pro

:

:

:

:

:

:

Audio

Number of microphones: 2

Speaker power: 2 W

Number of built-in speakers: 2

Audio chip: Realtek ALC3287

Audio system: Dolby Audio

Built-in microphone: Yes

:

:

:

:

Certificates

Compliance certificates: RoHS

:

:

:

:

:

:

:

:

:

Storage

SSD interface: PCI Express 4.0

Number of SSDs installed: 1

Total SSDs capacity: 512 GB

Card reader integrated: Yes

Total storage capacity: 512 GB

SSD form factor: M.2

Compatible memory cards: SD

Storage media: SSD

NVMe: Yes

SSD capacity: 512 GB

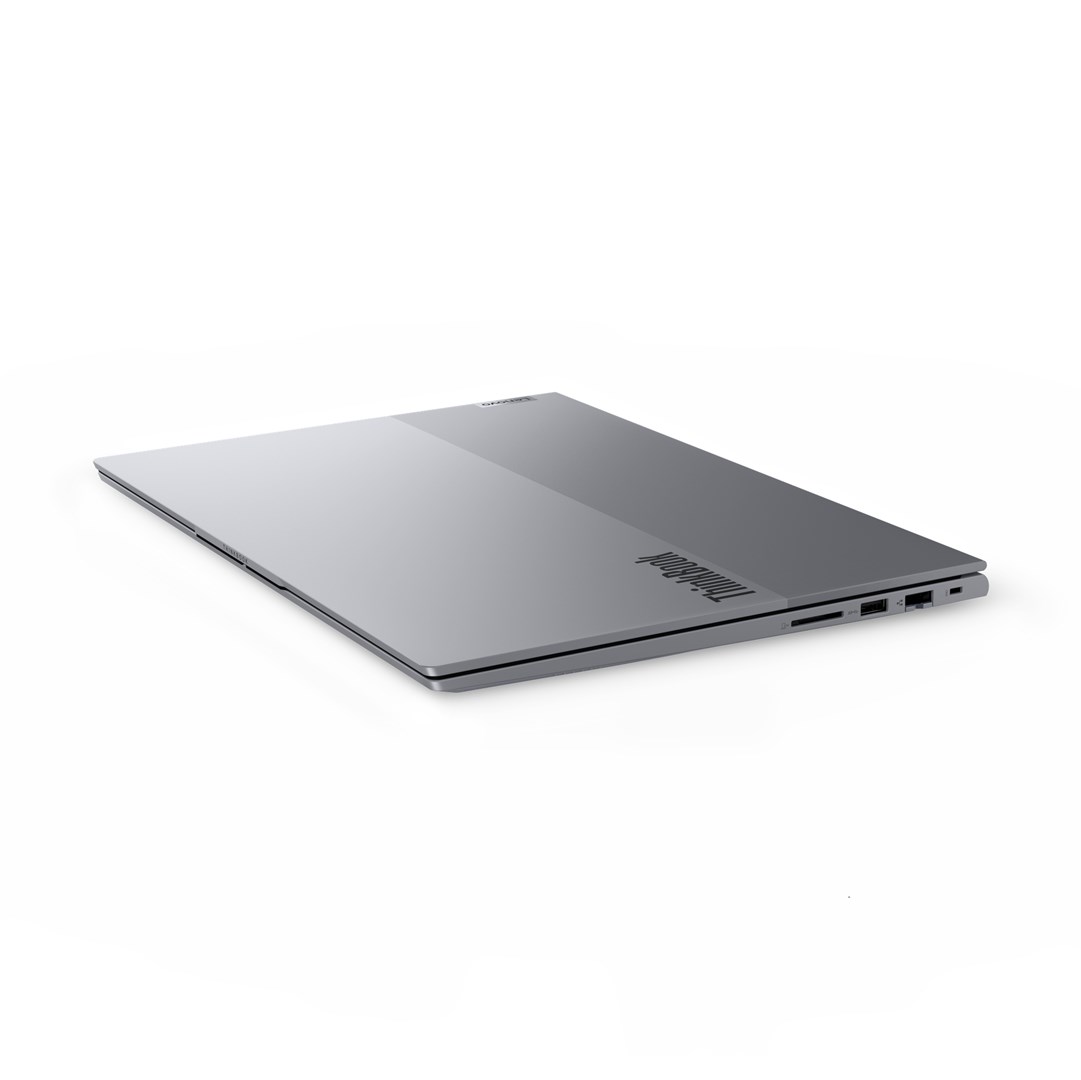

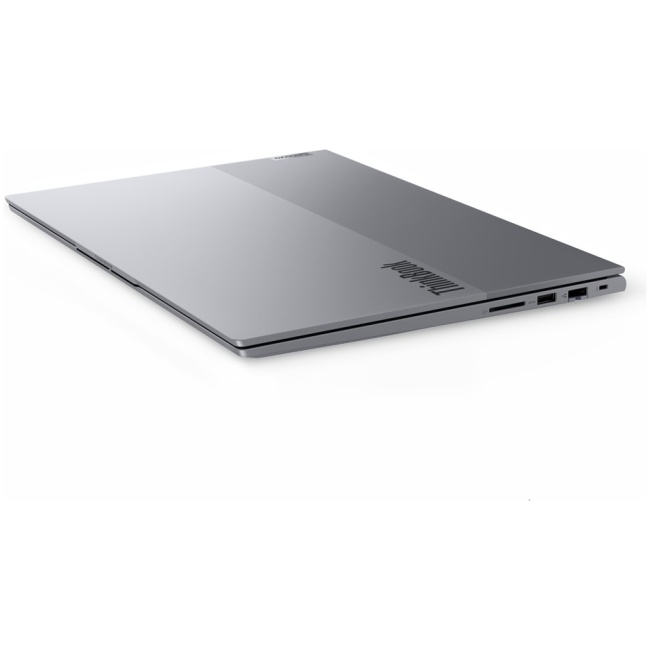

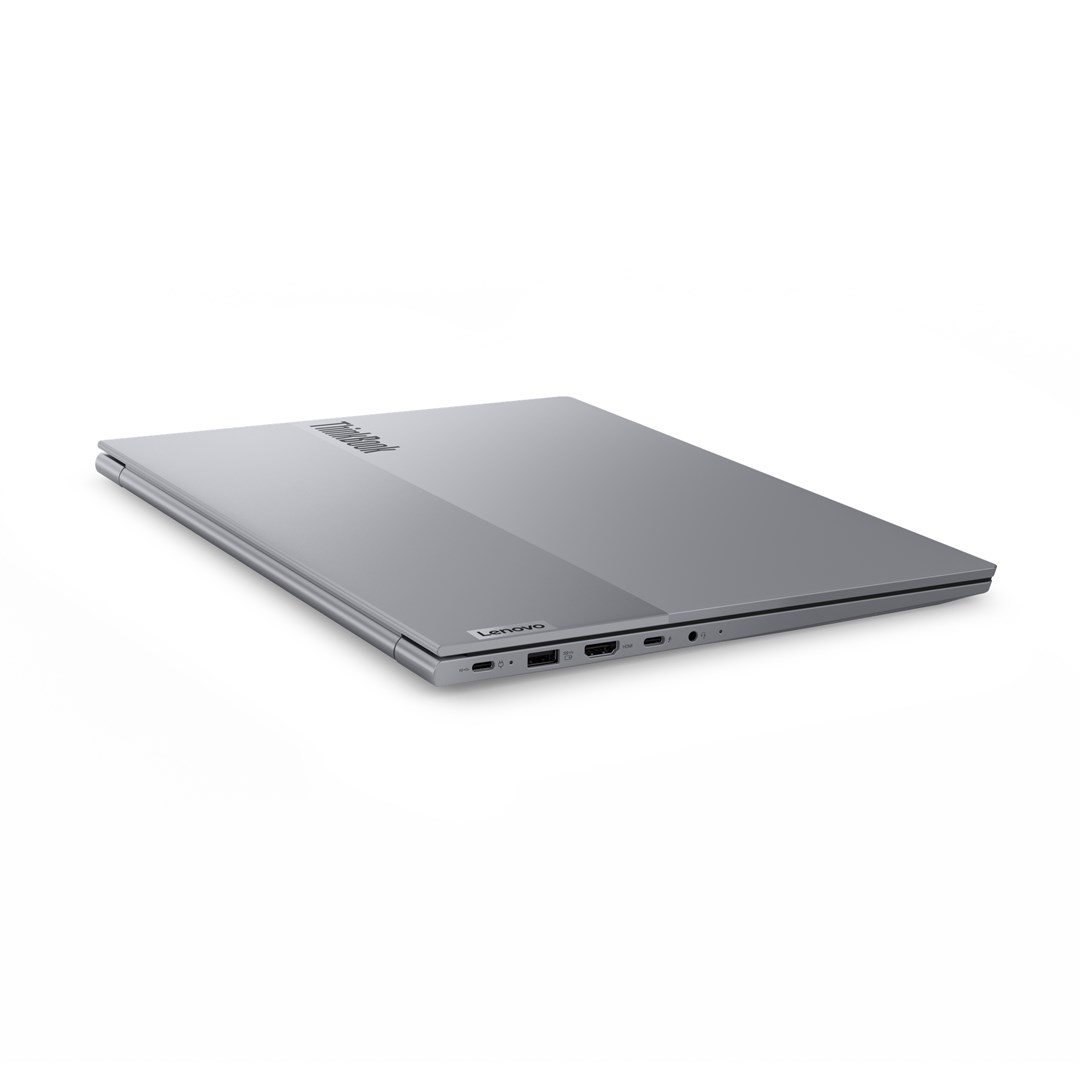

Ports & interfaces

USB Sleep-and-Charge: Yes

USB Type-C DisplayPort Alternate Mode: Yes

USB Sleep-and-Charge ports: 1

Thunderbolt 4 ports quantity: 1

Intel® Thunderbolt 4: Yes

HDMI ports quantity: 1

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Camera

Privacy camera: Yes

Front camera resolution: 1920 x 1080 pixels

Front camera HD type: Full HD

Infrared (IR) camera: Yes

Privacy type: Privacy shutter

Front camera: Yes

:

:

:

:

Battery

Battery life (max): 7.7 h

Fast charging time (50%): 30 min

Continuous video playback time: 13.1 h

Fast charging: Yes

Battery technology: Lithium Polymer (LiPo)

Battery capacity: 45 Wh

:

:

:

:

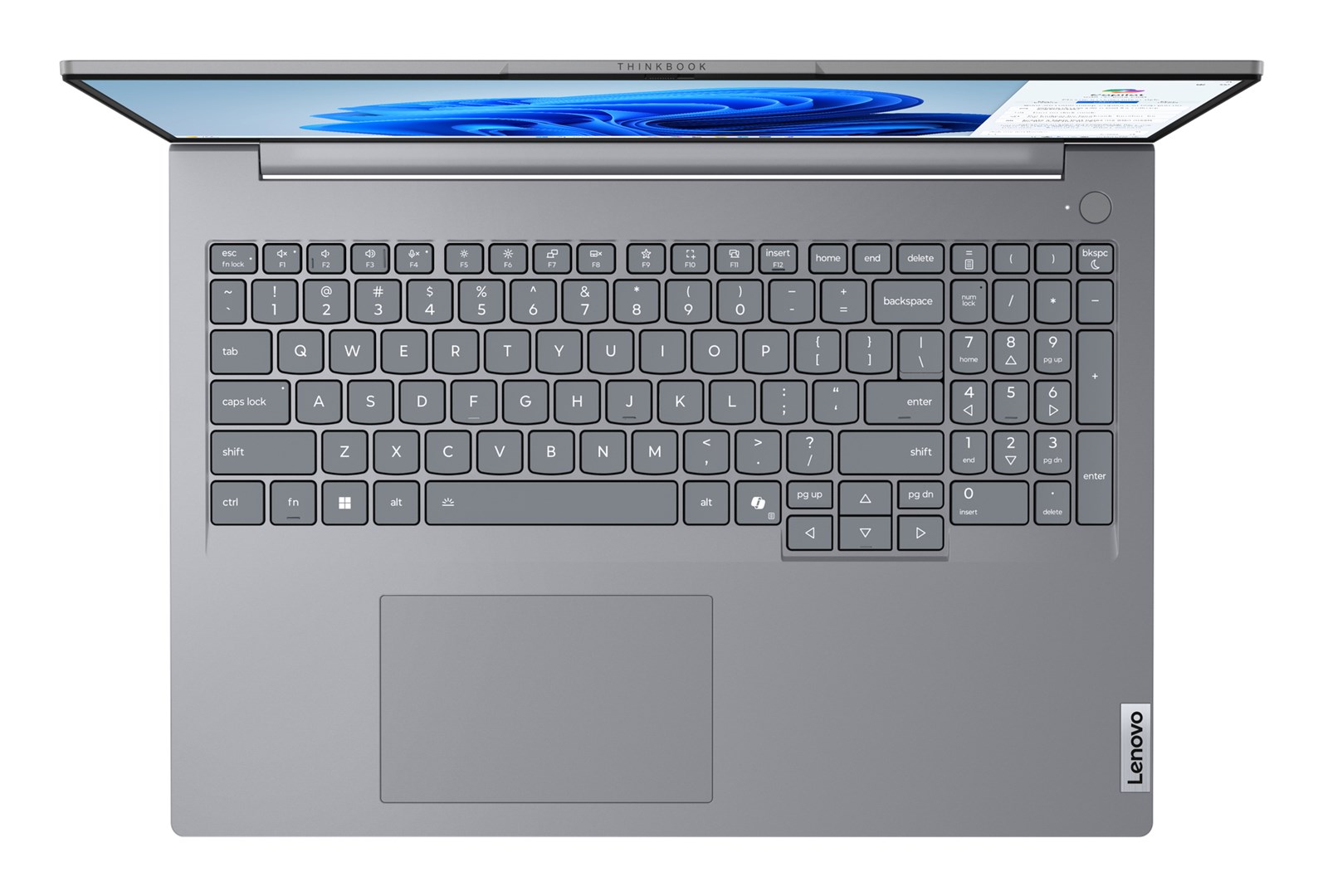

Keyboard

Spill-resistant keyboard: Yes

Copilot key: Yes

Keyboard backlit: Yes

Keyboard language: English

Pointing device: Touchpad

Numeric keypad: Yes

:

:

:

:

Sustainability

Sustainability certificates: EPEAT Gold

:

:

:

:

:

:

:

:

:

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost

AI software frameworks supported by NPU: Windows ML

Windows Studio effects support: Yes

Sparsity support: Yes

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
