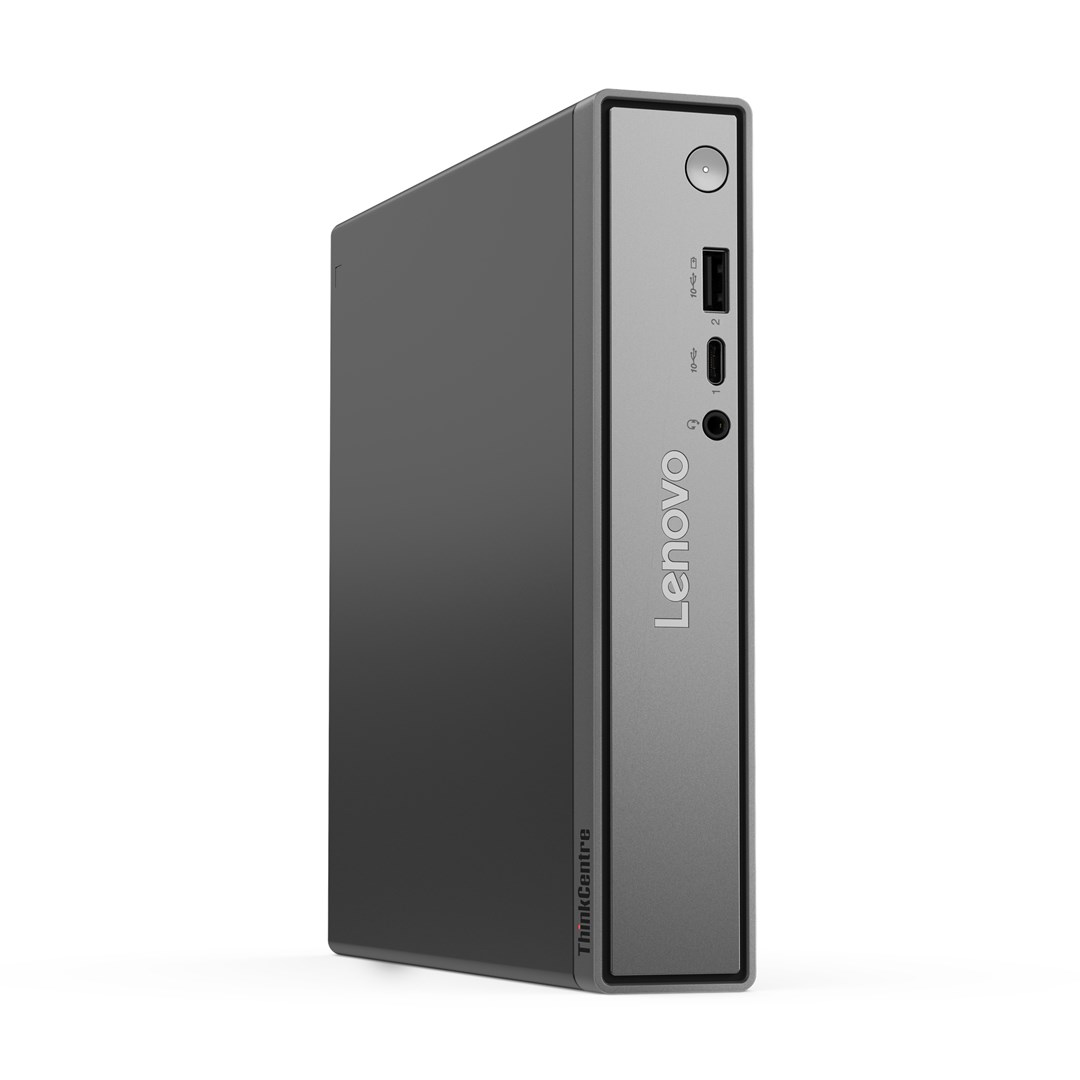

Lenovo ThinkCentre neo 50q Gen 5 Intel® Core™ i3 i3-1315U 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC PC Black

Technical Specifications

Processor

Performance-core Max Turbo Frequency: 4.5 GHz

Efficient-core Max Turbo Frequency: 3.3 GHz

Processor generation: Intel Core i3-13xxx

Processor cores: 6

Processor base power: 15 W

Performance cores: 2

Processor manufacturer: Intel

Efficient cores: 4

Processor cache type: Smart Cache

Processor threads: 8

Graphics

Discrete graphics card: No

On-board GPU manufacturer: Intel

On-board graphics card: Yes

On-board graphics card model: Intel® UHD Graphics

On-board graphics card family: Intel® UHD Graphics

Discrete graphics card model: Not available

:

:

:

:

:

:

:

:

:

Memory

Internal memory type: DDR5-SDRAM

Memory slots: 2x SO-DIMM

Memory clock speed: 5600 MHz

Internal memory: 16 GB

Memory channels: Dual-channel

Memory layout (slots x size): 1 x 16 GB

Maximum internal memory: 64 GB

:

:

:

Design

Volume: 1 L

Cable lock slot type: Kensington

Cable lock slot: Yes

Chassis type: Mini PC

Placement supported: Horizontal/Vertical

Colour name: black

Product colour: Black

:

:

:

Power

Power supply: 65 W

:

:

:

:

:

:

:

:

:

Operational conditions

Operating temperature (T-T): 5 – 35 °C

Operating relative humidity (H-H): 20 – 80%

Storage temperature (T-T): -40 – 60 °C

Operating altitude: 0 – 3048 m

Storage relative humidity (H-H): 10 – 90%

Non-operating altitude: 0 – 12192 m

:

:

:

:

Weight & dimensions

Depth: 182.9 mm

Weight: 1.13 kg

Package depth: 250 mm

Package weight: 2.03 kg

Package width: 240 mm

Width: 179 mm

Height: 34.5 mm

Package height: 186 mm

:

:

Network

Ethernet LAN: Yes

Wi-Fi: Yes

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Bluetooth version: 5.3

Cabling technology: 10/100/1000Base-T(X)

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

WLAN controller model: Intel Wi-Fi 6E AX211

Ethernet LAN data rates: 100

Bluetooth: Yes

WLAN controller manufacturer: Intel

Performance

Fingerprint reader: No

Built-in speaker(s): Yes

Audio system: High Definition Audio

Password protection type: BIOS

Number of speakers: 1

Trusted Platform Module (TPM) version: 2.0

Product type: PC

Password protection: Yes

Motherboard chipset: Intel SoC

Audio chip: Realtek ALC256

Packaging content

Keyboard included: Yes

Mouse included: Yes

Mouse connectivity: Wired

Keyboard connectivity: Wired

:

:

:

:

:

:

Display

Display included: No

:

:

:

:

:

:

:

:

:

Software

Operating system installed: Windows 11 Pro

Operating system language: English

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Certificates

Compliance certificates: RoHS

:

:

:

:

:

:

:

:

:

Storage

M.2 SSD size: 2280 (22 x 80 mm)

Number of storage drives installed: 1

Total SSDs capacity: 512 GB

SSD interface: PCI Express 4.0

SSD capacity: 512 GB

NVMe: Yes

SSD form factor: M.2

Total storage capacity: 512 GB

Storage media: SSD

Card reader integrated: No

Ports & interfaces

Combo headphone/mic port: Yes

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

DisplayPorts quantity: 1

DisplayPort version: 1.4b

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

:

Sustainability

Sustainability certificates: ENERGY STAR

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
