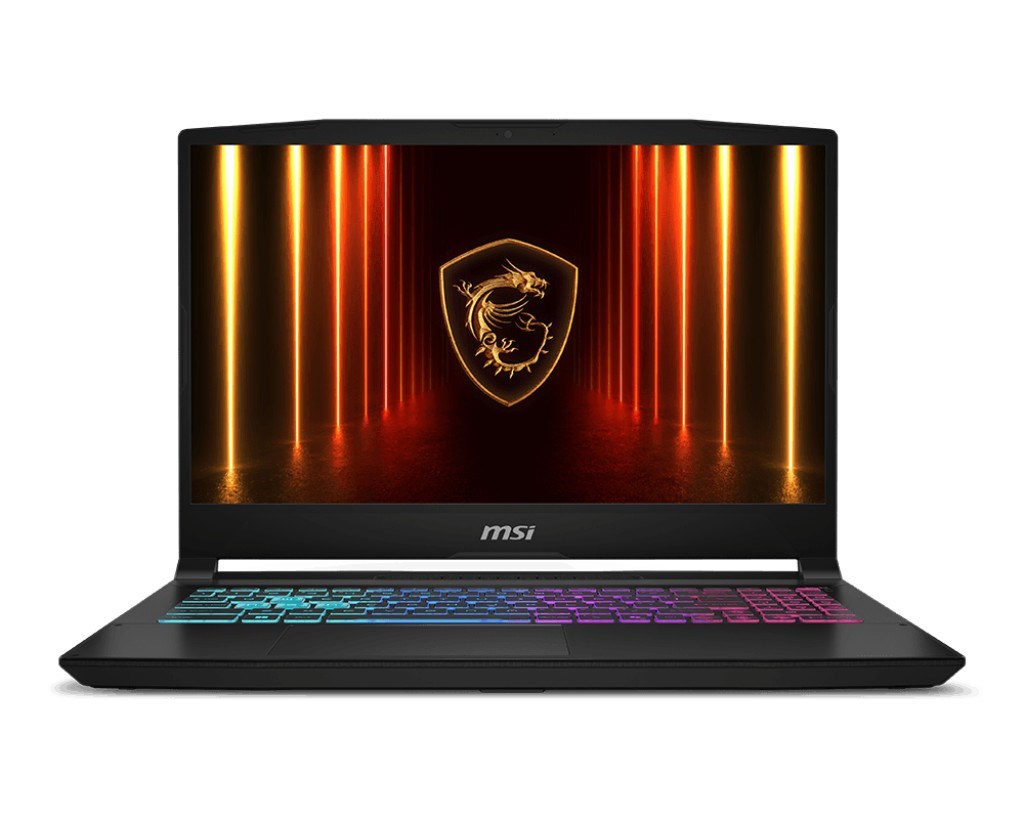

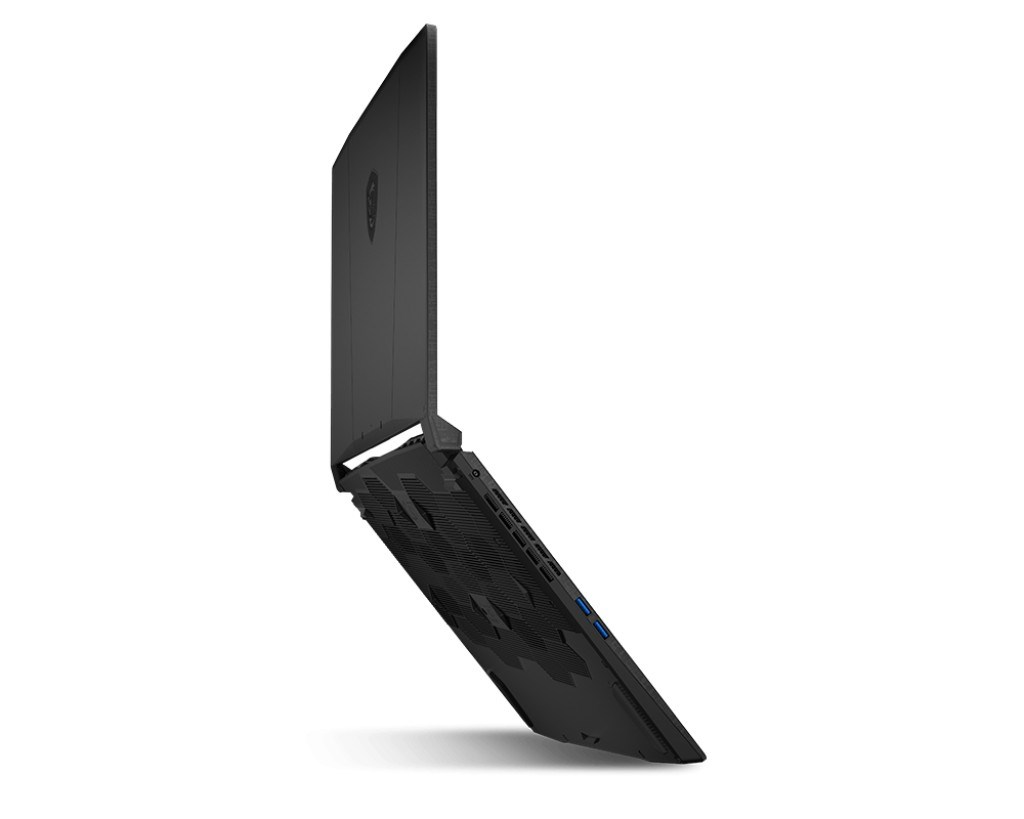

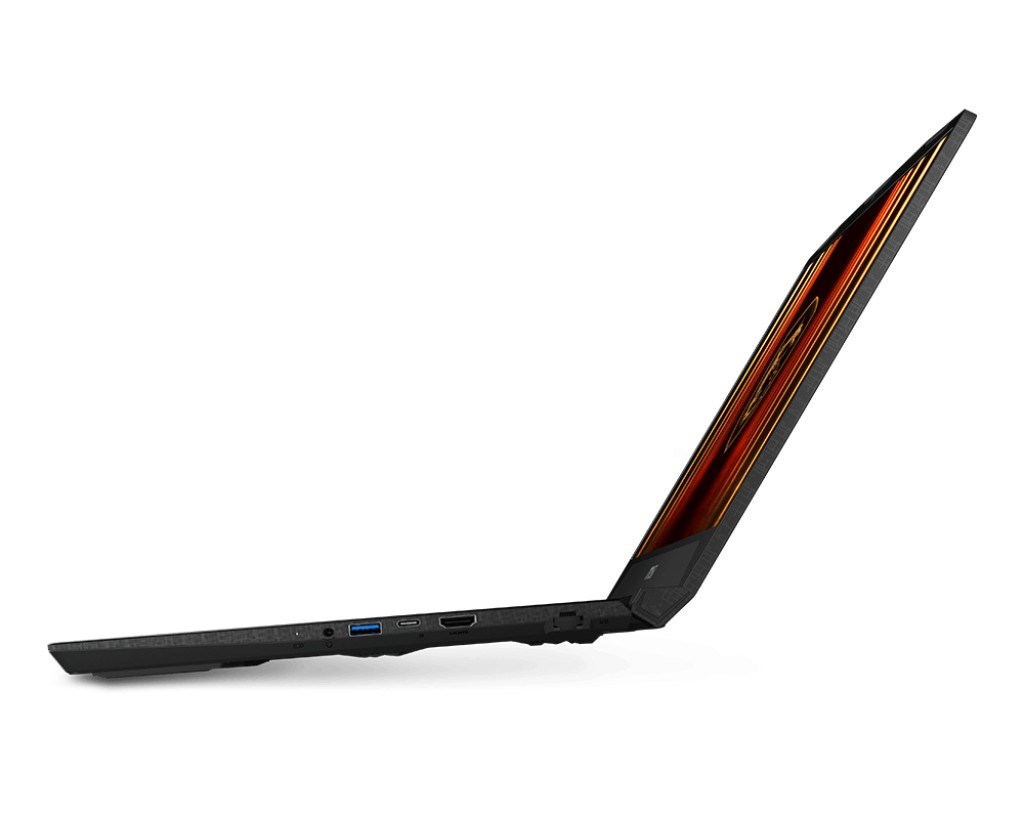

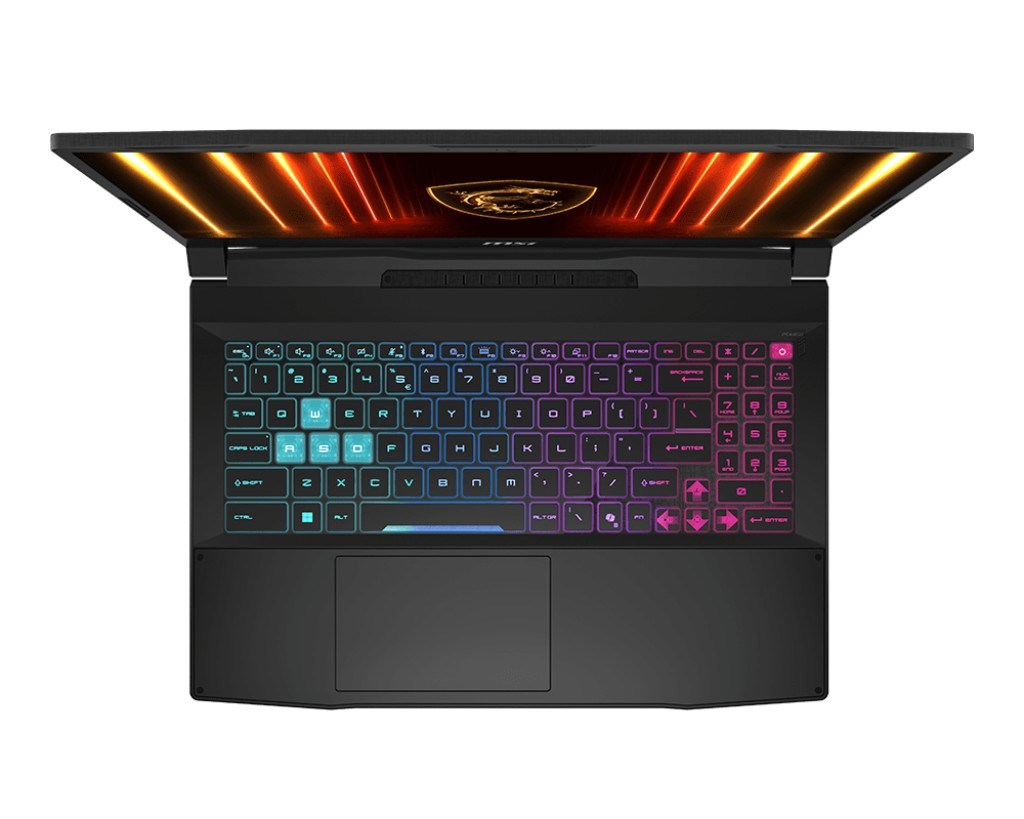

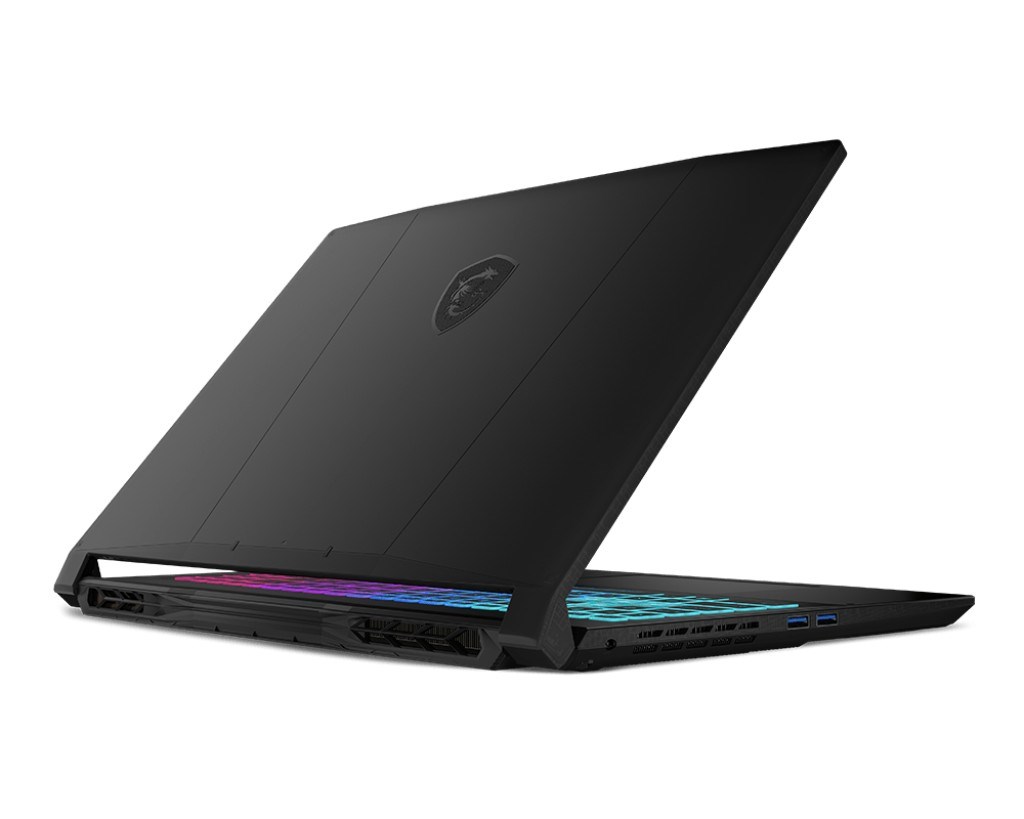

MSI Katana 15 HX B14WEK-060XPL i7-14650HX 15.6" QHD 165Hz 16GB DDR5 SSD512 GeForce RTX 5050 8GB NoOS

Technical Specifications

Processor

Processor boost frequency: 5.2 GHz

Processor manufacturer: Intel

Processor cores: 16

Processor cache type: Smart Cache

Processor model: i7-14650HX

Processor generation: Intel® Core™ i7 (14th gen)

Processor base power: 55 W

Performance cores: 8

Efficient-core Max Turbo Frequency: 3.7 GHz

Efficient cores: 8

Graphics

Discrete graphics card: Yes

Discrete graphics card model: NVIDIA® GeForce RTX™ 5050

Discrete GPU manufacturer: NVIDIA

Discrete graphics card memory: 8 GB

Discrete graphics memory type: GDDR7

:

:

:

:

:

:

:

:

:

:

Memory

Memory clock speed: 5600 MHz

Internal memory: 16 GB

Internal memory type: DDR5-SDRAM

Maximum internal memory: 96 GB

Memory layout (slots x size): 2 x 8 GB

Memory slots: 2x SO-DIMM

:

:

:

:

Design

Product type: Laptop

Product colour: Black

Motherboard chipset: Intel HM770

Original brand name: MSI

:

:

:

:

:

:

Power

Power supply unit (PSU) capacity: 240 W

USB Power Delivery (USB PD): Yes

USB Type-C charging port: Yes

:

:

:

:

:

:

:

Security

Trusted Platform Module (TPM): Yes

Trusted Platform Module (TPM) version: 2.0

:

:

:

:

:

:

:

:

Weight & dimensions

Width: 359 mm

Height: 25.5 mm

Depth: 262 mm

Weight: 2.4 kg

:

:

:

:

:

:

Network

WLAN controller manufacturer: Intel

Ethernet LAN data rates: 1000 Mbit/s

Bluetooth: Yes

Bluetooth version: 5.3

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

WLAN controller model: Intel Wi-Fi 6E AX211

Wi-Fi standards: Wi-Fi 6E (802.11ax)

:

:

Display

Colour gamut: 100%

Display diagonal: 39.6 cm (15.6")

Native aspect ratio: 16:9

Display resolution: 2560 x 1440 pixels

Maximum refresh rate: 165 Hz

RGB colour space: DCI-P3

Anti-glare screen: Yes

HD type: QHD

Panel type: IPS-Level

:

Software

Operating system installed: No

:

:

:

:

:

:

:

:

:

Audio

Speakers manufacturer: Nahimic

Number of built-in speakers: 2

Speaker power: 2 W

:

:

:

:

:

:

:

Storage

Total SSDs capacity: 512 GB

SSD capacity: 512 GB

Storage media: SSD

Total storage capacity: 512 GB

SSD form factor: M.2

Number of SSDs installed:

Number of SSDs installed: 1

NVMe: Yes

SSD interface: PCI Express 4.0

:

:

:

:

:

:

:

Ports & interfaces

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB Type-C DisplayPort Alternate Mode: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

Combo headphone/mic port: Yes

:

:

:

Camera

Front camera: Yes

Front camera HD type: HD

Video capturing speed: 30 fps

Front camera resolution: 1280 x 720 pixels

:

:

:

:

:

:

Battery

Number of battery cells: 4

Battery capacity: 75 Wh

:

:

:

:

:

:

:

:

Keyboard

Keyboard backlit colour: RGB

Copilot key: Yes

Keyboard backlit zone: 4-zone RGB

Numeric keypad: Yes

Keyboard backlit: Yes

Pointing device: Touchpad

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
