Adastra Touch Wall Plate for RZ45 Matrix 953.050UK

SKU: 20552

€ 61,00

Brand
Amplifier Type

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Pay in instalments with nxtEasyPay

Split any order over €200 into 6 or 12 equal monthly payments. Terms apply. How nxtEasyPay works

Description

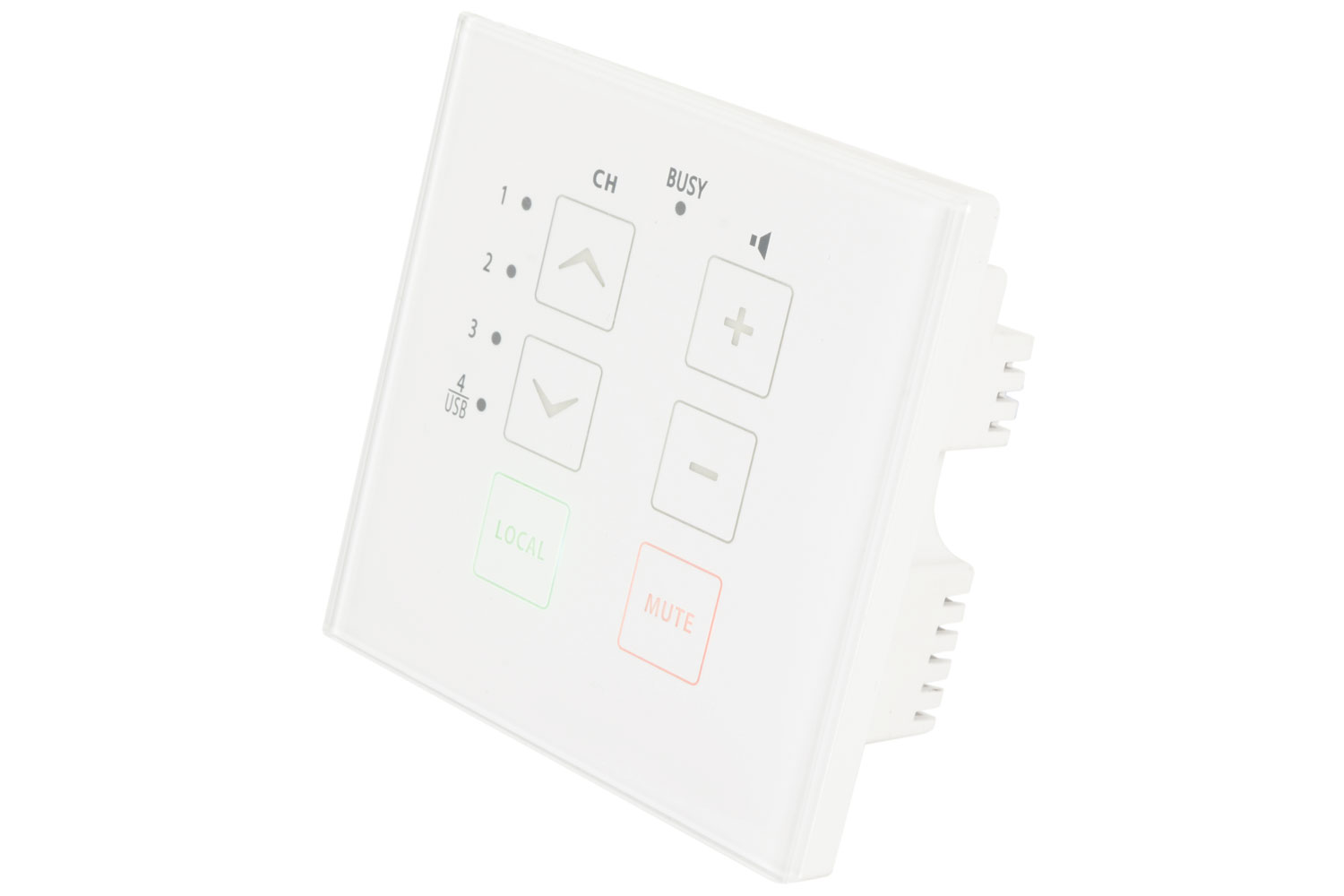

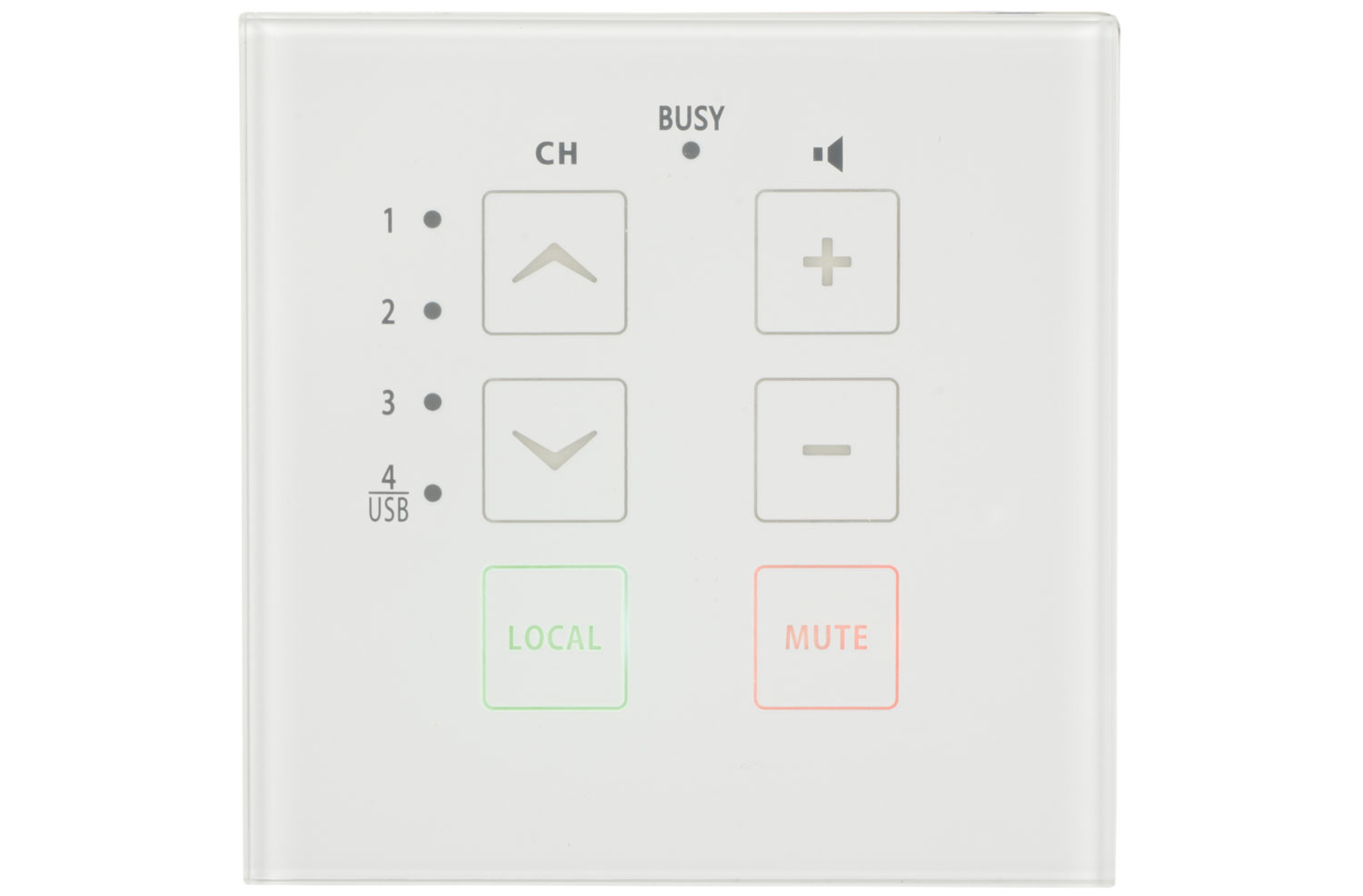

Remote control for the RZ45 audio matrix system built into a single gang 86 x 86mm wall plate. The illuminated acrylic touch-operated surface selects between 3 stereo audio sources or the inbuilt media player on the RZ45 and controls the output level to its zone. Connection by standard network cable carries signal and power to the TR86 panel up to 100m away from the RZ45 or signal up to 1km away with a separate 24Vdc power input. Additionally, a mono line level signal can be wired internally to the panel via screw terminals to provide an independent local audio source. Up to 5 TR86 remote panels may be used with a single RZ45 unit controlling up to 5 independent zones.

  • Hygienic acrylic touch operated surface
  • Illuminated with colour coded indicators
  • Easy installation via RJ45 connection
  • Up to 5 remote panels per RZ45 audio matrix
  • Up to 100m powered directly from RZ45 or 1km with +24V power

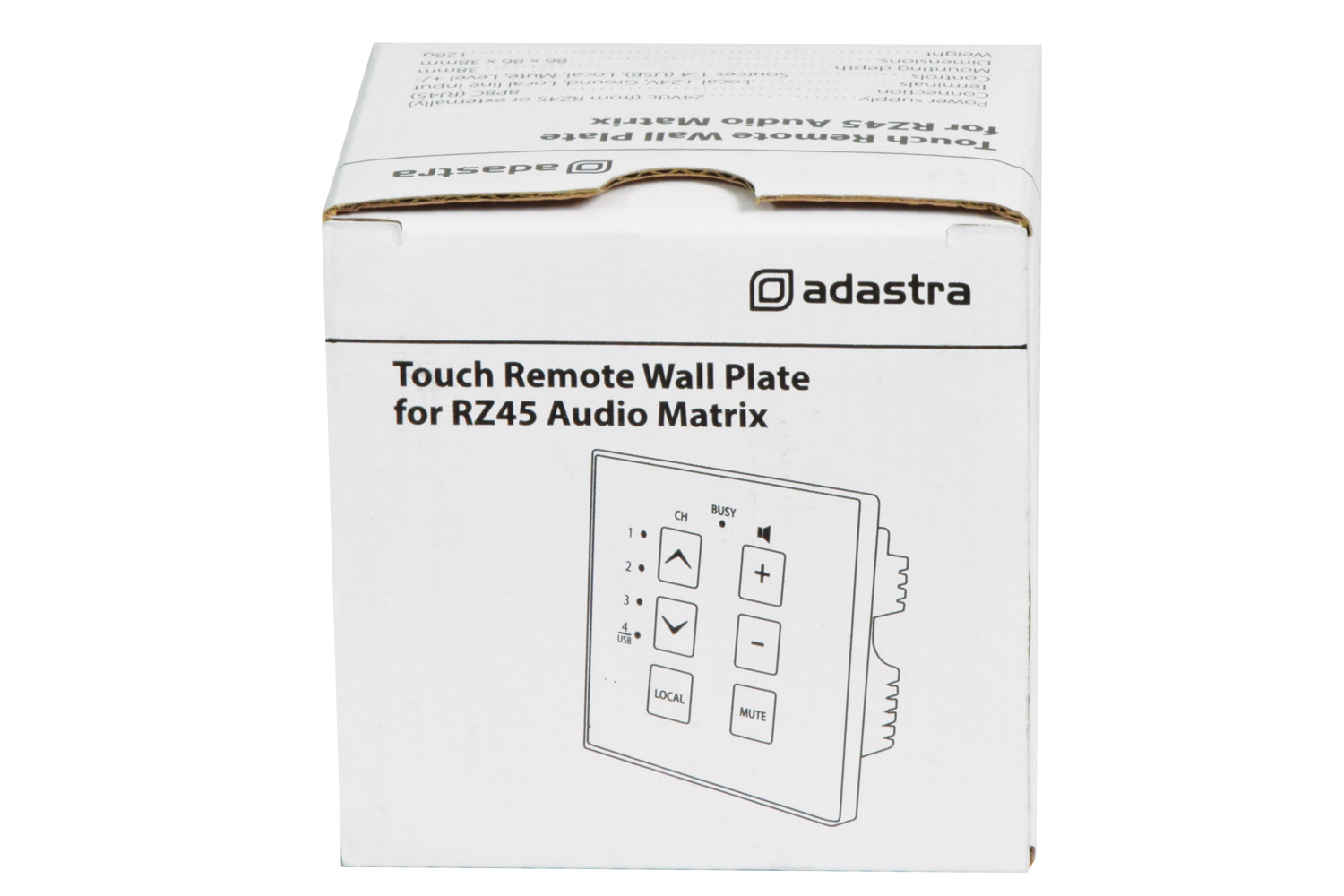

The box for this item contains:

  • TR86 remote control wall plate

—

  • Power supply: 24Vdc (from RZ45 or externally)
  • Connection: 8P8C (RJ45)

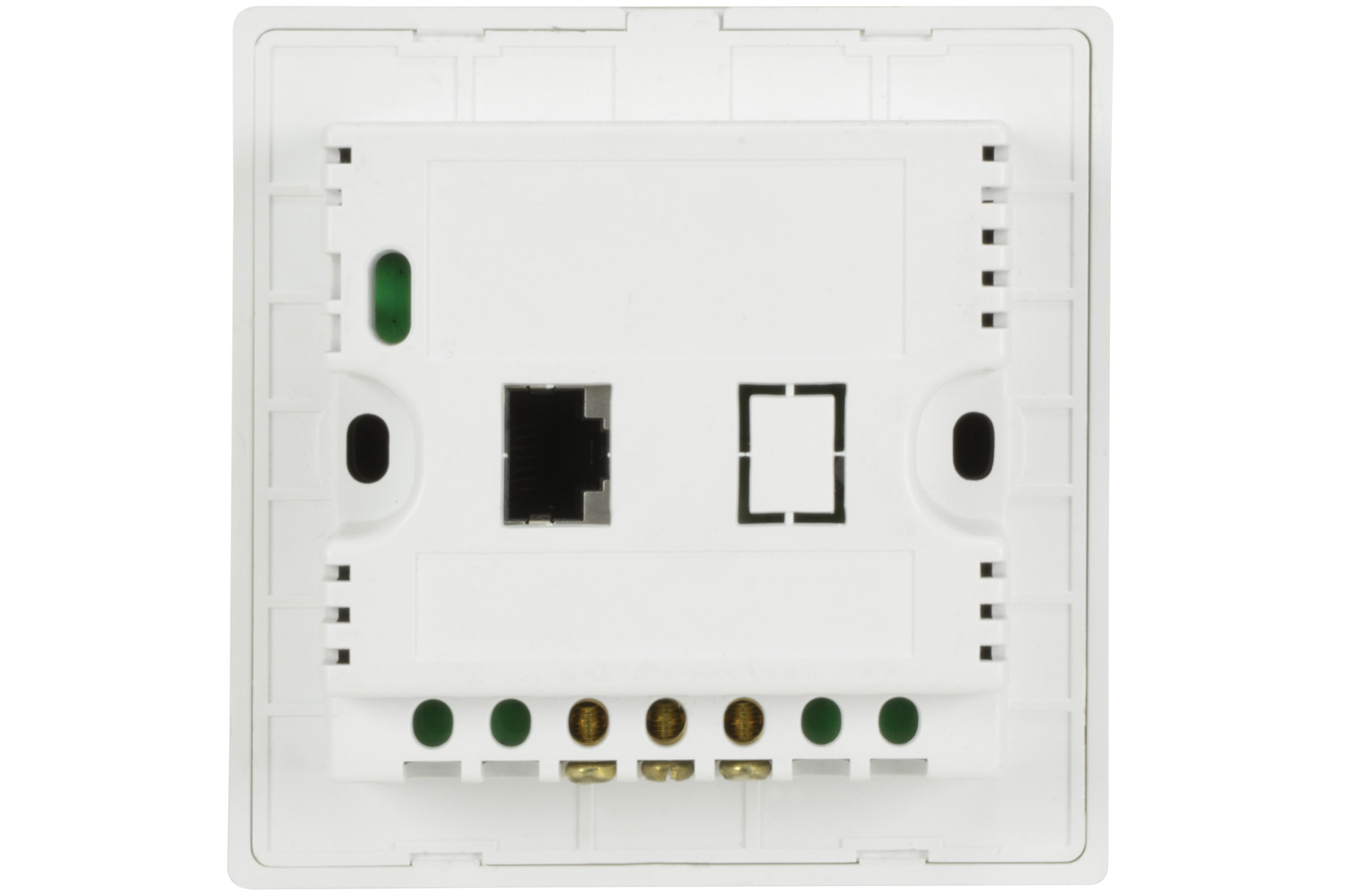

  • Terminals: Local +24V, Ground, Local line input
  • Controls: Sources 1-4 (USB), Local, Mute, Level +/-
  • Mounting depth: 38mm
  • Dimensions: 86 x 86 x 38mm
  • Weight: 128g

—
