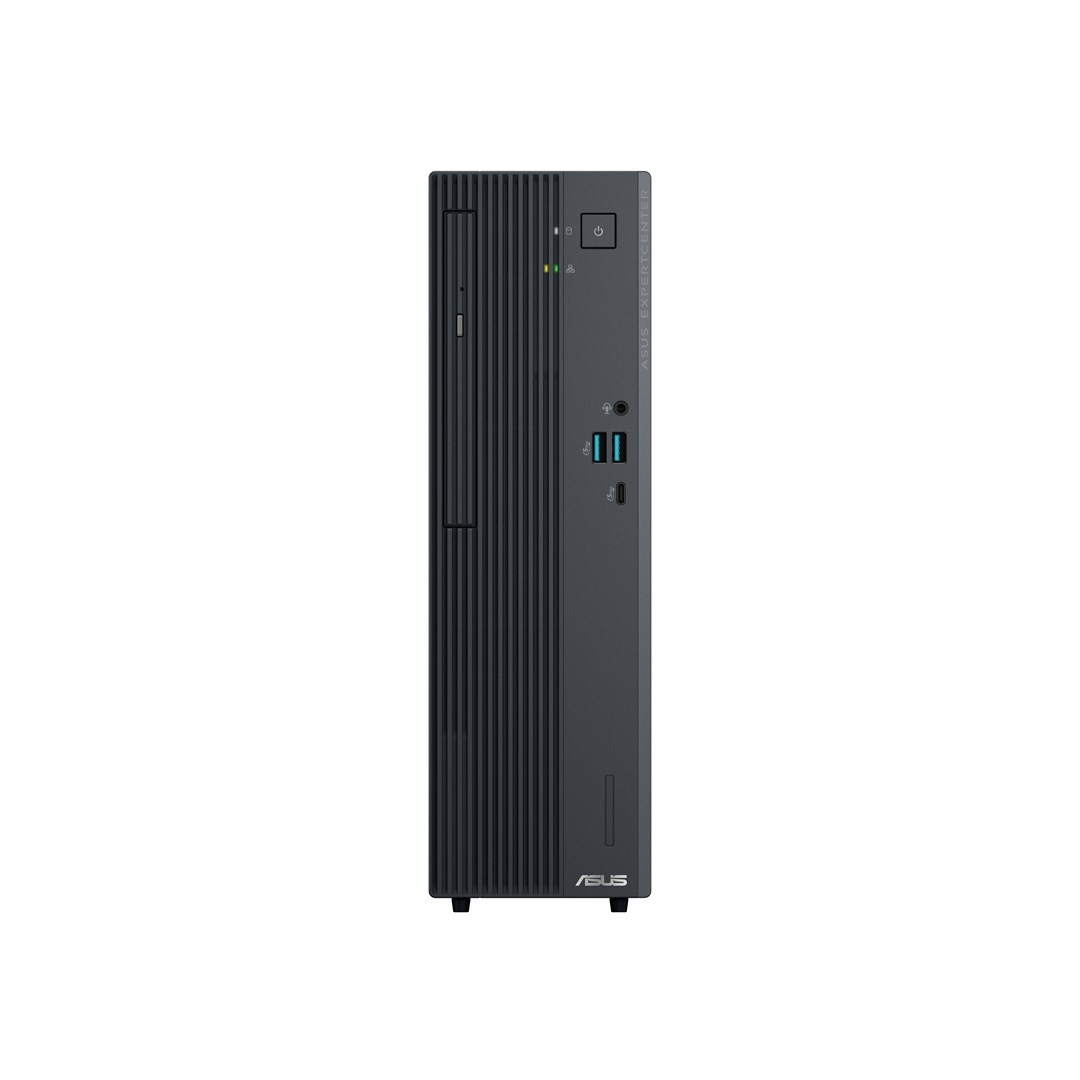

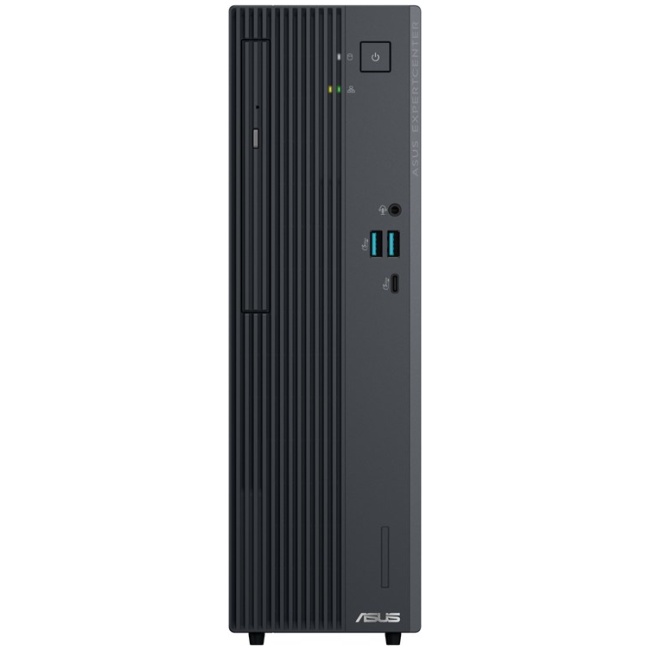

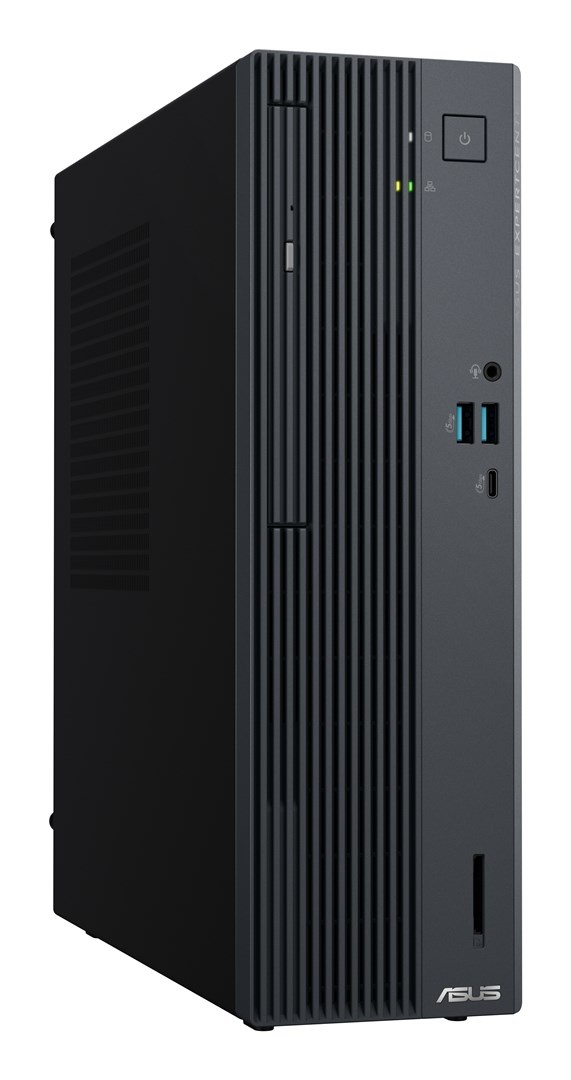

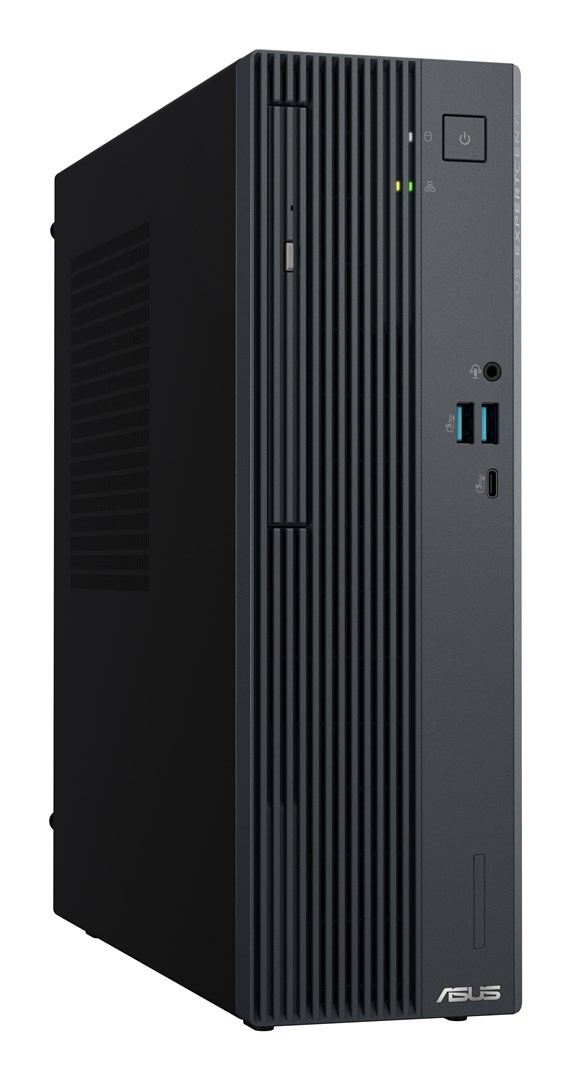

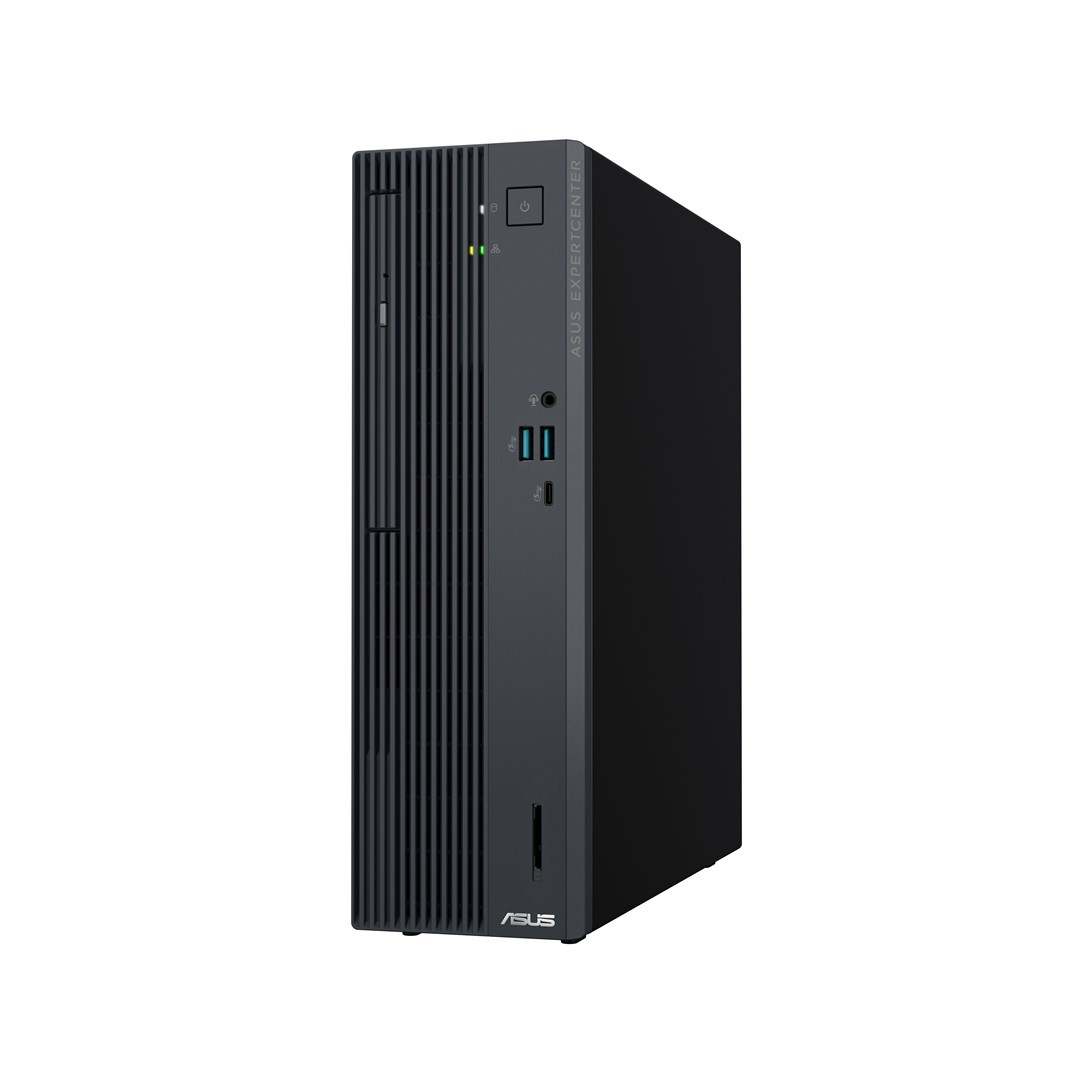

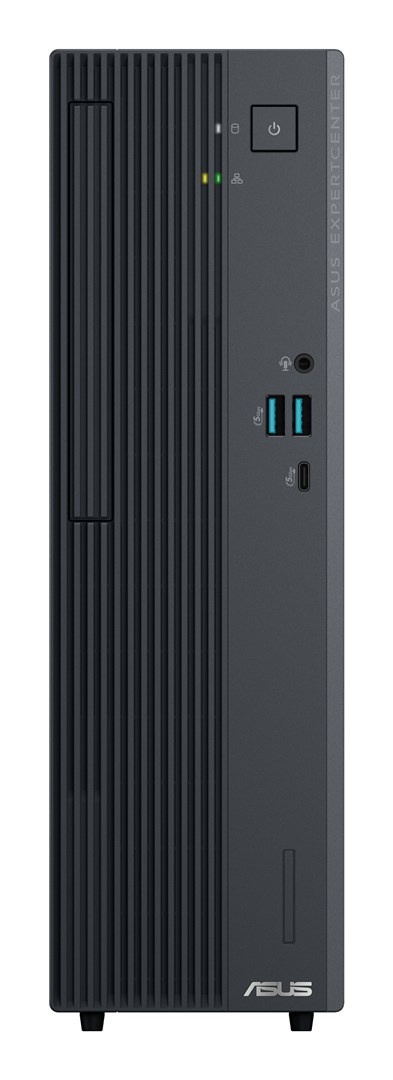

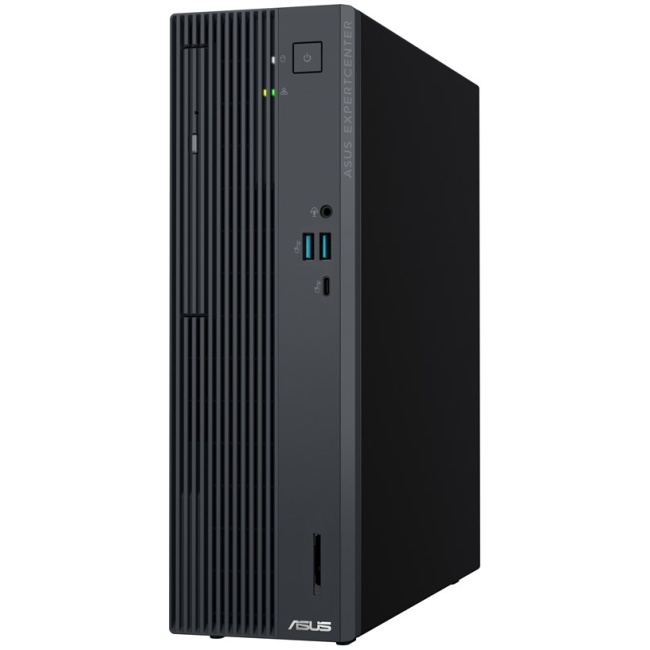

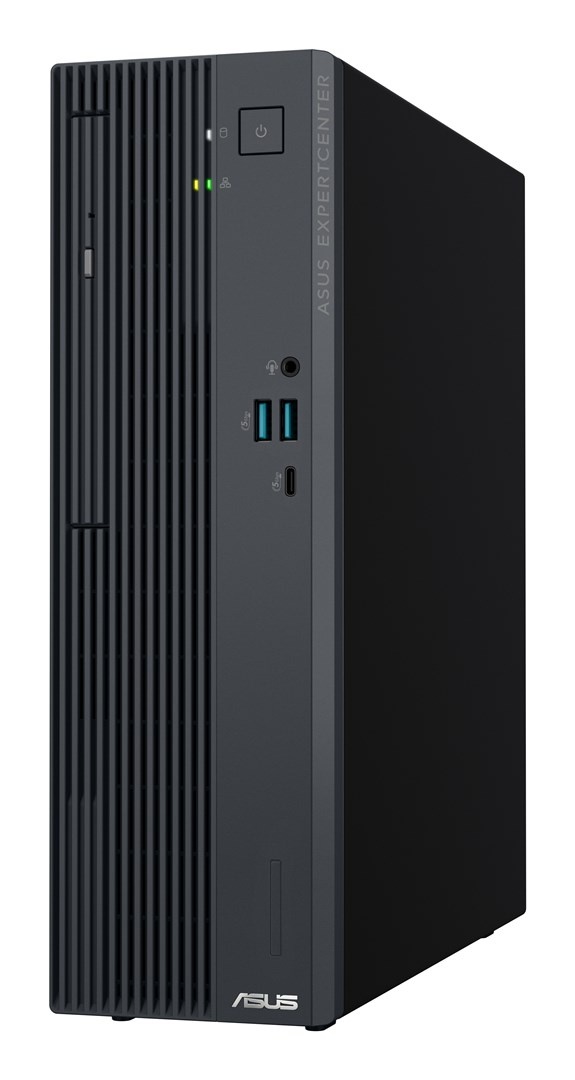

ASUS ExpertCenter P500 SFF P500SV-07240H013X Intel Core 7 240H 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro PC Grey

Technical Specifications

Processor

Efficient-core Max Turbo Frequency: 4 GHz

Performance-core Max Turbo Frequency: 5.2 GHz

Processor generation: Intel Core (Series 2)

Maximum turbo power: 115 W

Processor base power: 45 W

Performance-core base frequency: 2.5 GHz

Efficient cores: 4

Performance cores: 6

Efficient-core base frequency: 1.8 GHz

Processor boost frequency: 5.2 GHz

Graphics

Discrete graphics card: No

On-board graphics card family: Intel® Graphics

On-board GPU manufacturer: Intel

Discrete graphics card model: Not available

On-board graphics card model: Intel® Graphics

On-board graphics card: Yes

:

:

:

:

:

:

:

:

:

Memory

Memory slots: 2x DIMM

Memory layout (slots x size): 1 x 16 GB

Maximum internal memory: 64 GB

Internal memory type: DDR5-SDRAM

Internal memory: 16 GB

:

:

:

:

:

Design

Chassis type: SFF

Colour name: Grey

Introduction year: 2025

Cable lock slot: Yes

Product colour: Grey

Cable lock slot type: Kensington

:

:

:

:

Power

Power supply input voltage: 100 – 240 V

Power supply: 180 W

80 PLUS certification: 80 PLUS Bronze

Power supply input frequency: 50 – 60 Hz

:

:

:

:

:

:

Weight & dimensions

Depth: 296 mm

Height: 309 mm

Weight: 5.06 kg

Width: 93 mm

:

:

:

:

:

:

Network

Bluetooth version: 5.4

Ethernet LAN: Yes

Ethernet LAN data rates: 10

Wi-Fi: Yes

Wi-Fi standards: Wi-Fi 6 (802.11ax)

Antenna type: 2×2

Cabling technology: 10/100/1000Base-T(X)

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

:

Performance

Password protection type: User

Trusted Platform Module (TPM) version: 2.0

Product type: PC

Market positioning: Business

Password protection: Yes

Audio output channels: 7.1 channels

Trusted Platform Module (TPM): Yes

:

:

:

Packaging data

Package width: 490 mm

Package height: 510 mm

Package depth: 168 mm

:

:

:

:

:

:

:

Packaging content

Keyboard included: No

Mouse included: No

:

:

:

:

:

:

:

:

Expansion slots

Number of 3.5" bays: 1

PCI Express x16 (Gen 4.x) slots: 1

:

:

:

:

:

:

:

:

Display

Display included: No

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Software

Operating system architecture: 64-bit

Operating system installed: Windows 11 Pro

:

:

:

:

:

:

:

:

Audio

Audio system: High Definition Audio

:

:

:

:

:

:

:

:

:

Certificates

Compliance certificates: REACH

:

:

:

:

:

:

:

:

:

Storage

Total SSDs capacity: 512 GB

SSD interface: PCI Express 4.0

SSD capacity: 512 GB

NVMe: Yes

SSD form factor: M.2

Number of SSDs installed: 1

M.2 SSD size: 2280 (22 x 80 mm)

Total storage capacity: 512 GB

Optical drive type: No

Storage media: SSD

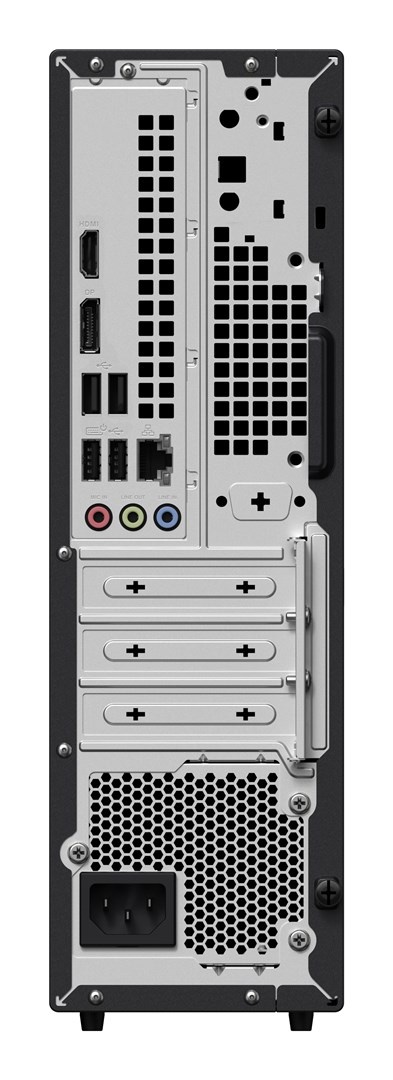

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Line-out: Yes

Line-in: Yes

Number of front USB ports: 3

Number of rear USB ports: 4

Number of front audio ports: 1

Number of rear audio ports: 3

DisplayPorts quantity: 1

Combo headphone/mic port: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Sustainability

Sustainability certificates: ENERGY STAR

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
