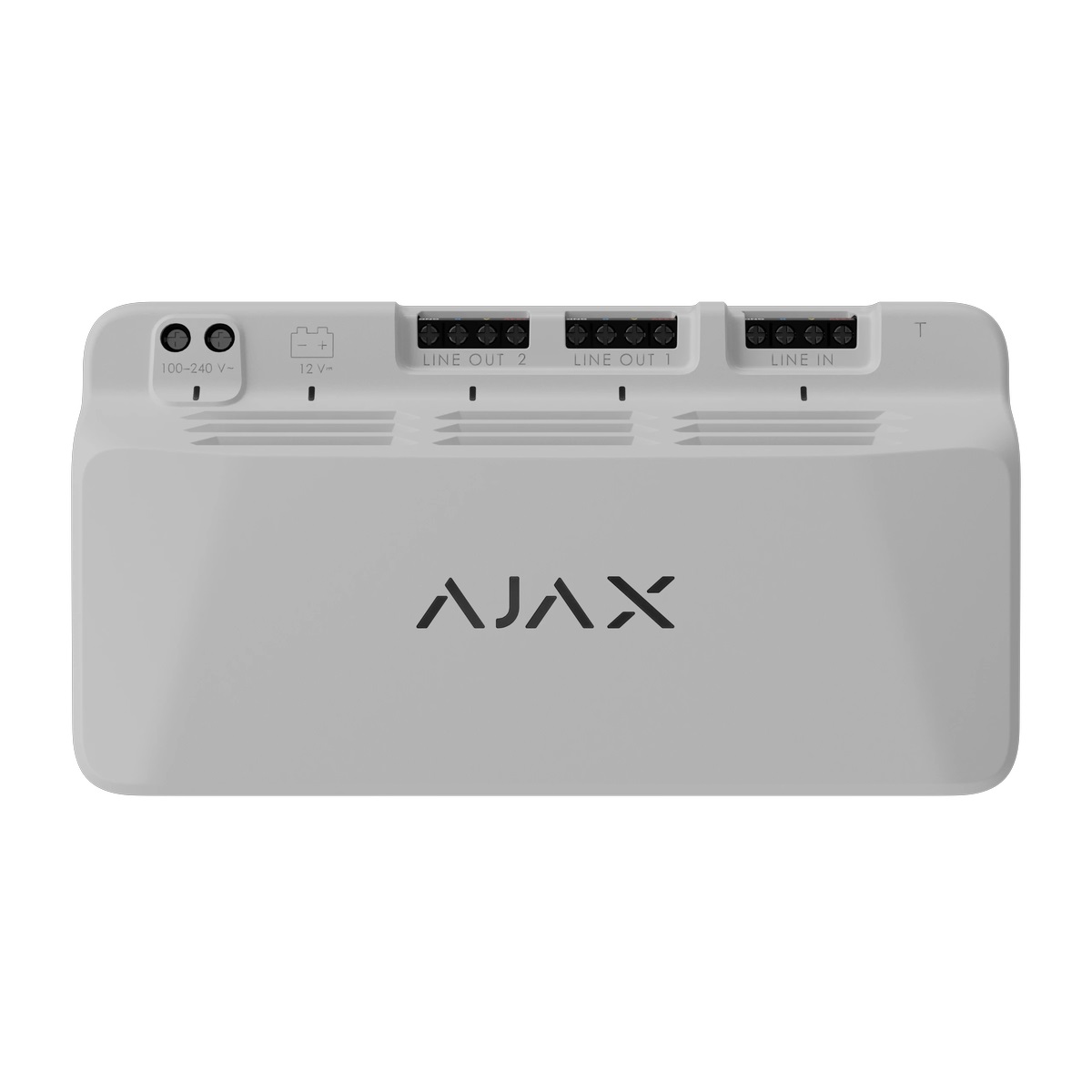

AJAX FIBRA LineSupply 75W

Module for additional power supply with 75 W power and two output Fibra lines

—

Wired Communication
Communication Technology: Fibra — proprietary wired communication technology combining the reliability of cables with the flexibility of radio
Key Features: Two-way communication / Advanced anti-sabotage / Block encryption featuring a dynamic key / Instant notifications / Remote configuration in Ajax apps

• Line Connection: 4-core cable

Connection Point: To any point of the Fibra line
Wired Connection Range: Up to 2,000 m (between the module and the hub) / Up to 2,000 m (between the module and the last Fibra device on the line)
Maximum length relevant when using U/UTP cat.5 twisted pair

• Number of Input Lines: 1
• Number of Output Lines: 2
• Power Output per Line: Up to 30 W

Galvanic Isolation: Ensures connected devices between the LineSupply and the line end do not consume power from the hub
Encrypted Communication: All stored and transmitted data are protected by block encryption featuring a dynamic key

Power Supply

• Main Power Supply: 100–240 V~, 50/60 Hz
• Backup Power Supply: 12 V⎓ battery, 7–18 Ah capacity (not included)
• The battery is charged when the main power is available
• Total Power Output: 30 W per line / 15 W to charge the backup battery

Sabotage Protection

• Tamper Alarm: Connector available for attaching a tamper board (board is part of the separately sold case)
• Short Circuit Protection: Active on Fibra lines
• Overvoltage Protection: On Fibra signal terminals A and B
• Protection Against Spoofing: Device authentication
• Communication Loss Detection: After 36 s (adjustable in hub settings)

Enclosure

• Dimensions: 160 × 85 × 53 mm
• Weight: 456 g
• Operating Temperature Range: From –10 °C to +40 °C
• Operating Humidity: Up to 75%
• Electric Shock Protection: Class III

Installation Recommendation: Indoor use only. Recommended for installation in Case C (260) or Case D (430). Cases are sold separately

—
