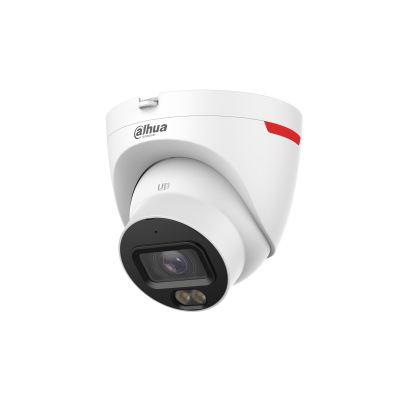

Dahua IP 4.0MP Dome Full Color 2.8mm WDR HDW2449T-S-LED-PRO

• 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560×1440 (2560 × 1440) @25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in warm light, and the max. illumination distance is 50 m.
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Supports max. 256 G Micro SD card; built in Mic.
• 12 VDC/PoE power supply, easy for installation.
• IP67 protection.
• SMD Plus

—

Camera

• Image Sensor : 1/1.8" CMOS
• Max. Resolution : 2688 (H) × 1520 (V)
• ROM : 128 MB
• RAM : 256 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.0005 [email protected]
• S/N Ratio : >56 dB
• Illumination Distance : 30 m (Warm light)
• Illuminator On/Off Control : Auto; manual
• Illuminator Number : 2 (Warm light)

Lens

• Lens Type : Fixed-focal
• Lens Mount : M16
• Focal Length : 2.8 mm
• Max. Aperture : F1.0
• Field of View : 2.8mm: H: 112°; V: 60°; D: 134°
• Iris Control : Fixed
• Close Focus Distance : 2.8 mm: 1.7 m

Intelligence

• IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

• SMD : SMD Plus

• Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression : H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec : Smart H.265+; Smart H.264+
• Video Frame Rate : Main stream: 2688 × 1520@ (1–20 fps)/2560 × 1440@(1–25/30 fps) / Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps)
• Stream Capability : 2 streams
• Resolution : 4M (2688 × 1520) / 4M (2560 × 1440) /  3M (2304 × 1296) / 1080p (1920 × 1080) / 1.3M (1280 × 960) /  720p (1280 × 720) / D1 (704 × 576/704 × 480) /  VGA (640 × 480) /  CIF (352 × 288/352 × 240)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 32 kbps–6144 kbps / H.265: 12 kbps–6144 kbps
• Day/Night : Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 dB
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Auto; manual
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest (RoI) : Yes (4 areas)
• Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
• Mirror : Yes
• Privacy Masking : 4 areas

• LDC : Yes

Audio

• Built-in MIC : Yes
• Audio Compression : G.711a; G.711Mu; PCM; G.726

Alarm

• Alarm Event : No SD card; SD card full; SD card error; network disconnecton; IP conflict; illegal access; moton detecton; video tampering; tripwire; intrusion; SMD; voltage detecton; security excepton

Network

• Network Port : RJ-45 (10/100 Base-T)
• SDK and API : Yes
• Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
• Interoperability : ONVIF (Profile S/Profile T); CGI; P2P; Milestone
• User/Host : 6 (Total bandwidth: 36 M)
• Storage : FTP; SFTP; Micro SD card (support max. 256 GB)
• Browser : IE / Chrome / Firefox
• Management Software : DSS; DMSS
• Mobile Client : iOS; Android
• Cyber Security : Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Generation and importing of X.509 certification

Certification

• CE-LVD: EN 62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

• Power Supply : 12 VDC/PoE
• Power Consumption : Basic: 2.0 W (12 VDC); 2.5 W (PoE) / Max. (H.265 + intelligence on + WDR + warm light+ illuminator intensity): 5.3 W (12 VDC); 6.4 W (PoE)

Environment

• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : ≤95%
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Protection : IP67

Structure

Casing Material : Inner core: Metal; / Cover: Plastic


Product Dimensions : 109.5 mm × Φ109.9 mm

Net Weight : 0.42 kg
Gross Weight : 0.59 kg

—
