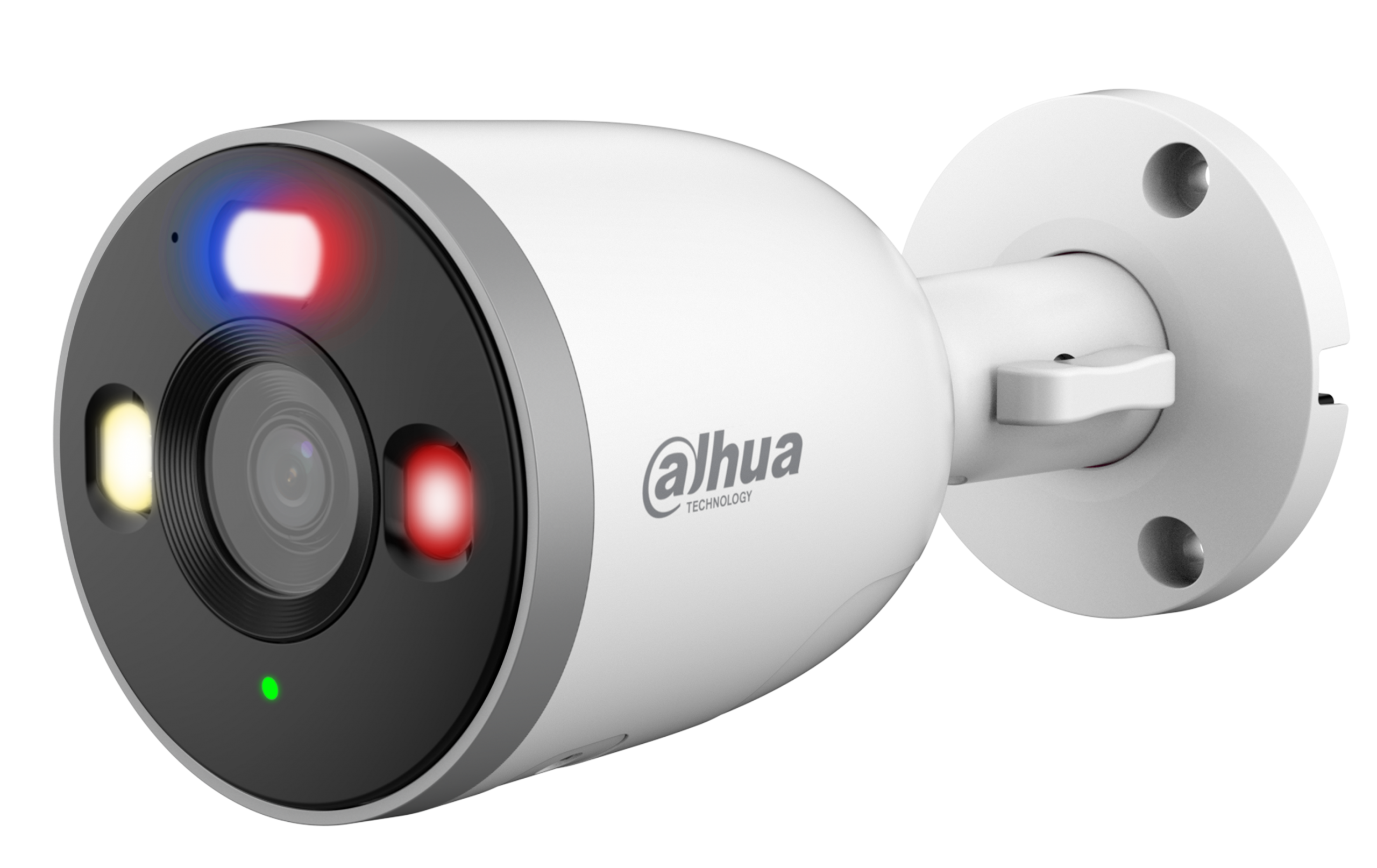

Dahua IP 5.0MP Wifi Bullet Dual Illumination F5D-PV

• Driven by industry-leading technology, Dahua Wireless Series network cameras are highly precise and easy to install, producing high-quality images. They have strong wireless connection capabilities and do not require network cables, eliminating the need for a professional construction team. This series of cost-effective cameras supports local storage and is dustproof and waterproof. It is ideal for small and medium-sized scenes such as retail stores, homes, and other small and medium-sized enterprises

—

Camera

• Image Sensor : 1/2.7" CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• Min. Illumination : 0.007 [email protected] (Color, 30 IRE) 0.0007 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)
• Illumination Distance : Up to 30 m (IR) / Up to 30 m (Warm light)
• Illuminator Number : 1 (IR LED); 1 (Warm light)
• Angle Adjustment : Tilt: 0°–90° / Rotation: 0°–360°
• Lens Type : Fixed-focal
• Focal Length : 2.8 mm
• Max. Aperture : F1.6
• Field of View : 2.8 mm: H: 104°; V: 56°; D: 124°

Intelligence

• Human Detection : Yes
• Vehicle Detection : Yes

Audio and Video

• Video Compression : H.264B; H.264; H.264H; H.265
• Video Frame Rate : Main stream: 2880 × 1620@(1-25/30 fps)
• sub stream: 640 × 360@(1-25/30 fps)
• Video Bit Rate : H.264: 32 kbps–4096 kbps; / H.265: 32 kbps–4096 kbps
• Day/Night : Auto(ICR)/Color/B/W
• WDR : DWDR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Image Rotation : 0°/180°
• Built-in MIC : Yes, built-in Mic
• Built-in Speaker : Yes, built-in speaker
• Audio Compression : G.711a; G.711Mu; PCM

Network

• Network Port : RJ-45 (10/100 Base-T)
• Wi-Fi : IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
• Wi-Fi Pairing : Bluetooth pairing
• Interoperability : ONVIF (Profile S & Profile G & Profile T); CGI

Storage

• Micro SD card (support max. 256 GB)
• Management Software : Smart PSS Lite; DSS; DMSS
• Mobile Client : Android;iOS

General

• Power Supply : 12 VDC
• Power Consumption : Basic: 2.4 W (12 VDC) / Max.: 7.5 W (12 VDC) (H.265 + warm light intensity + sound and light alarm)
• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : ≤95% (RH), non-condensing
• Protection : IP67
• Camera Button : Reset button
• Casing Material : Metal + plastic
• Product Dimensions : 158.3 mm × Φ76.8 mm
• Net Weight : 0.34 kg

Certifications

• CE-LVD: EN62368-1;
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
• CE-RED: Radio Equipment Directive 2014/53/EU

—
