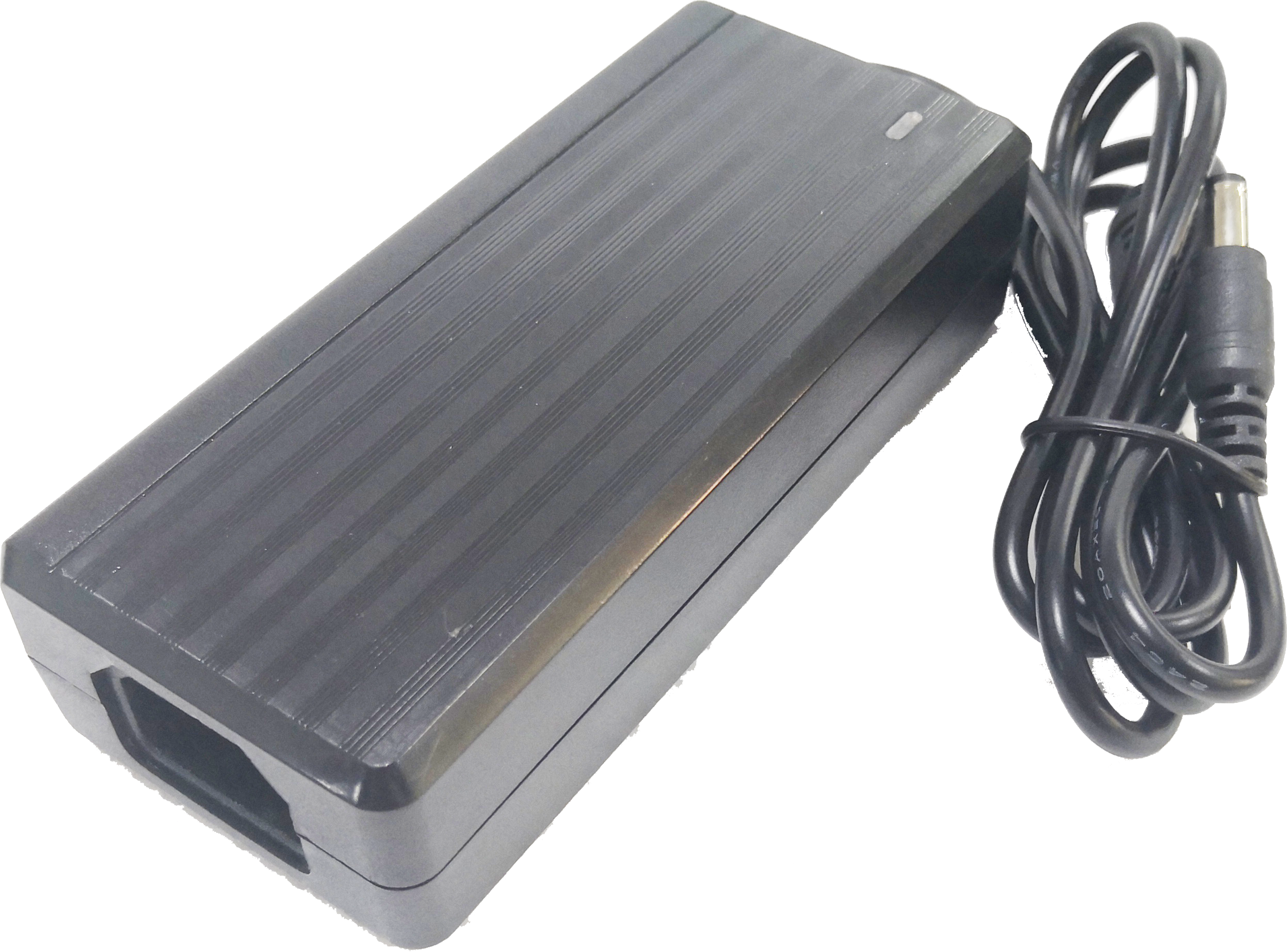

- Input: 100-240V 50/60Hz
- Output: 12V/5A
—
DC adjustment range: ±10%
Input voltages range: 90-245V AC 50-60Hz
Inrush current: 30-75A
Leakage current: <0.7mA/230V AC
Output voltage: 12V
Output current: 5A
DC adjustment range: ±10%
Overload protection: 105%-135% rated output power
Over-voltage protection: 105%-135% hiccup mode, auto-recovery
Withstand voltage:
I/P-O/P: 3kV AC
I/P-FG: 1.5kV AC
O/P-F/G: 0.5kV AC
Working temperature: -20 to ±70°C
Certifications: CE, RoHS Directive-compliant, FCC
—
