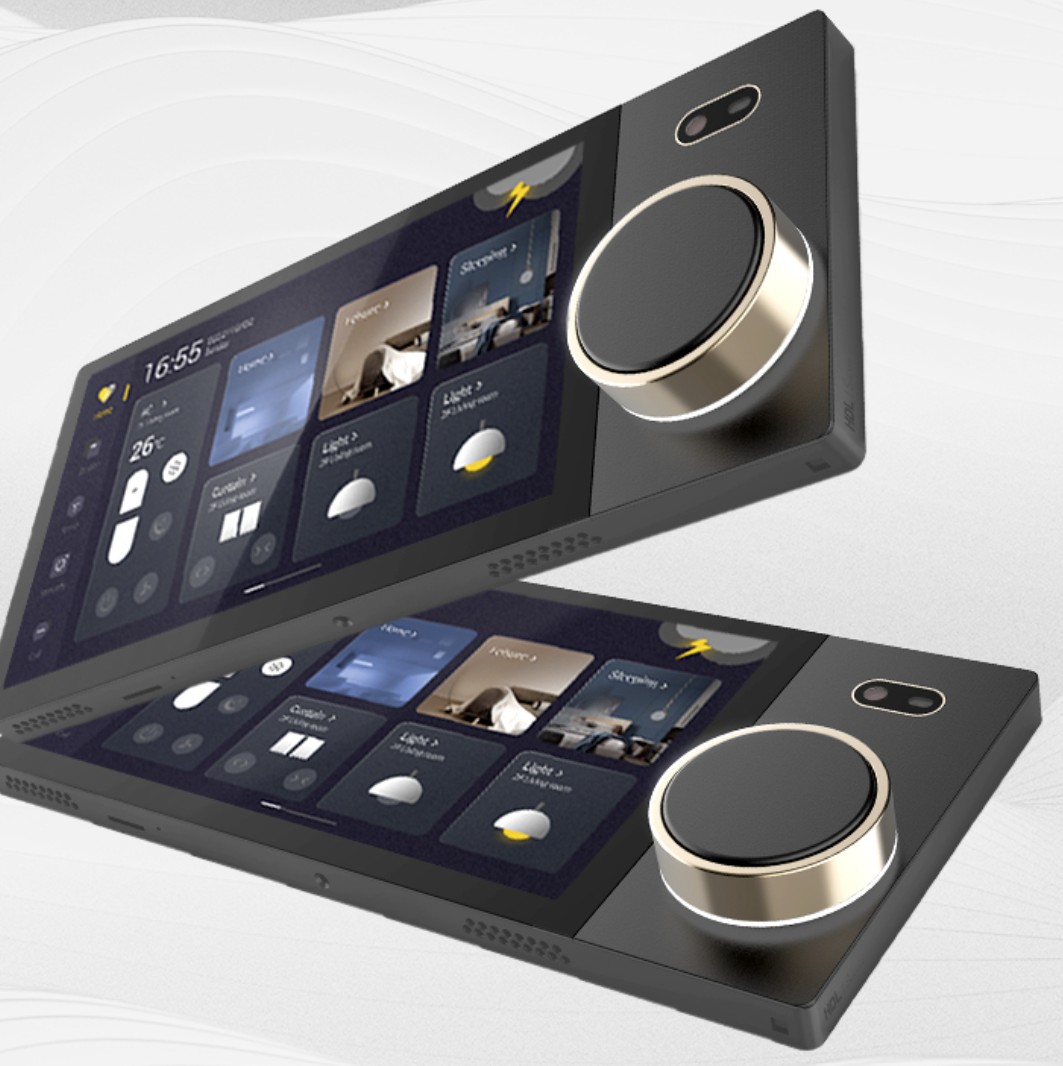

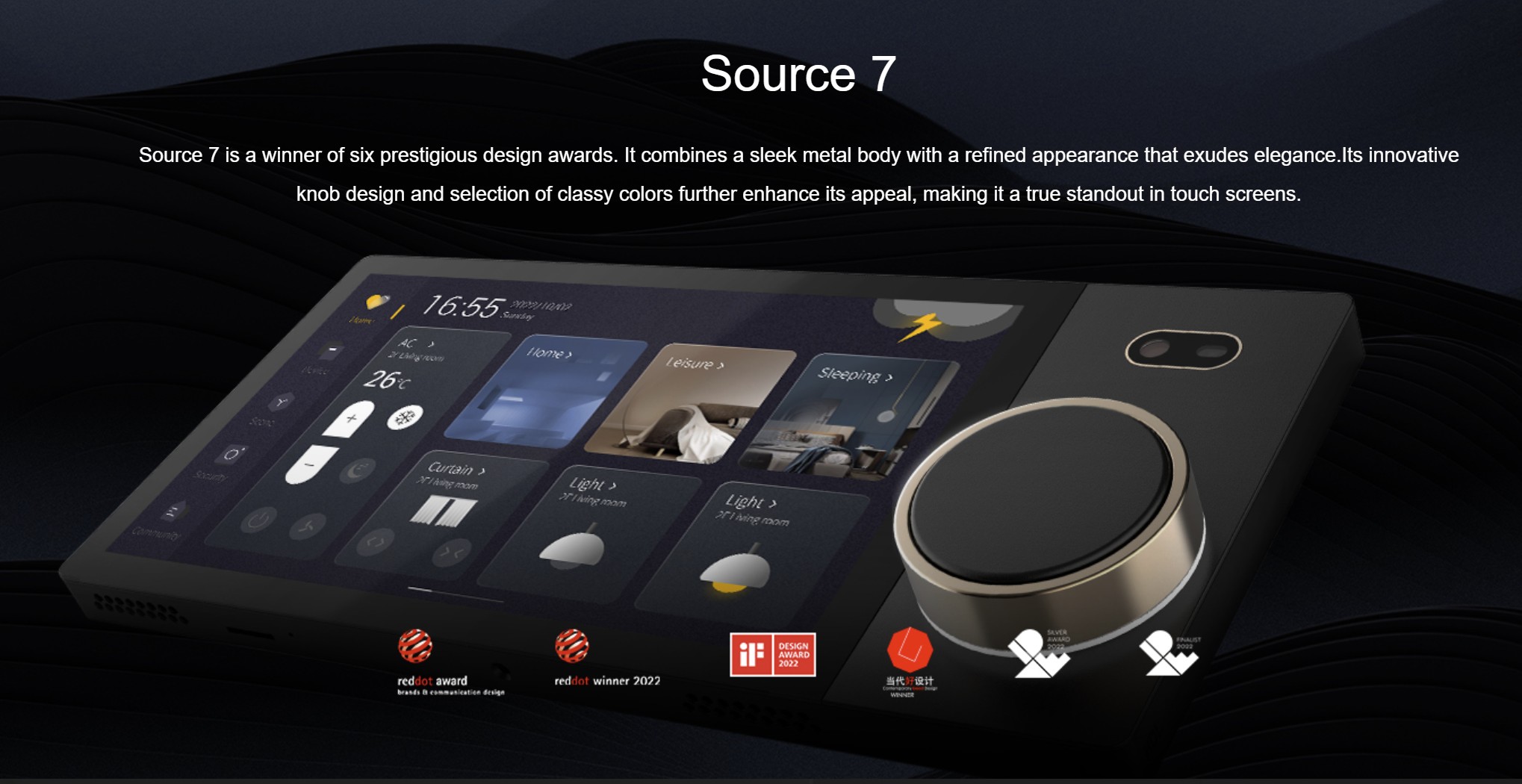

HDL Panel SOURCE 7 Touch Screen Black

• Output channel : KNX interface: 2CH, 5A/CH Resistive load: ≤660W/CH Capacitive load: ≤200W/CH
• Communication protocol: HDL LINK, WiFi, RJ45
• Master chip: PX30
• Storage capacity: 2+8GB
• Operating frenquency:  2.4GHz, 5GHz
• Operating system : Android
• Ethernet interface: RJ45
• TF card : Max 64GB

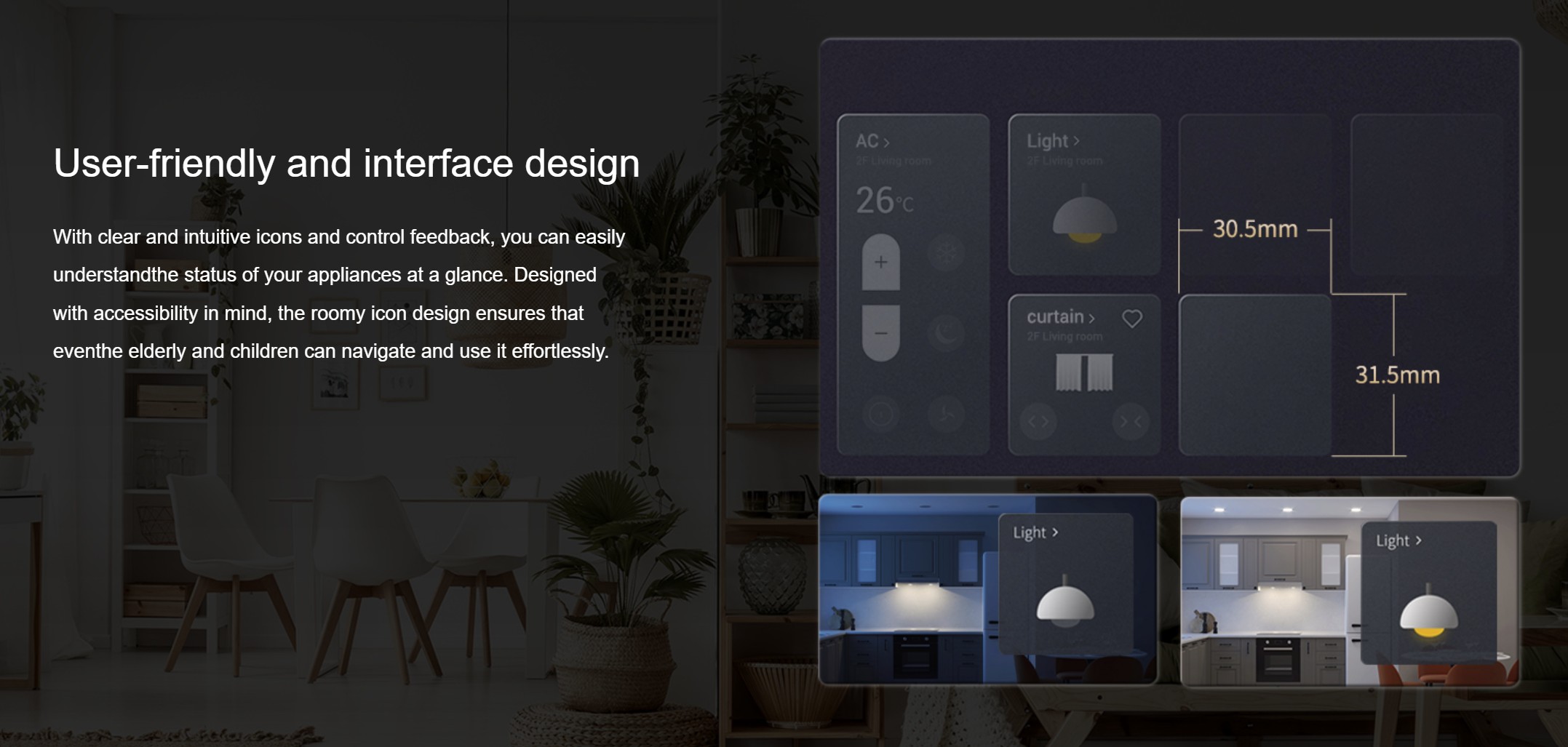

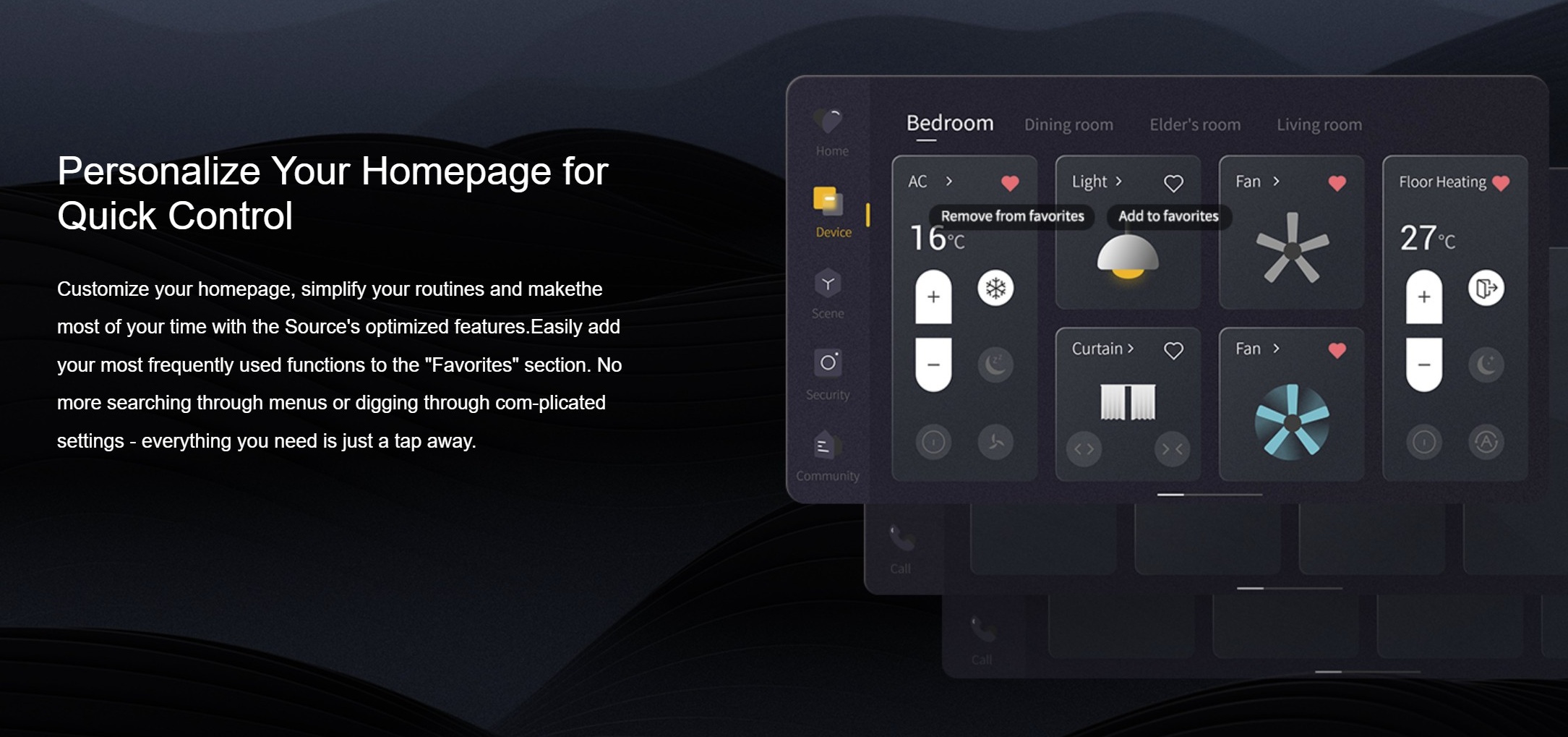

• Touch screen: 7-inch capacitive touch screen, available for multi-touch; Resolution: 1280*720
• Knob: Users can turn the knob to adjust the light brightness, curtain open/close percentage, media volume, temperature, or fan speed. Knob-operated control: turn clockwise/counter-clockwise, short press, long press. The knob lighting is with RGB lamp beads.
• Camera: 5-megapixel camera; manual-operated on/off
• Microphone: Four microphones are located at the top of the touch screen. The voice detecting range is within 3m around the touch screen.
• Speaker: Dual speaker, 0.8W*2
• Proximity sensor : Once the sensor detects near human motion, touch screen automatically wakes up. The detecting range is within 15cm around the touch screen.
• Temperature & humidity sensor: Real-time monitor environment status
• Knob-operated control, including turn clockwise/counter-clockwise, short press, long press
• Temperature & humidity monitoring: built-in temperature & humidity sensor for monitoring real-time environment status.
• Proximity detection: Built-in proximity sensor for detecting human motion. Once the sensor detects near human motion, the touch screen automatically wakes up.

Requires Power Interface MPWS2R1ETH-KT.18 (not included)

https://nxt.cy/product/hdl-power-supply-interface-for-source-7-panels-mpws2r1eth-kt-18/

—

• Dimensions  (W X H X D) 219.2×102×25.6mm (without power interface)
• 219.2×102×54.8mm (with power interface)
• Net weight:  408g (with bracket; without power interface)
• Housing material: PC
• Installation:  Wall box
• IP degree: (compliant with EN 60529) IP20
• CMIIT ID:  2023AP228

—
