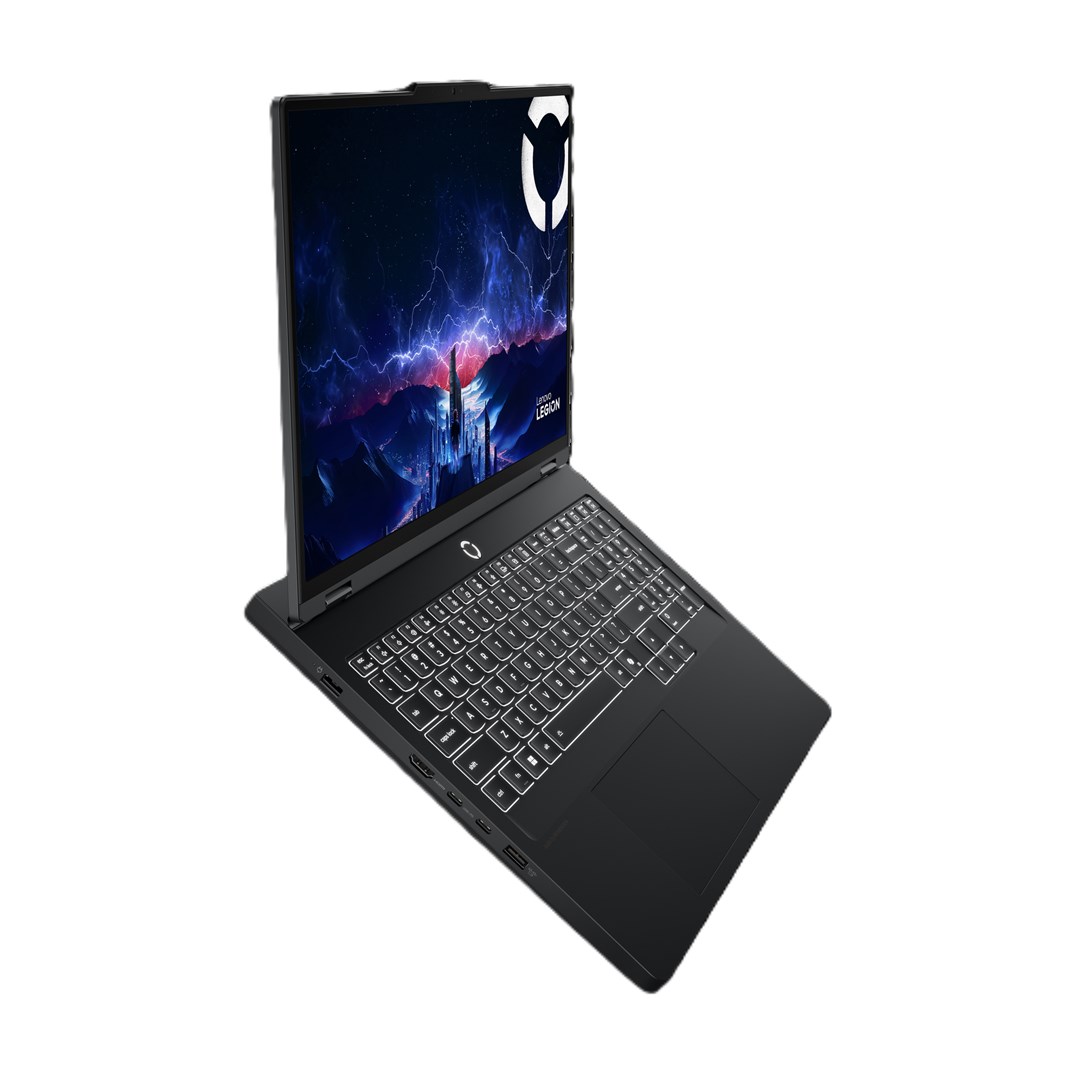

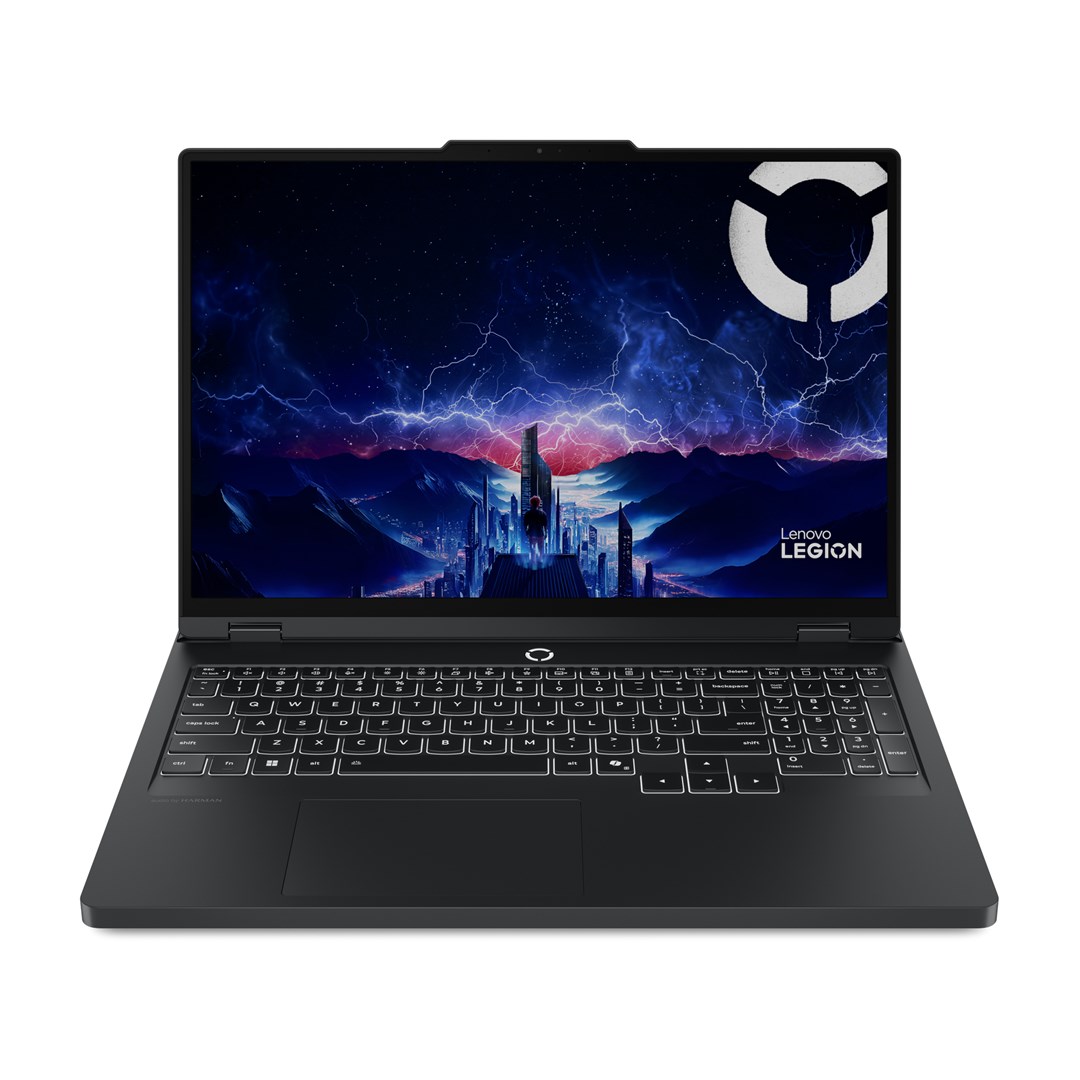

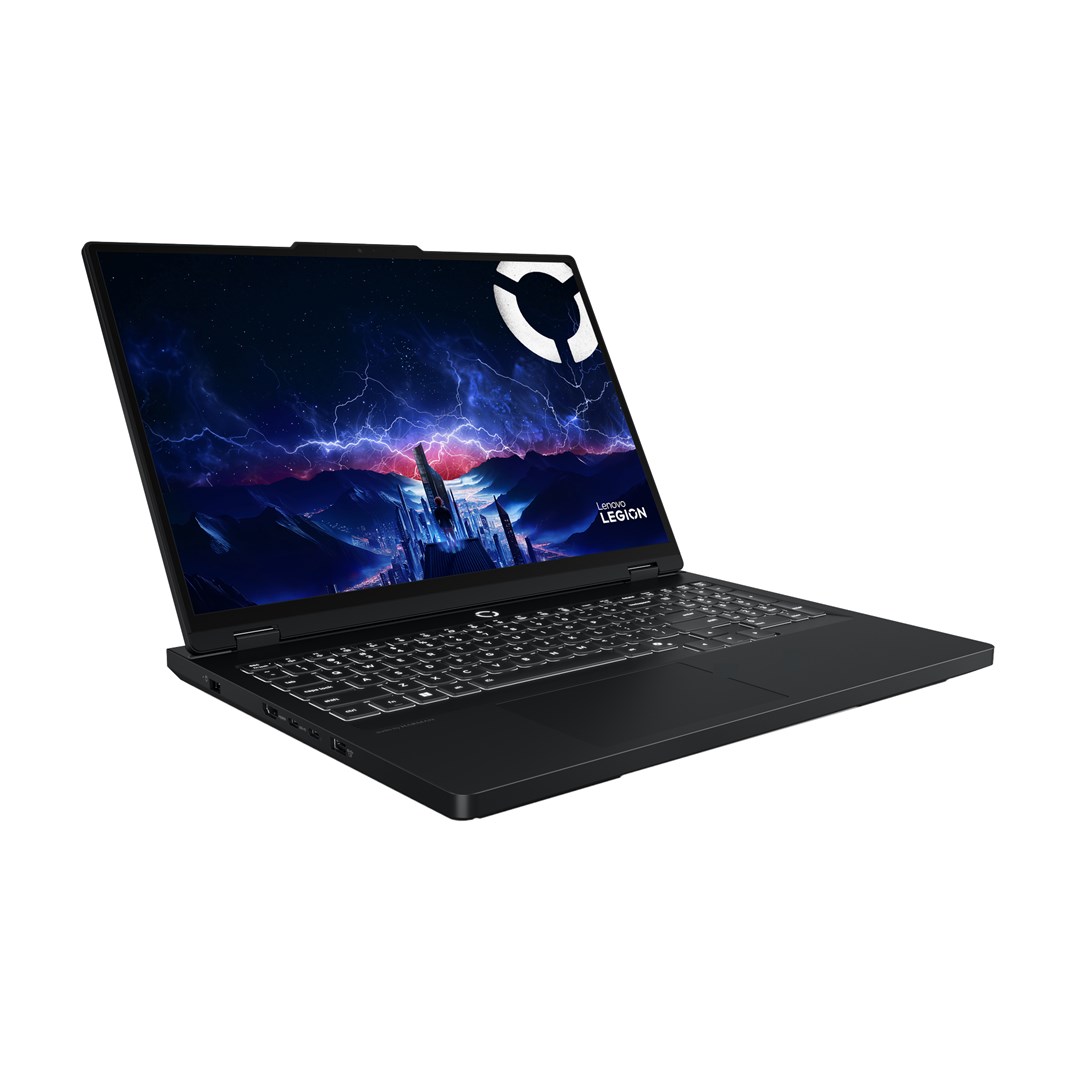

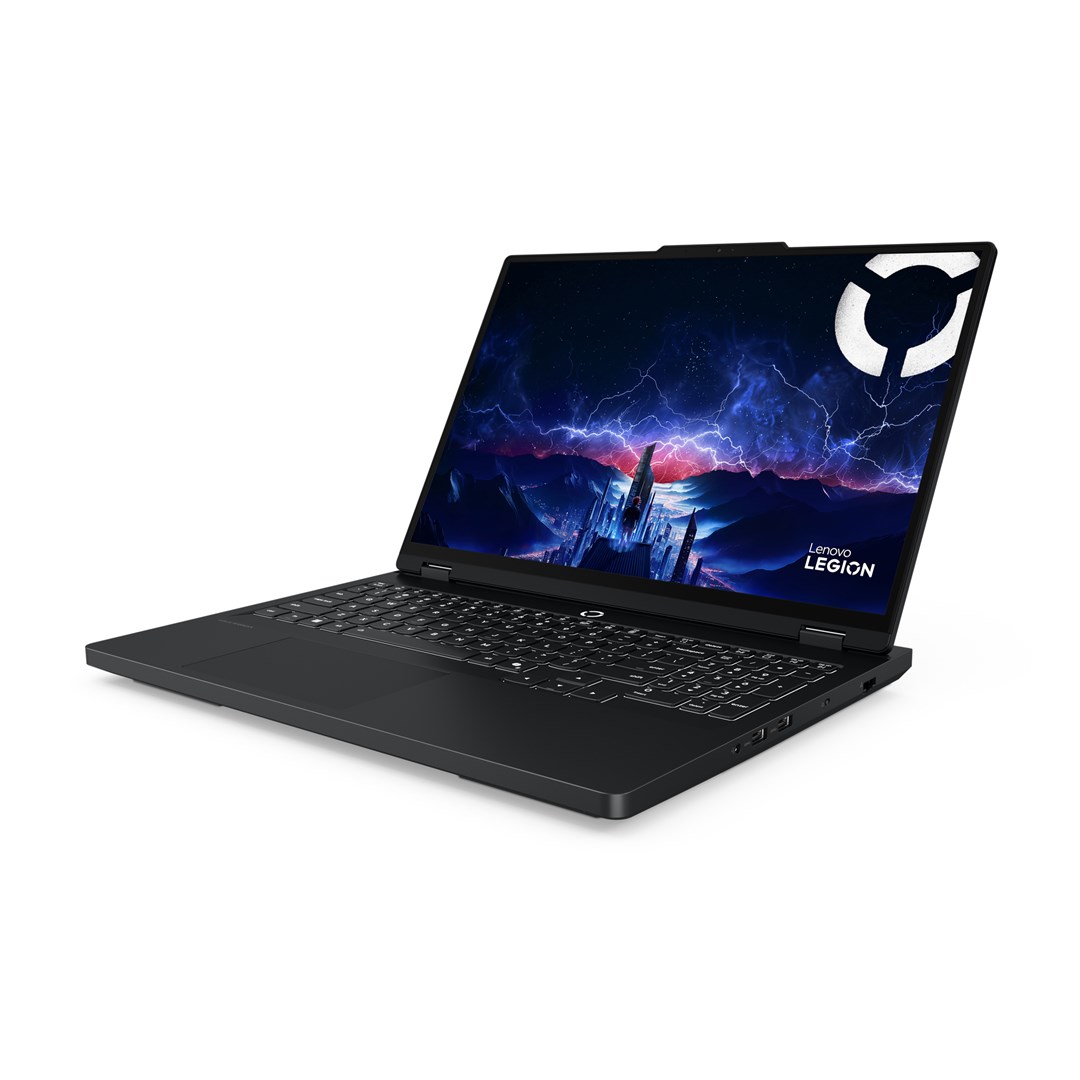

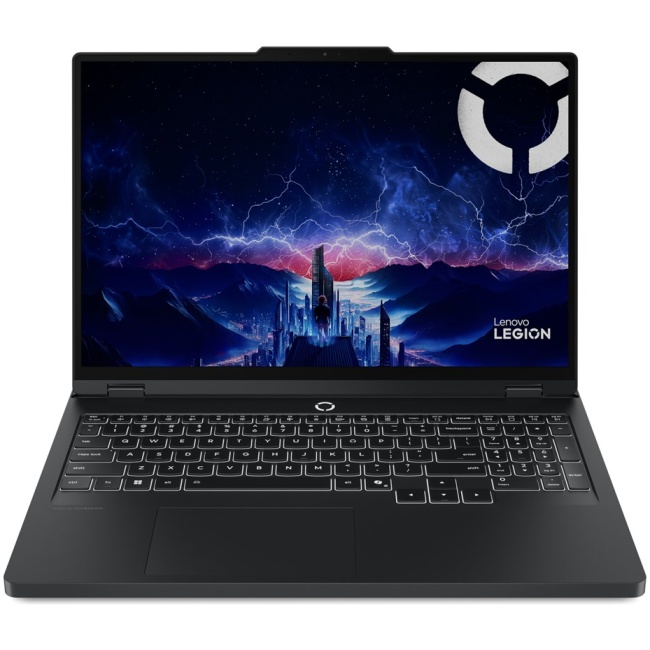

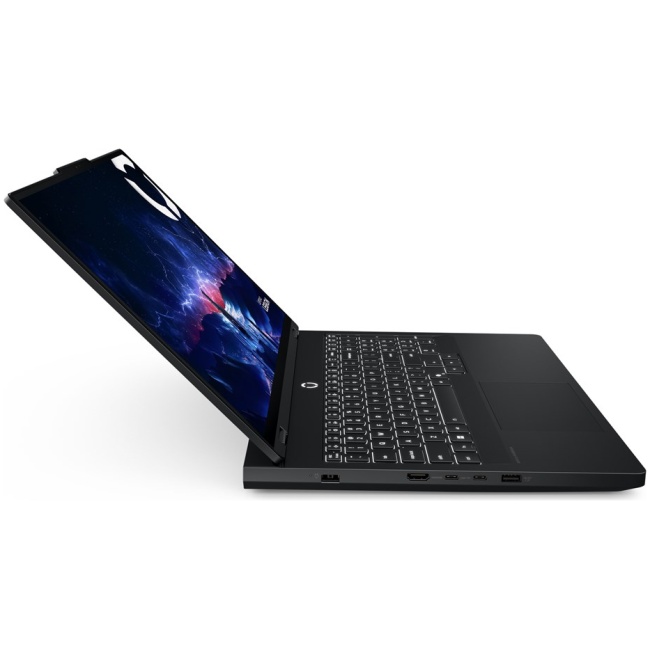

Lenovo Legion Pro 5 16IRX10 Intel® Core™ i7 i7-14650HX Laptop 40.6 cm (16") WQXGA 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Wi-Fi 6 (802.11ax) NoOS Black

Technical Specifications

Processor

Processor threads: 24

Processor model: i7-14650HX

Processor manufacturer: Intel

Processor cores: 16

Processor cache: 30 MB

Processor boost frequency: 5.2 GHz

Processor family: Intel® Core™ i7

Processor cache type: Smart Cache

Processor base power: 55 W

Processor generation: Intel® Core™ i7 (14th gen)

Graphics

On-board graphics card model: Intel® UHD Graphics

Discrete graphics card memory: 8 GB

On-board graphics card: Yes

Discrete graphics card model: NVIDIA GeForce RTX 5060

Discrete GPU manufacturer: NVIDIA

On-board graphics card family: Intel® UHD Graphics

Discrete graphics card: Yes

Discrete graphics memory type: GDDR7

On-board GPU manufacturer: Intel

:

:

:

:

:

:

Memory

Memory form factor: SO-DIMM

Internal memory: 16 GB

Maximum internal memory: 32 GB

Internal memory type: DDR5-SDRAM

Memory clock speed: 5600 MHz

Memory layout (slots x size): 1 x 16 GB

Memory slots: 2x SO-DIMM

:

:

:

Design

Product colour: Black

Product type: Laptop

Colour name: Eclipse Black

Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

:

:

:

:

:

:

Power

AC adapter input voltage: 100 – 240 V

AC adapter frequency: 50/60 Hz

AC adapter power: 245 W

USB Power Delivery (USB PD): Yes

USB Type-C charging port: Yes

:

:

:

:

:

Security

Trusted Platform Module (TPM): Yes

Trusted Platform Module (TPM) version: 2.0

Fingerprint reader: No

:

:

:

:

:

:

:

Operational conditions

Operating relative humidity (H-H): 8 – 95%

Storage temperature (T-T): 5 – 43 °C

Operating temperature (T-T): 5 – 35 °C

Storage relative humidity (H-H): 5 – 95%

:

:

:

:

:

:

Weight & dimensions

Depth: 268.1 mm

Weight: 2.4 kg

Width: 364.4 mm

:

:

:

:

:

:

:

Network

Antenna type: 2×2

Ethernet LAN data rates: 100 Mbit/s

Bluetooth: Yes

Ethernet LAN: Yes

Wi-Fi standards: Wi-Fi 6 (802.11ax)

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Bluetooth version: 5.2

Mobile network connection: No

WWAN: Not installed

:

Performance

Motherboard chipset: Intel HM770

:

:

:

:

:

:

:

:

:

Packaging content

AC adapter included: Yes

:

:

:

:

:

:

:

:

:

Display

Native aspect ratio: 16:10

Display resolution: 2560 x 1600 pixels

Display diagonal: 40.6 cm (16")

LED backlight: Yes

HD type: WQXGA

High Dynamic Range (HDR) technology:

High Dynamic Range (HDR) technology: DisplayHDR 400

Touchscreen: No

Display brightness: 500 cd/m²

Anti-glare screen: Yes

Colour gamut: 100%

Maximum refresh rate: 240 Hz

High Dynamic Range (HDR) supported: Yes

Panel type: IPS

RGB colour space: DCI-P3

:

Software

Operating system installed: N

:

:

:

:

:

:

:

:

:

Audio

Audio chip: Realtek ALC3287

Built-in microphone: Yes

Speaker power: 2 W

Number of built-in speakers: 2

Number of microphones: 2

:

:

:

:

:

Storage

Total storage capacity: 1 TB

Card reader integrated: No

Storage media: SSD

Optical drive type: No

SSD form factor: M.2

Number of SSDs installed: 1

SSD interface: PCI Express 4.0

SSD capacity: 1 TB

Total SSDs capacity: 1 TB

NVMe: Yes

Ports & interfaces

HDMI version: 2.1

Combo headphone/mic port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB Sleep-and-Charge: Yes

:

:

Camera

Front camera resolution (numeric): 5 MP

:

:

:

:

:

:

:

:

:

Battery

Battery capacity: 80 Wh

:

:

:

:

:

:

:

:

:

Keyboard

Numeric keypad: Yes

Pointing device: Touchpad

Keyboard backlit colour: RGB

Keyboard backlit: Yes

:

:

:

:

:

:

Safety warning

Warnings: The device may become hot during operation; use caution to avoid burns.

Hazard pictogram(s): GHS09: Environmental hazard

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
