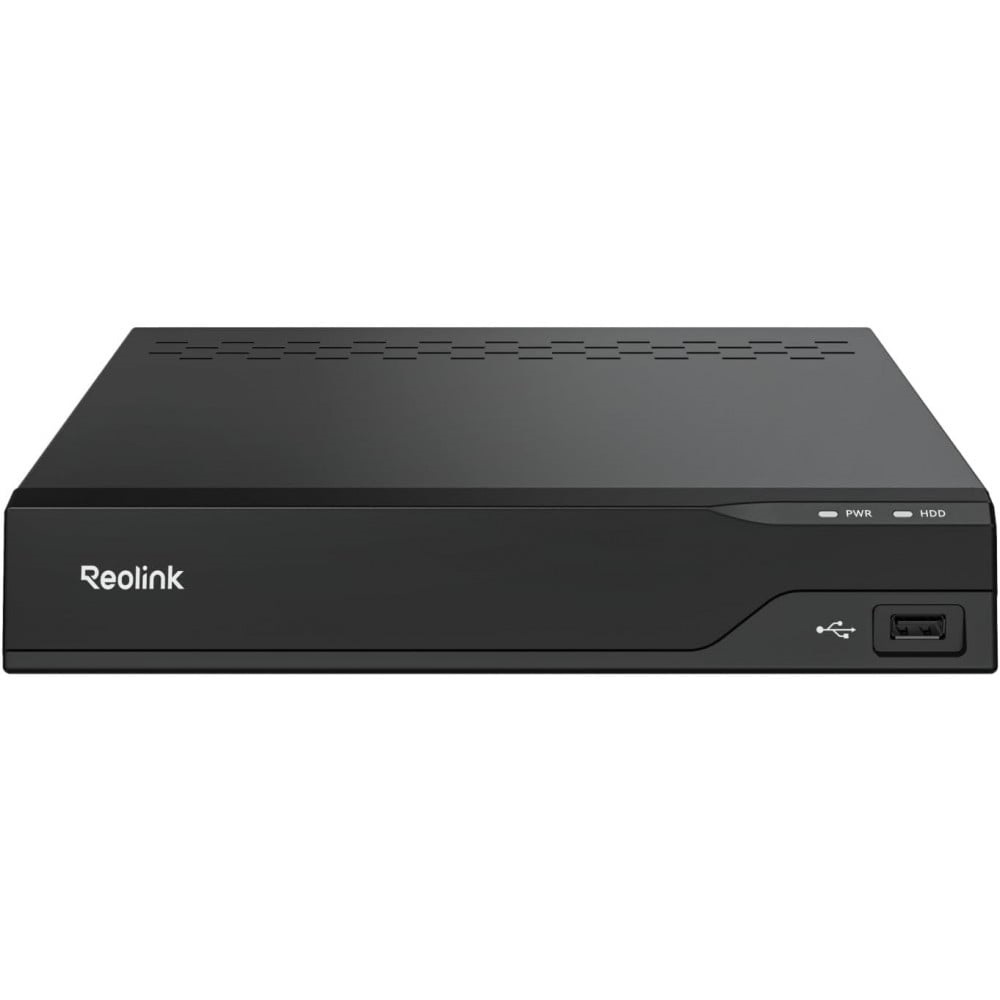

Reolink PRO IP POE NVR 24ch with 16port POE RP-PN16-NHD

• Expandable Storage up to 32TB
• Supports up to 16MP
• Heat Mapping Technology
• Smart Event Detection
• AI Video Search

—

Video/Audio Input

• IP Video Input : Up to 24 IP Cameras (Max.16 wired cameras) / Up to 16 MP resolution
• Audio Input : Cameras with built-in MIC
• Incoming Bandwidth : 400Mbps
• Outgoing Bandwidth : 400Mbps

Video/Audio Output

• Video Output : 1 HDMI, 1 VGA
• Display Resolution : HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 / VGA: 1920×1080, 1280×1024, 1280×720, 1024×768
• Audio Output : 1 audio out channel, RCA

Decoding

• Video Compression : H.265 / H.264
• Live View/Playback Resolution : 7680X2160, 4608X1728, 4512X2512, 4096X3072, 3840X2160, 2560X2560, 2560X1920, 2560X1440, 2048X1536, 2304X1296,1080P,720P

Recording

• Synchronous Playback : 1-4 channels (Supports only 1-channel playback if you view it in 8MP or higher resolution)

HDD

• SATA : 2xSATA interfaces for 2 HDDs
• External HDD : 1 eSATA interface for HDD
• Capacity : Up to 32TB (up to 16TB capacity for each HDD)

External Interface

• USB Interface : 2 x USB 2.0
• Network Interface : 16 x RJ-45, 10/100 Mbps self-adaptive PoE Ethernet interface (for IP cameras) / 1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN)

PoE

• Max. Power Per Port : 25W
• Supported Standard : IEEE 802.3 af/at

Network

• Network Protocols : HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP,FTP
• Browsers Supported : Edge, Firefox, Chrome, Safari
• OS Supported : PC: Windows, Mac OS; Smart phone: iOS, Android
• Max. User Access : 20 Users (1 admin account & 19 user accounts);
• supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Other Features

• AI Video Search : Yes (need to be supported on cameras as well)
• Person & Object Detection / Person, Vehicle, Non-motorized vehicle, Animal and Package (need to be supported on cameras as well)
• Perimeter Protection : Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert (need to be supported on cameras as well)
• Smart Event Detection : Object Removal (beta) , Forgotten Object (beta) (need cameras support)
• Heat Map : Yes

General

• Power Supply : DC 52V/2.3A
• Power Consumption : <10W (without HDD & PoE)
• Working Environment : Temperature: -10°C ~ + 45°C (14°F ~ 113°F); / Humidity: 10% ~ 90%
• Dimensions : 255mmx50mmx211mm
• Weight : 1.4kg(without HDD) 1.8kg(with HDD)

—
