Ubiquiti UniFi Switch Pro 8 PoE Gigabit 8-Ports PoE USW-PRO-8-POE(120W)

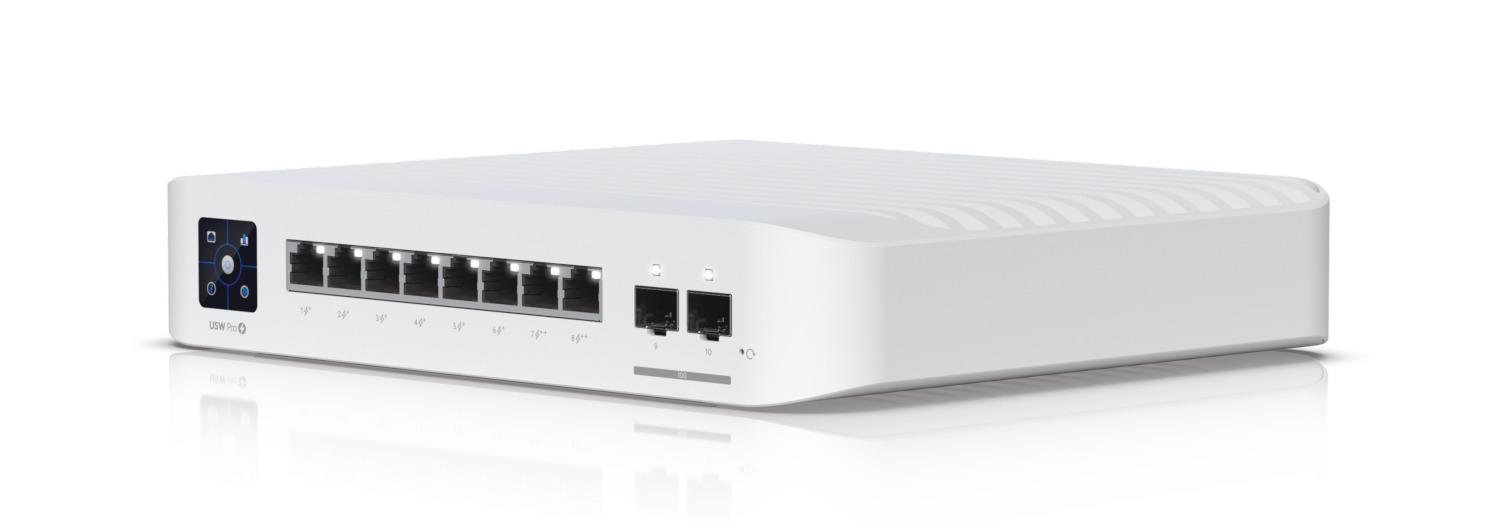

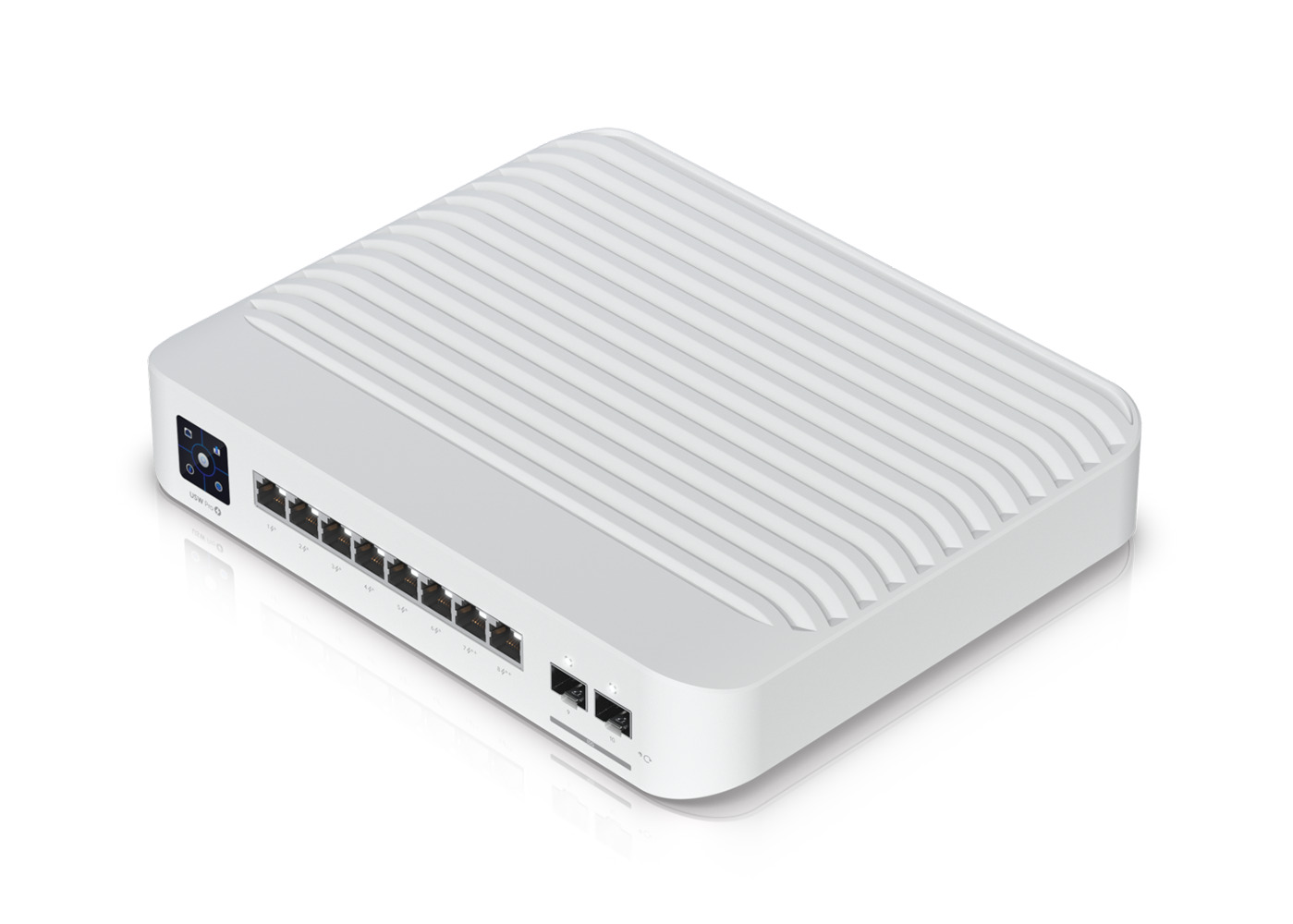

The Ubiquiti USW-Pro-8-PoE is a managed switch designed for use within the UniFi system. It comes equipped with 8 Gigabit Ethernet ports (10/100/1000 Mbps) and 2 SFP+ slots (10 Gbps). Out of the 6 Ethernet ports, there are Power over Ethernet (PoE)/PoE+ outputs (802.3af/at), while the remaining 2 ports have PoE++ outputs (802.3bt). The maximum power output budget for the entire device is 120 W, and the maximum power per port depends on the standard being utilized: 15 W for 802.3af, 30 W for 802.3at, and 60 W for 802.3bt. This device belongs to the Pro series and, in addition to the basic features known from UniFi switches, it also provides Layer 3 management capabilities.

—

Physical Specifications

• Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")

• Weight: 2.1 kg (4.6 lb)

• Enclosure: Plastic and metal construction.

• Rack Mountable: Yes, using a separate rack mount accessory (typically sold separately).

Hardware & Ports

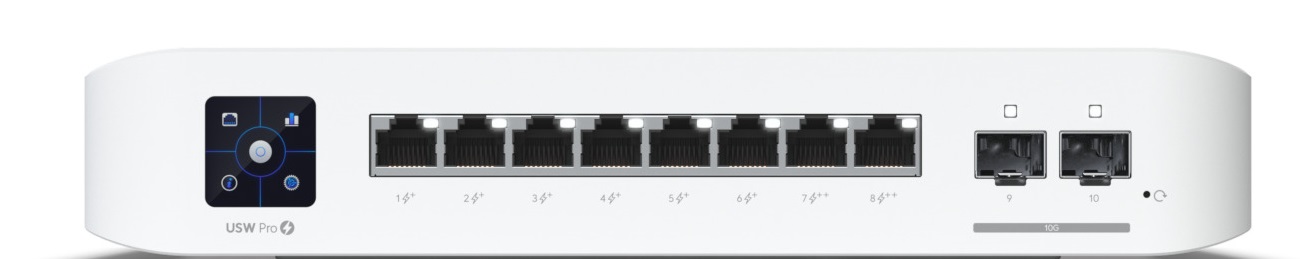

• Data Ports: 8 x Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports.

• Uplink Ports: 2 x 10 Gbps SFP+ fiber optic ports.

• PoE Ports:

  • Ports 1-6: Standard PoE/PoE+ (802.3af/at), up to 30W per port.

  • Ports 7-8: PoE++ (802.3bt), up to 60W per port.

• Total PoE Budget: 120 Watts.

• Display: 1.3" LCM touchscreen for status and configuration.

• Button: Single factory reset button.

Performance

• Switching Capacity: 56 Gbps

• Forwarding Rate: 28 Gbps (non-blocking)

Power & PoE Details

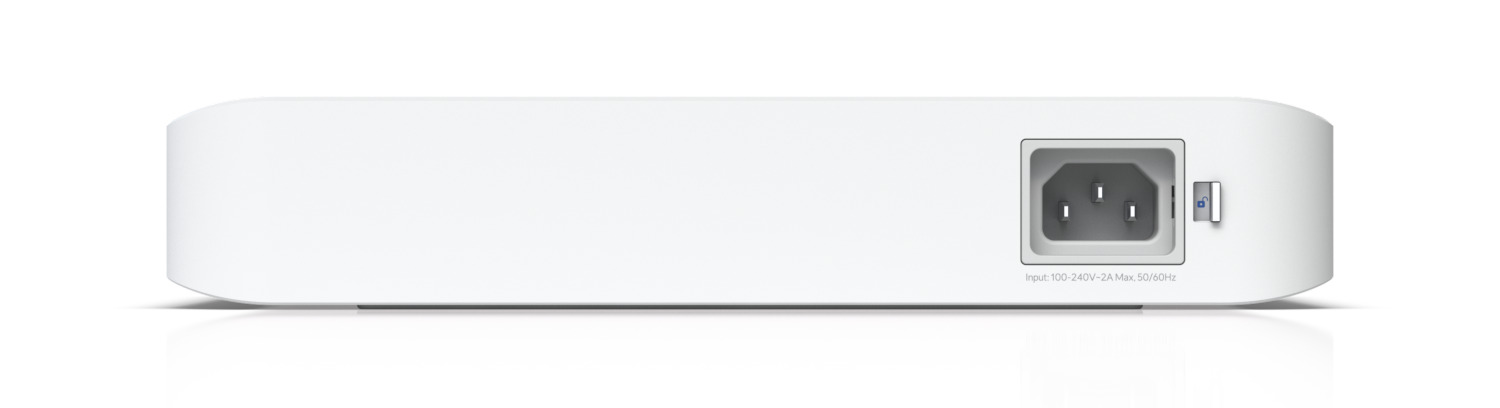

• Input Power: Universal AC input (100-240V~, 50/60 Hz), max 2A.

• Switch Power Consumption: 30W (excluding power delivered to PoE devices).

• PoE Standards:

  • 802.3af (PoE): 15W max per port

  • 802.3at (PoE+): 30W max per port

  • 802.3bt (PoE++): 60W max per port

Management & Software

• Management Interface: In-Band via Ethernet (managed through the UniFi Network software).

• Required Controller Version: UniFi Network Application version 7.5.176 or later.

Environmental

• Operating Temperature: -5° to 45°C (23° to 113°F)

• Operating Humidity: 10% to 90% non-condensing

—
