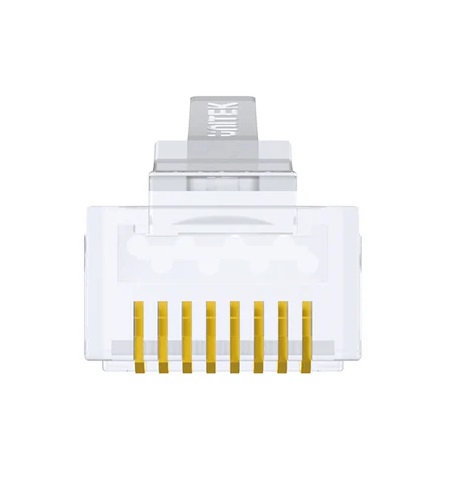

Unitek Network Connector RJ45 CAT7 EZ Crimp OT1094ATP (50pcs)

UNITEK RJ45 Cat. 7 Connectors allows users to create Ethernet cables in custom lengths. These RJ45 Cat.7 Connectors is compatible with all RJ45 wire crimping tools, ensuring high-speed performance and reliable connectivity. Easy Crimp Modular Plug for Solid or Stranded FTP Network Cables.

• Optimal Performance: Our shielded clear connectors minimize the distance between wire twists and contacts, ensuring a secure connection that boosts performance and minimizes frequency noise. The metal housing further decreases pair-to-pair crosstalk and surrounding EMI, protecting data integrity and delivering high-speed performance.
• Design and Build Structure: UNITEK Cat. 7 connectors feature a pure copper, nickel-plated shell designed to shield against interference, enhancing signal stability and speed. The inner shell is made from eco-friendly PC material, providing exceptional durability and resistance to extrusion and bending.
• Category 7 Compatibility: Designed for Gigabit Ethernet channel compliance, these gold-plated connectors are compatible with both solid and stranded cables. They work seamlessly with all types of keystone jacks and RJ45 inline couplers.
• Staggered Design: The 4-high, 4-low staggered configuration isolates conductors at termination, significantly minimizing far-end, near-end, and alien crosstalk. Gold-plated 8P8C pins provide a secure connection to the core, enhancing signal integrity and clarity.
• Quality Guaranteed: Compliant with ROHS and REACH standards, these connectors are designed for Category 7 data networks and meet all PoE and PoE+ performance requirements.

—

• Dimensions: 21.5mm x 11.6mm x 7.96mm
• Upstream: RJ45
• Downstream: Ethernet Cable
• Network Speed: 10Gbps
• Material/ Colour: Metal + PC + Copper / Silver + Transparent

—
