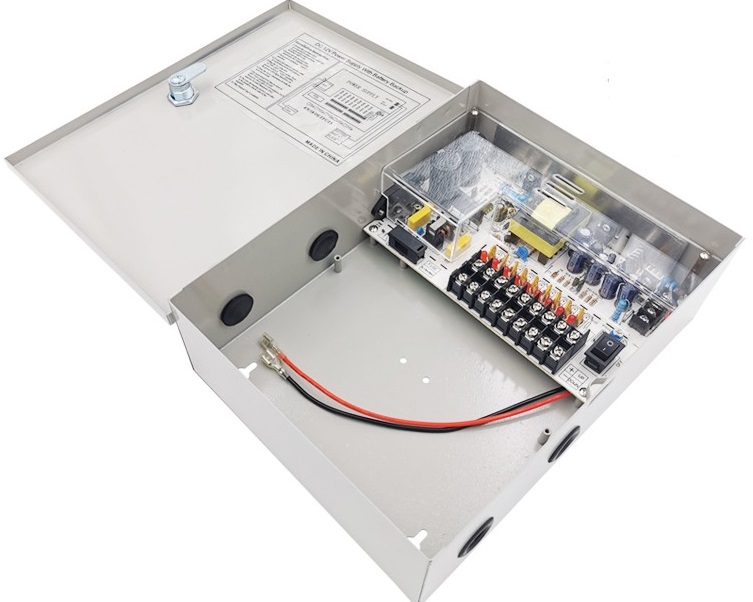

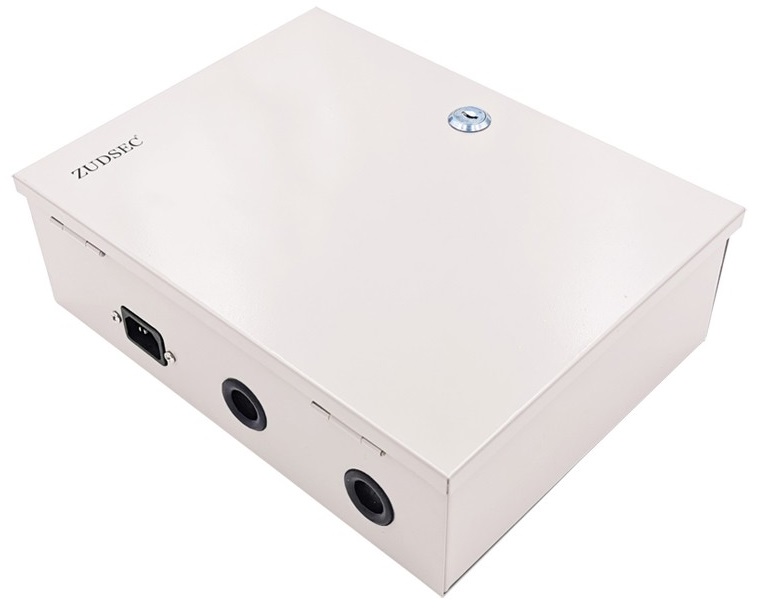

Zudsec Power Supply+UPS 12v10A ZDCP-1210-9U

• AC input voltage range is switched by switch
• Support UPS Uninterrupted function
• Medium volume, light weight and high efficiency
• Protection Characteristics: Output over-voltage, over-current and short-circuit protection
• With boot-up display (light emitting diode)
• 100% Full Load Burning Machine Test
• Built-in EMI filter
• 100% load test
• Full range of input voltage
• Output voltage accurate and stable
• Output low ripple and noise

—

General

• Input Voltage : AC110-240V
• Input Voltage Frequency : 60Hz/50Hz
• Output DC : 12V, 10A, 9CH (1200W)
• Total Output Current :10A ( (500amp/output, 9channels for 9 sets security cameras))
• Total Outputs : 120W
• Fuse Type : Glass (Resetable fuse)
• Fuse Rating : 1.5Amps /250VAC
• Backup battery : DC 12V 7Ah Sealed lead-acid battery (not included )

• General Protection : each  output has individual glass (Resetable) fuse and LED indicator, when problem occurs,only affect the  individual output, other outputs still working
• Circuit Short Protection : when short condition occurs, individual glass (Resetable) fuse will open the   circuit,when condition removed, glass (Resetable) fuse will automatically   back to close
• High Voltage Protection :  when high voltage occurs, the surge protection will be hit through to protect the connected device
• high tenperature protection : 115 degree
• Feature Power : ON/OFF switch
• Unit maintains camera synchronization
• Easy installation saves time and eliminates costly labor
• Safety standards : GB4943, UL60950-1,EN60950-1 standards.
• E M C standards :  GB9254, EN55022 class A EN61347-2-13:2008 standards

• CCTV : Camera,  PTZ, IR Illuminators, Video Process Equipment, etc
• Access Control : Reader,   Lock, Panel, etc.
• Size : (mm) 240(L)*210(M)*53(H)mm
• Cooling method : Natural cooling   air convection
• Weight : 1.5KG

—
