Adastra AS 100V Multi Zoner A6 Volume+Switch 6x30W 952.476UK

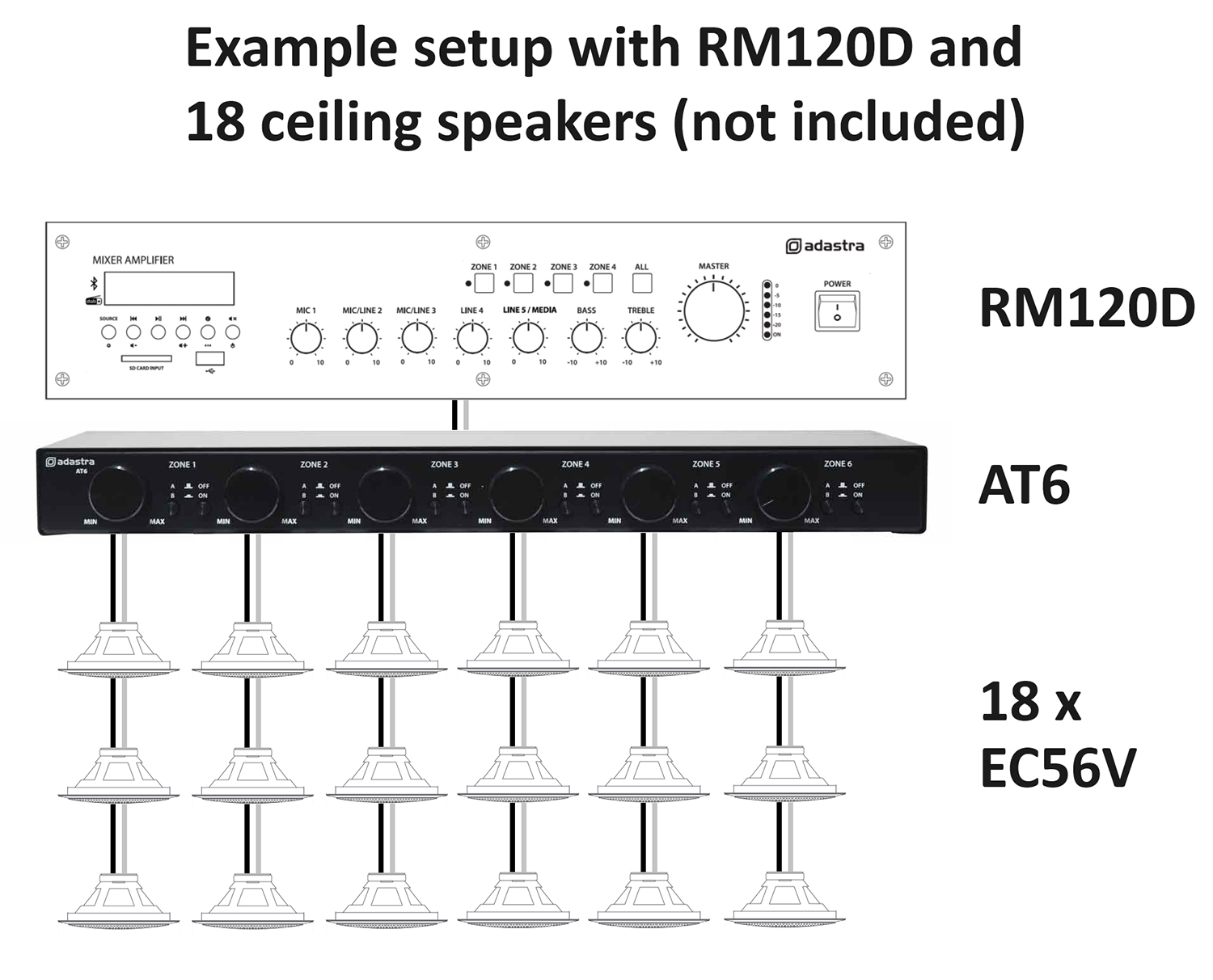

• Connect an AT6 to one or two 100V amplifiers to provide a 6-zone volume and source solution for multi-room installations.

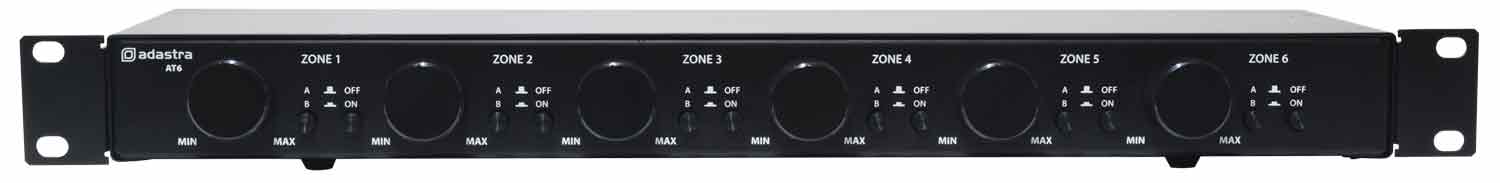

• Housed in a 1U rackmount enclosure, the AT6 has six output channels, which can feed up to 30W to one or more 100V speakers.
• Each channel has a rotary volume switch, on/off switch and an A/B source switch.
• When connecting 2 amplifier outputs to the AT6, one amplifier becomes input A and the other input B, so that each channel can have an independent choice of audio source and output level.
• 24V terminals can be connected to an emergency control panel for global muting.
• A completely passive and cost-effective add-on to convert single output amplifiers into a flexible zoning system.

—

• Choice of 2 amplifier sources to each zone
• Rotary output volume switch for each zone
• Passive operation, no power supply required
• 1U 19" rack-mountable
• Power handling 30W max. per output zone
• Channel controls 11 position volume attenuator, A/B source switch, On/Off switch
• Connections 24V mute terminals
• 482 x 160 x 43mm
• Weight
• 2.39kg

—
