Adastra CF-5D Fire Rated EN54-24 100V Ceiling Speaker 5” 6W 952.205UK

100V ceiling speakers with a rear dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity, and is fitted with a spring loaded mechanism for the speaker unit to pull into position for a neat flush fit. Screw terminals on the speaker unit offer 4 volume tappings at 100V. Certified to EN54 standard for compliance with fire detection and alarm systems requirements.

• EN54-24 certified
• Supplied with flush mount fire dome
• 4 x 100V volume tappings
• Spring loaded speaker retainers
• All metal frame and basket
• Fire-resistant cable to 95°C
• Ceramic screw terminals

—

• 100V line tappings: 0.75W, 1.5W, 3W, 6W
• Fire rating: EN54-24
• SPL @ 1W/1m: 92dB
• Frame material: Steel (powder coated)
• Frequency response 130Hz – 15kHz
• Cutout 160mmØ
• Driver 135mmØ (5.25") reinforced paper cone

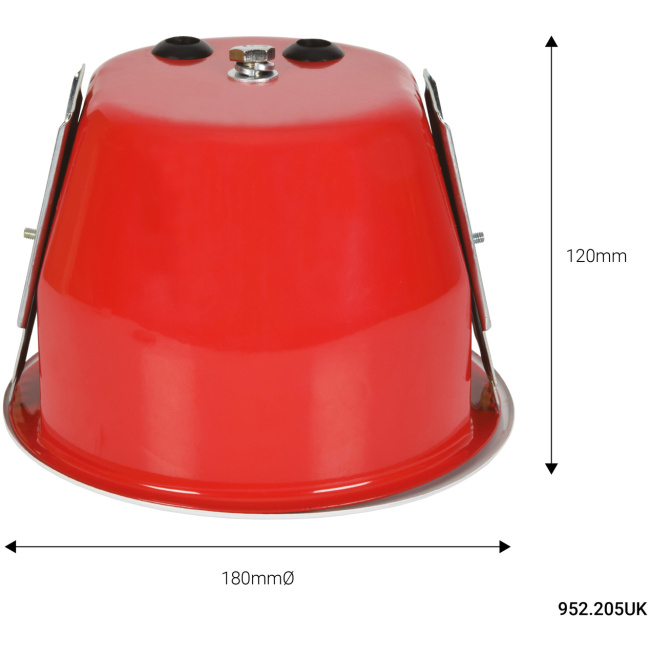

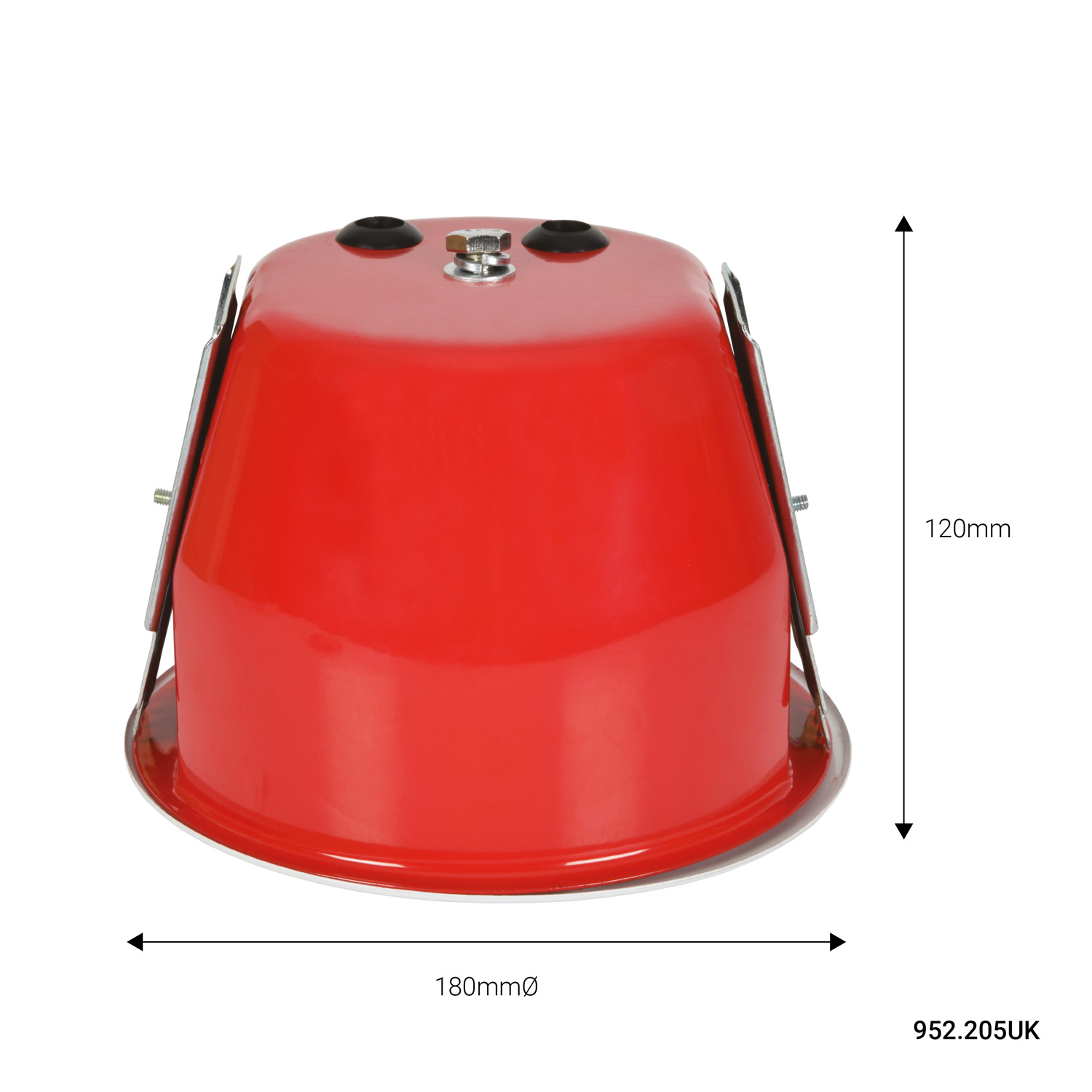

• Dimensions 120 x 180mmØ
• Weight 1.23kg

—
