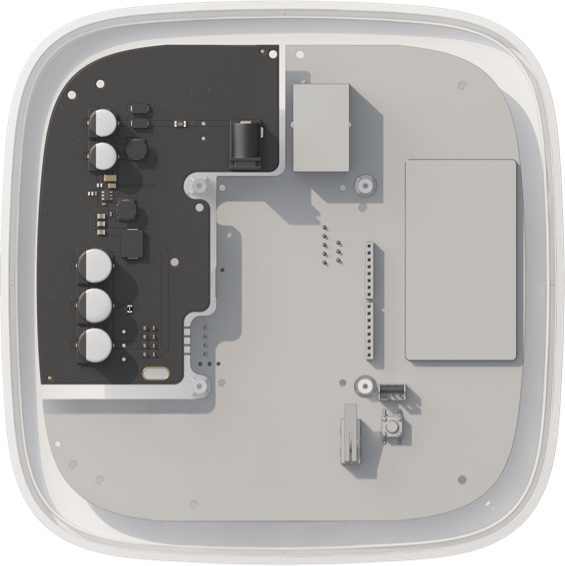

AJAX Power Board for Hub2-Hub2 Plus 6V

• Power supply unit for connecting Hub 2 / Hub 2 Plus control panels to a low-voltage power source
• With an alternative 6 V power supply unit, your hub can operate from an external battery for years — without being connected to the facility's power grid — and is ready to protect buildings in critical condition, construction sites, or abandoned properties from burglars, vandals, and unauthorized occupation
• The power supply unit is only compatible with Hub 2 and Hub 2 Plus control panels. It has a standard power jack plug to connect the power cable and is supplied with a terminal adapter

—

• Compatibility : Hub 2 and Hub 2 Plus
• Recommended batteries : Zinc air and alkaline batteries with 4.2-16 V operating power
• Input voltage : 4.2-16 V
• Output voltage : 4.8 V ± 5%
• Switch-on voltage : 4.2 V ± 2.5%
• Switch-off voltage : 3-3.4 V (depending on the load)
• Maximum input current : 2.2 A at 4.2 V; 0.5 A at 16 V
• Maximum output current : 1.5 A
• Plugging in : Plug socket: 6.5 x 2 mm / Plug: 5.5 x 2.1 mm
• Operating temperatures range : From -10°С to +40°С
• Operating humidity : Up to 75%
• Dimensions : 98 × 70 × 17 mm
• Weight : 26 g
• Warranty : Warranty service for 24 months from the date of sale
• Service life : 10 years
• Complete set : 6V PSU for Hub 2/Hub 2 Plus


—
