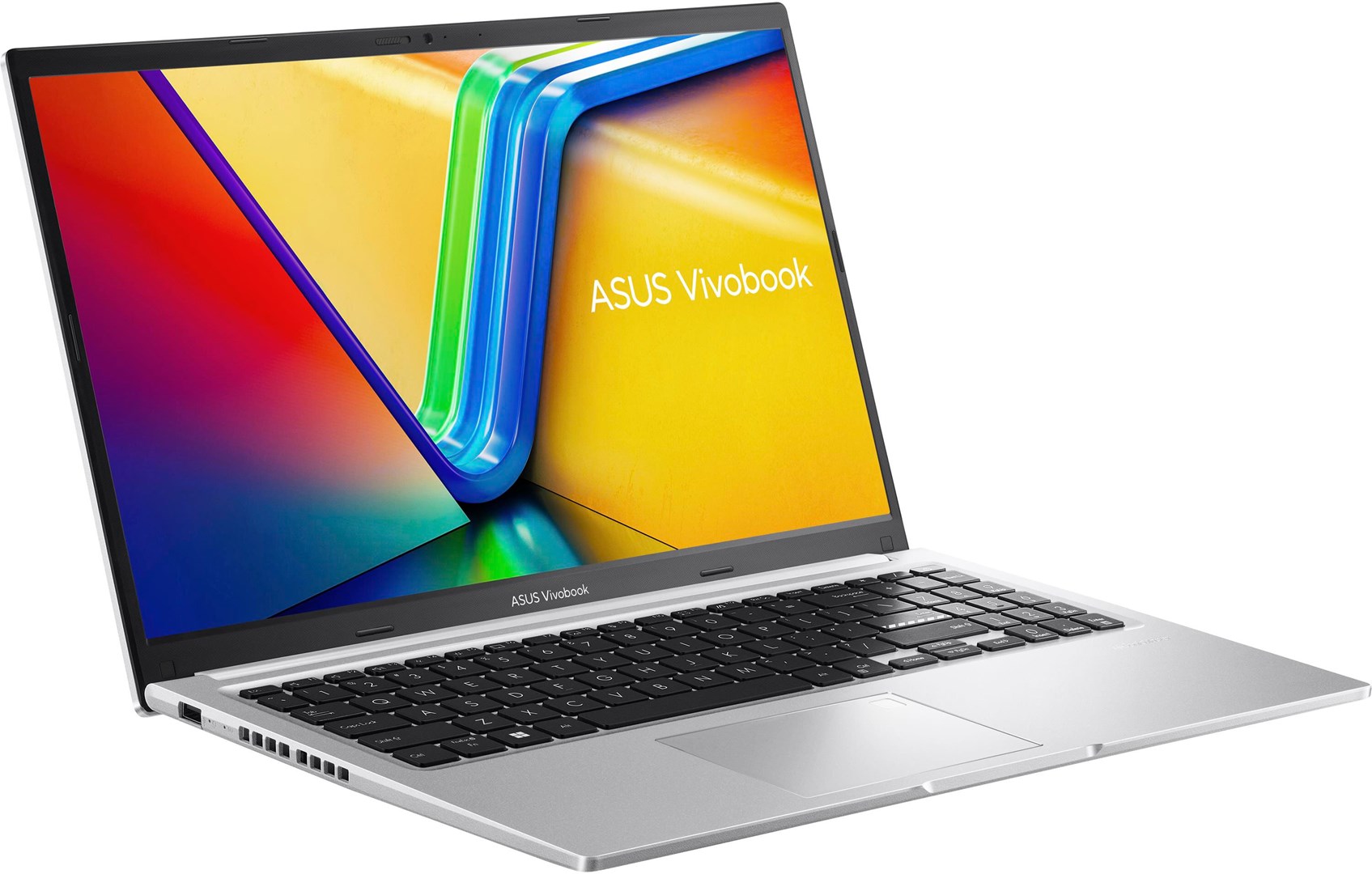

ASUS Vivobook 15 M1502YA-BQ336W AMD Ryzen™ 5 7430U Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Silver

Technical Specifications

Processor

Processor generation: AMD Ryzen 7000 Series

L3 cache: 16 MB

L2 cache: 3 MB

Processor threads: 12

Processor frequency: 2.3 GHz

Processor boost frequency: 4.3 GHz

Processor cores: 6

Processor model: 7430U

Processor family: AMD Ryzen™ 5

Processor manufacturer: AMD

Graphics

On-board GPU manufacturer: AMD

Discrete graphics card model: Not available

On-board graphics card: Yes

On-board graphics card model: AMD Radeon Graphics

Discrete graphics card: No

On-board graphics card family: AMD Radeon Graphics

:

:

:

:

:

:

:

:

:

Memory

Memory layout (slots x size): 1 x 8 GB

Memory slots: SO-DIMM

Memory form factor: On-board + SO-DIMM

Internal memory type: DDR4-SDRAM

Internal memory: 16 GB

:

:

:

:

:

Design

Product type: Laptop

Housing material: Plastic

Colour name: Cool Silver

Product colour: Silver

:

:

:

:

:

:

Power

AC adapter power: 45 W

AC adapter frequency: 50 – 60 Hz

USB Power Delivery (USB PD): Yes

USB Type-C charging port: Yes

AC adapter input voltage: 100 – 240 V

DC-in jack: Yes

AC adapter output current: 2.37 A

AC adapter output voltage: 19 V

:

:

Security

Password protection: Yes

Trusted Platform Module (TPM): Yes

:

:

:

:

:

:

:

:

Weight & dimensions

Width: 359.7 mm

Weight: 1.7 kg

Depth: 232.5 mm

Height: 19.9 mm

:

:

:

:

:

:

Network

Bluetooth version: 5.3

Mobile network connection: No

WWAN: Not installed

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth: Yes

:

:

:

:

Packaging content

AC adapter included: Yes

:

:

:

:

:

:

:

:

:

Display

Display brightness: 250 cd/m²

RGB colour space: NTSC

Panel type: IPS-Level

Colour gamut: 45%

Touchscreen: No

Maximum refresh rate: 60 Hz

Anti-glare screen: Yes

LED backlight: Yes

Native aspect ratio: 16:9

Display resolution: 1920 x 1080 pixels

Software

Operating system architecture: 64-bit

Operating system installed: Windows 11 Home

:

:

:

:

:

:

:

:

Audio

Built-in speaker(s): Yes

Audio system: SonicMaster

Built-in microphone: Yes

:

:

:

:

:

:

:

:

:

:

:

:

:

Certificates

Compliance certificates: REACH

:

:

:

:

:

:

:

:

:

Storage

Number of SSDs installed: 1

SSD interface: PCI Express 3.0

Total SSDs capacity: 512 GB

M.2 SSD size: 2280 (22 x 80 mm)

SSD capacity: 512 GB

NVMe: Yes

SSD form factor: M.2

Optical drive type: No

Storage media: SSD

Total storage capacity: 512 GB

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Combo headphone/mic port: Yes

USB 2.0 ports quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI version: 1.4

:

:

:

:

Camera

Front camera HD type: HD

Display resolution: 1280 x 720 pixels

Front camera: Yes

:

:

:

:

:

:

:

Battery

Number of battery cells: 3

Battery capacity: 42 Wh

Battery technology: Lithium-Ion (Li-Ion)

:

:

:

:

:

:

:

Keyboard

Pointing device: Touchpad

Numeric keypad: Yes

:

:

:

:

:

:

:

:

Safety warning

Hazard pictogram(s): GHS09: Environmental hazard

Warnings: Do not dispose of your old device in the normal household waste – take it to an electronic waste collection point.

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
