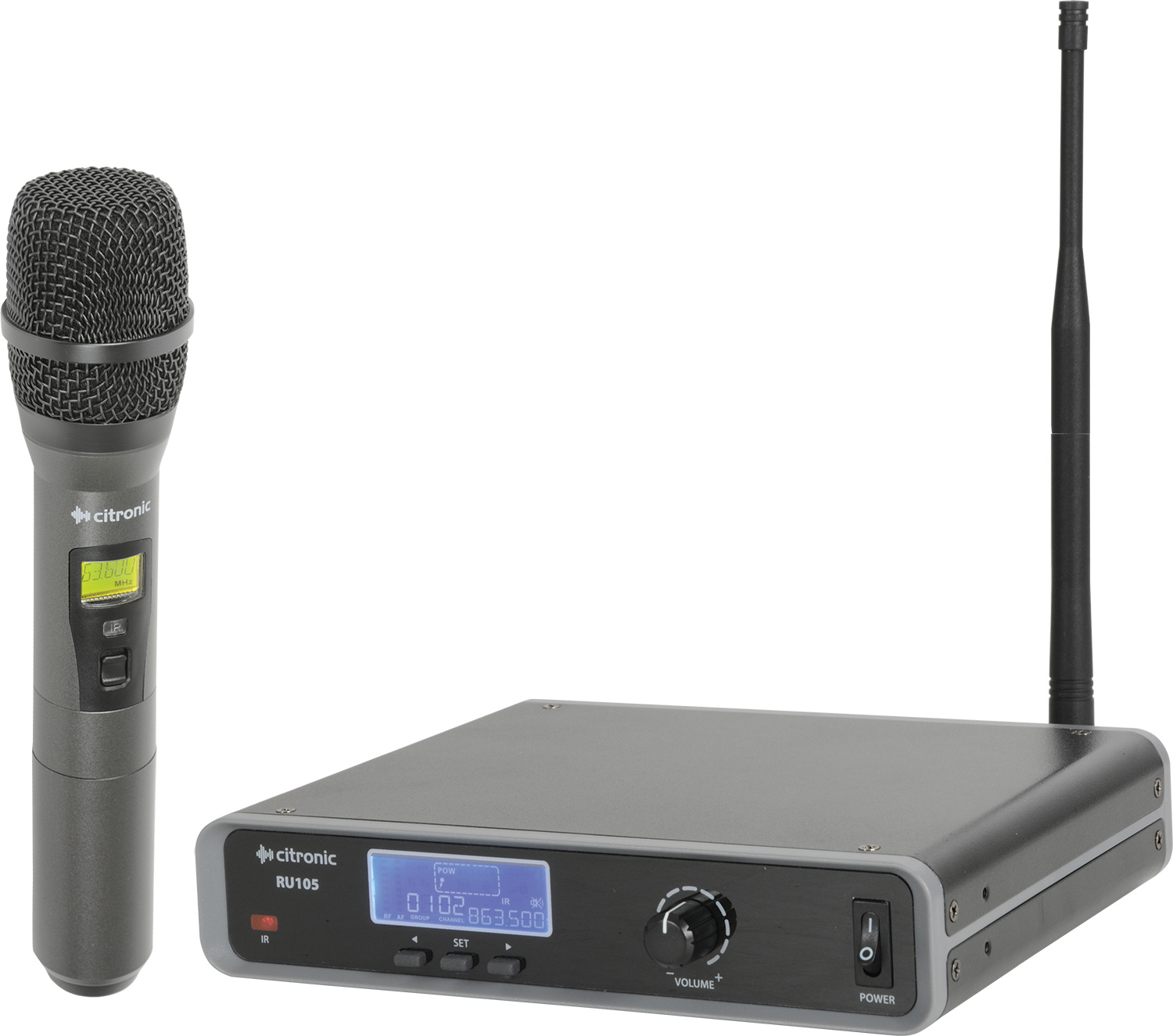

Citronic RU105-H Multi-UHF Handheld 171.972UK

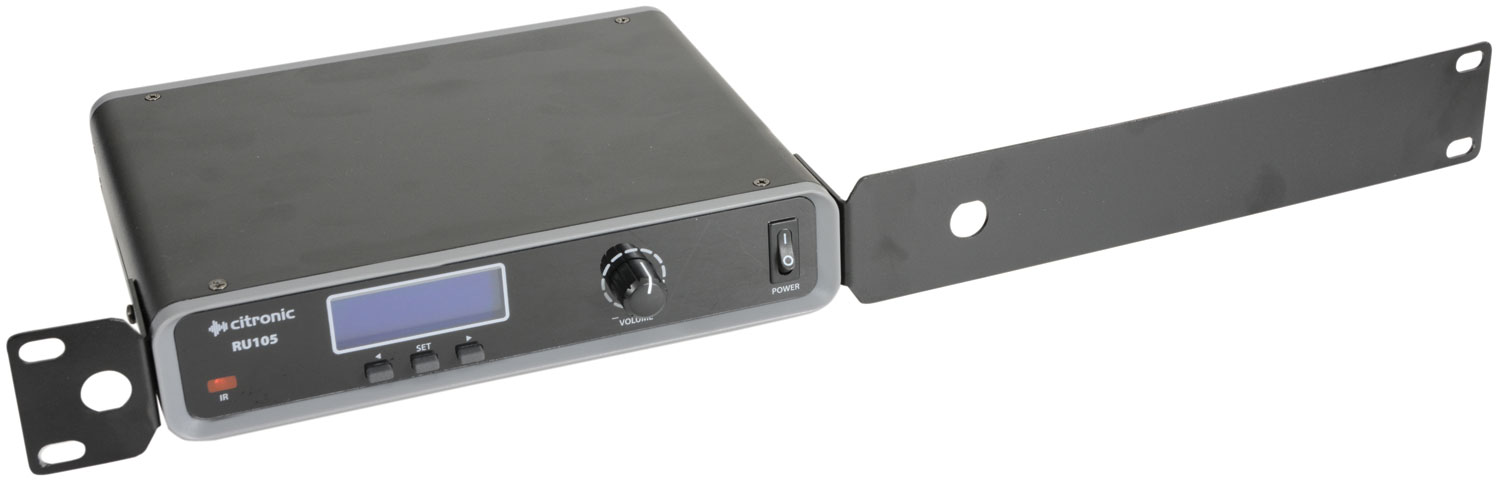

Single channel PLL tuneable UHF wireless system with a handheld transmitter. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 4 RU105 systems can be operated together on the EU licence-free band.

• PLL tunable with 81 UHF frequencies
• Licence free operation in EU
• Pilot tone & mute circuit for stable signal
• Rack-mounting accessories included
• Supplied with mains adaptor and 2 x AA batteries

—

• Power supply 12-18Vdc, 350mA (mains adaptor included)
• Batteries 2 x AA (for transmitter – included)
• Carrier frequency 863 – 865MHz (81 selectable frequencies)
• Range 60m
• Signal to noise ratio >105dB
• THD <0.5% @ 1KHz
• Frequency response 50Hz-18KHz ±1 dB
• Image rejection >85dB
• Output impedance 2.2k Ohms
• Output level 400mV (balanced), 200mV (unbalanced)
• Dimensions : receiver 44 x 198 x 190mm
• Weight : receiver 710g
• Dimensions : transmitter 265 x 49mmØ
• Weight : transmitter 330g (no battery)

The box for this item contains :

• UHF receiver

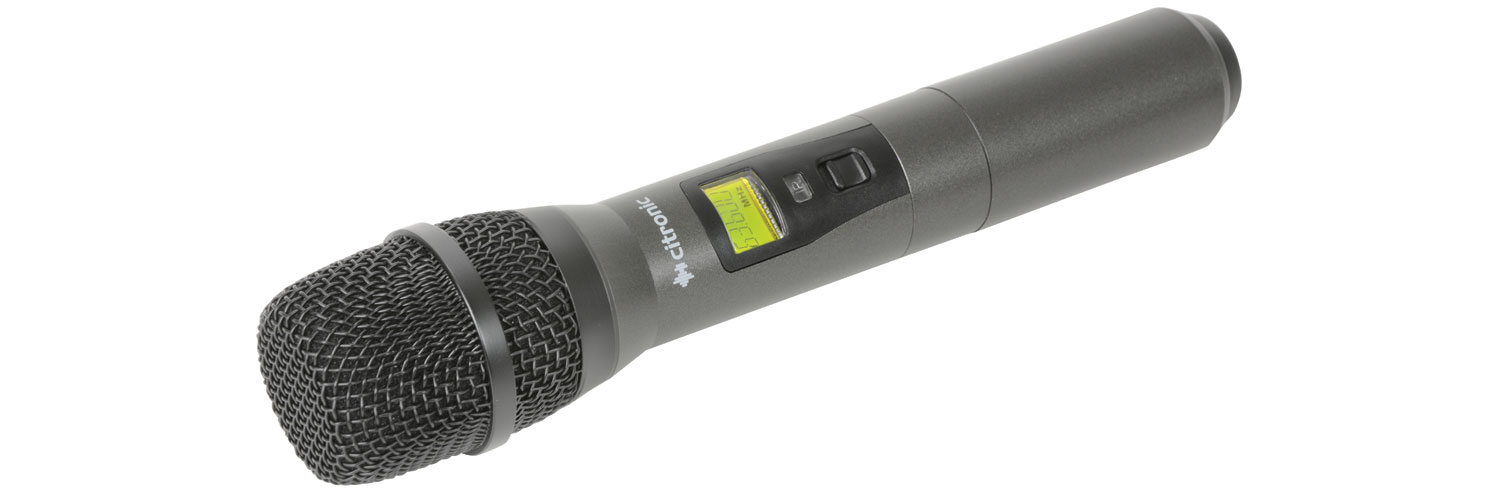

• Handheld microphone
• 2 x AA batteries
• UHF antenna
• Antenna lead
• Rack-mounting kit
• Mains power adaptor

—
