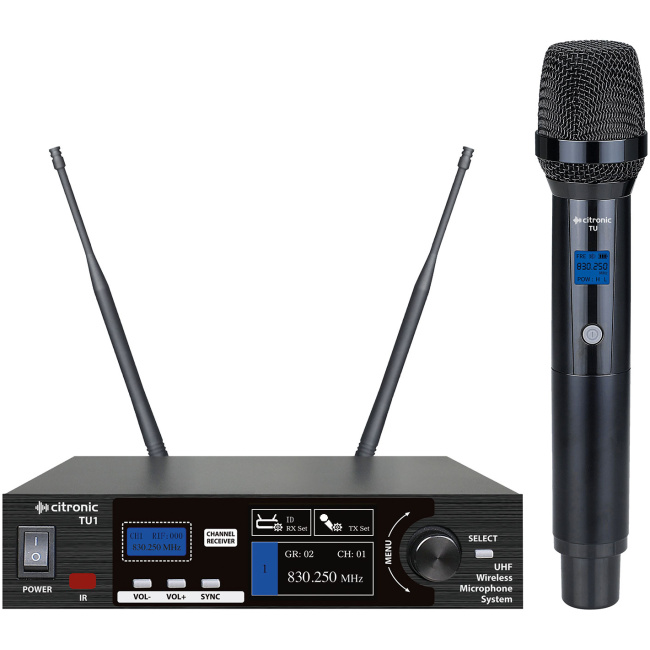

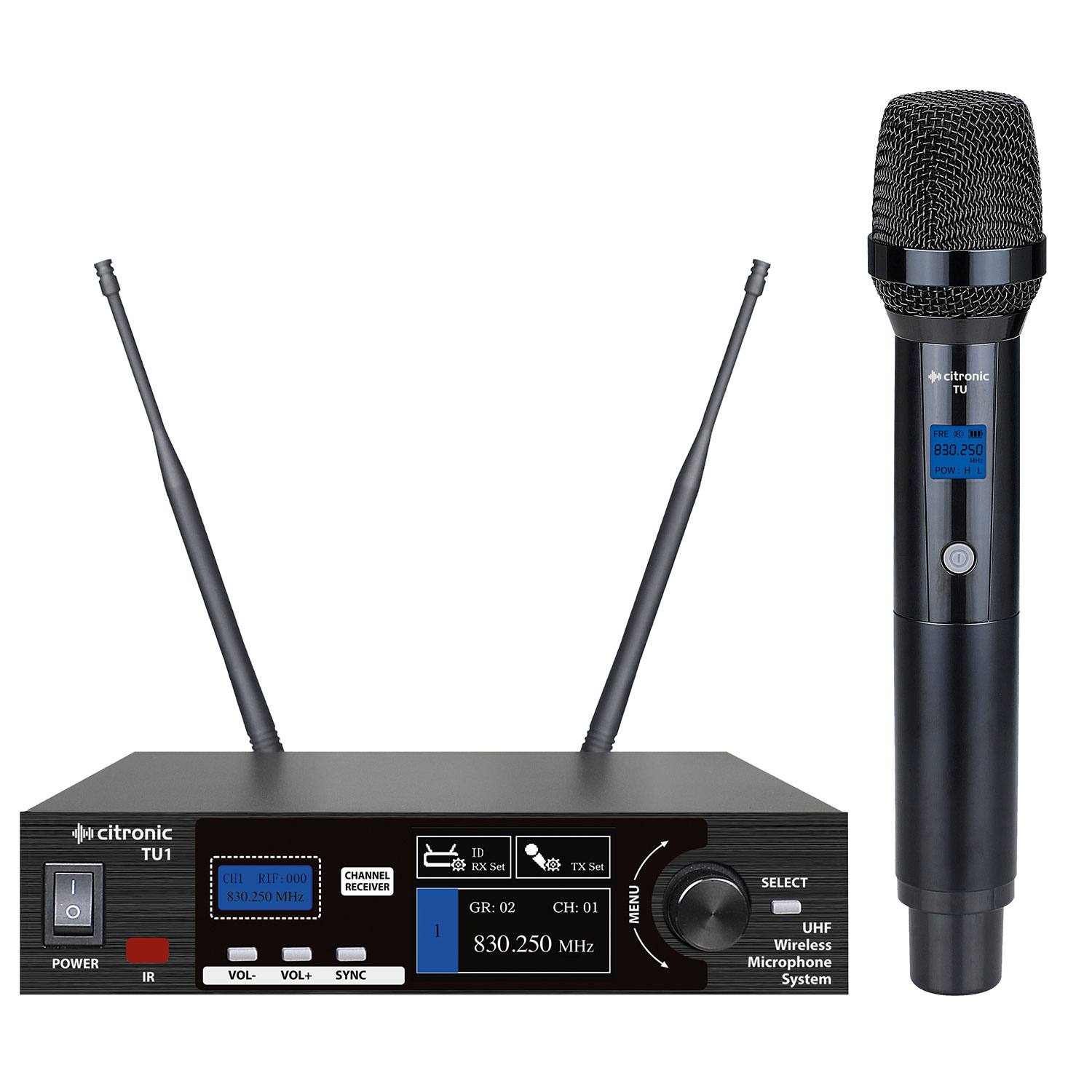

Citronic TU1-H True Diversity Multi-UHF Single Handheld Wireless Microphone 171.031UK

True diversity UHF wireless microphone system with an individually programmable channel that syncs to the transmitter to set the carrier frequency, EQ settings, transmission power, and even the display backlight colour for identification

The transmitter is a rugged handheld microphone with a high-quality dynamic capsule in a full metal housing with fully balanced signal connection

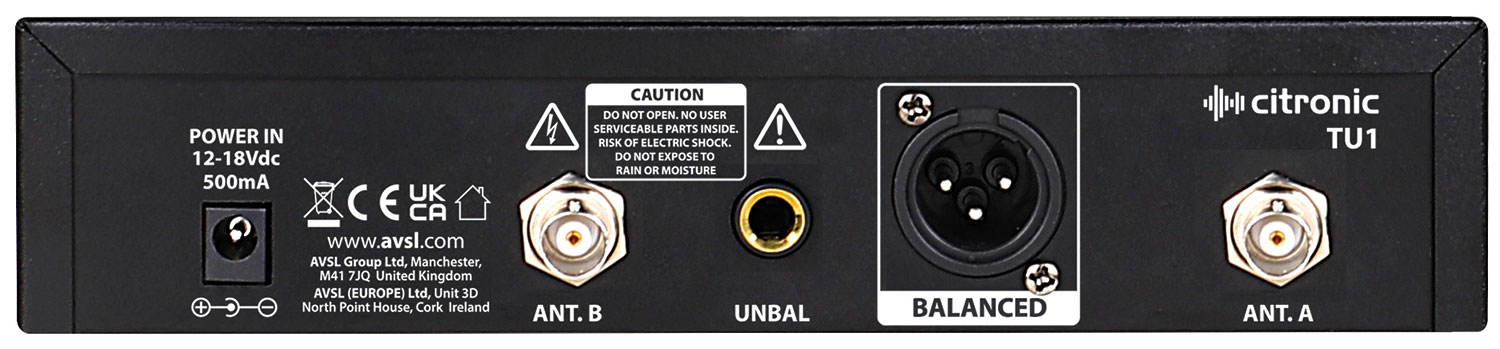

Twin BNC antennas can be connected at the rear of the receiver or to the front panel when 19" rack-mounted using the supplied BNC extension cables

Tuneable within the license-free UHF and regulated duplex gap bands, arranged in 8 groups of 8-16 carrier frequencies

Both receiver and transmitter settings are programmed via a front panel full colour TFT display with a rotary encoder for parameter adjustments. Each channel has a further backlit display that corresponds to the display on each transmitter and sync's wirelessly via an IR connection, avoiding the complication of multiple controls on each transmitter

For uncompromising wireless performance, the TU-series has been designed to provide a reliable and adaptable system for stage performances, conferences, theatrical productions and other vocal duties

• Independent 7-band EQ for each channel
• True diversity antennas with internal distro
• Auto frequency sweep function
• Individual XLR outputs or single mix jack output
• License-free operation (863-865MHz) in UK and EU regions
• Additional ch.65 frequencies (823-832MHz) can be used with a PMSE license.
• 2 x AA batteries supplied per transmitter

—

• Carrier Frequencies: 823-832 / 863-865MHz
• Wireless Range: Up to 60m
• Antenna Connection: 2 x BNC
• Power Supply: 12-18Vdc, 500mA (mains adaptor supplied)
• Weight : Receiver: 0.935kg
• Dimensions : Receiver: 205 x 185 x 44mm
• Weight : Handheld Microphone: 354g (no battery)
• Dimensions : Handheld Microphone: 258 x 47mmØ
• Batteries: 2 x AA per channel

In the Box

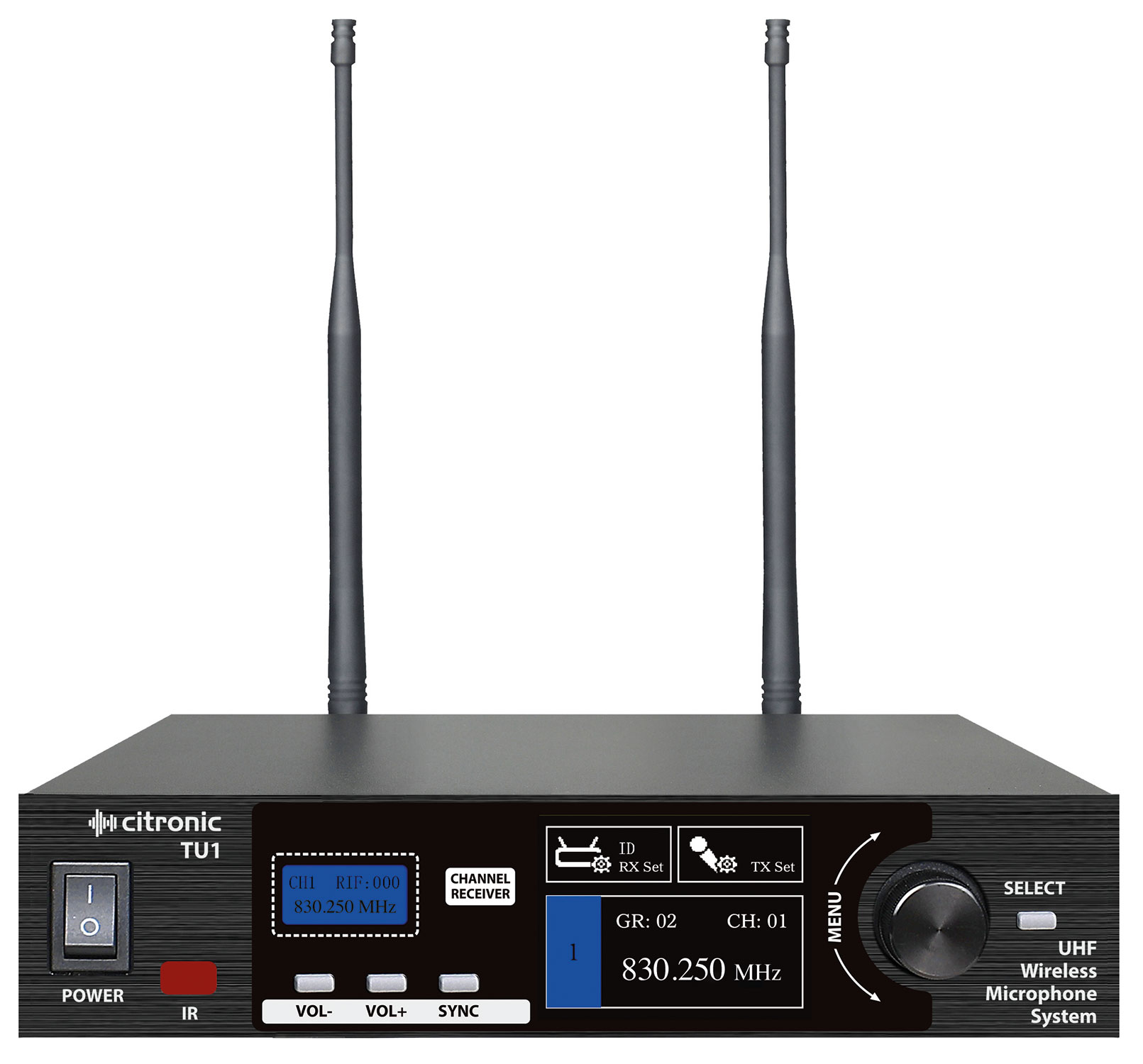

• 1 x Rack-Mountable 1U UHF Receiver

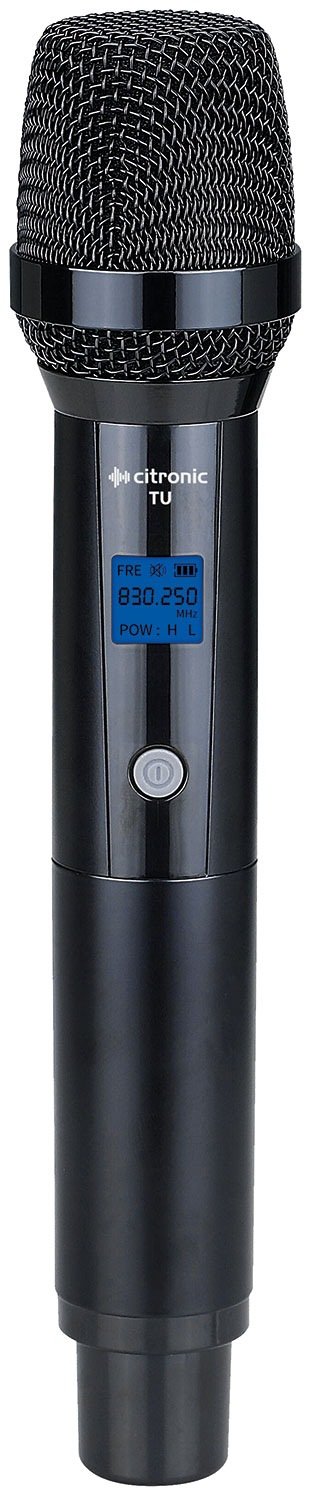

• 1 x Handheld Microphone
• 2 x UHF Antennas (BNC)
• 2 x BNC Extension Leads
• 1 x 12Vdc Power Adaptor
• 2 x AA Batteries

—
