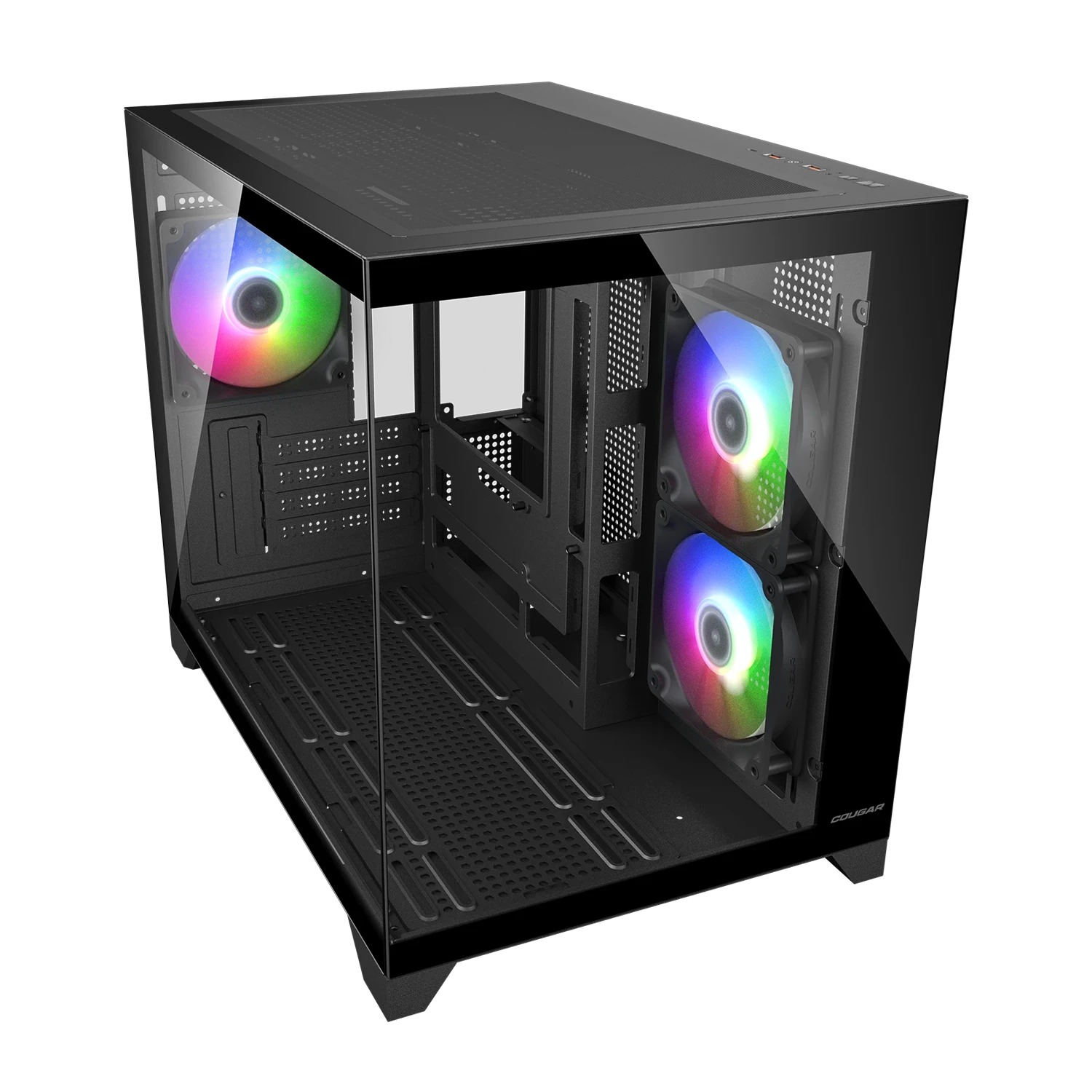

Cougar FV150 Mini RGB

The FV150 Mini’s compacts dual-chamber aesthetics and functionality into a form factor suitable for environments with limited space. The glass panelled primary chamber enhances build visibility, while the second chamber discreetly conceals hardware. Reverse connector motherboard compatibility enables zero-cable build configurations.

At a glance

• Dual chamber design lets you show off your build while hiding cables, storage drives, and PSU.
• Supports up to 400mm GPUs.
• Supports a maximum fan capacity of 9 and a 360mm AIO.
• Supports Mini-ITX, Micro-ATX and reverse connector motherboards.

Specifications

Dimensions (WxHxD) : 285 x 365 x 436 mm

I/O Panel : USB 3.2 Gen 2 Type-C (10 Gbps) x 1, USB 3.0 Type-A (5 Gbps) x 2, 4 Pole Headset Audio Jack, Restart Button

3.5″ Drive Bay : 1

2.5″ Drive Bay : 1+1

Expansion Slots : 4 (needs to be broken off for GPU installation)

Vertical GPU Support : No

Cooling Fan Support : Top 120mm x 3 / 140mm x 2 – M/B Side 120mm x 2 ) Pre-installed ) / 140mm x 2 – Bottom 120mm x 3 / 140mm x 2 – Rear 120mm x 1 ( Pre-installed ) – Speed 1200 ± 10% RPM – Connector 4 Pin – Maximum Number of Fans : 9

Water Cooling Support : Top 360mm / 280mm / 240mm – M/B Side 240mm / 280mm

RGB Hub Sync with M/B : No

Max. Graphics Card Length : 400 mm

Max. CPU Cooler Height : 170 mm

Max. PSU Length : 200 mm
