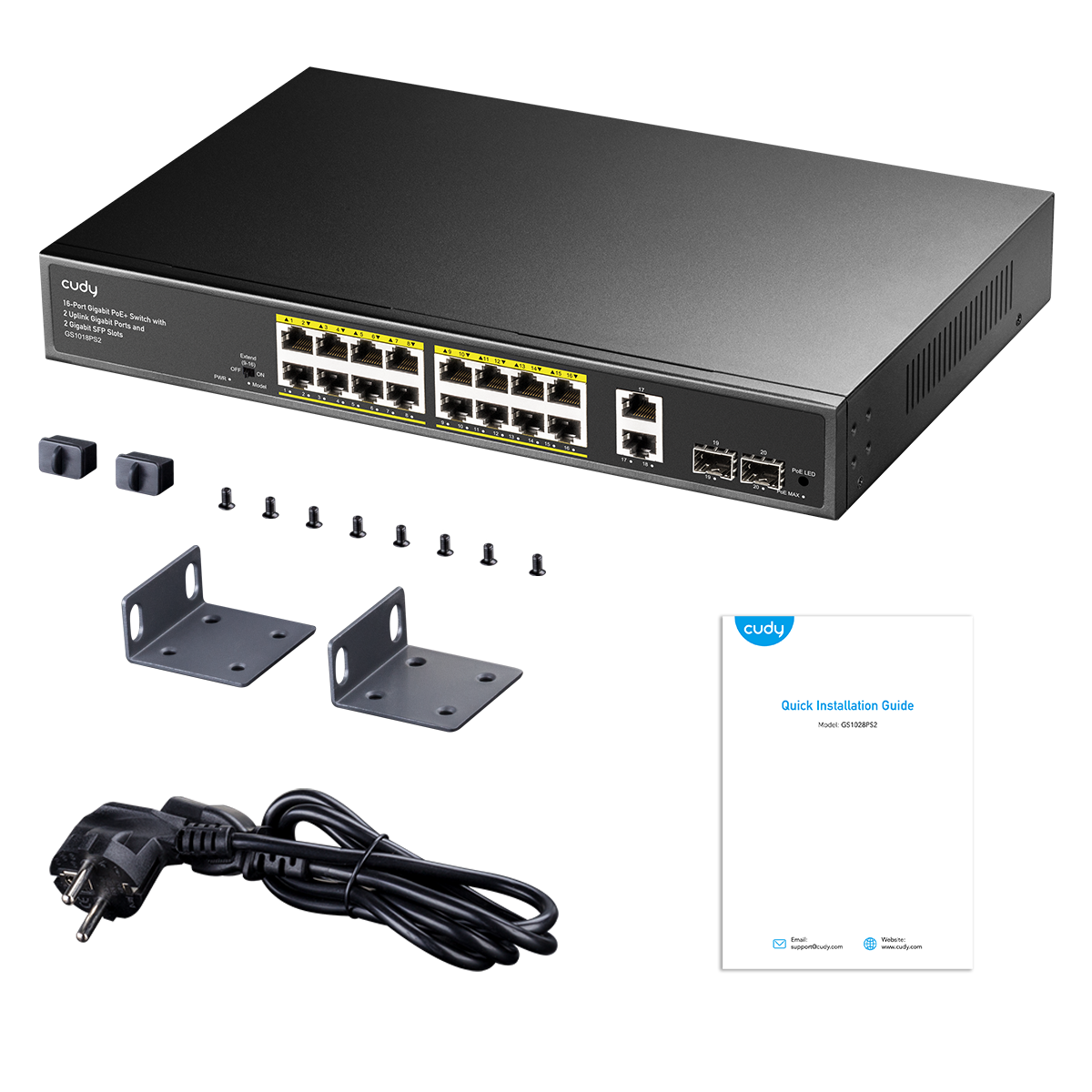

Cudy Switch PoE Gigabit 16PoE + 2GbE + 2SFP Uplink 200W R/M GS1018PS2

• Dual uplink GbE and dual SFP slots allow network expansion and long-distance surveillance
• 16× GbE PoE Ports, 802.3at / 802.3af (30W per port)
• 2× Uplink GbE, 2× Uplink SFP
• Port 9-16 Supports Extend (CCTV) Mode for max 250 meters transmission
• 200-watt total power supply
• Watchdog detects unresponsive PoE clients and restores them under Extend mode
• PoE Port Priority streamlines device power management

—

Connector Type:

• 16× 10/100/1000 Mbps PoE Ports + 2× Uplink Gigabit Ports+ 2× Uplink SFP Slots

• IEEE 802.3 (Ethernet)
• IEEE 802.3u (Fast Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3x (Flow Control)
• IEEE 802.3z (Gigabit Ethernet Fiber Standard)

• PoE Standard: IEEE802.3af /IEEE802.3at
• Max each port: 15.4W ( IEEE 802.3af )
• Max each port：30W ( IEEE 802.3at )
• PoE compatibility: IEEE 802.3af/at adaptive
• PoE port output: DC48-55V
• Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)

• 10BASE-T: Cat 5E UTP(≤250 meter)
• 100BASE-TX: Cat5 or more UTP (≤100 meter)
• 1000BASE-TX: Cat5 or more UTP (≤100 meter)

• Multimode optical fiber: 50/125, 62.5/125, 100/140um
• Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um

• Bandwidth: 40Gbps
• MAC: 8K
• Packet Buffer Memory: 3 Mbit
• Packet Forwarding Rate: 29.76 Mpps

• Power input: AC100-240V 50/60Hz,  Power Budget: 200 W

• Operating Temperature: -20℃ ~ 50℃;
• Storage Temperature: -40℃ ~ 80℃;
• Operating Humidity: Max 90%, non-condensing
• Storage Humidity: Max 95%, non-condensing
• Working Height: Max to 10,000 feet (3,000 meters)
• Storage Height: Max to 10,000 feet (3,000 meters)

—
