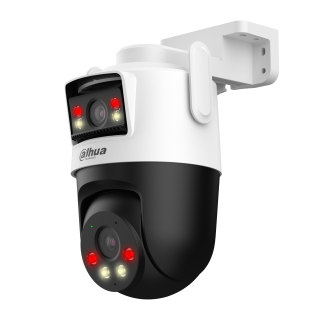

Dahua IP 5.0MP Wifi PT Dual Illumination Dual Lens P5D-5F-PV

The Picoo Dual Series, which is under the Dahua Wireless series, consists of cameras equipped with both fixed lens and PT lens. This unique combination allows for simultaneous live monitoring of two areas, providing coverage from multiple angles. Leveraging its dual lenses, the camera performs smart detection using advanced functions like AI human and vehicle detection, effectively minimizing false alarms. Additionally, with the assistance of the PT lens, the camera has the capability to automatically track moving targets. The camera also triggers sound and light alarms upon detecting an intrusion, promptly sending notifications to the mobile client to ensure you remain up to date regardless of your location. These cameras are widely utilized in small-scale scenes such as shops and restaurants.

—

Fixed Lens

• Image Sensor : 1/3" CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• Illumination Distance : Up to 30 m (98.43 ft) (IR) / Up to 20 m (65.62 ft) (Warm light)
• Illuminator Number : 2 (IR LED); 2 (Warm light)
• Angle Adjustment : -10° to 15°
• Lens Type : Fixed-focal
• Focal Length : 2.8 mm
• Max. Aperture : F1.6
• Field of View : H: 95°; V: 53°; D: 110°

PT Lens

• Image Sensor : 1/3" CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• Illumination Distance : Up to 50 m (164.04 ft) (IR) / Up to 40 m (131.23 ft) (Warm light)
• Illuminator Number : 2 (IR LED); 2 (Warm light)
• Angle Adjustment : Pan: 0° to 352°; / Tilt: 0° to 90°
• Lens Type : Fixed-focal
• Focal Length : 6 mm
• Max. Aperture : F1.6
• Field of View : H: 49°; V: 26°; D: 57°

Intelligence

• Human Detection : Yes
• Vehicle Detection : Yes

Audio and Video

• Video Compression : H.265
• Video Frame Rate : Main stream: 2880 × 1620@15 fps
• sub stream: 640 × 360@15 fps

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

• Video Bit Rate : H.265: 512 kbps–4096 kbps
• Day/Night : Auto(ICR)/Color/B/W
• WDR : DWDR
• Motion Detection : Yes
• Image Rotation : 0°/180°
• Built-in MIC : Yes, built-in Mic
• Built-in Speaker : Yes, built-in speaker
• Audio Compression : G.711a

Network

• Network Port : RJ-45 (10/100 Base-T)
• Wi-Fi : IEEE 802.11b/g/n/ax 2.412-2.472
• GHz,2.4G,≤[email protected]
• Wi-Fi Pairing : Bluetooth pairing
• Storage : Micro SD card (support max. 256 GB)
• Management Software : DMSS
• Mobile Client : iOS;Android

General

• Certifications : CE
• Power Supply : 12 VDC
• Power Consumption : Basic: 2.6 W / Max.: 10.6 W (pulling stream+ IR + siren and light active deterrence)
• Operating Temperature : –20 °C to +50 °C (–4 °F to +122 °F)
• Operating Humidity : ≤95% (RH), non-condensing
• Protection : IP66
• Casing Material : Plastic
• Product Dimensions : 159.4 mm × 119.1 mm × 210 mm (6.28" × 4.69" × 8.27") (L × W × H)
• Net Weight : 585 g (1.29 lb)

—
