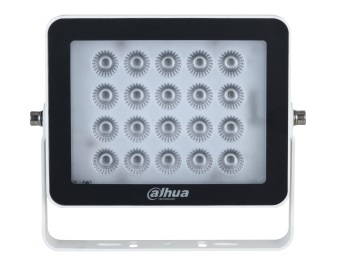

Dahua IR Camera Led Illuminator PFM522P-D1-IR

• Built with a die cast aluminum cover, it is highly durable and has a long lifespan
• One-piece lens that provides balanced lighting and is elegantly designed
• Explosion-proof
• 12 VDC power supply
• IP66 rated
• Multiple installation methods including pole mount, plane mount and wall mount

—

Protection

• Vanda-proof : IK10
• Protection ; IP66
• Surge Protection Grade : Common mode: ±6 kV; Different mode: ±4 Kv

Basic

• Light Source : LED
• LED Quantity : 20
• View distance : 15 m–50 m
• View angle : 20°
• Wavelength : 850 nm
• Brightness : 10%–100% (continuously adjustable)
• Enable Threshold : 30 lux

Power

• Rated Power : 13 W
• Power Supply : 12 VDC

Port

• RS-485 : 1

Structure

• Material : Aluminum alloy
• Product Dimensions : 186.4 mm × 160 mm × 31.5 mm (L × W × H)
• Color : White
• Net Weight : 0.76 kg
• Gross Weight : 1.0 kg
• Installation : Wall mount; pole mount; plane mount
• Product Dimensions : 242 mm × 210 mm × 84 mm (L × W × H)
• Packaging Dimensions : 430 mm × 250 mm × 212.5 mm (L × W × H)

Environment

• Operating Temperature : –30 °C to +70 °C
• Operating Humidity : 0%–90% (RH), non-condensing
• Storage Temperature : –30 °C to +70 °C
• Storage Humidity : 10%–90% (RH), non-condensing

Certifications

• CE LVD: EN 62368-1
• CE EMC: EN55032 EN55024 EN55035 EN61000-3-2 EN61000-3-3
• FCC: FCC part15B

—
