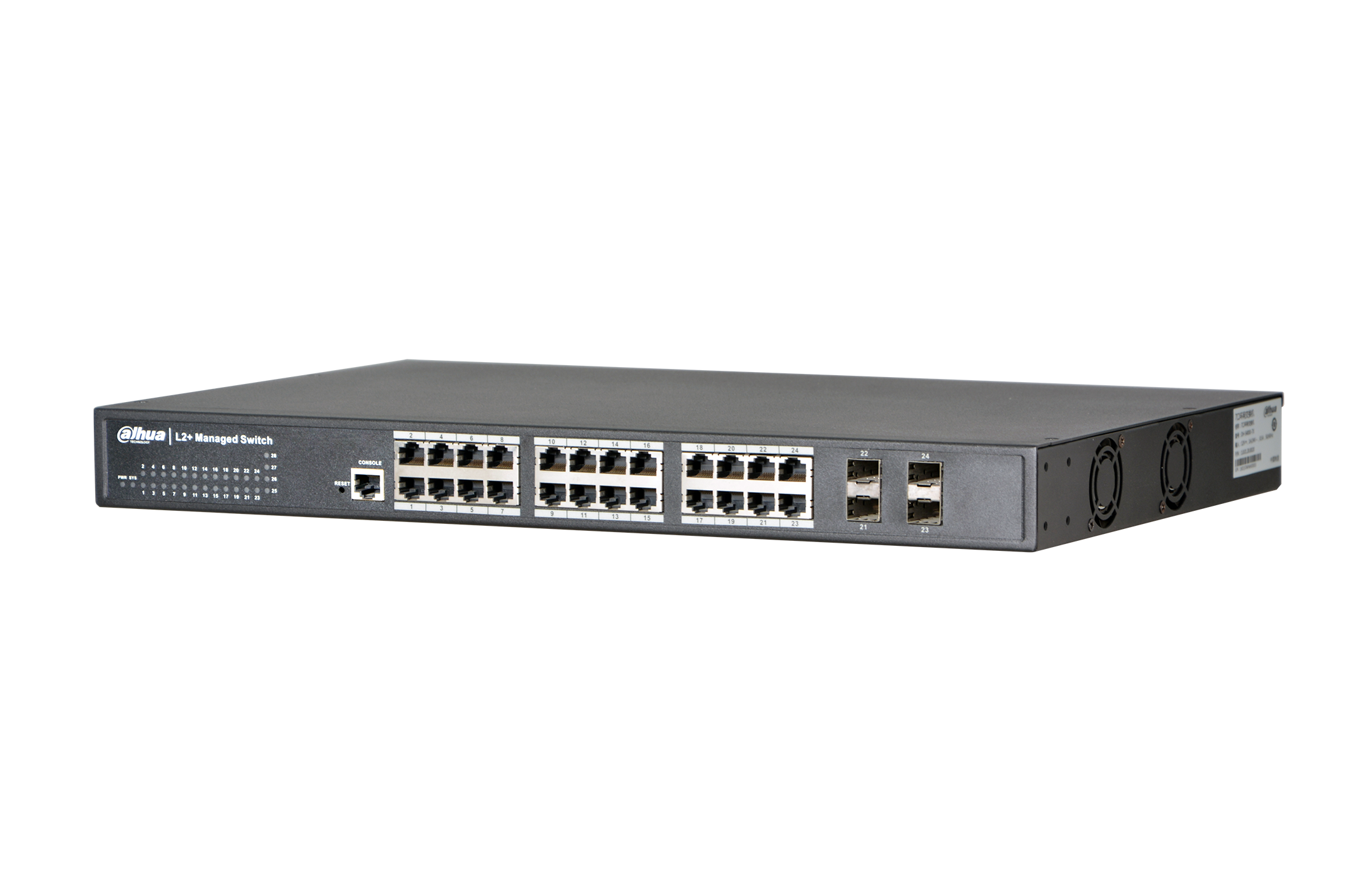

Dahua L3 Ethernet Switch 24 Port Gigabit + 4SFP 10GE PFS6428-24T

• Rich interface type, flexible port extension
• Powerful Processing Capacity
• Perfect Security Control Strategy
• Perfect Reliability Protection Mechanism
• Convenient Management and Maintenance

—

Technical Specification

• Interfaces : 10/100/1000BASE-T port x 24 / 10GE SFP+/GE SFP port x 4
• Management Ports : One Console port
• Reset Button : One Restore Factory Default Button
• Switching Capacity : 392Gbps
• Packet Forwarding Rate : 96Mpps
• Working Temperature : -10~55°C
• Storage Temperature : -40~70°C
• Operating Humidity : 5%~95% Non-condensing
• Dimensions : 440(L)×285(W)×44.5(H)mm
• Weight : <6Kg
• Input Voltage : AC: 110~240V/50~60Hz (Dual power)
• Power Consumption : <50W

Service Characteristics

• Protocol Standard : IEEE 802.3ad,IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3az
• MAC Table : 32K
• VLAN :4K / Port-based VLAN / 802.1Q Standard VLAN / MAC-based VLAN / Protocol-based VLAN
• Spanning Tree : STP / RSTP / MSTP
• Loop Protection : ERPS
• Port Aggregation : Up to 14 aggregation groups, and up to 8 GE ports for each group / LACP, Manual aggregation
• Mirroring : Support many-to-one port mirroring, no limit for the quantity of mirroring source port / Support 4 mirroring groups
• Flow Control : Support half-duplex based on back pressure type control / Support full duplex based on PAUSE frame
• Port Speed Limit : Support input/output bandwidth management based on port
• Redundancy backup : VRRP
• IP Routing : Static Routing / RIP, OSPF, BGP
• Multicast : IGMP Snooping / MVR (Multicast VLAN Registration)
• DHCP : DHCP Client / DHCP Server / DHCP Snooping
• Storm Suppression : Support suppression upon broadcast, multicast, unicast
• Security Features : Hardware supports IP ACL,MAC ACL, VLAN ACL / Hardware supports IP+MAC binding based on port / Support IP Source Guard / Support ARP Detection / Support IEEE802.1x port authentication / Support Radius authentication / Support the user classification management and password protection
• QOS : SP(Strict Priority) / WRR (Weighted Round Robin) / 802.1p
• System Maintenance : Support the configuration file upload/download / Support the updated packet upload / Restore default configuration via WEB / Support system logs / PING
• Network Management : WEB(http and https protocol) / CLI / Telnet / SSH 2.0 / SNMP / RMON / LLDP / Support the NTP client

Accessories

• PFT3950 : 1.25G 850nm,500m,LC, Multi-mode
• PFT3960 : 1.25G 1310/1550nm,20km,LC, Single-mode
• PFT3970 : 1.25G 1550/1310nm,20km,LC, Single-mode

—
