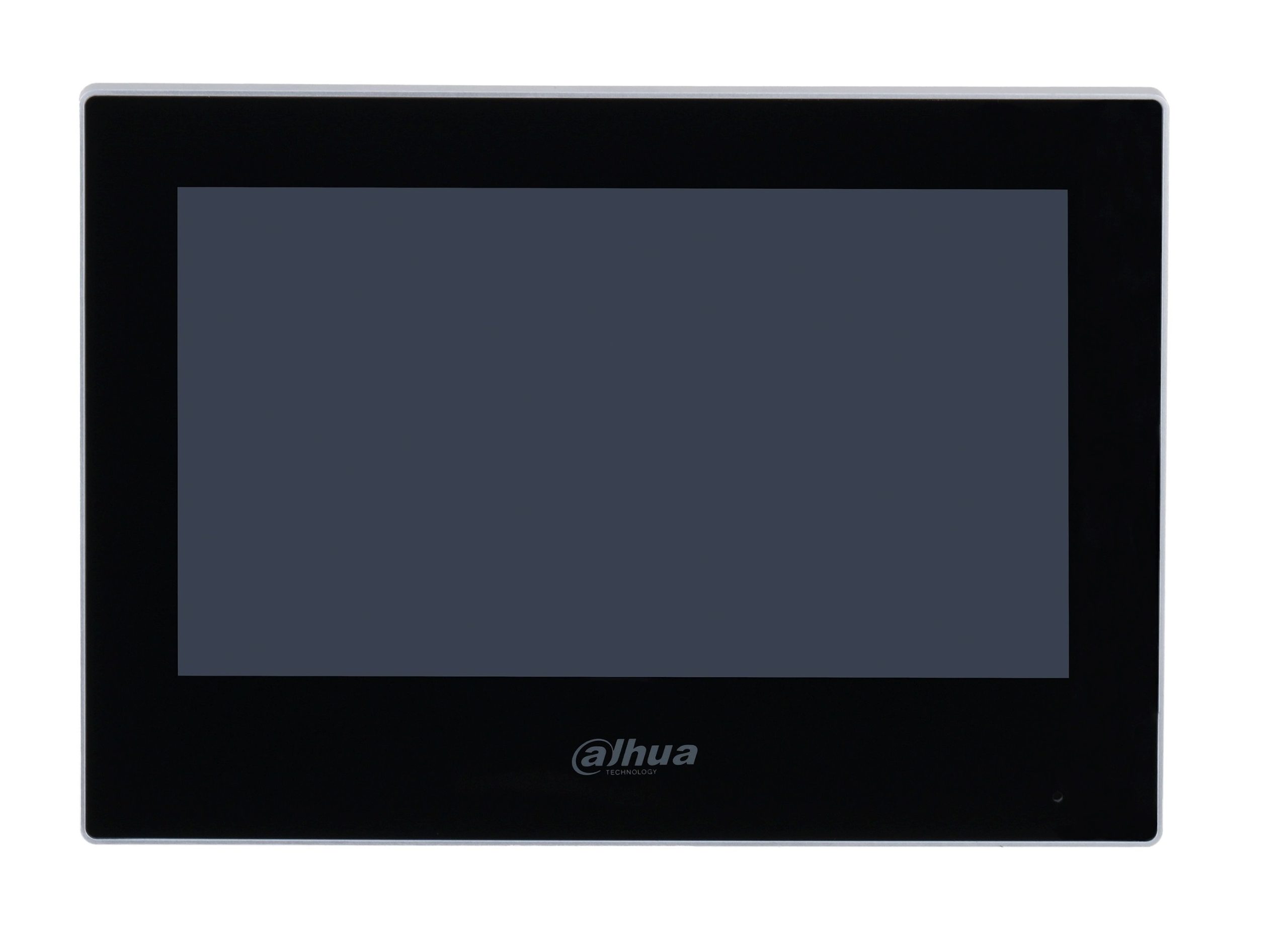

Dahua VD IP Doorphone Monitor VTH2621G-P (Black)

• 7" TFT capacitive touch screen, 1024 × 600
• 6-channel alarm input and 1-channel alarm output
• Standard PoE
• Outdoor station and IPC monitor
• H.265 and H.264 video decoding
• High performance & cost-effective

—

System

• Main Processor : Embedded processor
• Operating System : Embedded Linux operating system
• Network Protocol : IPv4; FTP; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP; SIP

Basic

• Screen Type : Capacitive Touchscreen
• Display : 7" TFT
• Screen Resolution : 1024 × 600
• Audio Compression : G.711a; G.711u; PCM
• Audio Input : 1
• Audio Output : Built-in speaker
• Audio Mode : 2-way voice communication
• Audio Enhancement : Echo suppression
• Audio Bit Rate : 16 kHz; 16 Bit

Function

• Communication Mode : Full digital
• Information Release : Receive and view text information released by the management center
• DND Mode : Do not disturb period can be set; Do not disturb mode
• Number of Extensions : Villa: 9 / Apartment: 4

Performance

• Casing : PC + ABS

Port

• Alarm Input : 6
• Alarm Output : 1
• Power Output : 1 (12 V/200 mA)
• Door Bell : Yes (use any alarm input port)
• Network : One 10 /100 Mbps Ethernet
• Network : One 10 Mbps/100 Mbps Ethernet

Alarm

• SOS : Yes

General

• Color : White
• Power Supply : 12 VDC 1A / Standard PoE (36–57 V, 0.35 A)
• Installation : Surface Mount
• Certifications : CE, FCC
• Accessory : Bracket and alarm ribbon cable (included)
• Dimensions : 189.6 mm × 134.6 mm × 26.0 mm
• Operating Temperature : –10 °C to +55 °C
• Operating Humidity : 10%–95% RH (non-condensing)
• Operating Altitude : Beneath 3,000 m
• Power Consumption : Standby ≤ 2W; working ≤ 6W
• Net Weight : 335 g
• Gross Weight : 575 g

—
