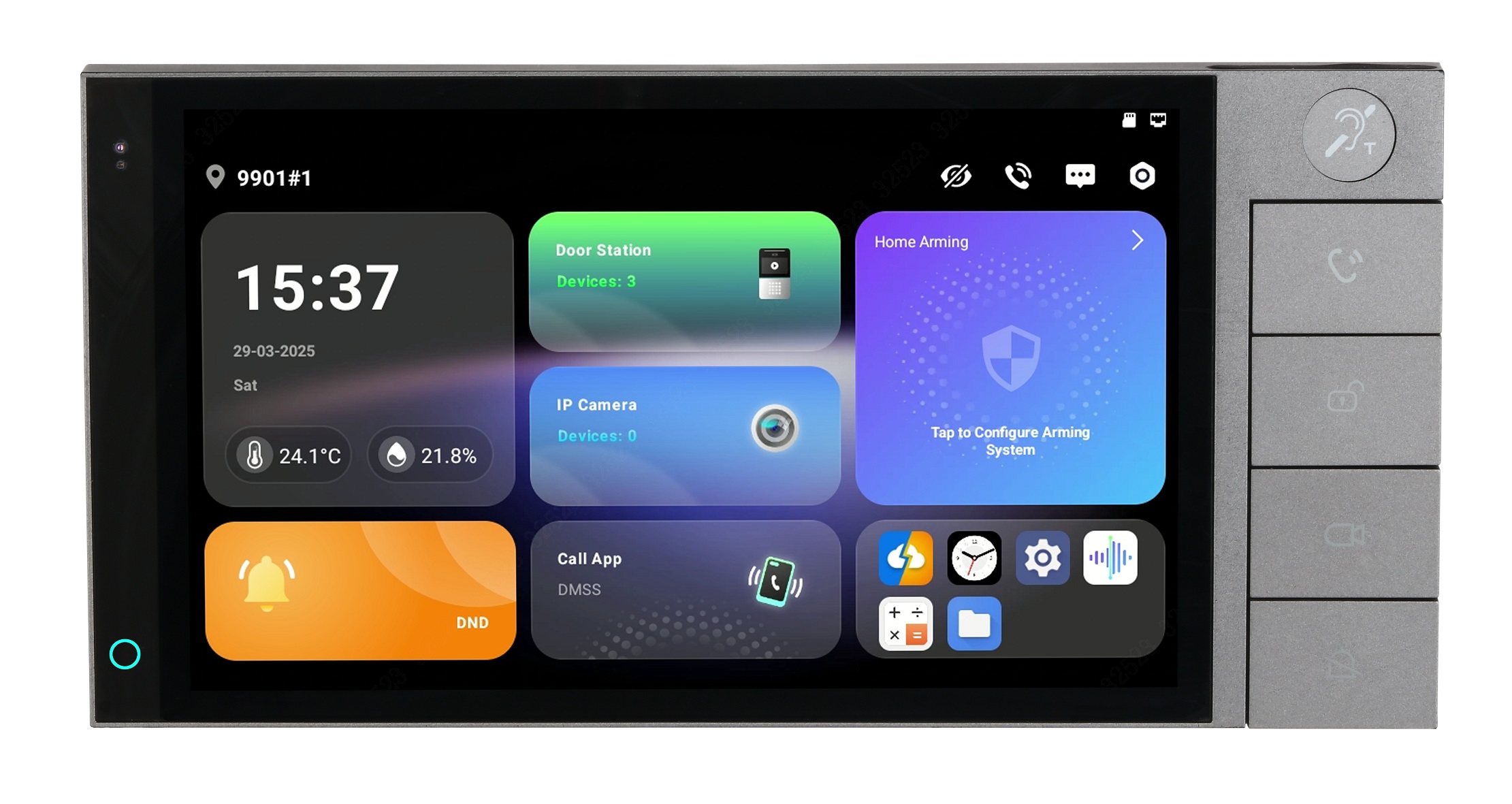

Dahua VD IP Doorphone Monitor Wireless 7” Android/ Mechanical With Temperature-Humidity Sensor SCP3022B-IBZ

• Adopts the Android 14 system, offering advanced performance and a user-friendly experience
• Featuring a sleek full-screen design with an ultra-narrow black border, this device combines style and minimalism for an exceptional visual experience
• With its 7-inch IPS capacitive touchscreen and multi-touch technology, the screen offers wide viewing angles of up to 80 degrees both horizontally and vertically, significantly enhancing work efficiency and operational flexibility
• Includes multi-color indicators that feature the breathing light function to keep you updated on status changes
• Wakes up automatically when a person approaches for a seamless experience
• Equipped with a built-in light sensor, the device automatically adjusts the screen brightness for comfortable viewing
• With its built-in temperature and humidity detectors, you can effortlessly monitor the conditions in your house at any time straight from the home screen
• Supports multiple communication modes including IP, Wi-Fi and IP two-wire
• Buttons can be removed and replaced, and their related functions can be personalized
• Compatible with hearing loop systems, this control screen can be easily connected to hearing aids, ensuring accessibility for individuals with hearing disabilities

—

System

• Main Processor : Embedded Processor
• Operating System : Android 14
• Button Type : Mechanical
• Network Protocol : IPv4;RTSP;UDP;DNS;FTP;RTP;TCP;SIP

Basic

• Screen Type : Capacitive Touchscreen
• Display Screen : 7-inch display screen
• Screen Resolution : 1024 (H) × 600 (V)
• Audio Compression : G.711a; G.711u; PCM
• Audio Input : 1 channel
• Audio Output : Built-in speaker
• Audio Mode : Two-way audio
• Audio Enhancement : Echo suppression/digital noise reduction
• Audio Bit Rate : 16 kHz, 16 bit

Function

• Communication Mode : Full digital
• Information Release : Receive and view the published information from the management center
• Elevator Control : Residents can call the elevator through this device to their floor.
• Leave Videos : Yes (SD card is inserted in the indoor monitor or door station)
• DND Mode : Do not disturb period can be set
• Number of Extensions : Villa: 1 main VTH and 9 extensions / Apartment: 1 main VTH and 4 extensions
• Storage : Supports micro SD card storage (up to 512 GB)

• Expansion Module : ZigBee module/Wireless 868 MHzSensor/Bluetooth module

Network

• Wi-Fi : Yes
• Wireless Standard : IEEE 802.11a/b/g/n/ac/ax
• Wireless Frequency Range : 2.4 GHz

Port

• RS-485 : 1
• USB : 1
• Alarm Input : 8 channels
• Alarm Output : 1 channel
• Power Output : 1 port (12 V, 200 mA)
• Door Bell : Yes (use the alarm input port)
• Network Port : 1 × 10/100 Mbps Ethernet port

Performance

• Casing Material : PC + ABS

General

• Appearance Color : Gray
• Power Supply : 12 VDC, 2 A / Standard PoE
• Power Adapter : Optional
• Installation : Flush Mount
• Certifications : CE
• Accessory : Included: RS-485 and power output cable, bracket and alarm cable. / Optional: Power cord
• Product Dimensions : 210.2 mm × 103.1 mm × 32.2 mm (H × W × D)
• Operating Temperature : -10 °C to +55 °C
• Operating Humidity : 10%–95% (RH), non-condensing
• Operating Altitude : Below 3,000 m
• Power Consumption : ≤ 10 W (standby), ≤ 14 W (working)
• Gross Weight : 785g
• Storage Temperature : 0 °C to +40 °C
• Storage Humidity : 30%–75%
• Operating Environment : Indoor

—
