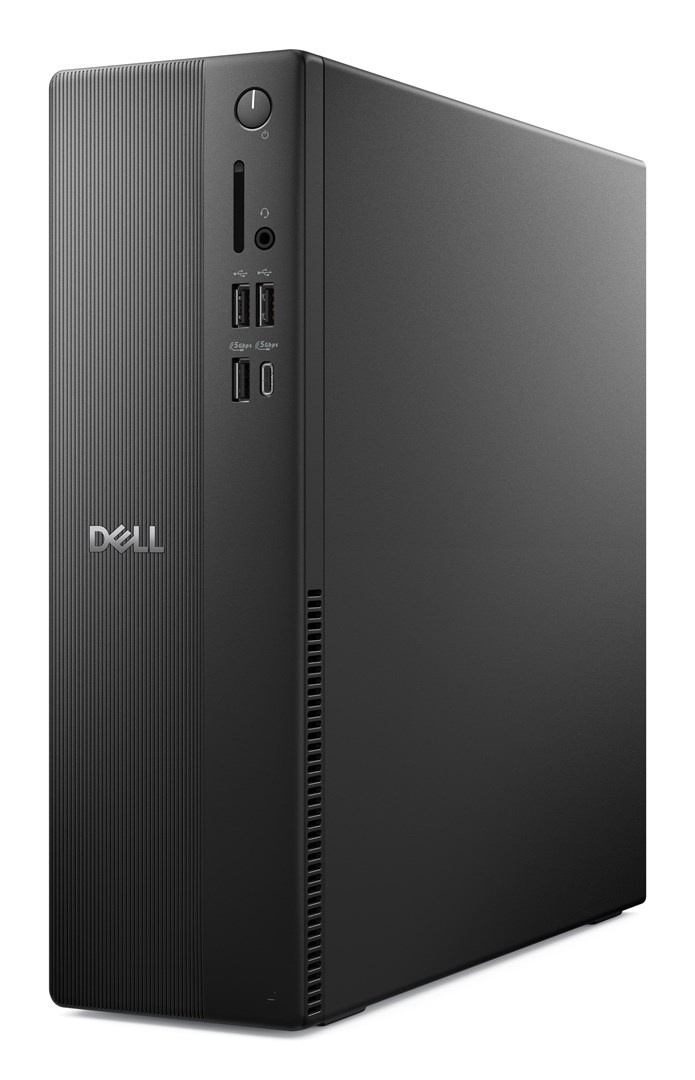

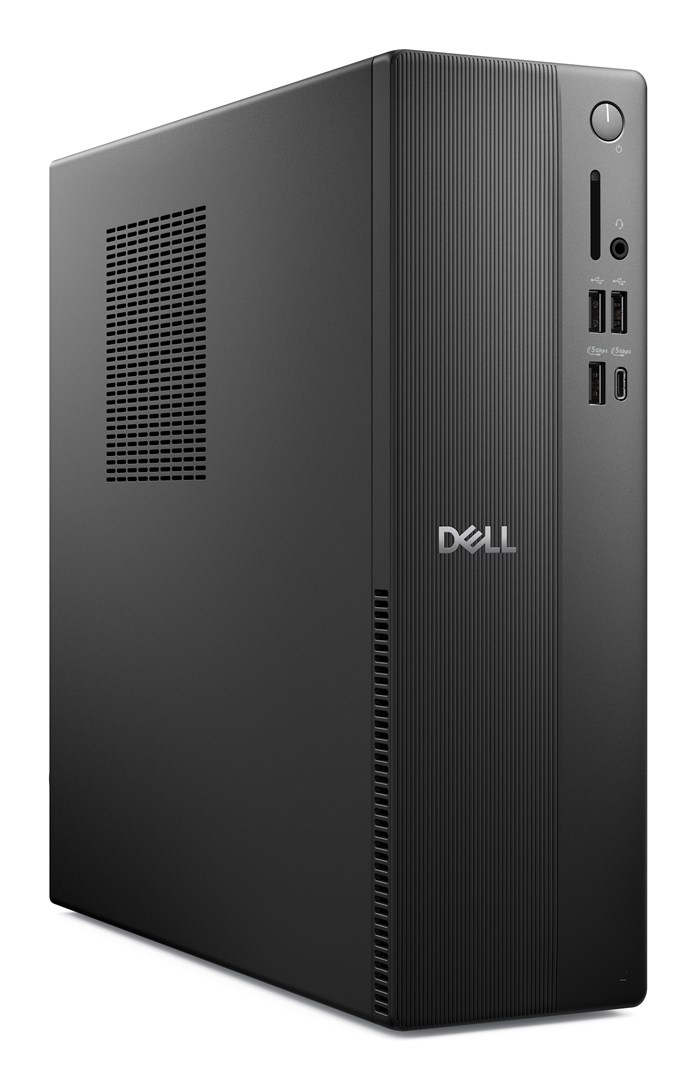

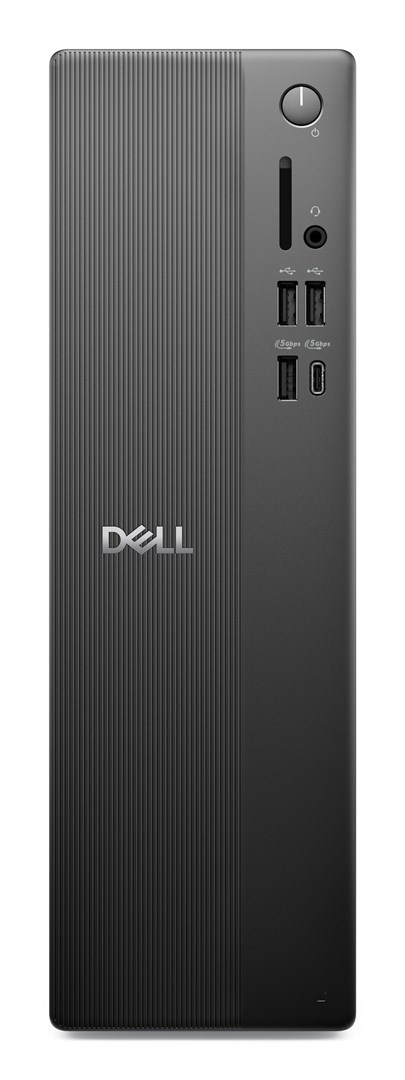

DELL Pro QVS1260 Intel® Core™ i5 i5-14500 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Slim PC PC Black

Technical Specifications

Processor

Number of processors installed: 1

Performance cores: 6

Efficient cores: 8

Performance-core base frequency: 2.6 GHz

Processor base power: 65 W

Maximum turbo power: 154 W

Efficient-core Max Turbo Frequency: 3.7 GHz

Processor generation: Intel® Core™ i5 (14th gen)

Performance-core Max Turbo Frequency: 5 GHz

Efficient-core base frequency: 1.9 GHz

Graphics

On-board GPU manufacturer: Intel

Discrete graphics card: No

On-board graphics card: Yes

On-board graphics card model: Intel UHD Graphics 770

On-board graphics card family: Intel® UHD Graphics

Discrete graphics card model: Not available

:

:

:

:

:

:

:

:

:

Memory

Memory layout (slots x size): 1 x 16 GB

Buffered memory type: Unregistered (unbuffered)

Memory slots: 2x DIMM

Memory data transfer rate: 4800 MT/s

Internal memory: 16 GB

Internal memory type: DDR5-SDRAM

Maximum internal memory: 32 GB

:

:

:

Design

Intel® vPro™ Platform Eligibility: Yes

Cable lock slot: Yes

Chassis type: Slim PC

Cable lock slot type: Kensington

Product colour: Black

:

:

:

:

:

Power

Power supply input voltage: 90 – 264 V

Power supply input frequency: 47 – 63 Hz

Power supply: 180 W

80 PLUS certification: 80 PLUS Bronze

:

:

:

:

:

:

Operational conditions

Operating vibration: 0.26 G

Non-operating vibration: 1.37 G

Non-operating shock: 105 G

Non-operating altitude: -15.2 – 10668 m

Operating shock: 40 G

Operating altitude: -15.2 – 3048 m

Operating relative humidity (H-H): 20 – 80%

Storage relative humidity (H-H): 5 – 95%

Operating temperature (T-T): 10 – 35 °C

Storage temperature (T-T): -40 – 65 °C

Weight & dimensions

Depth: 293 mm

Height: 303.5 mm

Width: 95 mm

:

:

:

:

:

:

:

Network

MU-MIMO: Yes

WLAN controller model: MediaTek MT7920

WLAN controller manufacturer: MediaTek

Ethernet LAN: Yes

Wi-Fi standards: 802.11g

Cabling technology: 10/100/1000Base-T(X)

LAN controller: Realtek RTL8111KD

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Ethernet LAN data rates: 100

Performance

Trusted Platform Module (TPM) version: 2.0

Trusted Platform Module (TPM): Yes

Product type: PC

Motherboard chipset: Intel Q670

:

:

:

:

:

:

Packaging content

Mouse included on selected markets: Dell Optical Mouse-MS116 – Black

Keyboard included on selected markets: Dell Wired Keyboard – KB216 – UK (QWERTY) – Black

Cables included: AC

:

:

:

:

:

:

:

Expansion slots

PCI Express x1 slots: 3

PCI Express x16 slots: 1

:

:

:

:

:

:

:

:

Display

Display included: No

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Software

Operating system architecture: 64-bit

Trial software: McAfee® Business Protection 1-year,Activate Your Microsoft 365 For A 30 Day Trial

Operating system installed: Windows 11 Pro

:

:

:

:

:

:

:

Audio

Audio chip: Realtek ALC3204

Audio system: High Definition Audio

:

:

:

:

:

:

:

:

Storage

SSD capacity: 512 GB

Number of SSDs installed: 1

Total SSDs capacity: 512 GB

Storage media: SSD

Optical drive type: No

Total storage capacity: 512 GB

:

:

:

:

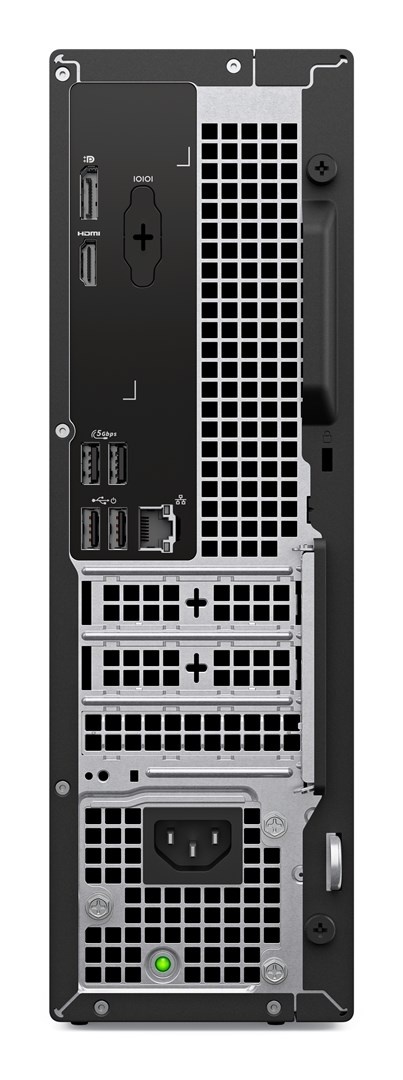

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Number of front USB ports: 4

Number of rear USB ports: 4

HDMI version: 2.1

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

DisplayPort version: 1.4

USB 2.0 ports quantity: 4

Number of SATA III connectors: 1

Ethernet LAN (RJ-45) ports: 1

Carbon footprint

PAIA version: GaBi version 1, 2025

Carbon emissions, end-of-life (kg of CO2e): 3

Carbon emissions, logistics (kg of CO2e): 9.15

Carbon emissions, manufacturing (kg of CO2e): 68.07

Carbon emissions, energy usage (kg of CO2e): 62.78

Total carbon footprint (kg of CO2e): 143

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
