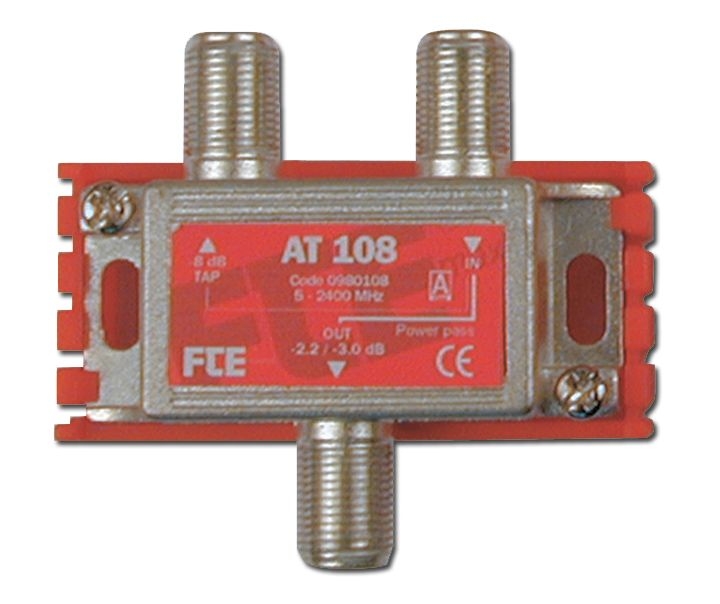

FTE AT108 1-Way Tap 5-2400mhz

This range of taps covers bands of terrestrial TV and satellite TV between 5 and 2400 MHz, including any frequency range of return line (5-30 or 5-65 MHz) as well in several directions (IN-OUT, OUT-IN, IN-TAP and TAP-IN). They have one tap output, F type connectors. Decoupling between outputs is very high avoiding that problems generated in one of the outputs affect the rest of users. Availability of 6 values of tap attenuation let make a cascade perfectly compensated. All references have plastic wall support insertable and a ground connection.

—

• Covered Band (MHz) 5-2400
• Return band (MHz) 5-30 / 5-65
• Nr. of TAPS 1
• TAP attenuation (dB) Freq.(MHz) Typ Max 5-470 8,0 9,0 470-862 8,5 9,0 950-2400 8,5 9,5
• Distribution pass (dB) 5-470 1,8 2,0 470-862 1,8 2,2 950-2400 2,2 3,0
• Decoupl. between outputs (dB) 5-470 470-862 950-2150
• Return loss (dB) IN > 20 OUT > 20 TAP > 18
• Screening factor (dB) > 100
• Impedance (Ω) 75
• Current pass IN – OUT
• Connectors F female
• Plastic support included
• Dimensions (mm) 10 pcs: 165 x 125 x 70 120 pcs: 330 x 250 x 210

—
