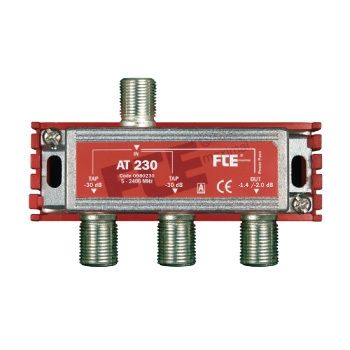

This range of taps covers bands of terrestrial TV and satellite TV between 5 and 2400 MHz, including any frequency range of return line (5-30 or 5-65 MHz) as well in several directions (IN-OUT, OUT-IN, IN-TAP and TAP-IN). They have two tap outputs, F type connectors. Decoupling between outputs is very high (>XX dB) avoiding that problems generated in one of the outputs affect the rest of users. Availability of 6 values of tap attenuation let make a cascade perfectly compensated. All references have plastic wall support insertable and a ground connection.
—
- Covered Band (MHz) 5-2400
- Return band (MHz) 5-30 / 5-65
- Nr. of TAPS 2
- TAP attenuation (dB) Freq.(MHz) Typ Max 5-470 30,0 31,0 470-862 30,5 31,0 950-2400 30,5 31,5
- Distribution pass (dB) 5-470 1,0 1,4 470-862 1,0 1,4 950-2400 1,6 2,0
- Decoupl. between outputs (dB) 5-470 >40 470-862 >30 950-2150 >28
- Return loss (dB) IN > 20 OUT > 20 TAP > 18
- Screening factor (dB) > 100
- Impedance (Ω) 75
- Current pass IN – OUT
- Connectors F female
- Plastic support included
- Dimensions (mm) 10 pcs: 165 x 165 x 70 120 pcs: 330 x 330 x 210
—
