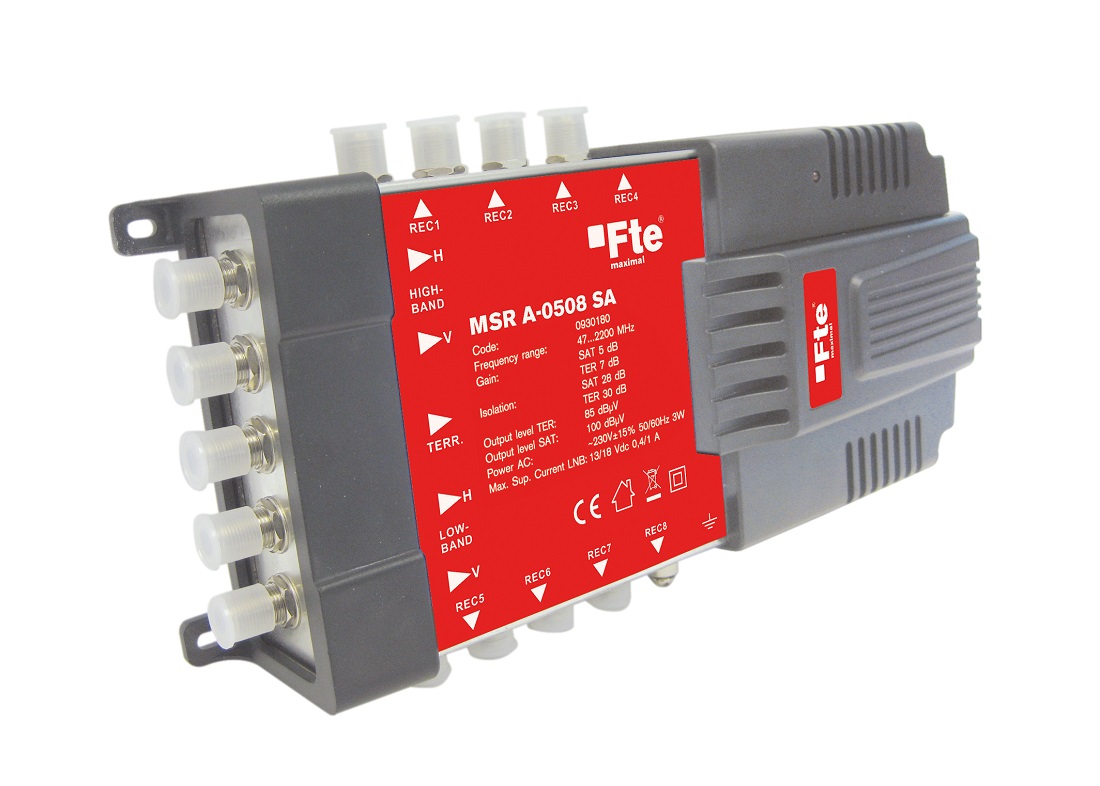

FTE MSRA0508 5/8 Active Sat/Terrestrial Multiswitch

• Number of inputs: 4 SAT, 1 TER
• Subscriber outputs: 8
• Connectors (F-con): female
• Frequency range (MHz): SAT 950-2200, TER 47-862
• Gain: SAT 5 ±1.5 dB, TER 7 ±1.5 dB
• Isolation: TER to SAT ≥ 30 dB, SAT to TER ≥ 28 dB
• Isolation cross polarisation H/V: ≥ 25 dB
• Isolation: out – out TER ≥ 28 dB, out – out SAT ≥ 35 dB
• Return loss: SAT inputs ≥ 11dB, SAT outputs ≥ 9dB, TER inputs ≥ 11dB, TER outputs ≥ 9dB
• Output level: SAT (IMD- 35 dB) 100 dBμV, TER (IMD- 60 dB) 85 dBμV
• Impedance input/output: 75 Ohm
• Switching (VDC): 13V/18V   /   13V/22 kHz    /   18V/22 kHz
• Max current to LNB: 13 VDC: 400 mA / 18 VDC: 1000 mA
• Mains: ~230V ± 15%, 50/60Hz, 3W
• Dimensions: 248x129x64 mm

—

—
