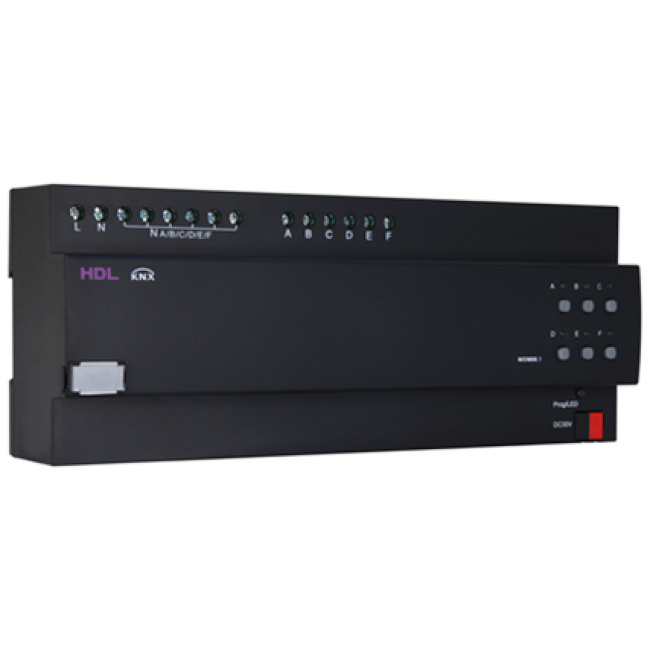

HDL 6CH 1.5A Trailing Edge Dimming Actuator

6CH 1.5A Trailing Edge Dimming Actuator, DIN-Rail Mount, 3A per channel and totally 9A, both 110/220 VAC, 50-60Hz, LED status indicator and bypass button for each output, parallel channels can form heavy current output.

—

• 3 types of output circuits: 2, 4 and 6 channels of dimming actuator.
• Supports leading and trailing edge mode. It is recommended to adopt the leading edge dimming mode
• for inductive loads, and the trailing edge dimming mode is recommended for other load types.
• Parallel channels can form heavy current output.
• Manual control: Manual switching, dimming for each channel.
• Application functions: Statistics ON time, Status response, Status recovery, Short-circuit protection,
• Overload protection, Overheat protection, Staircase light, Flashing light, Scene control, Scene dimming,
• Read temperature, Overheat alarm, Dimming higher limit control, Dimming lower limit control, Sequence control, Heating control (PWM).

—
