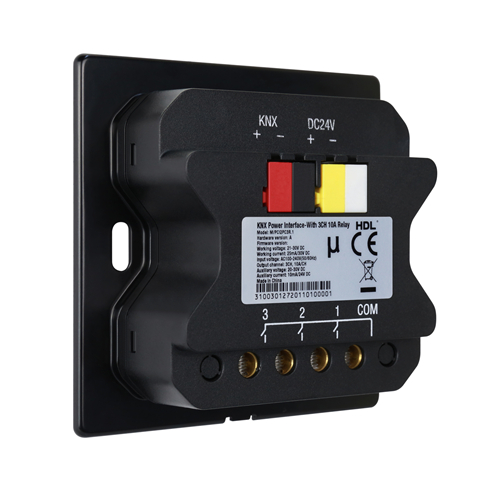

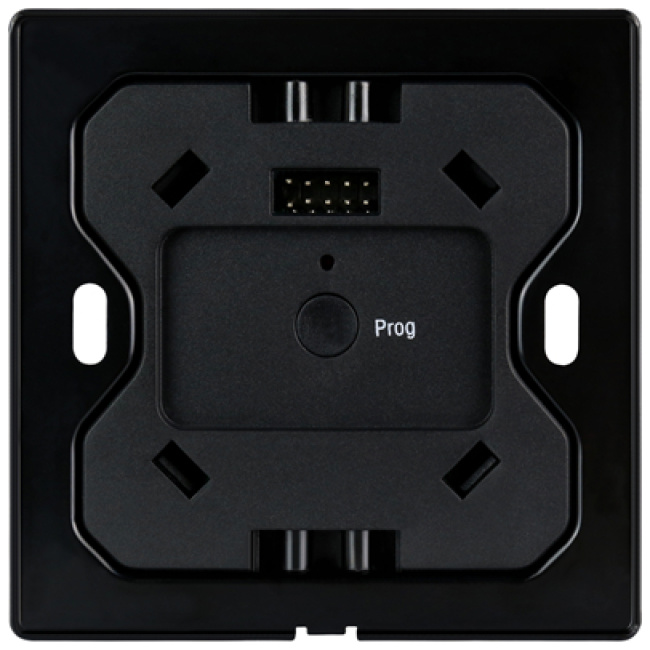

HDL KNX Standalone Power Interface with 3CH 10A Relay for Granite & A2 Series

Power Interface EU-With 3CH 10A Relay

Input voltage: AC100-240V (50/60Hz)

Auxiliary current output: 10mA/24V DC: 10mA/24V DC,

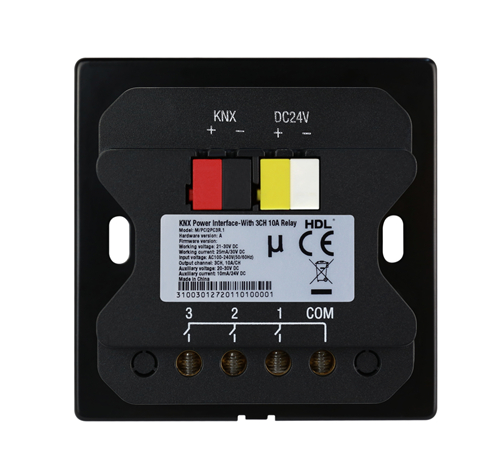

3CH 10A magnetic latching relay output, long press the programming button to realize all relay channels on/off, provides DC power and communicates to Granite Display, EU Type panel that model number with-A2 and Granite Series EU.

Comply with 86*86 Size junction box

—

• With 2/3 10A relay channels

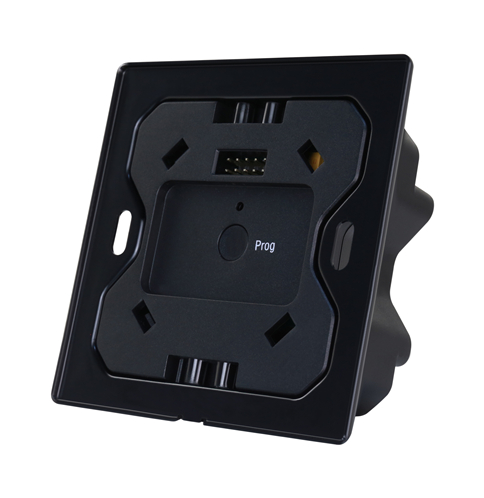

• With independent programming button and programming indicator
• Short press the button to enter the programming mode, long press the programming button to
• realize all relay channel on/off
• Provides power and communication signals for KNX Granite Display, etc.
• With scene control, staircase light control, delay control functions
• Relay usage time & frequency statistics
• Relay health check (voltage detection

—
