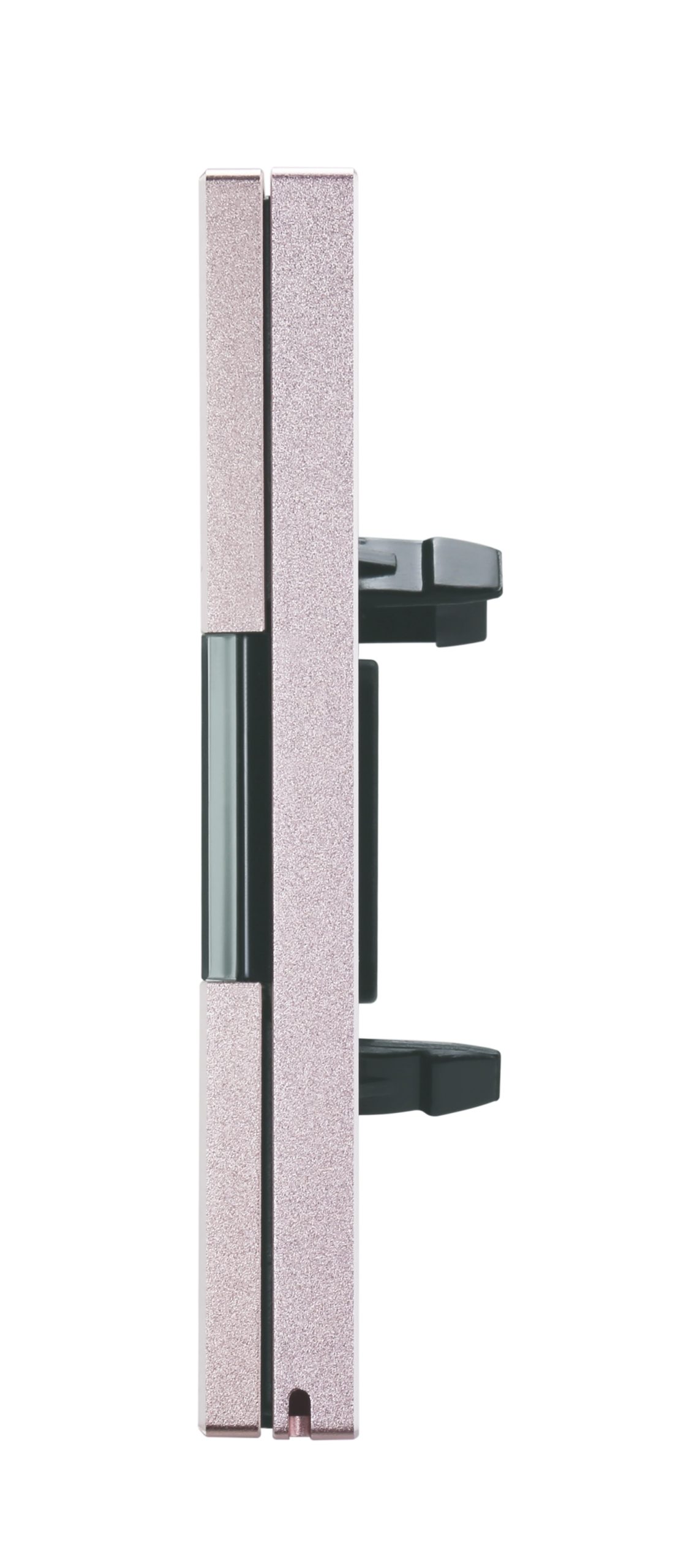

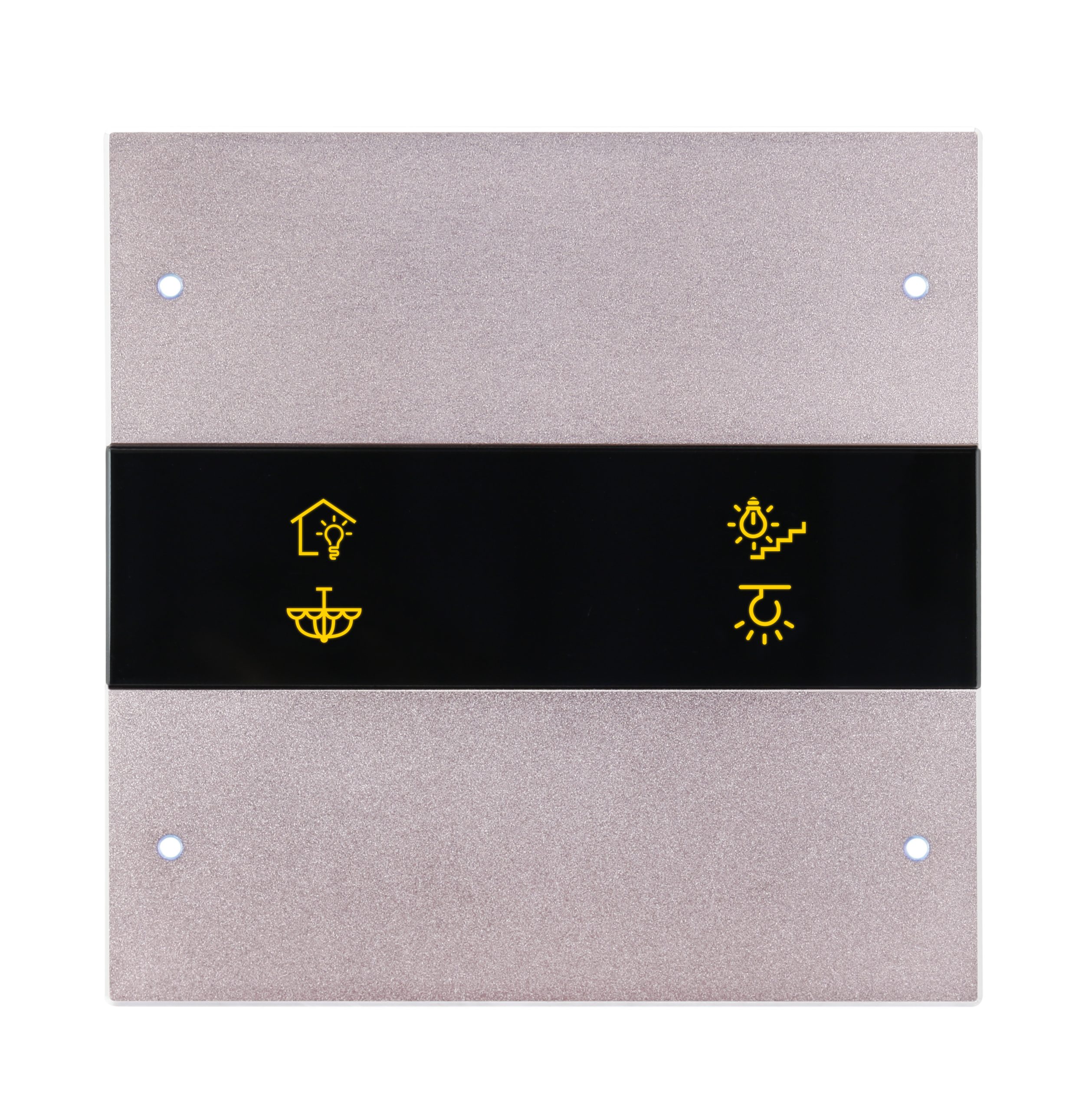

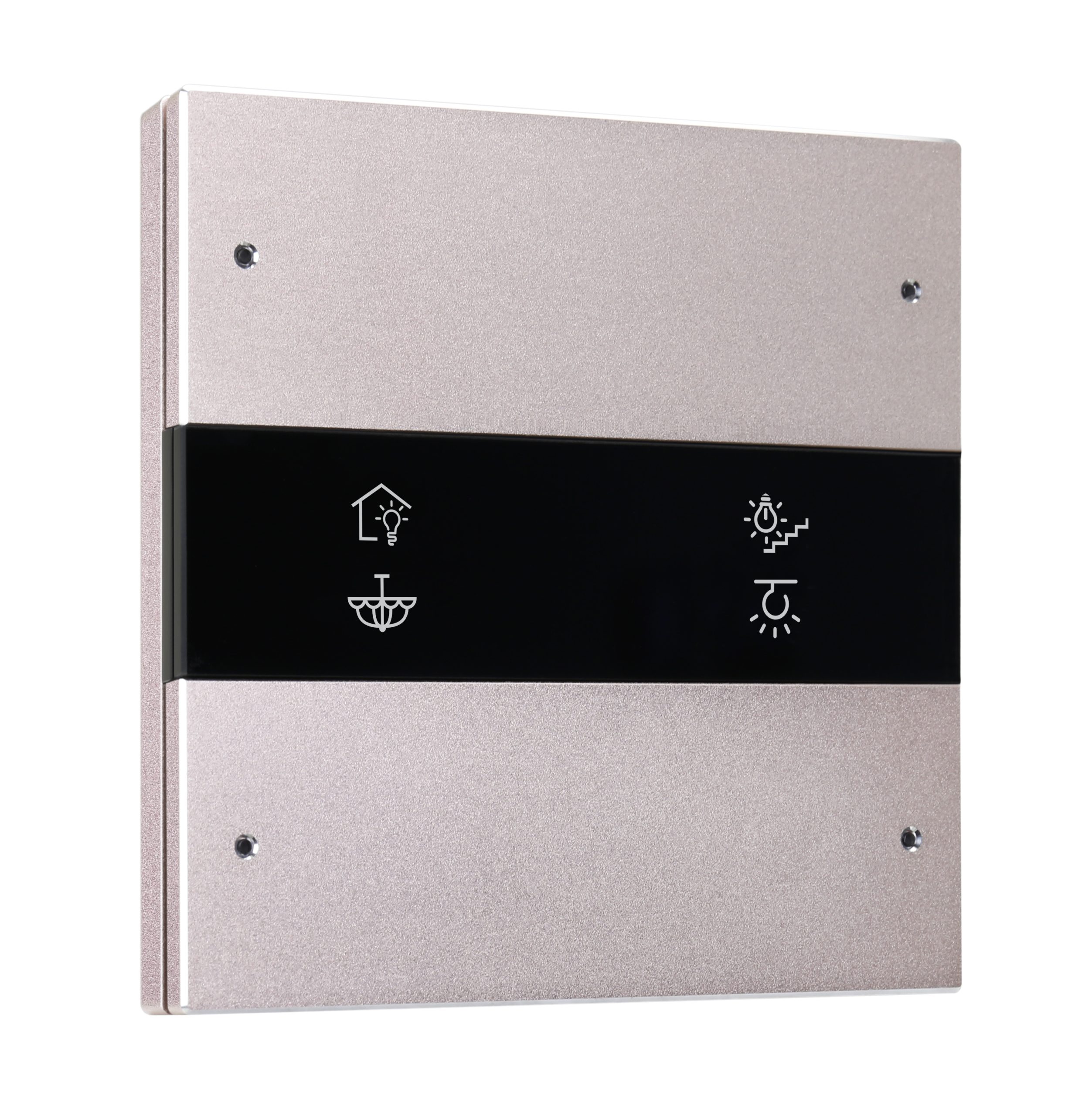

HDL Granite Display Panel Space Gray M/P2R.1

• KNX Granite is a multi-function panel, which supports multiple control modes. It is embedded with RGB light for each button. Any color and brightness of label backlight and button indicator can be set in ETS software
• Powered by M/PCI.1-A

—

• Mechanical buttons and button backlights are available;
• Supports button work modes: Left & right button combination mode or independent button mode
• Adjustable color and brightness of the label backlight and button indicator
• Supports multiple control modes: Switch control, dimming control, Shutter control, Flexible control,Scene control, Sequence control, Percentage control, Threshold control, String (14 bytes) control,Alternate control, RGB control, Fan control, Thermostat control, Combination control
• With built-in temperature probe, the panel can automatically obtain the temperature information
• The button indicator can be displayed mutual exclusively;
• Press the top left corner and the lower right corner button(A1 and A4 for M/P2R.1, A1 and A6 for M/P3R.1) simultaneously for 2 seconds, the panel will enter programming mode

—
