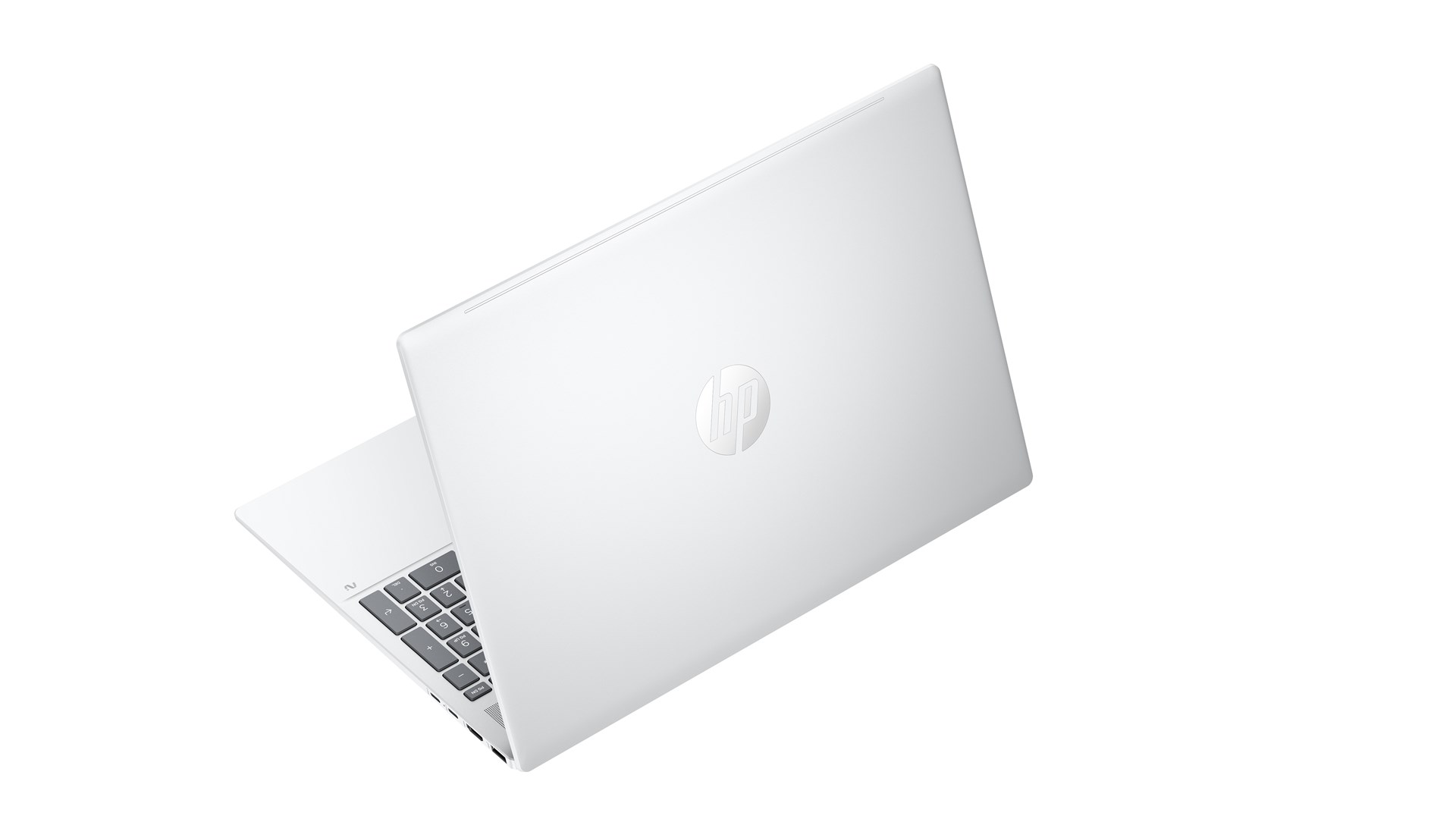

HP OmniBook 5 Next Gen AI 16-ag1030nw Copilot+ PC AMD Ryzen AI 7 Laptop 40.6 cm (16") 2K 24 GB LPDDR5x-SDRAM Wi-Fi 6E (802.11ax) Windows 11 Home Silver

Technical Specifications

Technical details

General Product Safety Regulation (GPSR) URL: https://kaas.hpcloud.hp.com/pdf-public/pdf_11069394_en-US-1.pdf

:

:

:

:

:

:

:

:

:

Processor

Processor boost frequency: 5 GHz

Processor cores: 8

Processor cache: 16 MB

Processor family: AMD Ryzen™ AI 7

Processor threads: 16

Processor manufacturer: AMD

Processor cache type: L3

:

:

:

:

:

:

:

:

Graphics

On-board GPU manufacturer: AMD

On-board graphics card family: AMD Radeon Graphics

On-board graphics card: Yes

AMD FreeSync: Yes

On-board graphics card model: AMD Radeon 860M

:

:

:

:

:

Memory

Memory layout (slots x size): Not available

Memory clock speed: 7500 MHz

Memory form factor: On-board

Internal memory: 24 GB

Internal memory type: LPDDR5x-SDRAM

:

:

:

:

:

Design

Colour name: Glacier Silver

Original brand name: HP

Product design: Modern

Product type: Laptop

Product colour: Silver

:

:

:

:

:

Power

USB Power Delivery (USB PD): Yes

AC adapter input voltage: 100 – 240 V

AC adapter frequency: 50 – 60 Hz

AC adapter power: 65 W

USB Type-C charging port: Yes

:

:

:

:

:

Security

Password protection: Yes

Trusted Platform Module (TPM): Yes

:

:

:

:

:

:

:

:

Weight & dimensions

Height (front): 1.79 cm

Width: 357.7 mm

Depth: 254.8 mm

Weight: 1.79 kg

:

:

:

:

:

:

Network

WLAN controller model: MediaTek MT7922

WLAN controller manufacturer: MediaTek

Antenna type: 2×2

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi: Yes

Bluetooth version: 5.3

Wi-Fi standards: Wi-Fi 6E (802.11ax)

:

:

Performance

Motherboard chipset: AMD SoC

:

:

:

:

:

:

:

:

:

Packaging data

Package depth: 504 mm

Package height: 305 mm

Package weight: 2.52 kg

Package width: 63 mm

:

:

:

:

:

:

Packaging content

AC adapter included: Yes

Keyboard included: Yes

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Display

sRGB coverage (typical): 62.5%

RGB colour space: sRGB

Display bezel technology: Micro-Edge

Touchscreen: No

Display diagonal: 40.6 cm (16")

Display diagonal (metric): 40.6 cm

Display brightness: 300 cd/m²

HD type: 2K

Panel type: IPS

Colour gamut: 62.5%

Software

Operating system installed: Windows 11 Home

Trial software: 25 GB Dropbox storage for 12 months

:

:

:

:

:

:

:

:

Audio

Number of built-in speakers: 2

Audio system: DTS:X Ultra

Built-in microphone: Yes

Number of microphones: 2

:

:

:

:

:

:

Ports & interfaces

USB Sleep-and-Charge ports: 2

USB Type-C DisplayPort Alternate Mode: Yes

USB Sleep-and-Charge: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

Microphone in: Yes

HDMI ports quantity: 1

Combo headphone/mic port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

:

Camera

Front camera resolution: 1920 x 1080 pixels

Infrared (IR) camera: Yes

Front camera HD type: Full HD

Front camera: Yes

:

:

:

:

:

:

Battery

Fast charging: Yes

Fast charging time (50%): 30 min

Battery technology: Lithium Polymer (LiPo)

Number of battery cells: 3

Battery capacity: 59 Wh

:

:

:

:

:

Keyboard

Pointing device: Touchpad

Keyboard backlit: Yes

Numeric keypad: Yes

Full-size keyboard: Yes

:

:

:

:

:

:

Other features

UNSPSC-code: 43211503

:

:

:

:

:

:

:

:

:

Brand-specific features

HP Software provided: HP 3D DriveGuard; HP Audio Switch; HP CoolSense; HP JumpStart; HP Support Assistant

HP segment: Home

HP GTIN (EAN/UPC): 190780571095, 199764694669, 199764694676, 190780571118, 199764694683, 199764694690, 199764694706, 190780571101

HP Audio Boost: Yes

HP Imagepad: Yes

:

:

:

:

:

Neural processor unit (NPU)

NPU performance up to: 50 TOPs

Neural processor unit (NPU): AMD Ryzen AI

Copilot+ PC: Yes

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
