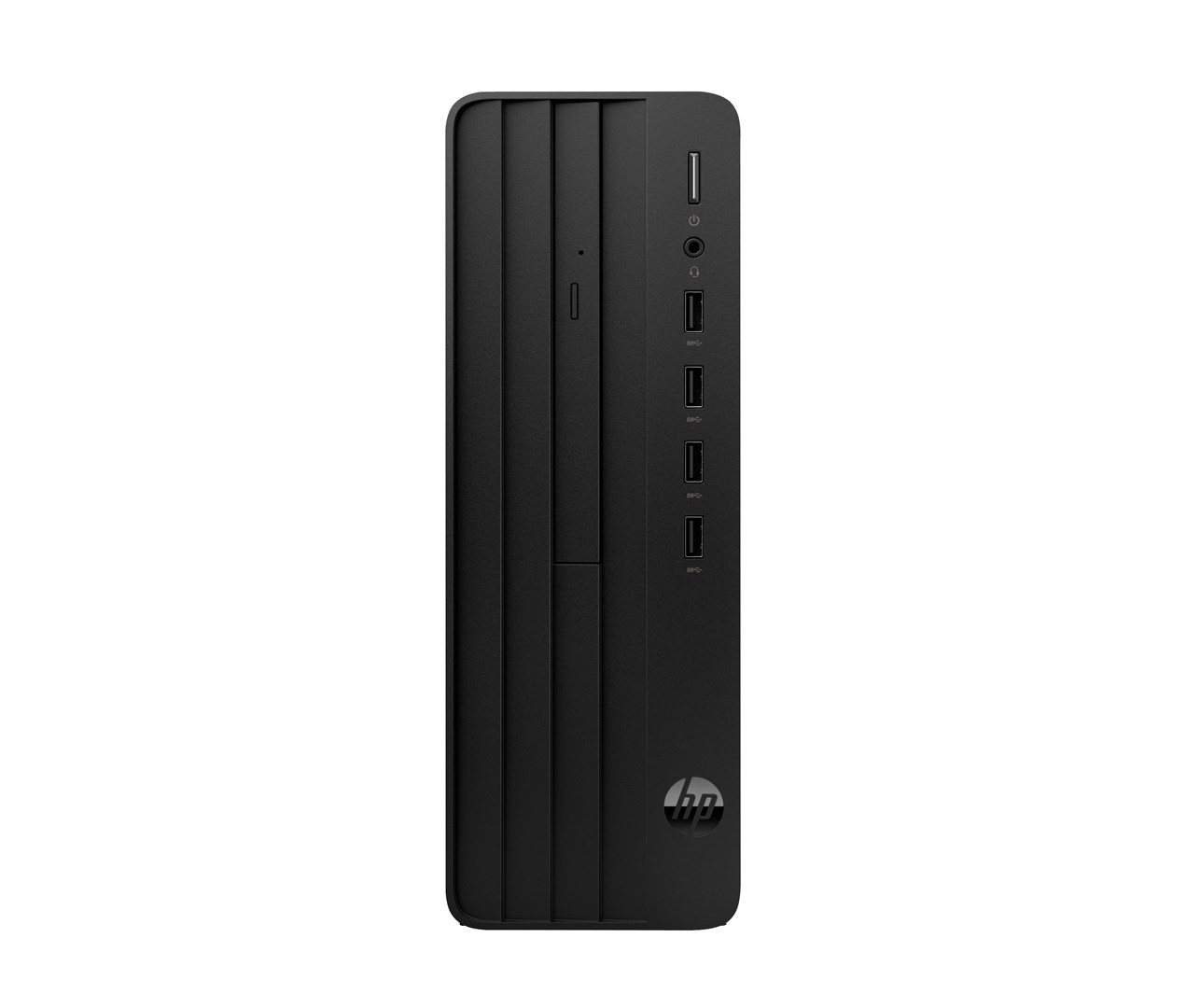

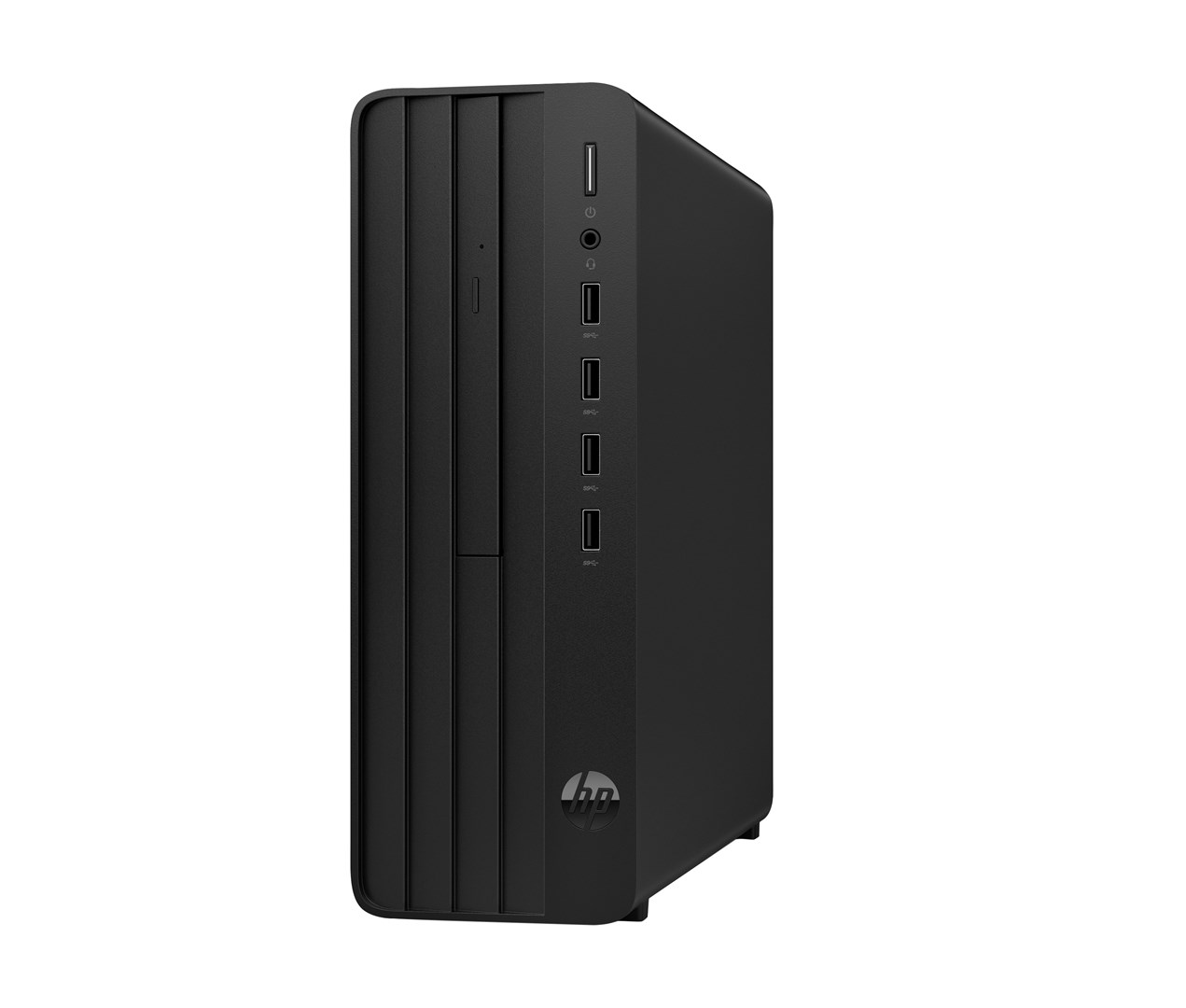

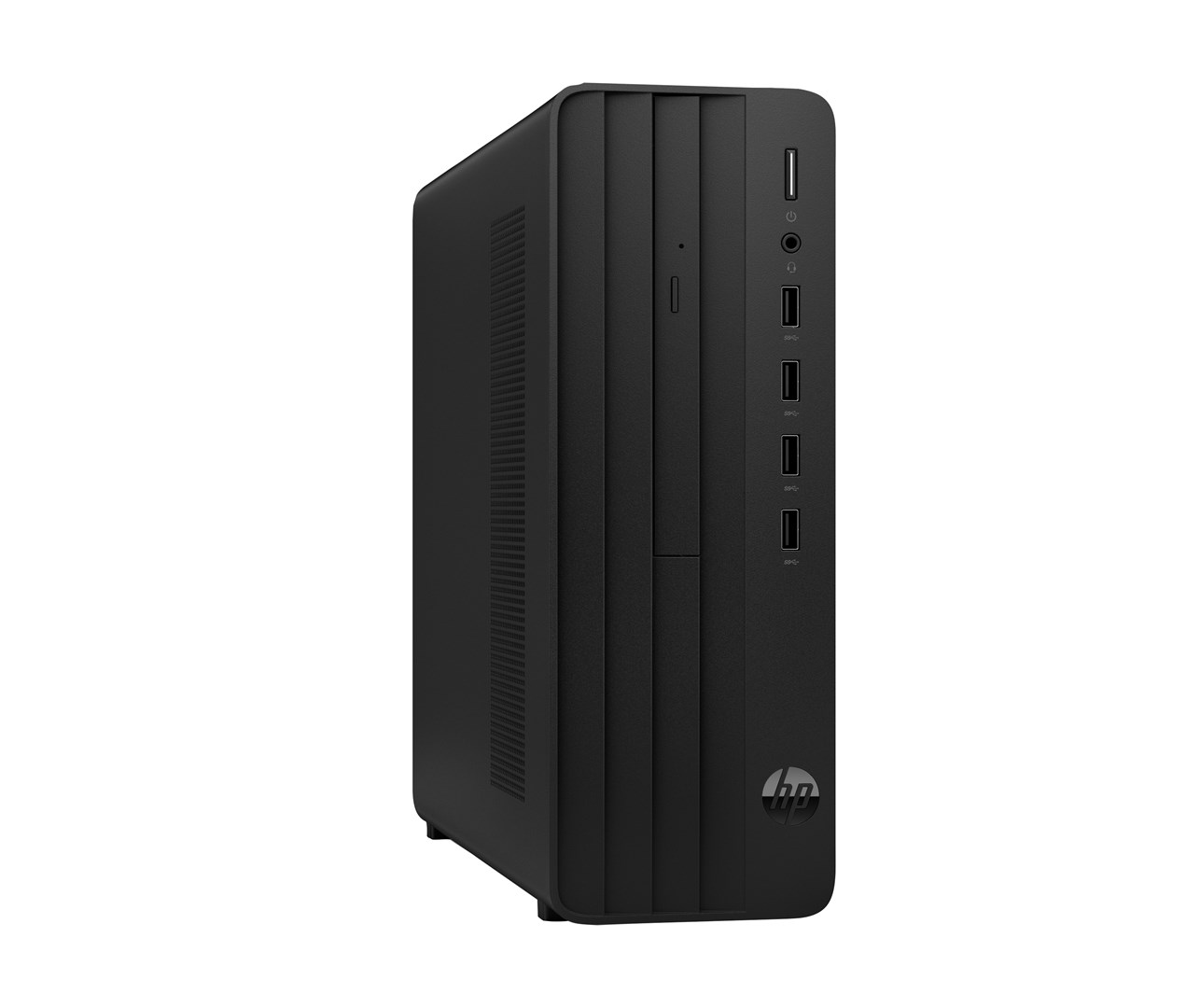

HP Pro SFF 290 G9 Desktop PC Intel® Core™ i5 i5-14400 16 GB DDR4-SDRAM 1 TB SSD Windows 11 Pro Black

Technical Specifications

Technical details

General Product Safety Regulation (GPSR) URL: https://kaas.hpcloud.hp.com/pdf-public/pdf_11069394_en-US-1.pdf

:

:

:

:

:

:

:

:

:

Processor

Processor threads: 16

Processor cores: 10

Processor model: i5-14400

Processor boost frequency: 4.7 GHz

Processor family: Intel® Core™ i5

Processor cache type: L3

Processor cache: 20 MB

Processor manufacturer: Intel

:

:

:

:

:

:

:

Graphics

On-board GPU manufacturer: Intel

On-board graphics card model: Intel UHD Graphics 730

On-board graphics card family: Intel® UHD Graphics

On-board graphics card: Yes

:

:

:

:

:

:

Memory

Memory layout (slots x size): 1 x 16 GB

Memory clock speed: 3200 MHz

Memory slots: 2x DIMM

Internal memory type: DDR4-SDRAM

Internal memory: 16 GB

:

:

:

:

:

Design

Colour name: Jack black

Chassis type: SFF

Product colour: Black

Cable lock slot: Yes

Number of 3.5" bays: 1

Country of origin: China

:

:

:

:

Power

Power supply: 180 W

:

:

:

:

:

:

:

:

:

Operational conditions

Operating temperature (T-T): 0 – 40 °C

Operating relative humidity (H-H): 10 – 90%

:

:

:

:

:

:

:

:

Weight & dimensions

Package height: 346 mm

Weight: 4.2 kg

Package width: 196 mm

Package depth: 498 mm

Package weight: 6 kg

Width: 95 mm

Depth: 303 mm

Height: 270 mm

:

:

Network

Mobile network connection: No

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Wi-Fi: Yes

Bluetooth version: 5.3

Antenna type: 2×2

Wi-Fi standards: Wi-Fi 6 (802.11ax)

:

:

:

Performance

Password protection: Yes

Market positioning: Proven productivity

Password protection type: Power on

Audio chip: Realtek ALC3867

Product type: PC

Trusted Platform Module (TPM) version: 2.0

Motherboard chipset: Intel H670

Trusted Platform Module (TPM): Yes

:

:

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

:

:

:

:

:

:

:

:

Software

Operating system installed: Windows 11 Pro

Operating system architecture: 64-bit

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Storage

Total SSDs capacity: 1 TB

Number of SSDs installed: 1

SSD interface: PCI Express

Number of storage drives installed: 1

SSD capacity: 1 TB

SSD form factor: M.2

Storage media: SSD

NVMe: Yes

Total storage capacity: 1 TB

Optical drive type: No

Ports & interfaces

Line-out: Yes

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Line-in: Yes

VGA (D-Sub) ports quantity: 1

USB 2.0 ports quantity: 4

:

:

:

:

Brand-specific features

HP Support Assistant: Yes

HP Security tools: Padlock loop; Trusted Platform Module (TPM) 2.0; Integrated accessories cable lock; Slim cable lock

HP segment: Business

HP JumpStart: Yes

:

:

:

:

:

:

Sustainability

Sustainable technologies and materials: Arsenic-free display glass; Mercury-free display backlights; Low halogen

Sustainability compliance: Yes

:

:

:

:

:

:

:

:

Carbon footprint

Carbon emissions, end-of-life (kg of CO2e): 17

Carbon emissions, logistics (kg of CO2e): 4

Total carbon emissions, w/o use phase (kg of CO2e): 15

Total carbon footprint (kg of CO2e): 0.7

Carbon emissions, manufacturing (kg of CO2e): 143

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
