Lenkeng KVM HDMI Extender over Ethernet 4K60Hz 70m Loop IR LKV565KVM

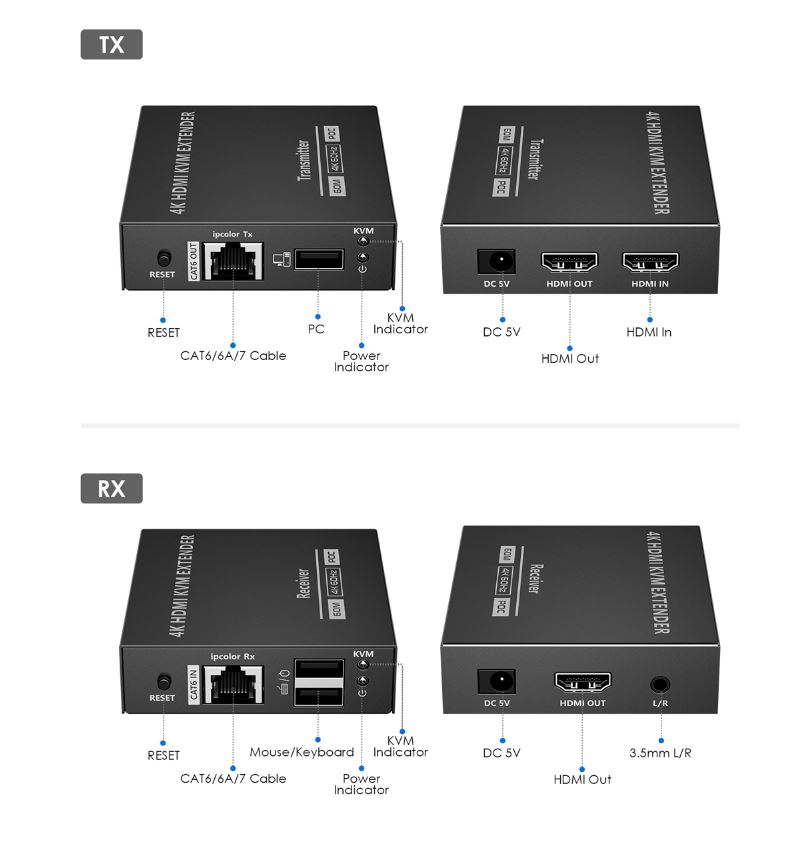

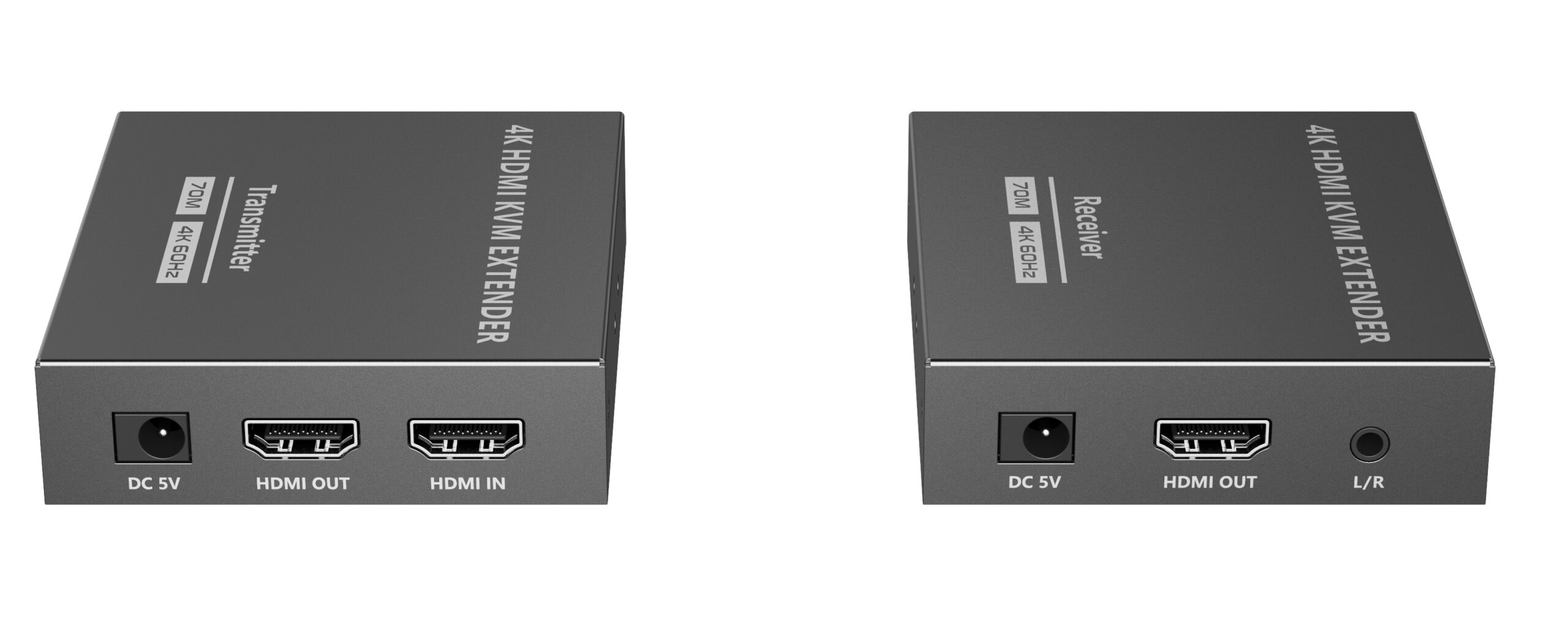

This is an HDMI point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI signal can be extended by 70m through CAT6/6A/7 network cable. It supports HDMI loop out, KVM function, 3.5mm stereo audio output, etc. This kit is a reliable, ultrahigh- definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields.

• ipcolor IMAGE
• 4K@60Hz
• HDR
• Visually Lossless
• Ultra Low Latency
• KVM
• Widescreen Resolutions
• 70M
• HDMI Loop-out
• Auto Down-Scaling
• 3.5mm L/R Output
• Lightning Protection-Surge Protection-ESD Protection

—

• HDMI length ≤ 5m
• Maximum transfer rate 18Gbps
• Compatibility HDMI 2.0
• HDCP 2.2
• Resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz, 3440×1440, 2560×1440, 2560×1080, 2048×1080, 1920×1440, 1920×1200, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
• Transmission distance CAT6/6A/7 ≤ 60m
• Audio formats LPCM/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
• USB version USB 1.1, compatible with USB 1.0
• Power Supply TX: DC 5V/2A，RX: PoC (Powered by TX)
• Power Consumption TX+RX<8W
• Working -10℃~60℃
• Storage temperature -30℃~70℃
• Humidity 0~90% RH (no condensation)
• Housing lron
• Weight TX: 146g，RX: 146g
• Color Black
• Dimensions 85.0(L)x75.5(W)x21.5(H)mm
• Protection ESD protection
• 1a Contact discharge level 2 (±4KV)
• 1b Air discharge level 3 (±8KV)
• Implementation of the standard: IEC61000-4-2
• Lightning protection, Surge protection

—
