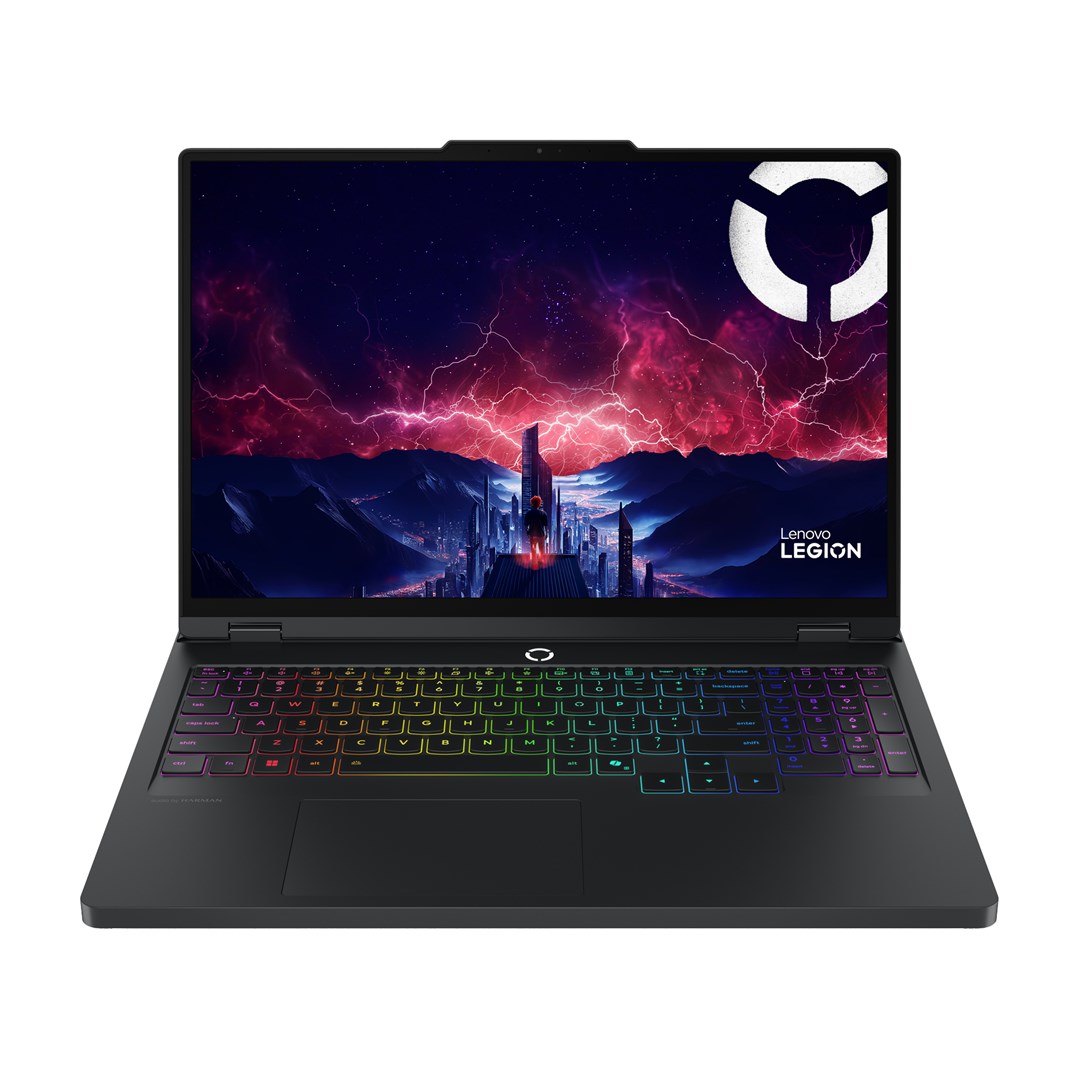

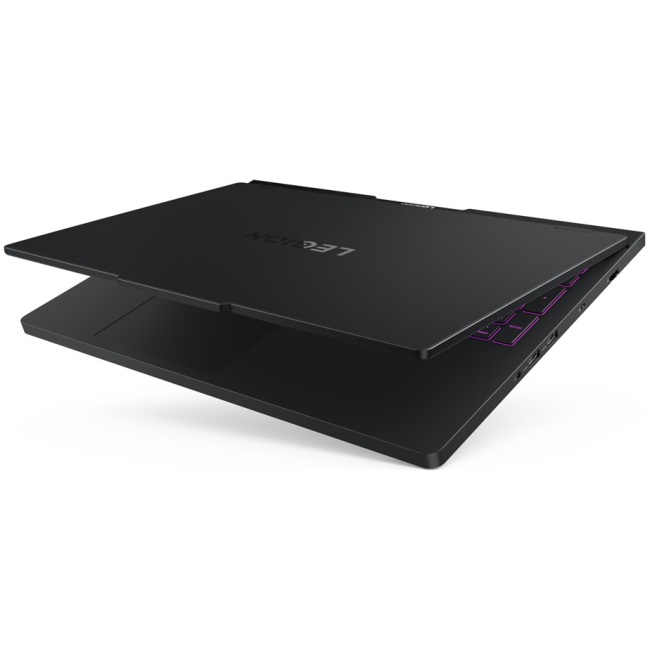

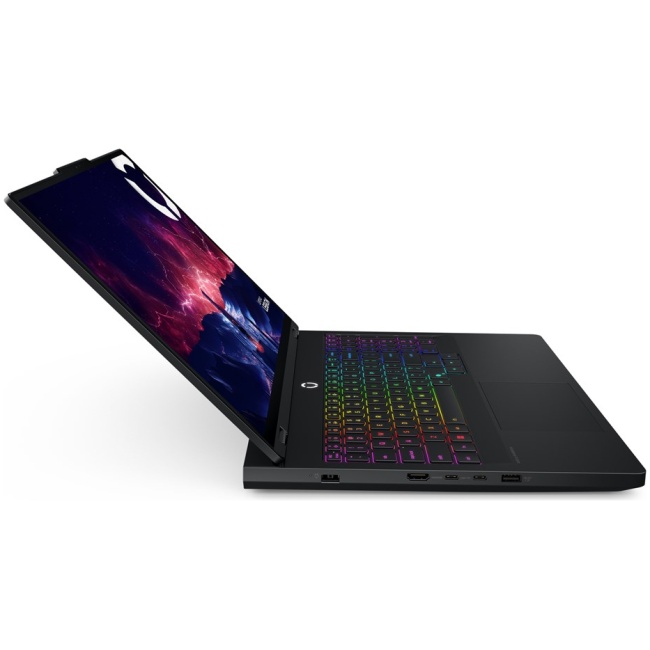

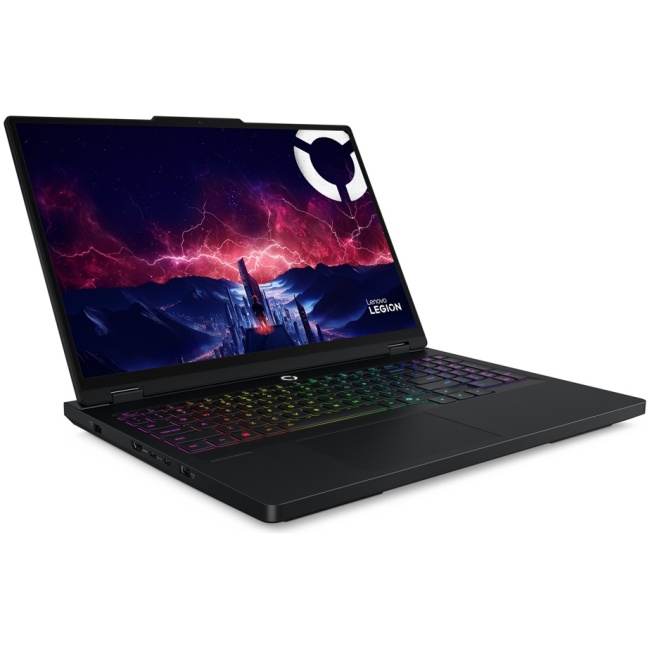

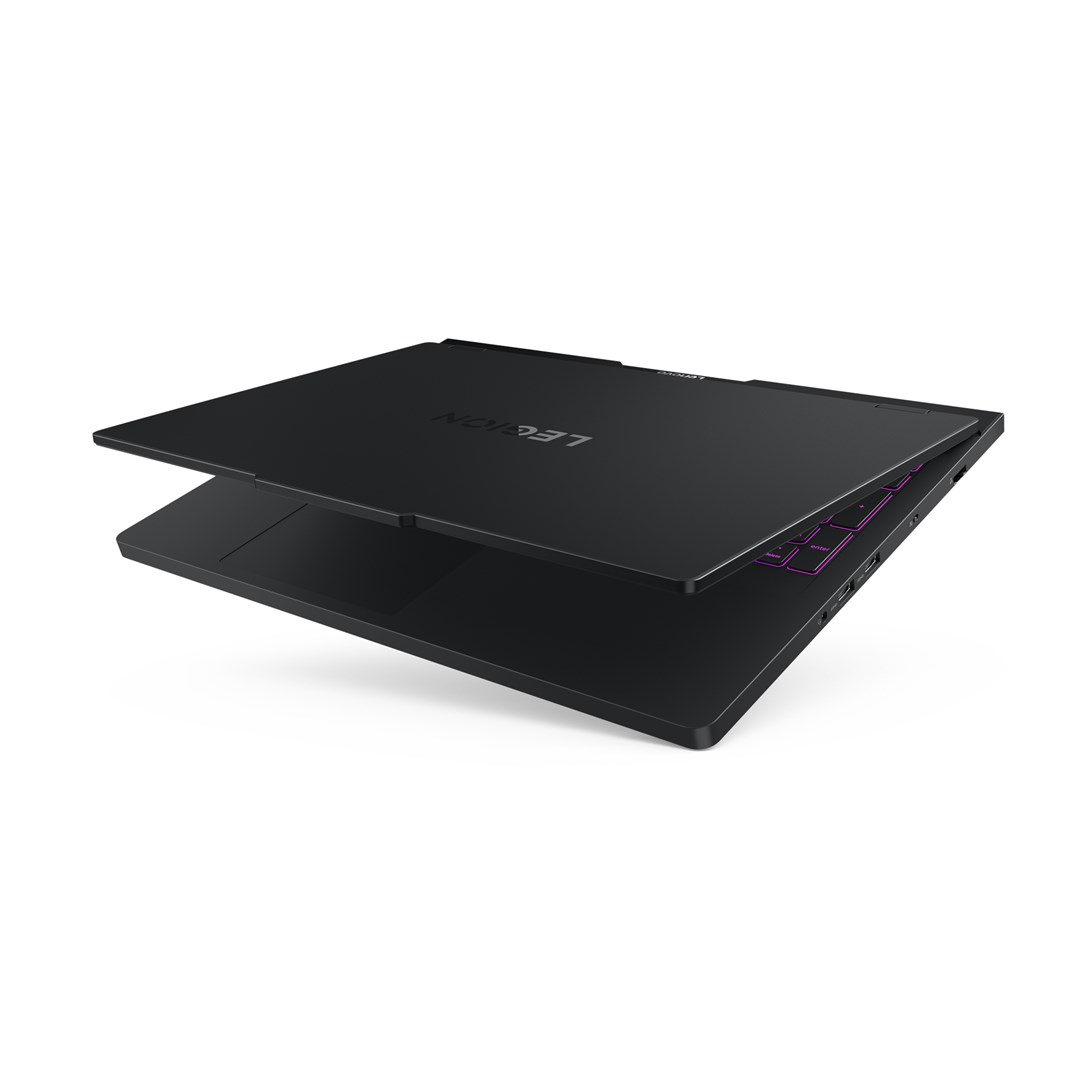

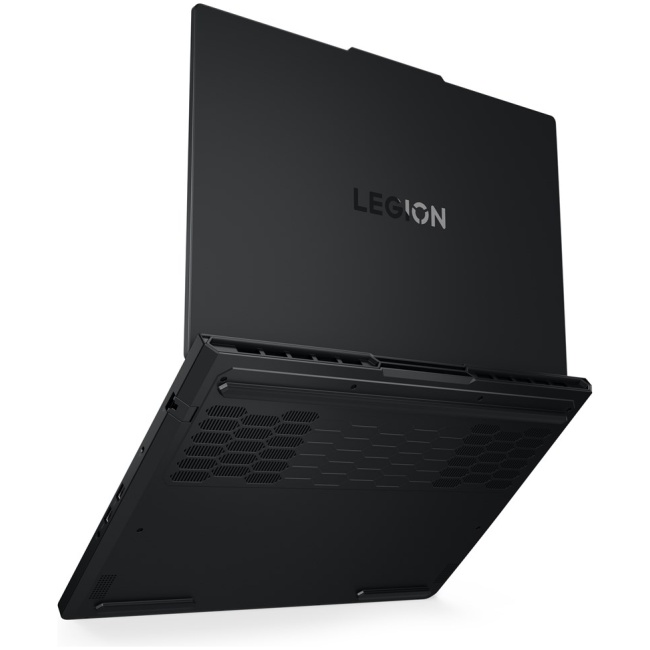

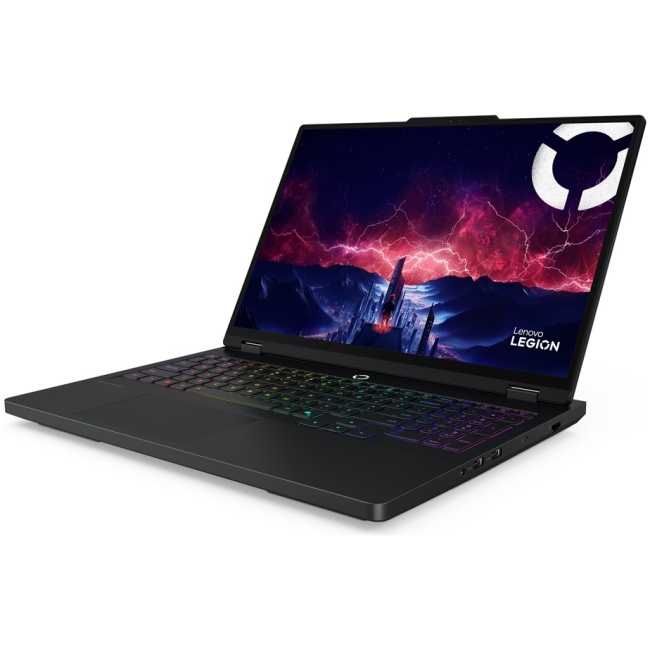

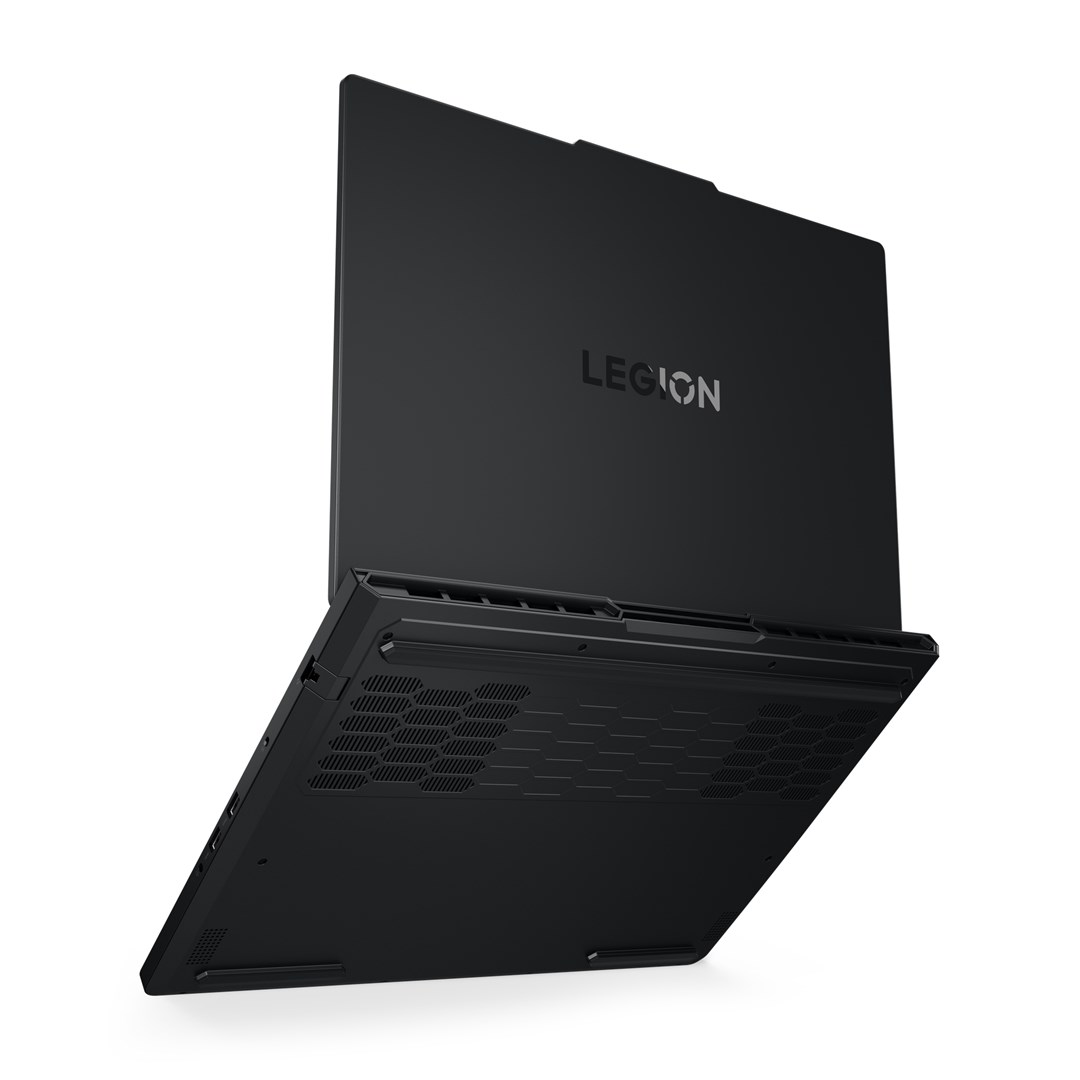

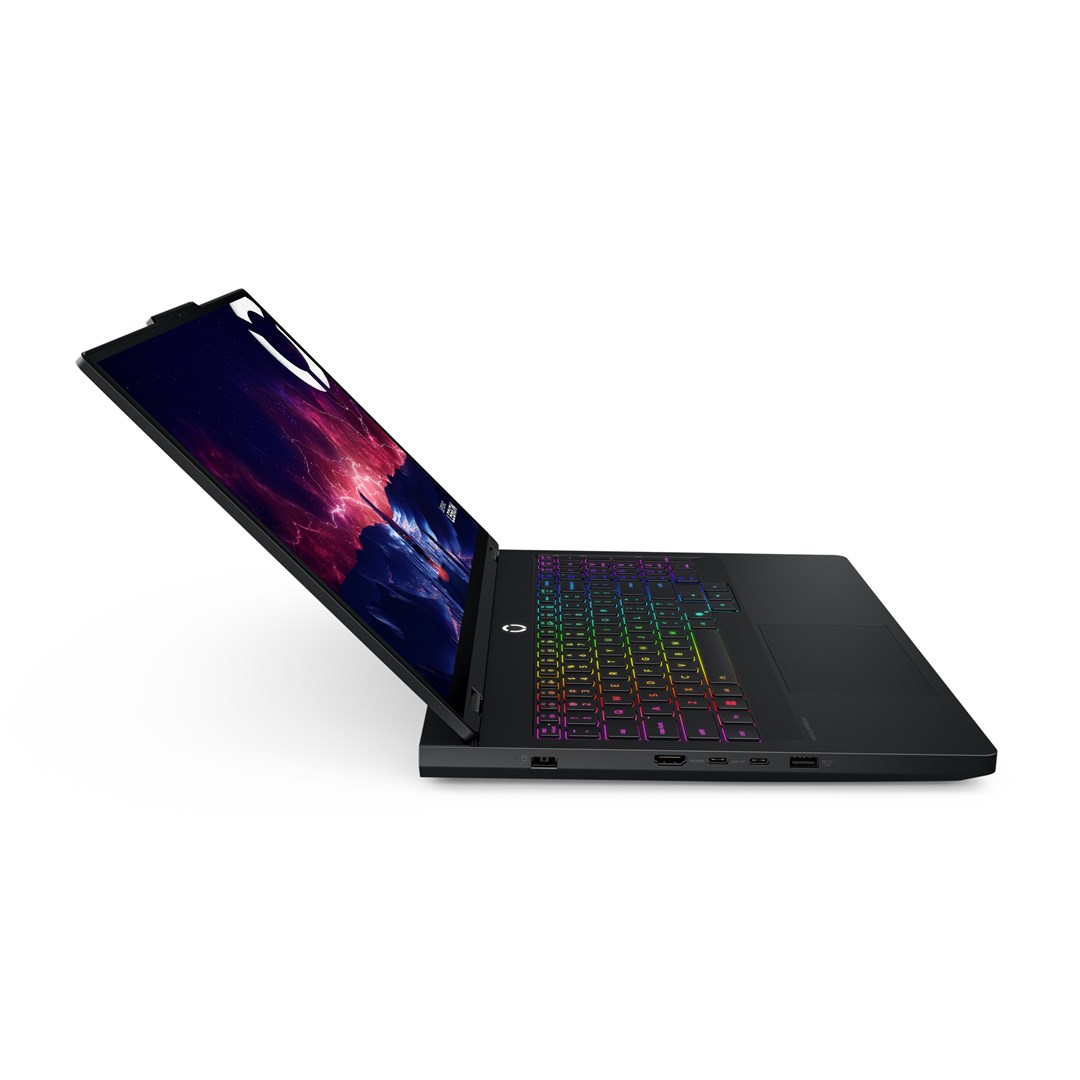

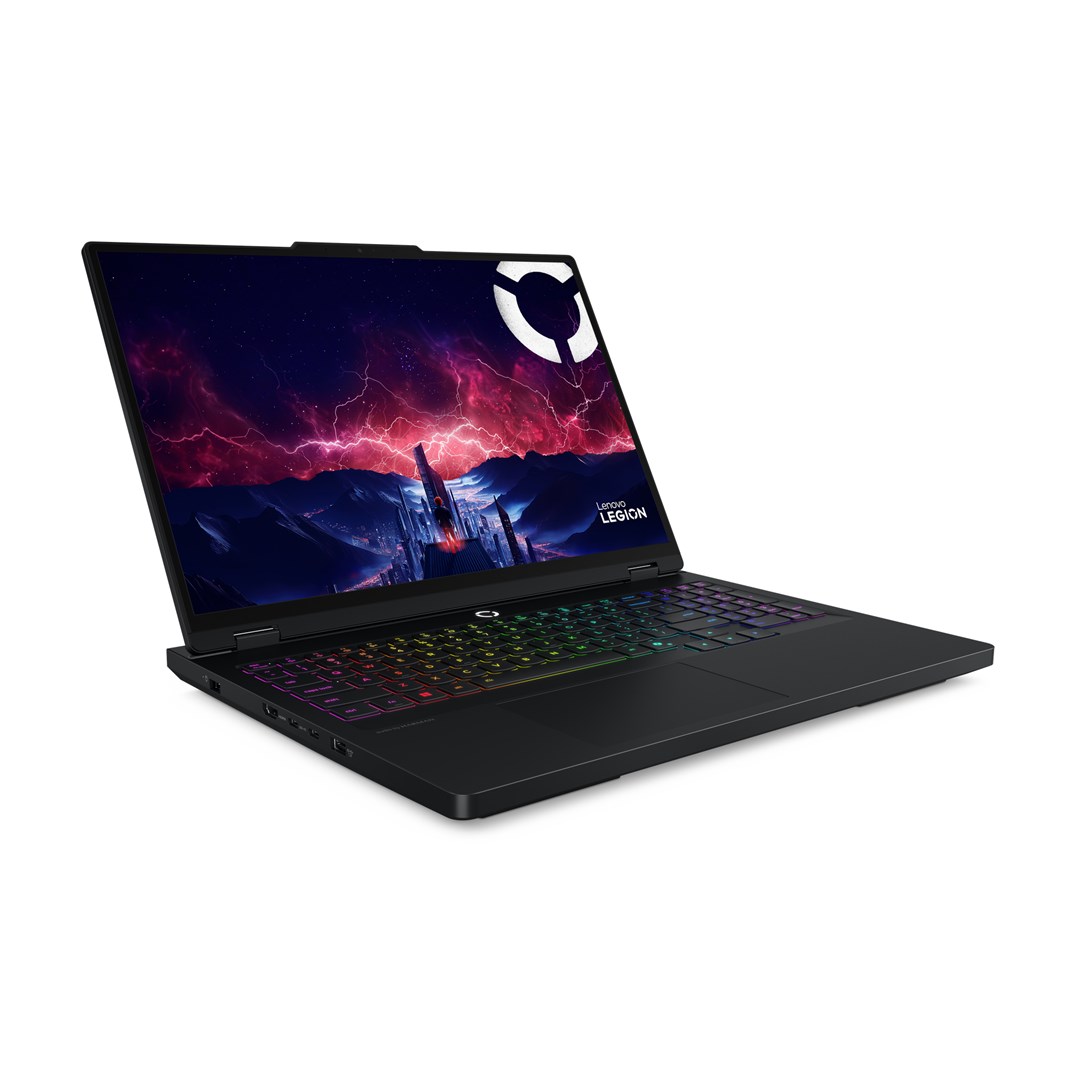

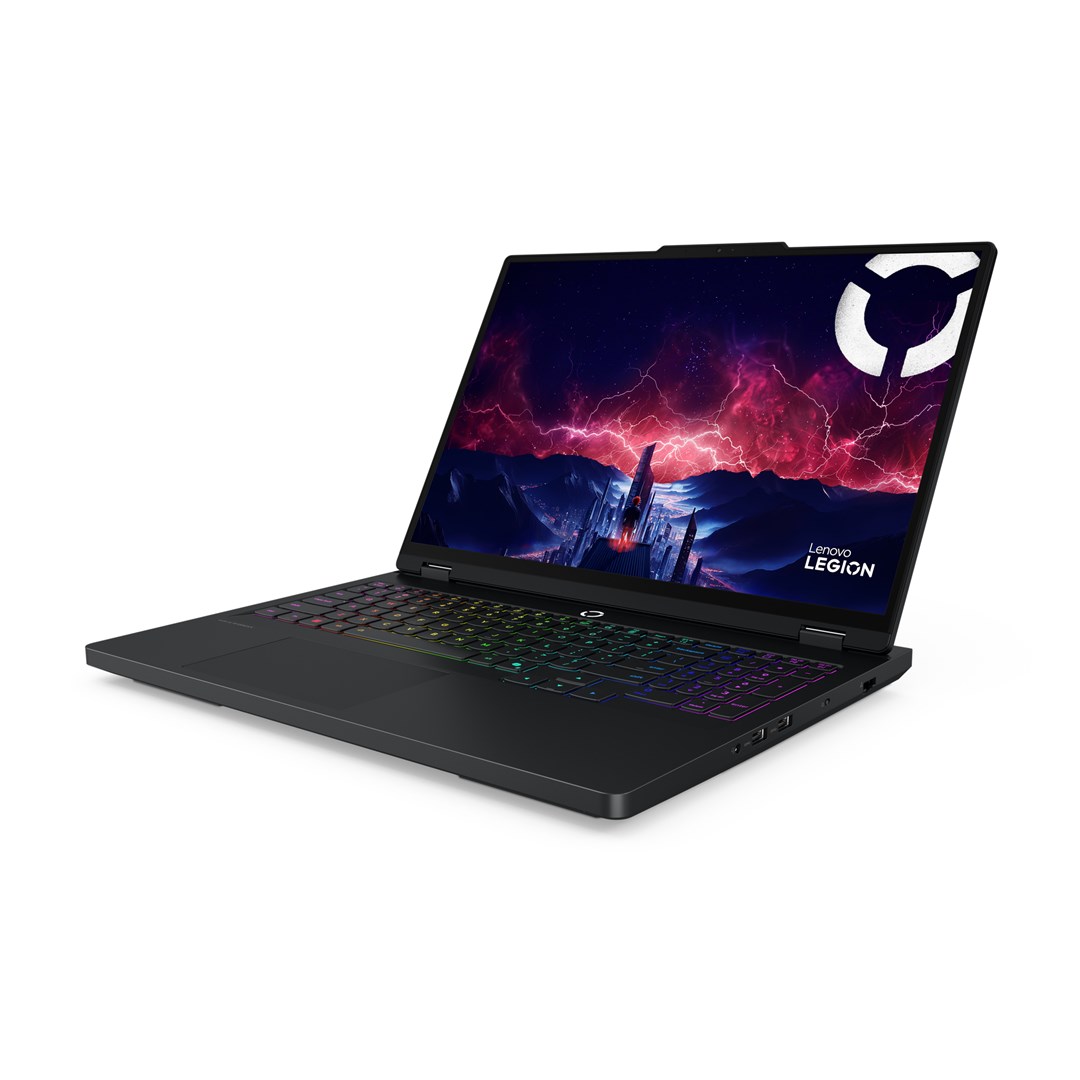

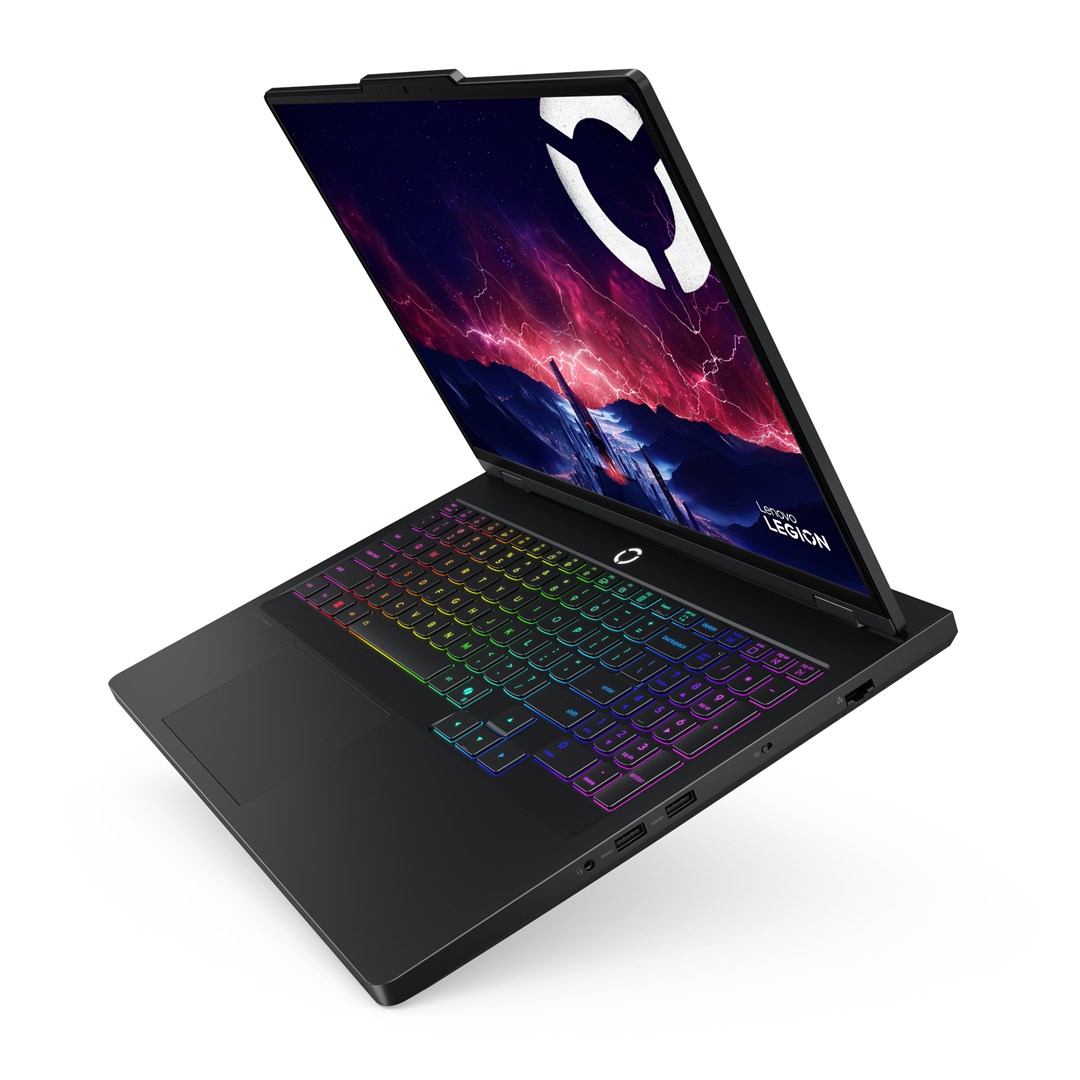

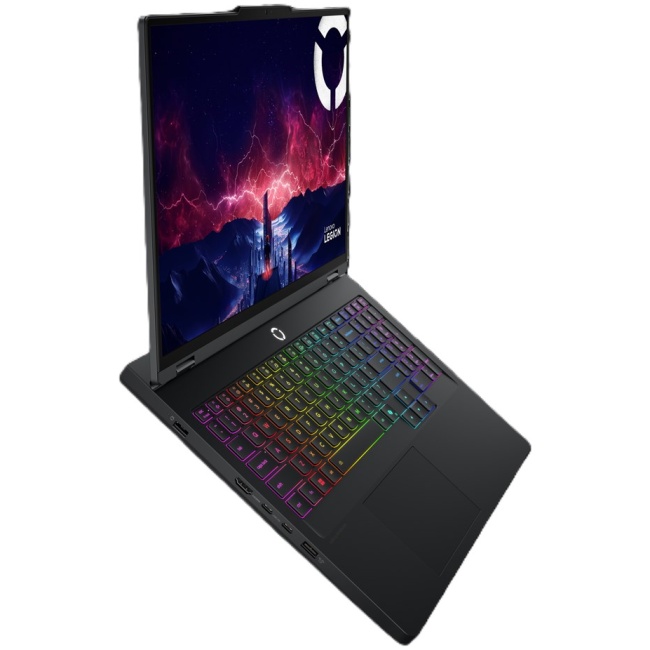

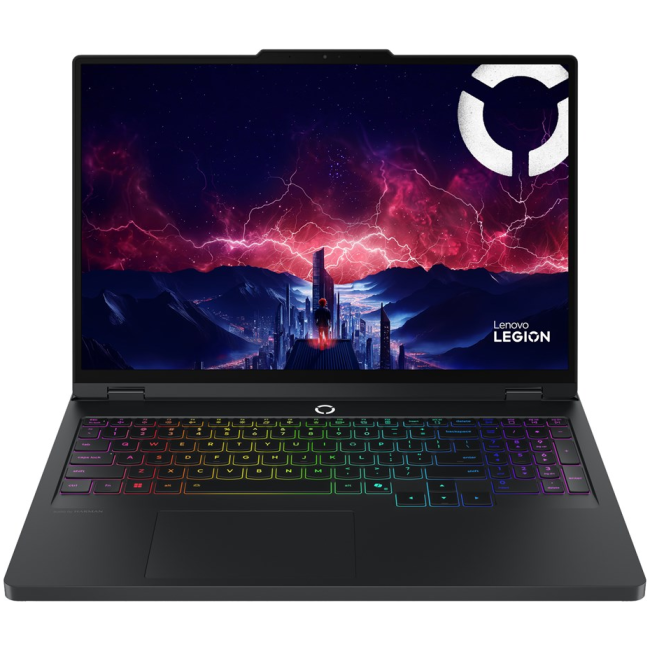

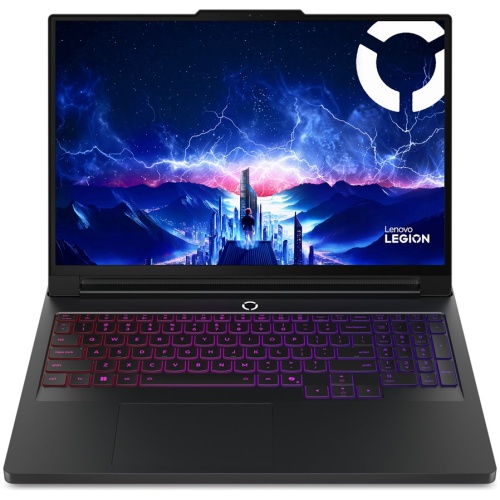

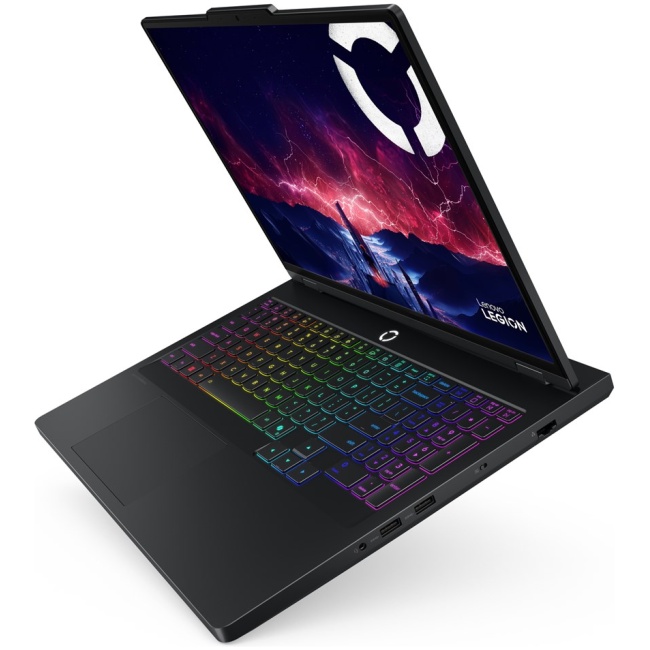

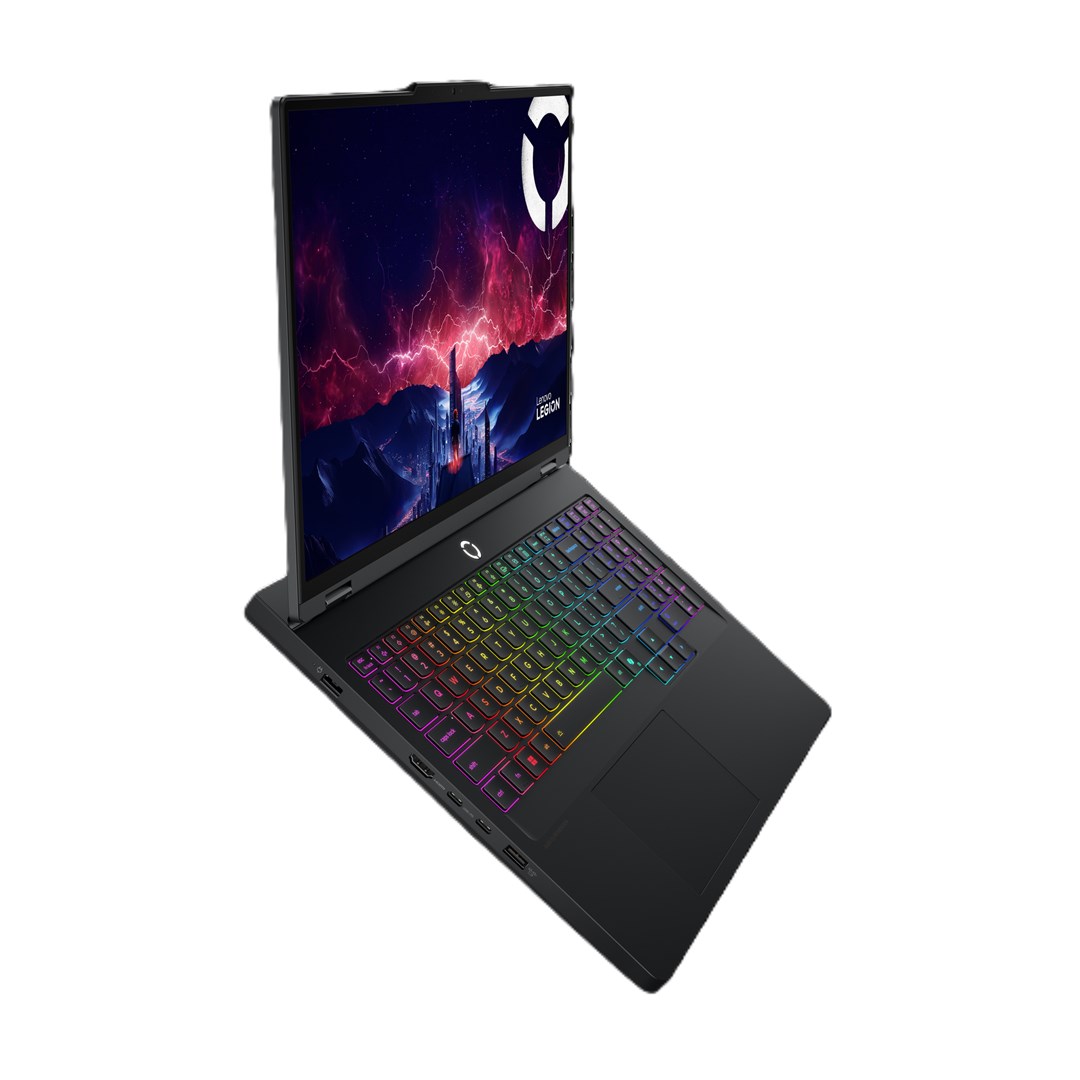

Lenovo Legion Pro 5 16ADR10 AMD Ryzen™ 7 8745HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Wi-Fi 6 (802.11ax) NoOS Black

Technical Specifications

Processor

L2 cache: 8 MB

Processor manufacturer: AMD

Processor threads: 18

Processor model: 8745HX

Processor base power: 55 W

Processor generation: AMD Ryzen 8000 Series

L3 cache: 32 MB

Processor cores: 8

Processor frequency: 3.6 GHz

Processor boost frequency: 5.1 GHz

Graphics

On-board graphics card: Yes

Discrete graphics card: Yes

On-board graphics card family: AMD Radeon

Discrete graphics memory type: GDDR7

On-board GPU manufacturer: AMD

Discrete GPU manufacturer: NVIDIA

On-board graphics card model: AMD Radeon 610M

Discrete graphics card memory: 8 GB

Discrete graphics card model: NVIDIA GeForce RTX 5060

:

:

:

:

:

:

Memory

Memory slots: 2x SO-DIMM

Internal memory type: DDR5-SDRAM

Internal memory: 32 GB

Memory form factor: SO-DIMM

Memory clock speed: 5200 MHz

Memory layout (slots x size): 2 x 16 GB

Maximum internal memory: 32 GB

:

:

:

Design

Product type: Laptop

Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Colour name: Eclipse Black

Product colour: Black

:

:

:

:

:

:

Power

AC adapter frequency: 50/60 Hz

AC adapter power: 245 W

USB Power Delivery (USB PD): Yes

AC adapter input voltage: 100 – 240 V

USB Type-C charging port: Yes

:

:

:

:

:

Security

Fingerprint reader: No

Trusted Platform Module (TPM) version: 2.0

Trusted Platform Module (TPM): Yes

:

:

:

:

:

:

:

Operational conditions

Storage relative humidity (H-H): 5 – 95%

Storage temperature (T-T): 5 – 43 °C

Operating relative humidity (H-H): 8 – 95%

Operating temperature (T-T): 5 – 35 °C

:

:

:

:

:

:

Weight & dimensions

Width: 364.4 mm

Depth: 268.1 mm

Weight: 2.3 kg

:

:

:

:

:

:

:

Network

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Wi-Fi standards: Wi-Fi 6 (802.11ax)

Bluetooth version: 5.2

Mobile network connection: No

Ethernet LAN: Yes

WWAN: Not installed

Antenna type: 2×2

Bluetooth: Yes

Ethernet LAN data rates: 1000

:

Performance

Motherboard chipset: AMD SoC

:

:

:

:

:

:

:

:

:

Packaging content

AC adapter included: Yes

:

:

:

:

:

:

:

:

:

Display

Maximum refresh rate: 165 Hz

Touchscreen: No

Display brightness: 500 cd/m²

Colour gamut: 100%

Panel type: OLED

High Dynamic Range (HDR) supported:

High Dynamic Range (HDR) supported: Yes

RGB colour space: DCI-P3

High Dynamic Range (HDR) technology: DisplayHDR True Black 1000

LED backlight: Yes

HD type: WQXGA

Native aspect ratio: 16:10

Display resolution: 2560 x 1600 pixels

Display diagonal: 40.6 cm (16")

Display surface: Gloss

:

Software

Operating system installed: N

:

:

:

:

:

:

:

:

:

Audio

Number of built-in speakers: 2

Number of microphones: 2

Speaker power: 2 W

Built-in microphone: Yes

Audio chip: Realtek ALC3306

:

:

:

:

:

Storage

SSD interface: PCI Express 4.0

SSD capacity: 1 TB

Storage media: SSD

NVMe: Yes

SSD form factor: M.2

Total SSDs capacity: 1 TB

Total storage capacity: 1 TB

Number of SSDs installed: 1

Card reader integrated: No

Optical drive type: No

Ports & interfaces

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Combo headphone/mic port: Yes

USB Sleep-and-Charge: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

:

:

Camera

Front camera resolution (numeric): 5 MP

:

:

:

:

:

:

:

:

:

Battery

Battery capacity: 80 Wh

:

:

:

:

:

:

:

:

:

Keyboard

Pointing device: Touchpad

Numeric keypad: Yes

Keyboard backlit: Yes

Keyboard backlit zone: 24-zone RGB

Keyboard backlit colour: RGB

:

:

:

:

:

Safety warning

Hazard pictogram(s): GHS07: Harmful

Warnings: Do not dispose of in normal household waste; appropriate disposal must be carried out in accordance with environmental regulations.

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
