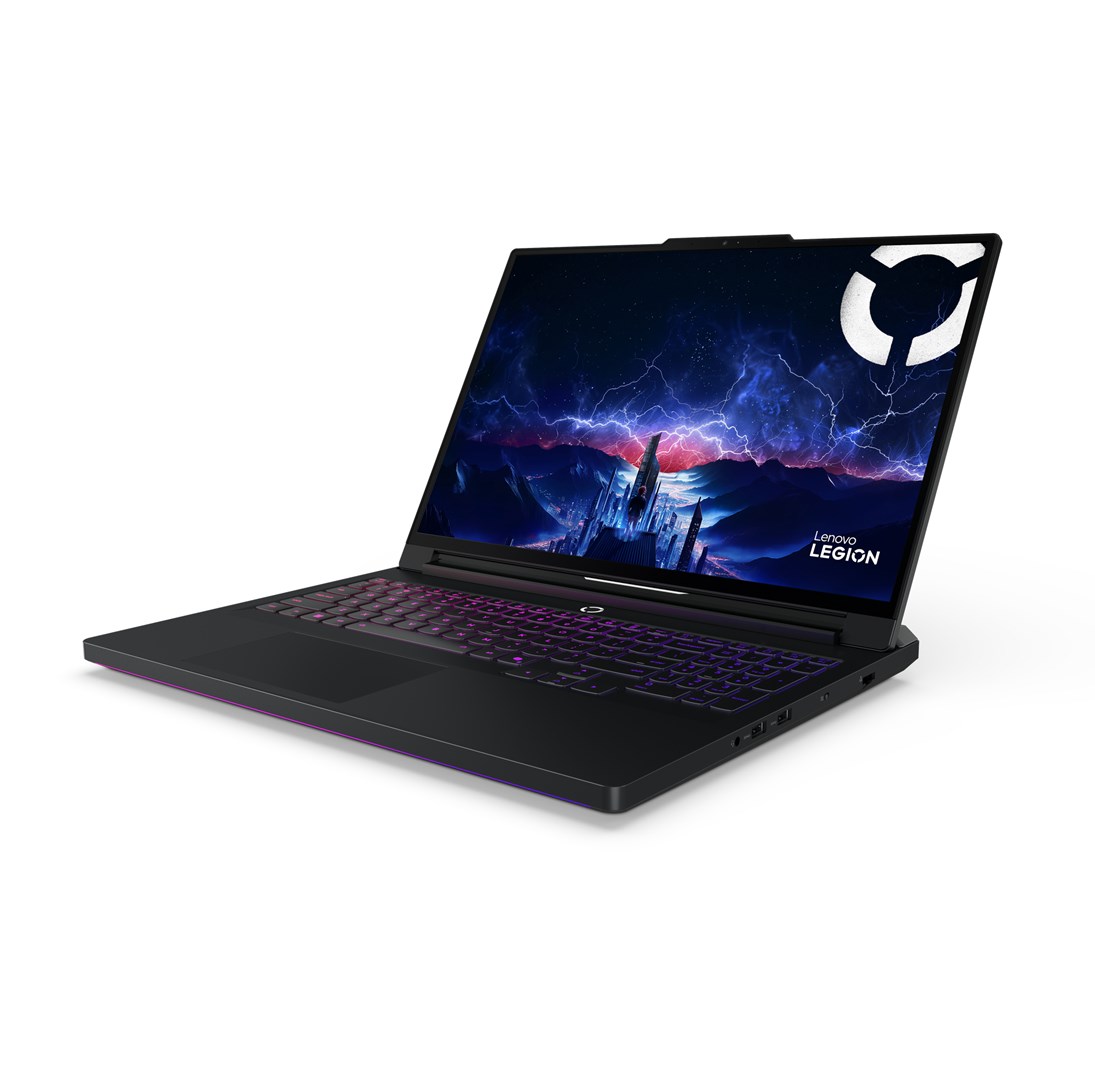

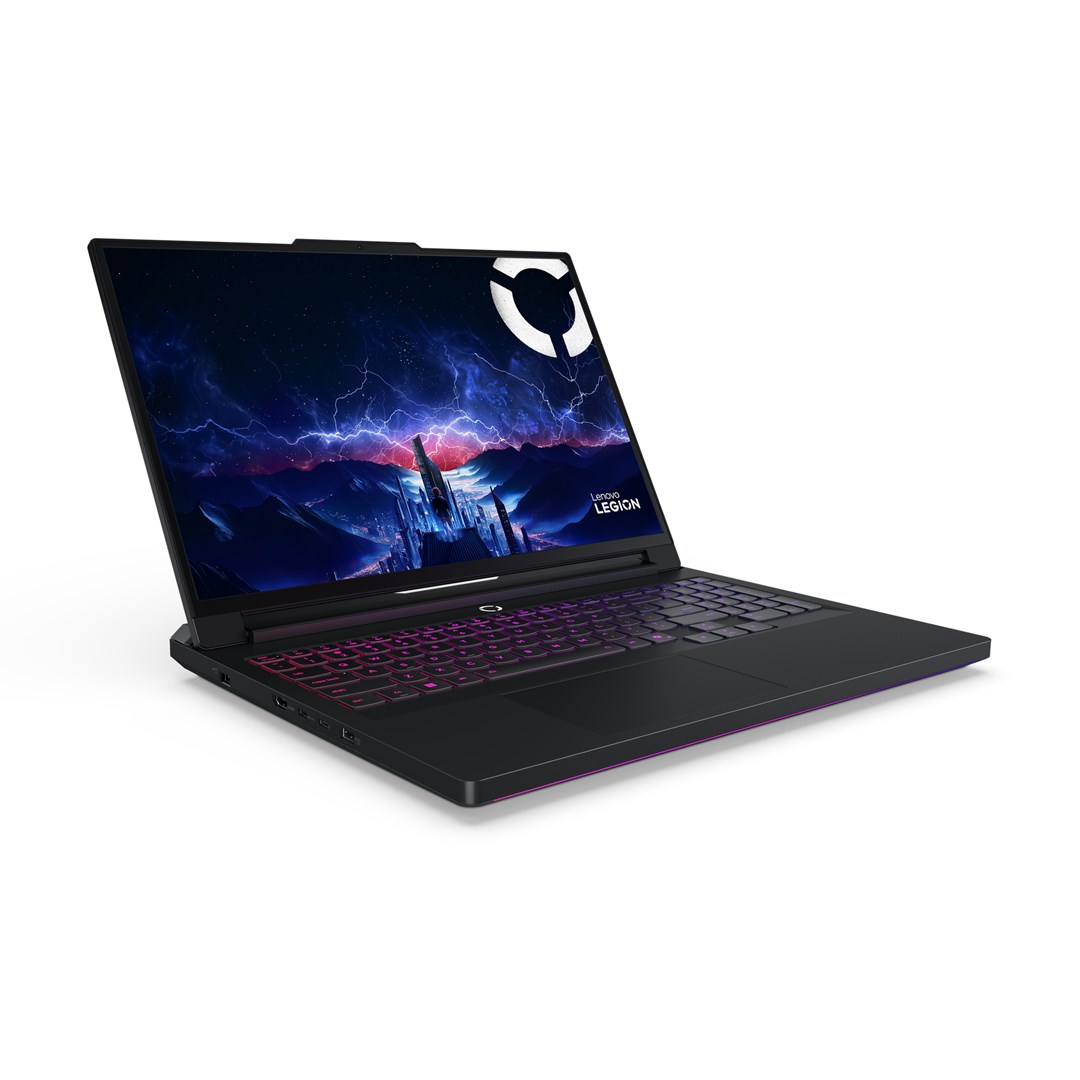

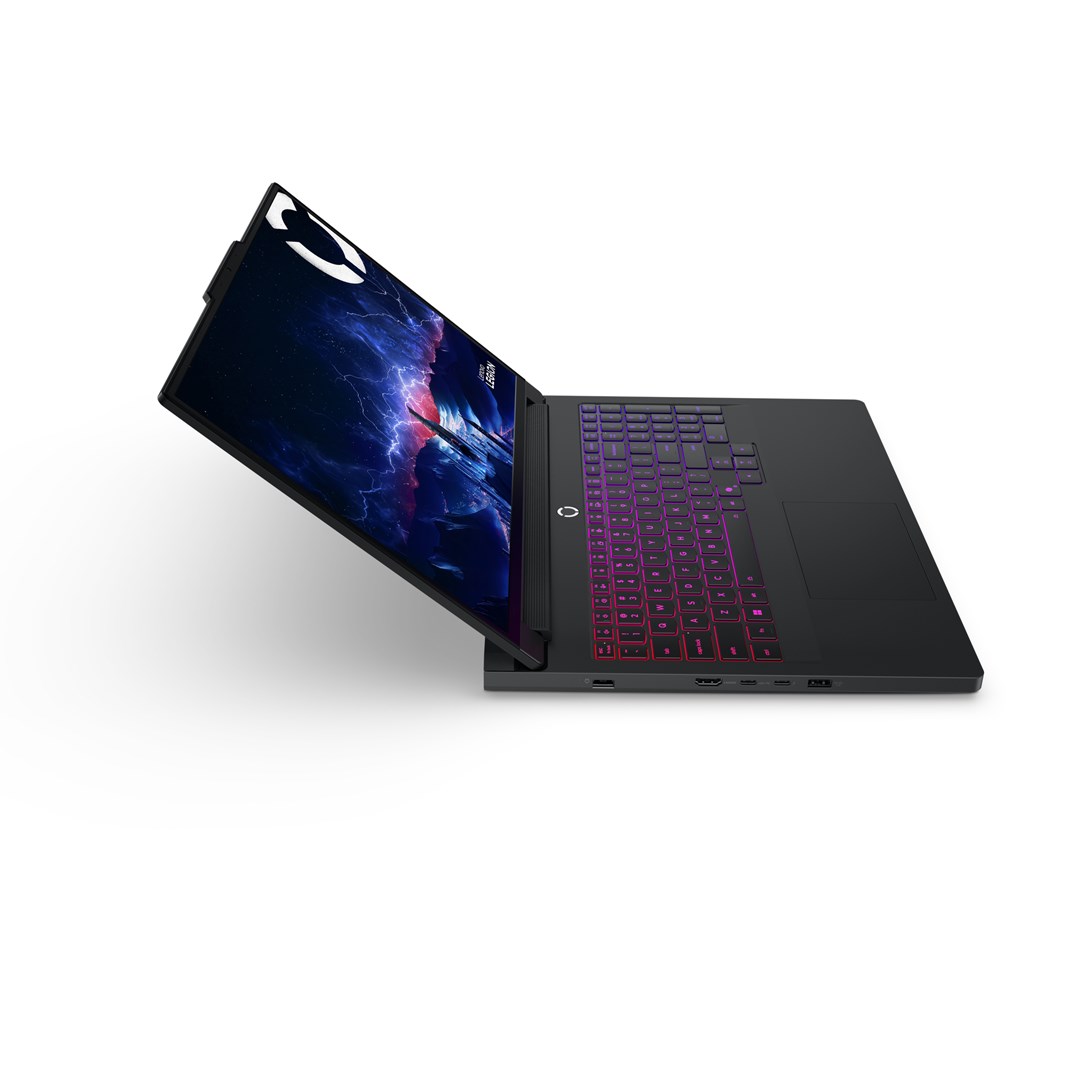

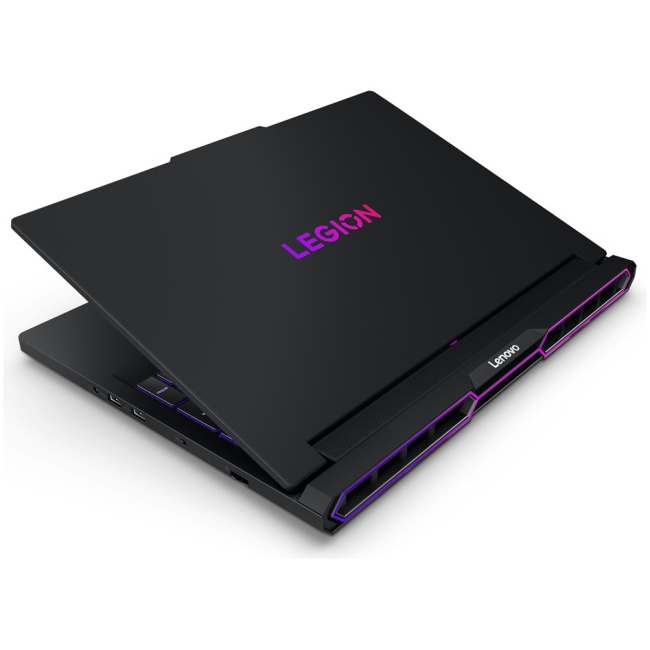

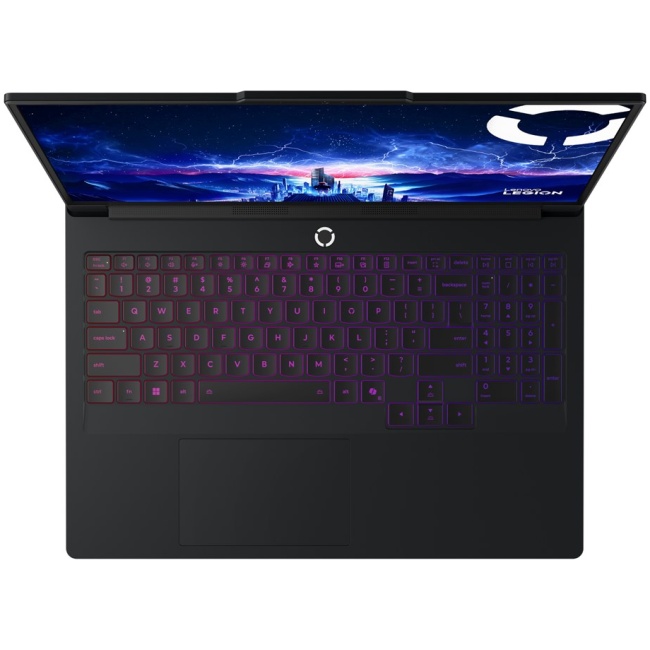

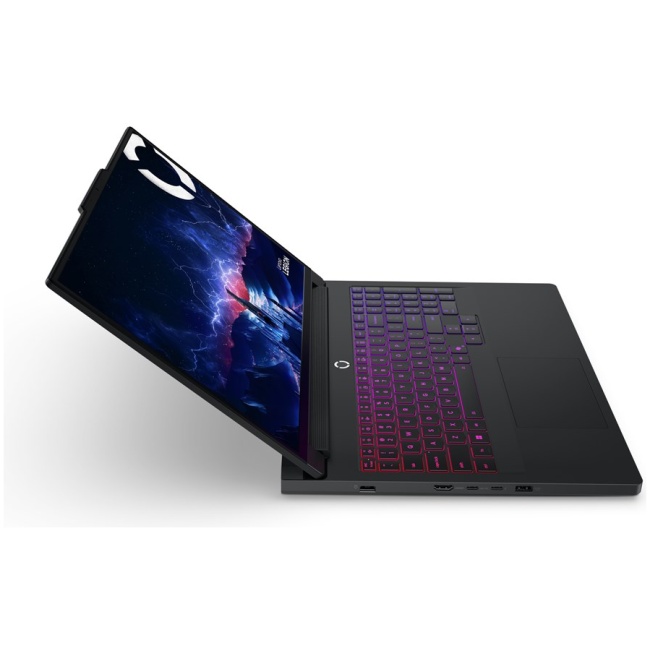

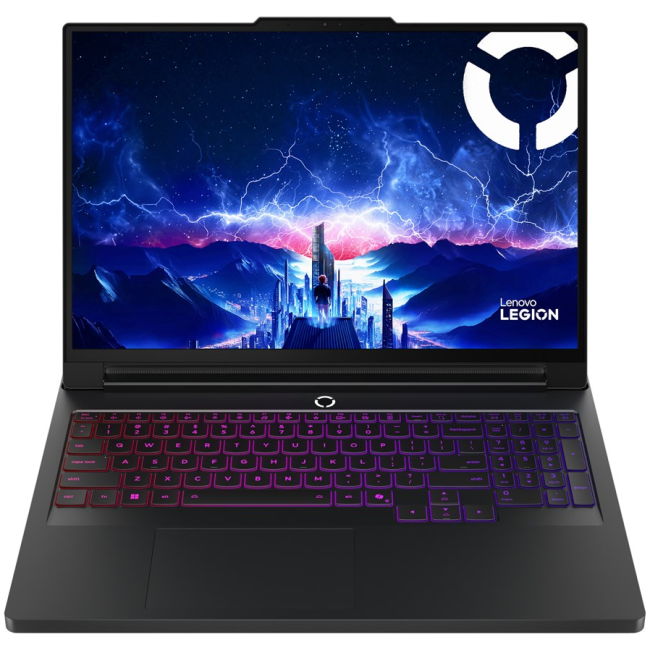

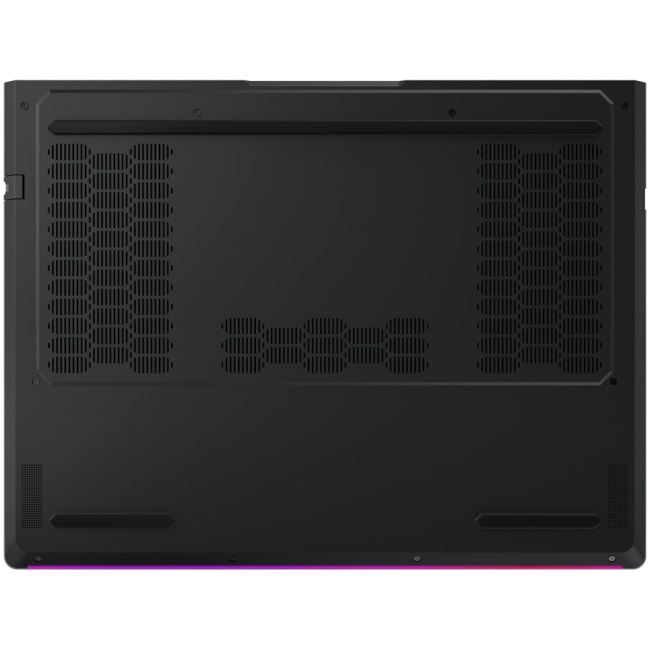

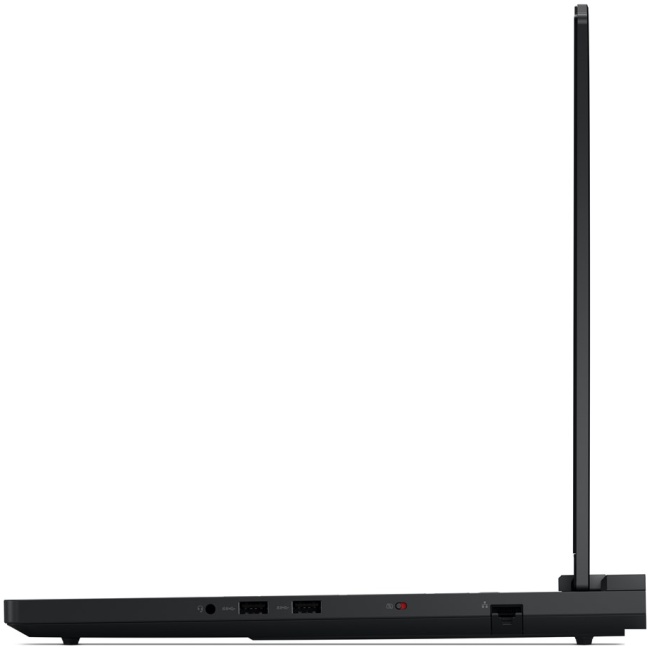

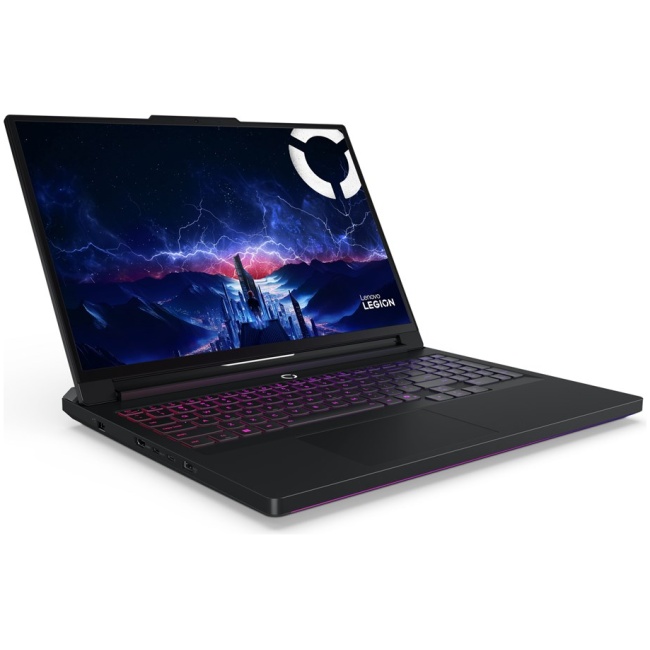

Lenovo Legion Pro 7 16IAX10H Intel Core Ultra 9 275HX Laptop 40.6 cm (16") WQXGA 64 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5090 Wi-Fi 7 (802.11be) Windows 11 Home Black

Technical Specifications

Processor

Processor cache: 36 MB

Processor threads: 24

Processor model: 275HX

Performance-core base frequency: 2.7 GHz

Processor cores: 24

Efficient-core base frequency: 2.1 GHz

Maximum turbo power: 160 W

Processor generation: Intel Core Ultra (Series 2)

Processor base power: 55 W

Processor manufacturer: Intel

Graphics

Discrete graphics card memory: 24 GB

Discrete GPU manufacturer: NVIDIA

On-board GPU manufacturer: Intel

Discrete graphics memory type: GDDR7

On-board graphics card family: Intel® Graphics

Discrete graphics card: Yes

On-board graphics card: Yes

On-board graphics card model: Intel® Graphics

Discrete graphics card model: NVIDIA GeForce RTX 5090

:

:

:

:

:

:

Memory

Internal memory type: DDR5-SDRAM

Internal memory: 64 GB

Memory clock speed: 6400 MHz

Memory form factor: SO-DIMM

Memory layout (slots x size): 2 x 32 GB

Maximum internal memory: 64 GB

:

:

:

:

Design

Colour name: Eclipse Black

Product type: Laptop

Housing material: Aluminium

Product colour: Black

:

:

:

:

:

:

Power

USB Power Delivery (USB PD): Yes

USB Type-C charging port: Yes

AC adapter frequency: 50/60 Hz

AC adapter power: 400 W

AC adapter input voltage: 100 – 240 V

:

:

:

:

:

Security

Trusted Platform Module (TPM) version: 2.0

Fingerprint reader: No

Trusted Platform Module (TPM): Yes

:

:

:

:

:

:

:

Operational conditions

Operating relative humidity (H-H): 8 – 95%

Operating temperature (T-T): 5 – 35 °C

Storage temperature (T-T): 5 – 43 °C

Storage relative humidity (H-H): 5 – 95%

:

:

:

:

:

:

Weight & dimensions

Width: 364.4 mm

Depth: 275.9 mm

Weight: 2.57 kg

:

:

:

:

:

:

:

Network

WWAN: Not installed

Mobile network connection: No

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

Antenna type: 2×2

Bluetooth: Yes

:

:

Performance

Motherboard chipset: Intel HM870

:

:

:

:

:

:

:

:

:

Packaging content

AC adapter included: Yes

Package contents: 4 x interchangeable keycaps

:

:

:

:

:

:

:

:

Display

High Dynamic Range (HDR) supported: Yes

High Dynamic Range (HDR) technology: Dolby Vision

Maximum refresh rate: 240 Hz

Panel type: OLED

Display brightness: 500 cd/m²

RGB colour space:

RGB colour space: DCI-P3

Colour gamut: 100%

Touchscreen: No

Display resolution: 2560 x 1600 pixels

Display surface: Gloss

Native aspect ratio: 16:10

HD type: WQXGA

LED backlight: Yes

Display diagonal: 40.6 cm (16")

:

Software

Operating system architecture: 64-bit

Operating system installed: Windows 11 Home

:

:

:

:

:

:

:

:

Audio

Number of microphones: 2

Number of built-in speakers: 4

Audio chip: Realtek ALC3306

Built-in microphone: Yes

:

:

:

:

:

:

Storage

Total SSDs capacity: 1 TB

SSD interface: PCI Express

Total storage capacity: 1 TB

SSD form factor: M.2

Card reader integrated: No

NVMe: Yes

Storage media: SSD

SSD capacity: 1 TB

Number of SSDs installed: 1

Optical drive type: No

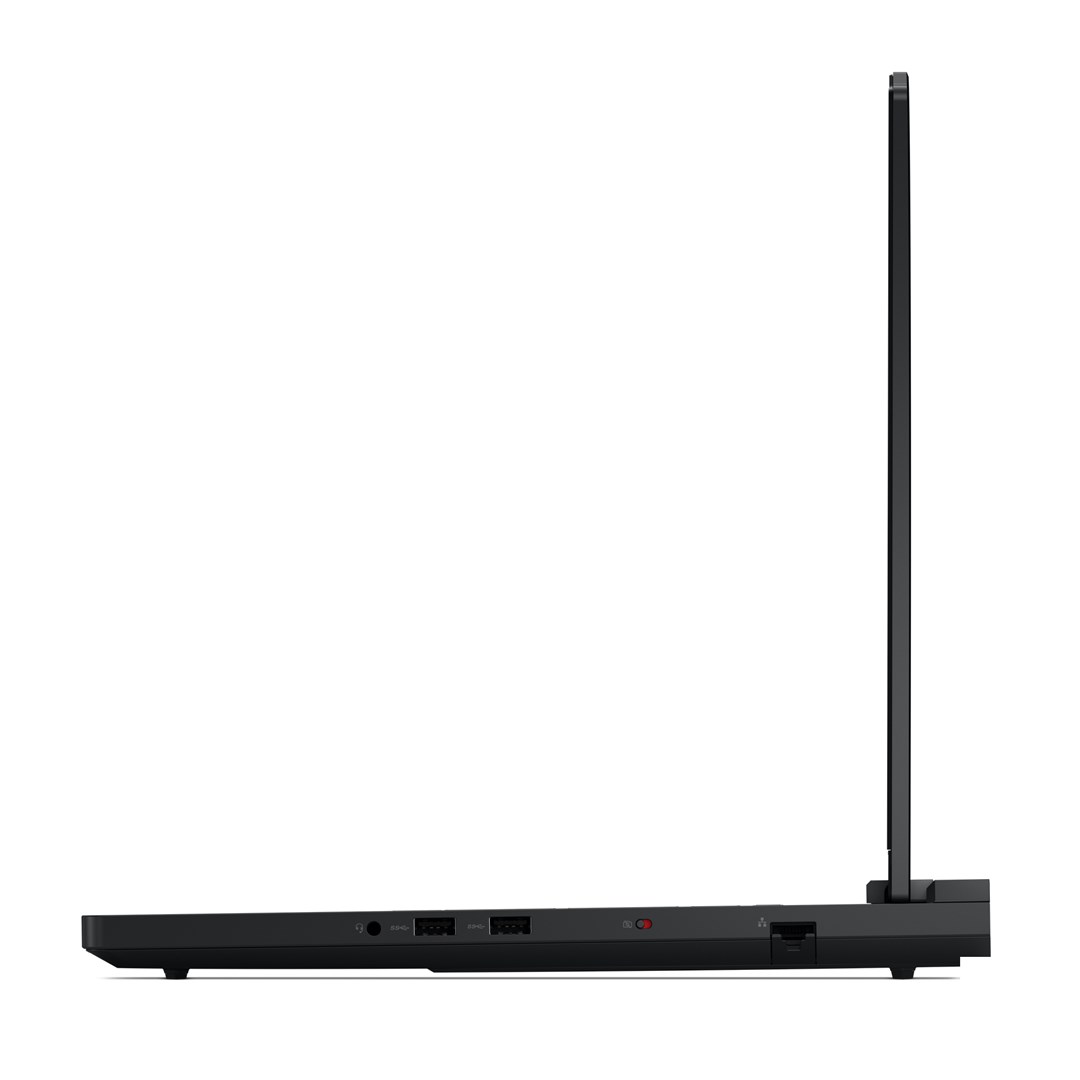

Ports & interfaces

Combo headphone/mic port: Yes

HDMI version: 2.1

HDMI ports quantity: 1

USB Sleep-and-Charge: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB Type-C DisplayPort Alternate Mode: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Thunderbolt 4 ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Camera

Front camera resolution (numeric): 5 MP

:

:

:

:

:

:

:

:

:

Battery

Battery capacity: 99.9 Wh

:

:

:

:

:

:

:

:

:

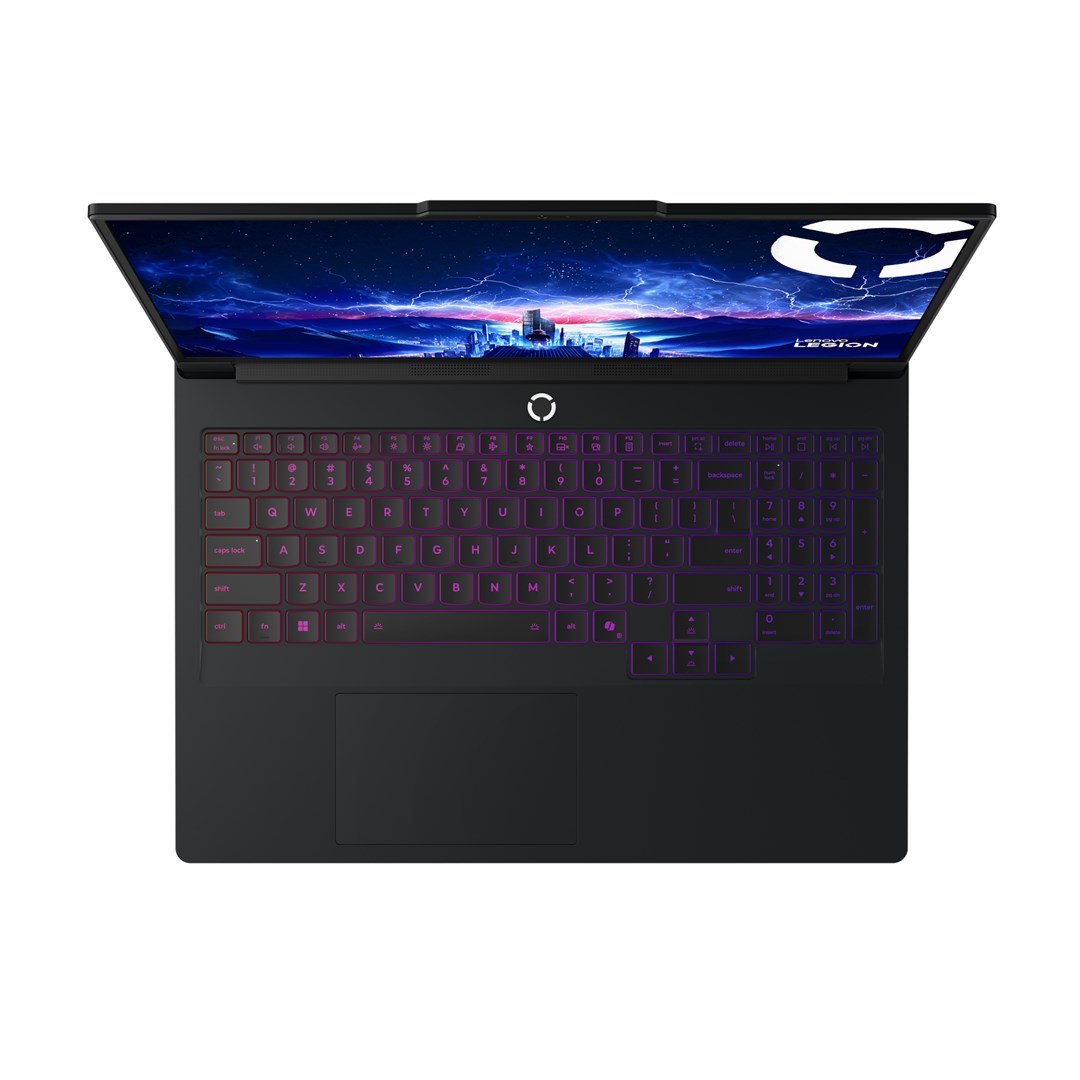

Keyboard

Keyboard backlit zone: Per-key RGB

Keyboard backlit colour: RGB

Numeric keypad: Yes

Pointing device: Touchpad

Keyboard backlit: Yes

:

:

:

:

:

Safety warning

Hazard pictogram(s): GHS09: Environmental hazard

Warnings: Do not dispose of in normal household waste; appropriate disposal must be carried out in accordance with environmental regulations.

:

:

:

:

:

:

:

:

Neural processor unit (NPU)

NPU performance up to: 13 TOPs

Windows Studio effects support: Yes

Total processor performance up to: 36 TOPs

Neural processor unit (NPU): Intel AI Boost

AI software frameworks supported by NPU: WebNN

Sparsity support: Yes

GPU performance up to: 8 TOPs

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
