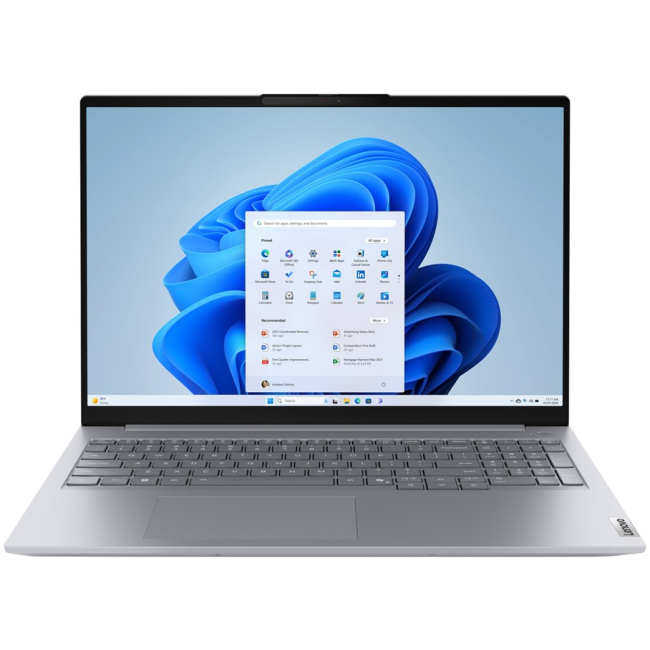

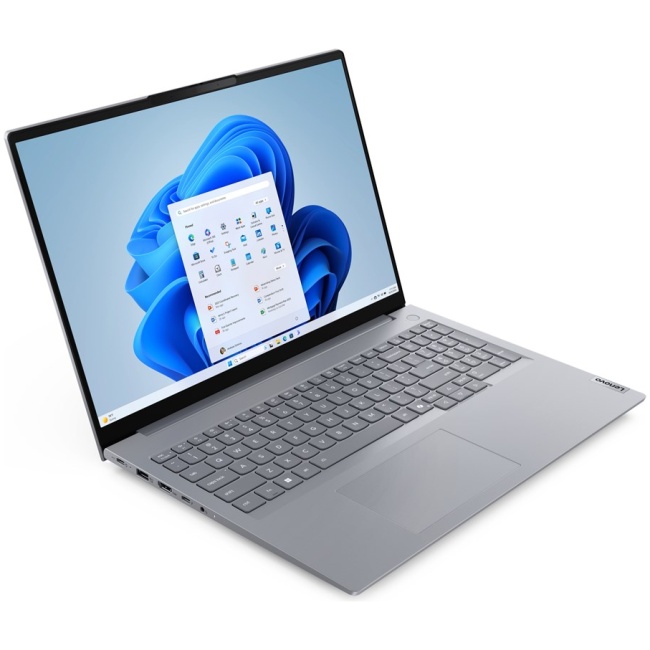

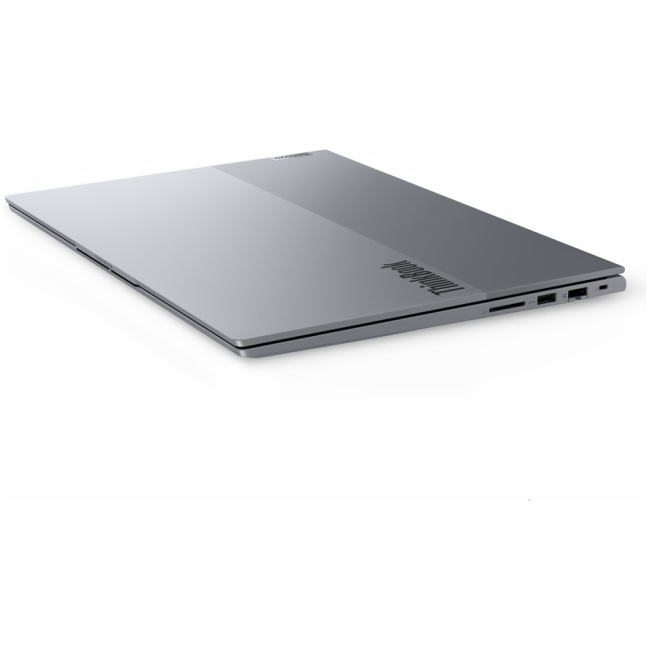

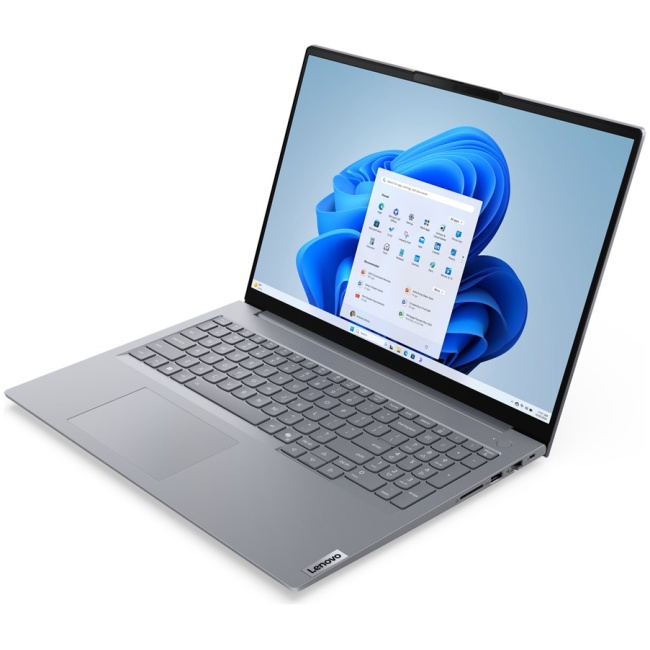

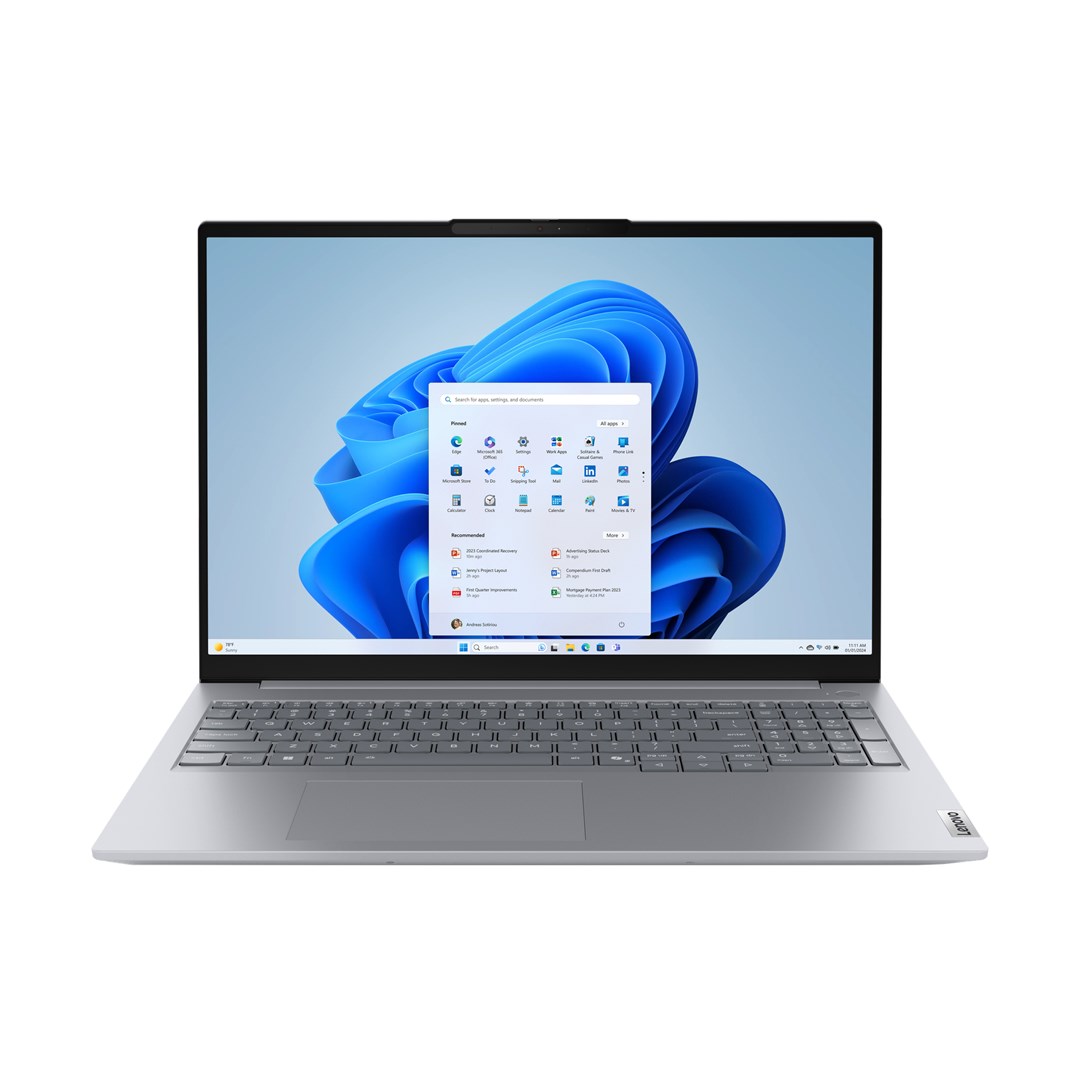

Lenovo ThinkBook 16 G8 IAL Intel Core Ultra 7 255H Laptop 40.6 cm (16") WUXGA 32 GB DDR5-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro English Grey

Technical Specifications

Processor

Processor cores: 16

Processor model: 255H

Processor threads: 16

Processor boost frequency: 5.1 GHz

Processor cache: 24 MB

Processor family: Intel Core Ultra 7

Processor manufacturer: Intel

Performance cores: 6

Efficient cores: 8

Maximum turbo power: 115 W

Graphics

On-board graphics card model: Intel Arc 140T

Discrete graphics card model: Not available

On-board graphics card family: Intel Arc Graphics

Discrete graphics card: No

On-board graphics card: Yes

On-board GPU manufacturer: Intel

:

:

:

:

:

:

:

:

:

Memory

Memory clock speed: 5600 MHz

Internal memory type: DDR5-SDRAM

Memory form factor: SO-DIMM

Internal memory: 32 GB

Maximum internal memory: 64 GB

Memory channels: Single-channel

Memory layout (slots x size): 2 x 16 GB

Memory slots: 2x SO-DIMM

:

:

Design

Colour name: Arctic Grey

Product colour: Grey

Product type: Laptop

Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

:

:

:

:

:

:

Power

USB Power Delivery (USB PD): Yes

AC adapter input voltage: 100 – 240 V

AC adapter power: 65 W

AC adapter frequency: 50/60 Hz

USB Type-C charging port: Yes

:

:

:

:

:

Security

Cable lock slot type: Kensington

Trusted Platform Module (TPM): Yes

Trusted Platform Module (TPM) version: 2.0

Windows Hello: Yes

Fingerprint reader: Yes

Password protection: Yes

Cable lock slot: Yes

:

:

:

Operational conditions

Operating temperature (T-T): 5 – 35 °C

Storage temperature (T-T): 5 – 43 °C

Operating relative humidity (H-H): 8 – 95%

Storage relative humidity (H-H): 5 – 95%

Maximum shipping altitude: 3048 m

:

:

:

:

:

Weight & dimensions

Weight: 1.7 kg

Height: 17.5 mm

Width: 356 mm

Depth: 253.5 mm

:

:

:

:

:

:

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN data rates: 1000 Mbit/s

Antenna type: 2×2

Bluetooth: Yes

Mobile network connection: No

Bluetooth version: 5.3

WWAN: Not installed

Ethernet LAN: Yes

Wi-Fi standards: Wi-Fi 6E (802.11ax)

:

Performance

Motherboard chipset: Intel SoC

:

:

:

:

:

:

:

:

:

Packaging content

AC adapter included: Yes

:

:

:

:

:

:

:

:

:

Display

Display resolution: 1920 x 1200 pixels

Native aspect ratio: 16:10

Display diagonal: 40.6 cm (16")

Display brightness: 300 cd/m²

HD type: WUXGA

Maximum refresh rate:

Maximum refresh rate: 60 Hz

Contrast ratio (typical): 1000:1

Colour gamut: 45%

LED backlight: Yes

Anti-glare screen: Yes

Panel type: IPS

Touchscreen: No

RGB colour space: NTSC

:

:

Software

Operating system language: English

Trial software: Office

Operating system installed: Windows 11 Pro

Operating system architecture: 64-bit

:

:

:

:

:

:

Audio

Audio system: Dolby Audio

Number of built-in speakers: 2

Audio chip: Realtek ALC3287

Number of microphones: 2

Speaker power: 2 W

Built-in microphone: Yes

:

:

:

:

Certificates

Compliance certificates: RoHS

:

:

:

:

:

:

:

:

:

Storage

Optical drive type: No

Storage media: SSD

Total storage capacity: 1 TB

SSD capacity: 1 TB

NVMe: Yes

Compatible memory cards: SD

SSD form factor: M.2

Total SSDs capacity: 1 TB

Card reader integrated: Yes

SSD interface: PCI Express 4.0

Ports & interfaces

Combo headphone/mic port: Yes

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

USB Sleep-and-Charge: Yes

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB Sleep-and-Charge ports: 1

USB Type-C DisplayPort Alternate Mode: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Intel® Thunderbolt 4: Yes

Camera

Front camera: Yes

Front camera HD type: Full HD

Infrared (IR) camera: Yes

Front camera resolution: 1920 x 1080 pixels

:

:

:

:

:

:

Battery

Continuous video playback time: 13.1 h

Battery life (max): 7.7 h

Battery technology: Lithium Polymer (LiPo)

Fast charging time (50%): 30 min

Battery capacity: 45 Wh

Fast charging: Yes

:

:

:

:

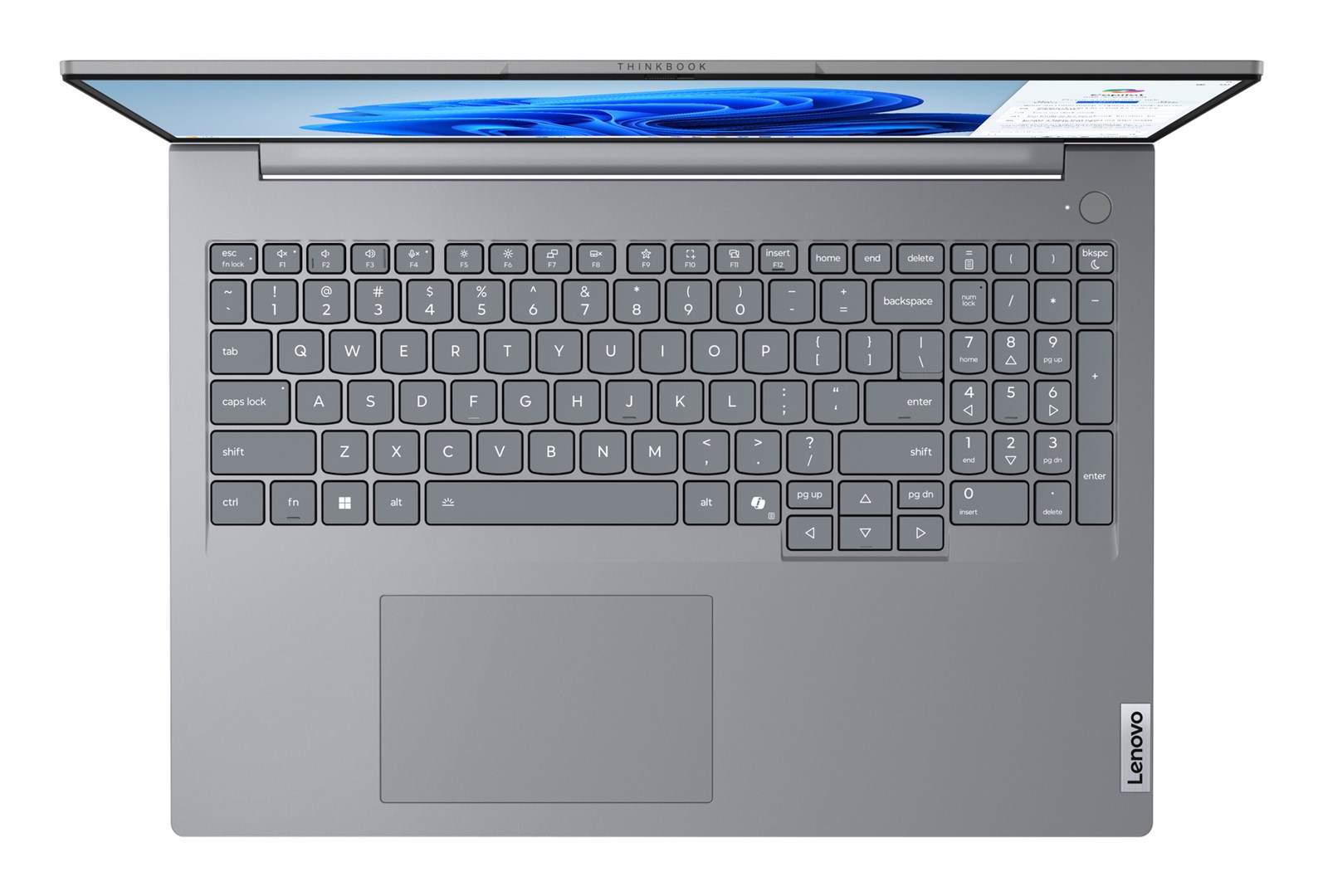

Keyboard

Pointing device: Touchpad

Spill-resistant keyboard: Yes

Numeric keypad: Yes

Keyboard backlit: Yes

Copilot key: Yes

:

:

:

:

:

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost

Windows Studio effects support: Yes

NPU performance up to: 13 TOPs

AI software frameworks supported by NPU: DirectML

Sparsity support: Yes

Total processor performance up to: 96 TOPs

GPU performance up to: 74 TOPs

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
