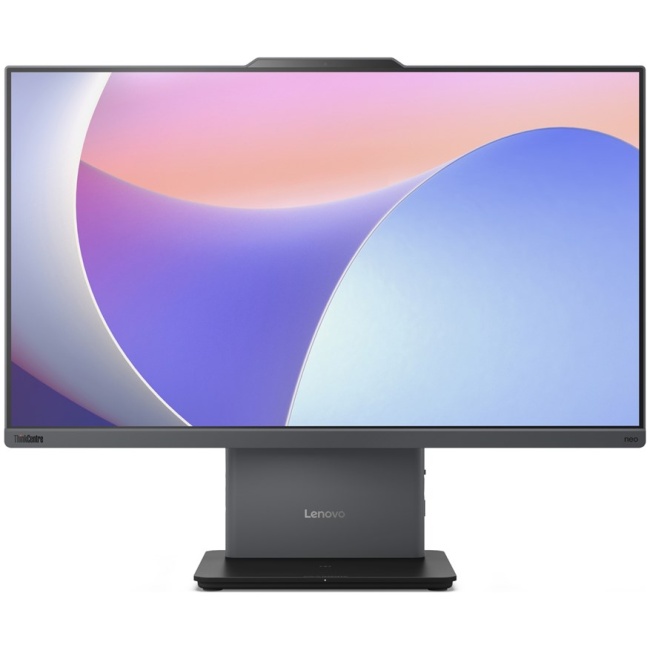

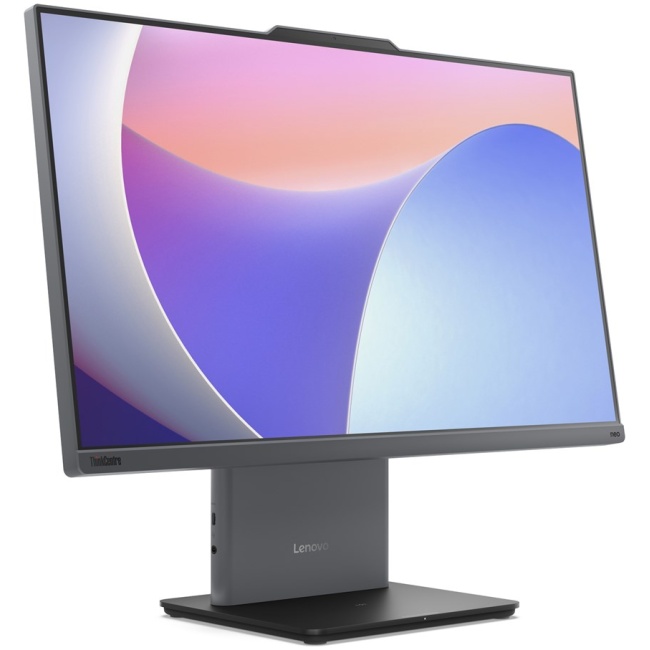

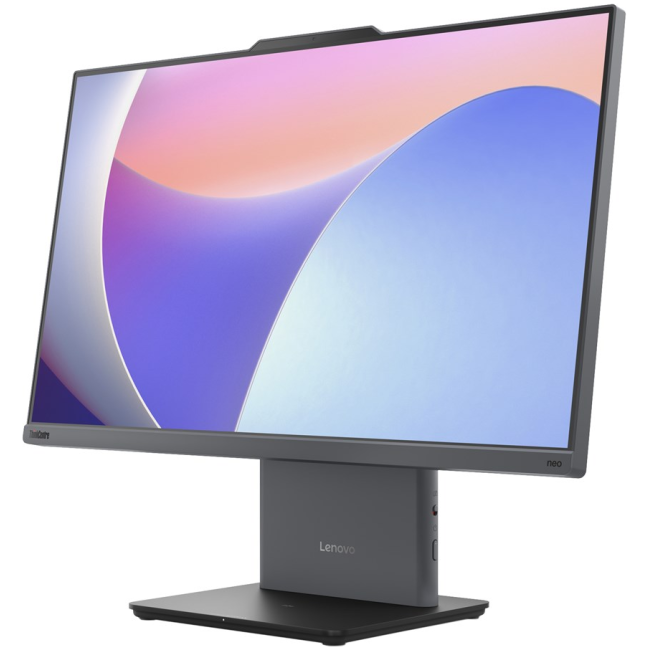

Lenovo ThinkCentre neo 50a 24 Gen 5 Intel® Core™ i5 i5-13420H 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Wi-Fi 6 (802.11ax) Grey

Technical Specifications

Processor

Processor family: Intel® Core™ i5

Processor model: i5-13420H

Processor cores: 8

Processor boost frequency: 4.6 GHz

Processor threads: 12

Efficient-core Max Turbo Frequency: 3.4 GHz

Performance-core Max Turbo Frequency: 4.6 GHz

Processor generation: 13th gen Intel® Core™ i5

Processor cache type: Smart Cache

Efficient cores: 4

Graphics

Discrete graphics card model: Not available

On-board graphics card model: Intel® UHD Graphics

On-board GPU manufacturer: Intel

On-board graphics card family: Intel® UHD Graphics

On-board graphics card: Yes

Discrete graphics card: No

:

:

:

:

:

:

:

:

:

Memory

Maximum internal memory: 32 GB

Non-ECC: Yes

Internal memory: 16 GB

Internal memory type: DDR5-SDRAM

Memory form factor: DIMM/SO-DIMM

Memory layout (slots x size): 1 x 16 GB

Memory slots type: SO-DIMM

Memory slots: 2

ECC: No

Memory clock speed: 5200 MHz

Design

Product colour: Grey

Wall mountable: No

Colour name: Luna grey

On/off button: Yes

:

:

:

:

:

:

Power

AC adapter input voltage: 100 – 240 V

AC adapter frequency: 50/60 Hz

AC adapter power: 135 W

:

:

:

:

:

:

:

Operational conditions

Operating temperature (T-T): 5 – 35 °C

Storage relative humidity (H-H): 10 – 90%

Operating relative humidity (H-H): 20 – 80%

Storage temperature (T-T): -20 – 60 °C

Operating altitude: 0 – 3048 m

Non-operating altitude: 0 – 12192 m

:

:

:

:

Weight & dimensions

Depth (with stand): 192 mm

Height (with stand): 431 mm

Package weight: 9.55 kg

Width (with stand): 540 mm

Package width: 670 mm

Package depth: 229 mm

Package height: 553 mm

Weight (with stand): 6 kg

:

:

Network

Bluetooth: Yes

Antenna type: 2×2

Ethernet LAN data rates: 100

WLAN controller model: Intel Wi-Fi 6 AX201

Wi-Fi: Yes

Ethernet LAN: Yes

Wi-Fi standards: Wi-Fi 4 (802.11n)

Bluetooth version: 5.2

WLAN controller manufacturer: Intel

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Performance

Motherboard chipset: Intel SoC

Trusted Platform Module (TPM): Yes

Trusted Platform Module (TPM) version: 2.0

Product type: All-in-One PC

Market positioning: Business

:

:

:

:

:

Packaging content

Mouse connectivity: Wireless

Keyboard language: English

Mouse included: Yes

Keyboard connectivity: Wireless

Keyboard included: Yes

Keyboard layout: QWERTY

Numeric keypad: Yes

:

:

:

Display

Display diagonal: 60.5 cm (23.8")

Tilt angle range: -5 – 15°

Display resolution: 1920 x 1080 pixels

HD type: Full HD

Native aspect ratio: 16:9

Anti-glare screen: Yes

Low Blue Light technology: Yes

Tilt adjustment: Yes

Display brightness: 250 cd/m²

Touchscreen: No

Software

Operating system language: English

Operating system installed: Windows 11 Pro

Operating system architecture: 64-bit

:

:

:

:

:

:

:

:

:

:

:

:

:

Audio

Audio system: HD

Audio chip: Realtek ALC233-CG

Built-in microphone: Yes

Speakers manufacturer: Harman Kardon

Number of speakers: 2

Built-in speaker(s): Yes

RMS rated power: 3 W

:

:

:

Certificates

Compliance certificates: WEEE

:

:

:

:

:

:

:

:

:

Storage

M.2 SSD size: 2280 (22 x 80 mm)

Number of storage drives installed: 1

NVMe: Yes

Total SSDs capacity: 512 GB

Storage media: SSD

Card reader integrated: No

Total storage capacity: 512 GB

SSD form factor: M.2

Number of storage drives supported: 1

SSD interface: PCI Express 4.0

Ports & interfaces

Combo headphone/mic port: Yes

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI version: 1.4/2.1

HDMI ports quantity: 2

:

:

:

Camera

Built-in camera: Yes

Total megapixels: 5 MP

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
