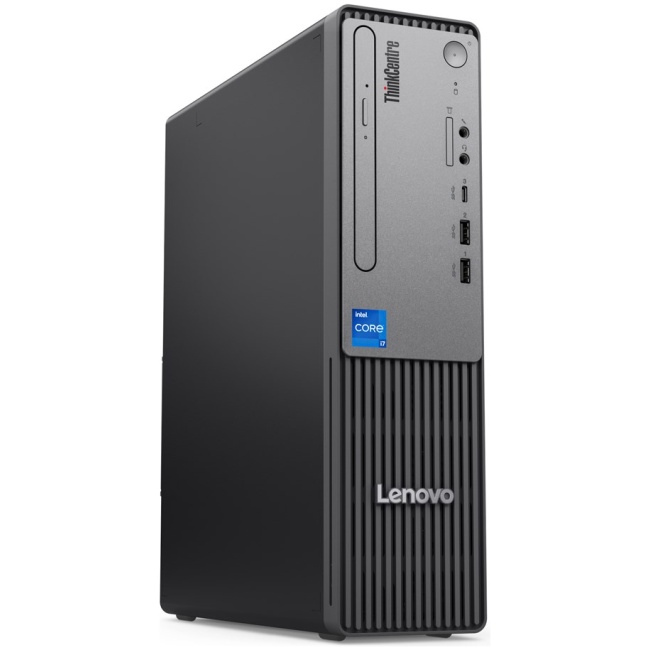

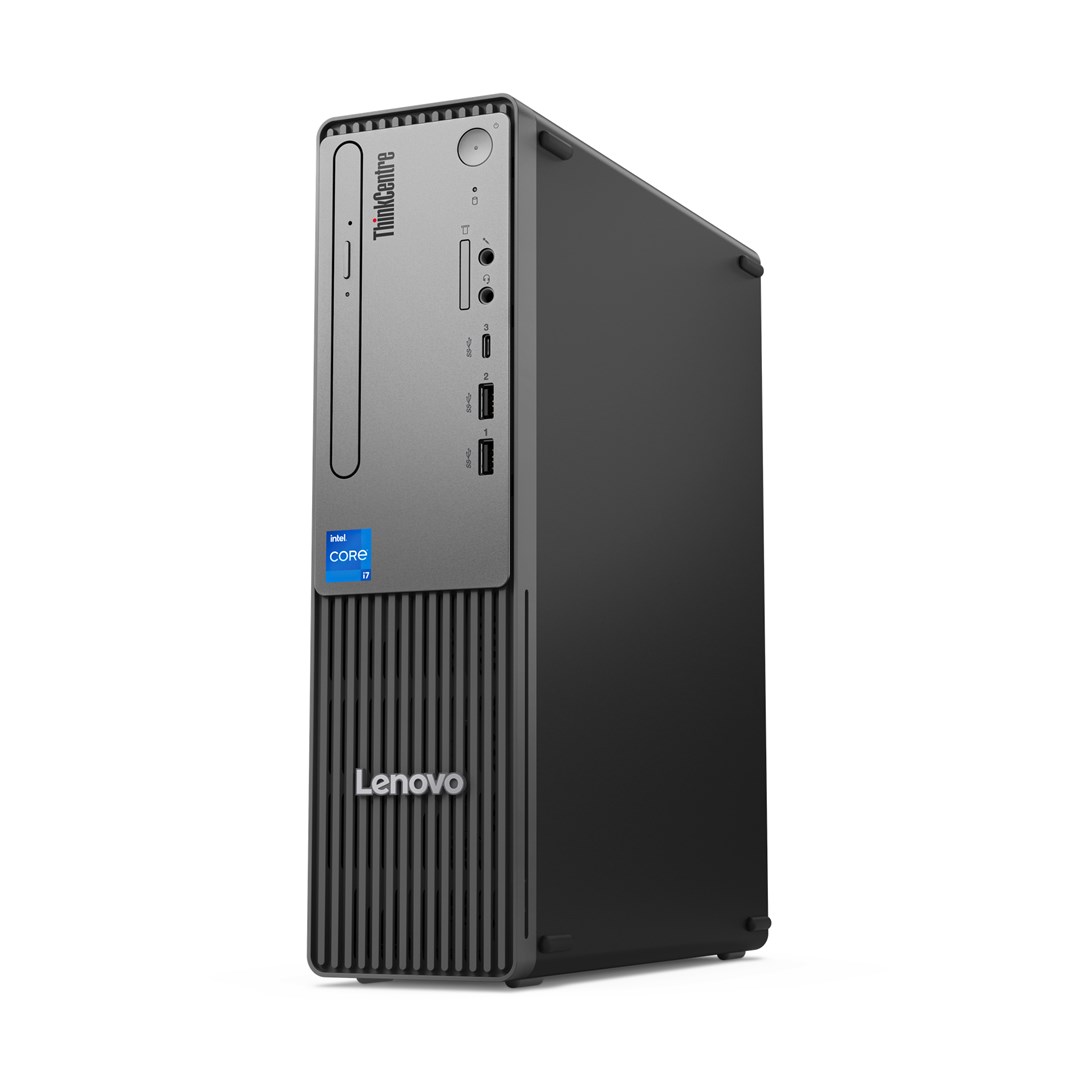

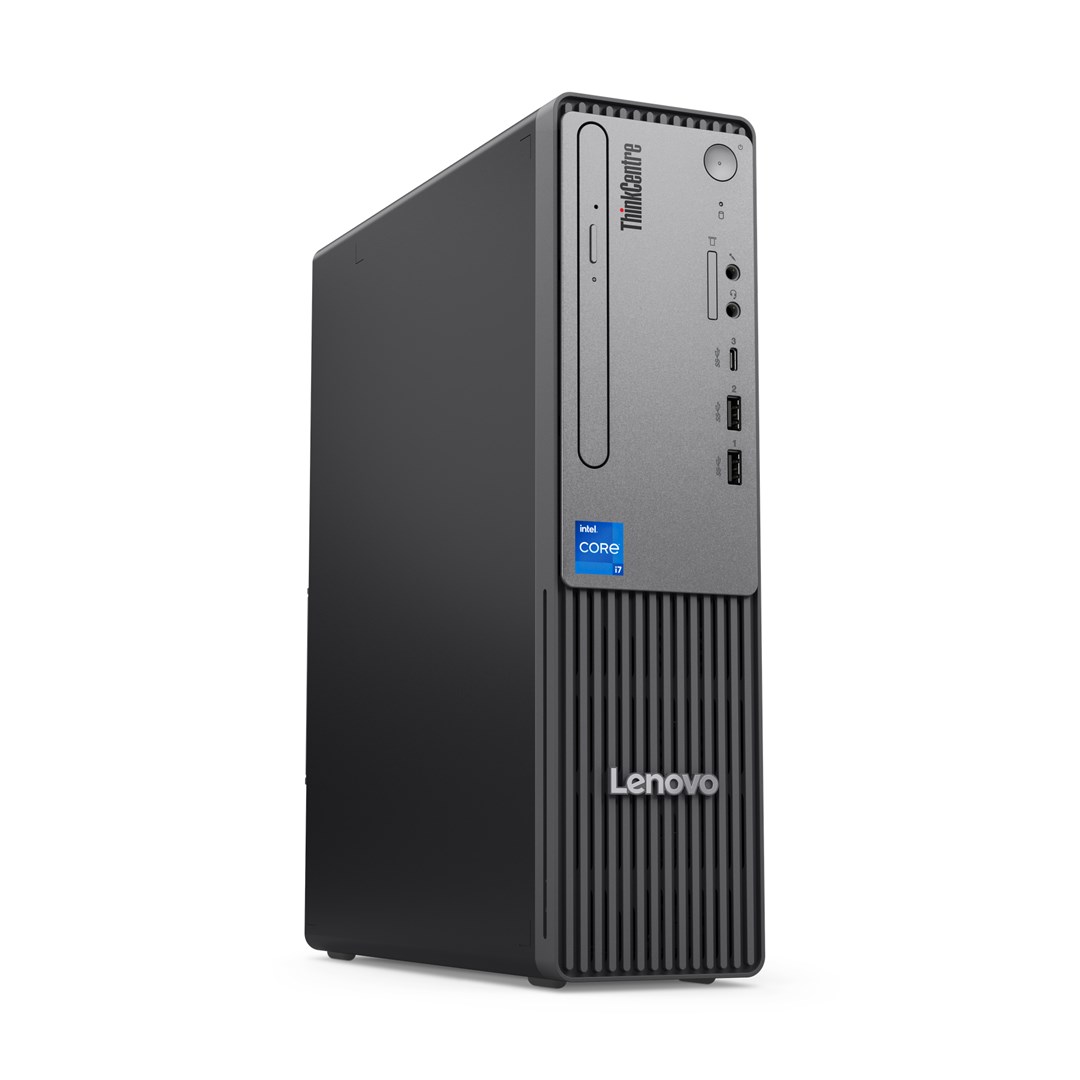

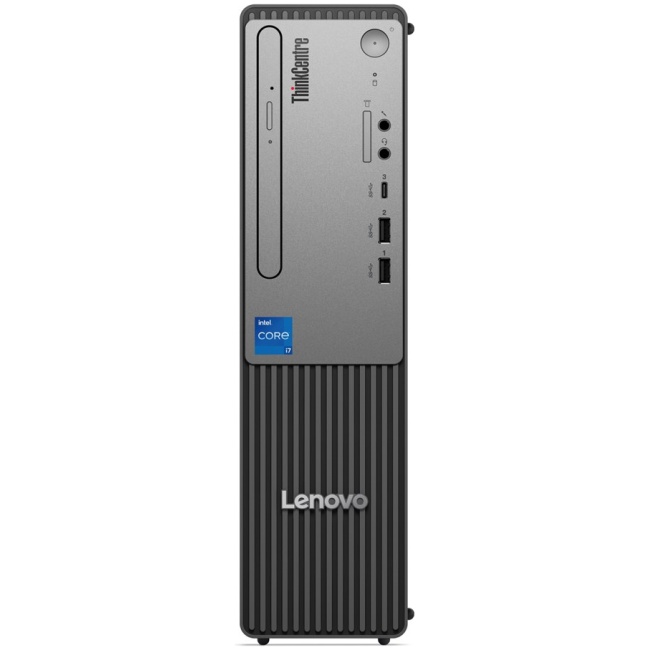

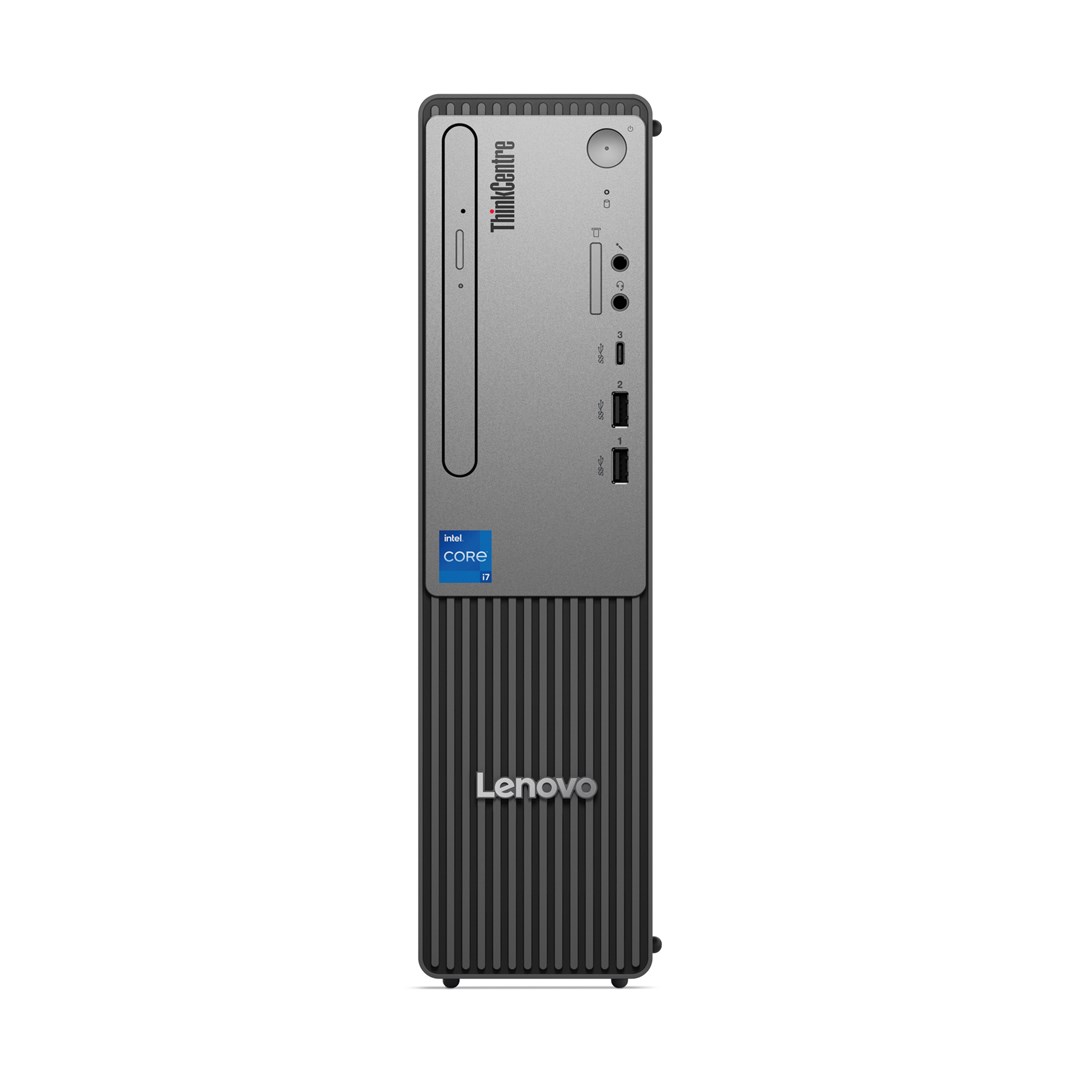

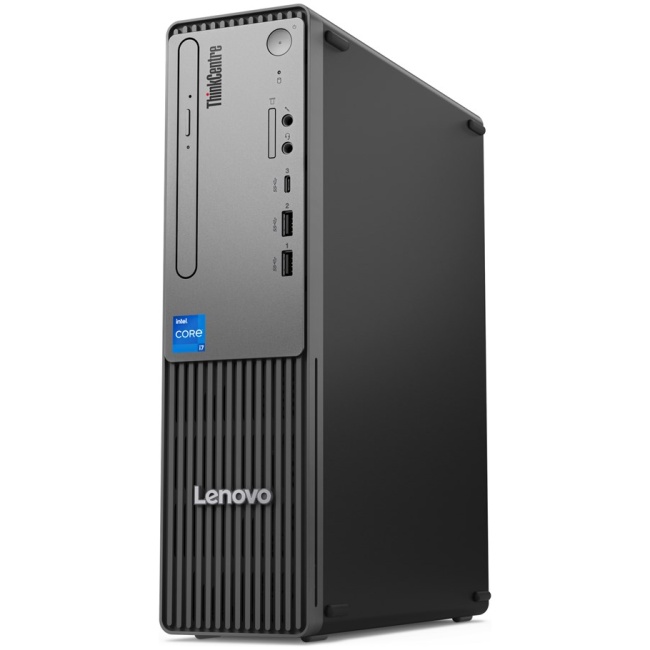

Lenovo ThinkCentre neo 50s Gen 5 Intel® Core™ i5 i5-14400 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black, Grey

Technical Specifications

Processor

Processor cores: 10

Processor boost frequency: 4.7 GHz

Processor model: i5-14400

Processor threads: 16

Processor family: Intel® Core™ i5

Performance-core base frequency: 2.5 GHz

Processor generation: Intel® Core™ i5 (14th gen)

Performance cores: 6

Efficient-core base frequency: 1.8 GHz

Processor base power: 65 W

Graphics

On-board graphics card model: Intel UHD Graphics 730

Discrete graphics card model: Not available

On-board GPU manufacturer: Intel

On-board graphics card: Yes

On-board graphics card family: Intel® UHD Graphics

Discrete graphics card: No

:

:

:

:

:

:

:

:

:

Memory

Maximum internal memory: 64 GB

Internal memory: 16 GB

Internal memory type: DDR5-SDRAM

Memory slots: 2x DIMM

Memory clock speed: 4800 MHz

Memory channels: Dual-channel

Memory layout (slots x size): 1 x 16 GB

:

:

:

Design

Product colour: Black

Cable lock slot: Yes

Cable lock slot type: Kensington

Colour name: Chassis: Black, Bezel: Grey

Volume: 8.2 L

Chassis type: SFF

Placement supported: Horizontal/Vertical

:

:

:

Power

Power supply input voltage: 100 – 240 V

Power supply input frequency: 50/60 Hz

Power supply: 180 W

:

:

:

:

:

:

:

Operational conditions

Storage temperature (T-T): -40 – 60 °C

Operating temperature (T-T): 5 – 35 °C

Operating altitude: 0 – 3048 m

Storage relative humidity (H-H): 10 – 90%

Operating relative humidity (H-H): 20 – 80%

Non-operating altitude: 0 – 12192 m

:

:

:

:

Weight & dimensions

Package width: 195 mm

Weight: 4.2 kg

Package weight: 6.29 kg

Package depth: 395 mm

Height: 339.5 mm

Package height: 530 mm

Depth: 291.4 mm

Width: 92.5 mm

:

:

Network

Bluetooth: Yes

LAN controller: Realtek RTL8111K

Ethernet LAN data rates: 1000 Mbit/s

Antenna type: 2×2

WLAN controller manufacturer: Intel

Bluetooth version: 5.3

WLAN controller model: Intel Wi-Fi 6E AX211

Cabling technology: 10/100/1000Base-T(X)

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Wi-Fi: Yes

Performance

Audio chip: Realtek ALC623-CG

Audio system: High Definition Audio

Trusted Platform Module (TPM): Yes

Motherboard chipset: Intel B760

Built-in speaker(s): Yes

Number of speakers: 1

Password protection: Yes

Password protection type: Power on

Trusted Platform Module (TPM) version: 2.0

Product type: PC

Packaging content

Mouse connectivity: Wired

Keyboard connectivity: Wired

Mouse included: Yes

Keyboard included: Yes

:

:

:

:

:

:

Display

Display included: No

:

:

:

:

:

:

:

:

:

Software

Operating system language: Polish

Operating system installed: Windows 11 Pro

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Storage

Optical drive type: DVD±RW

SSD capacity: 512 GB

SSD interface: PCI Express 4.0

Number of SSDs installed: 1

SSD form factor: M.2

Total SSDs capacity: 512 GB

M.2 SSD size: 2280 (22 x 80 mm)

NVMe: Yes

Number of storage drives installed: 1

Storage media: SSD

Ports & interfaces

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

Combo headphone/mic port: Yes

USB 2.0 ports quantity: 4

DisplayPort version: 1.4

Line-out: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Headphone outputs: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

Sustainability

Sustainability certificates: TCO

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
