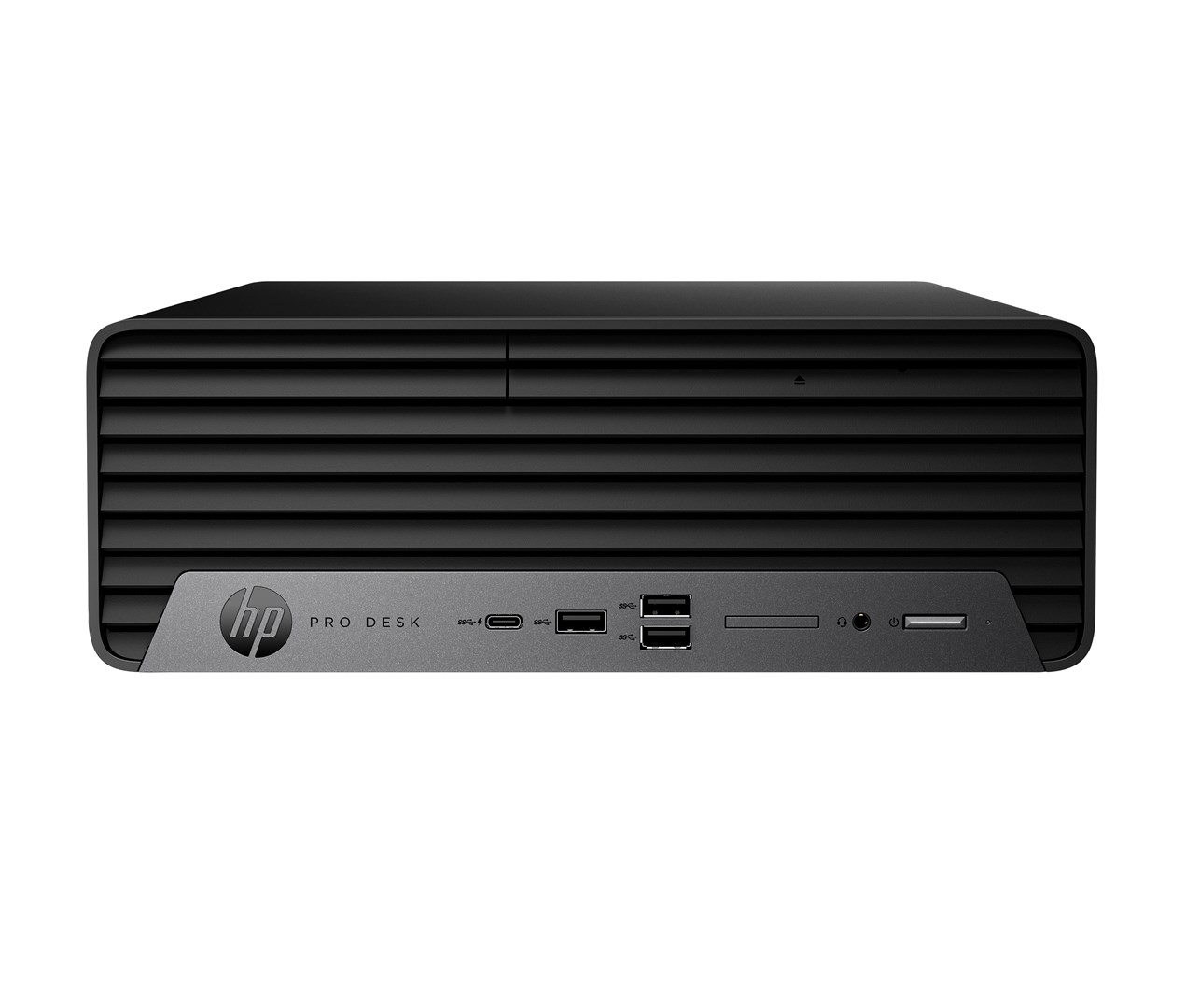

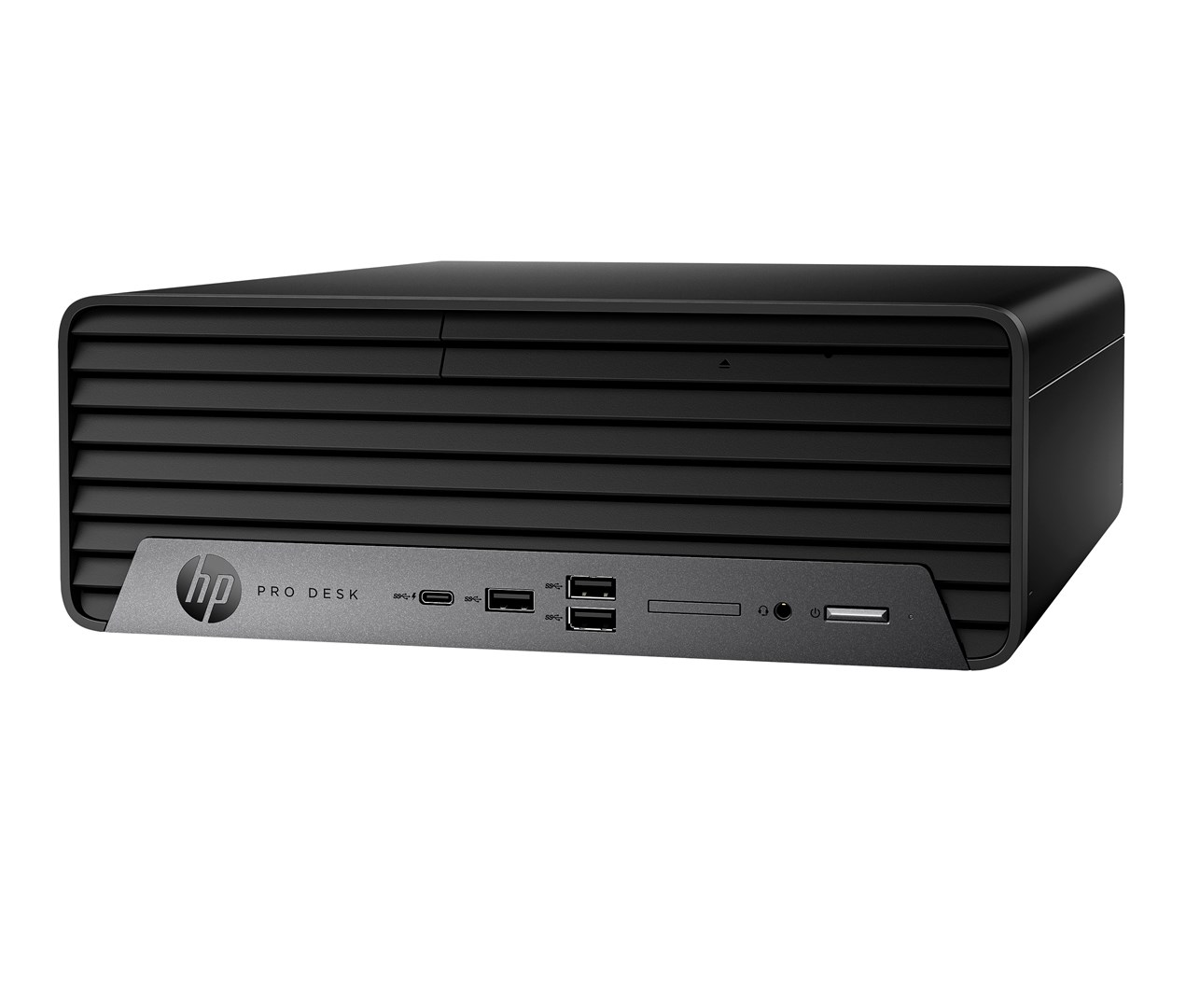

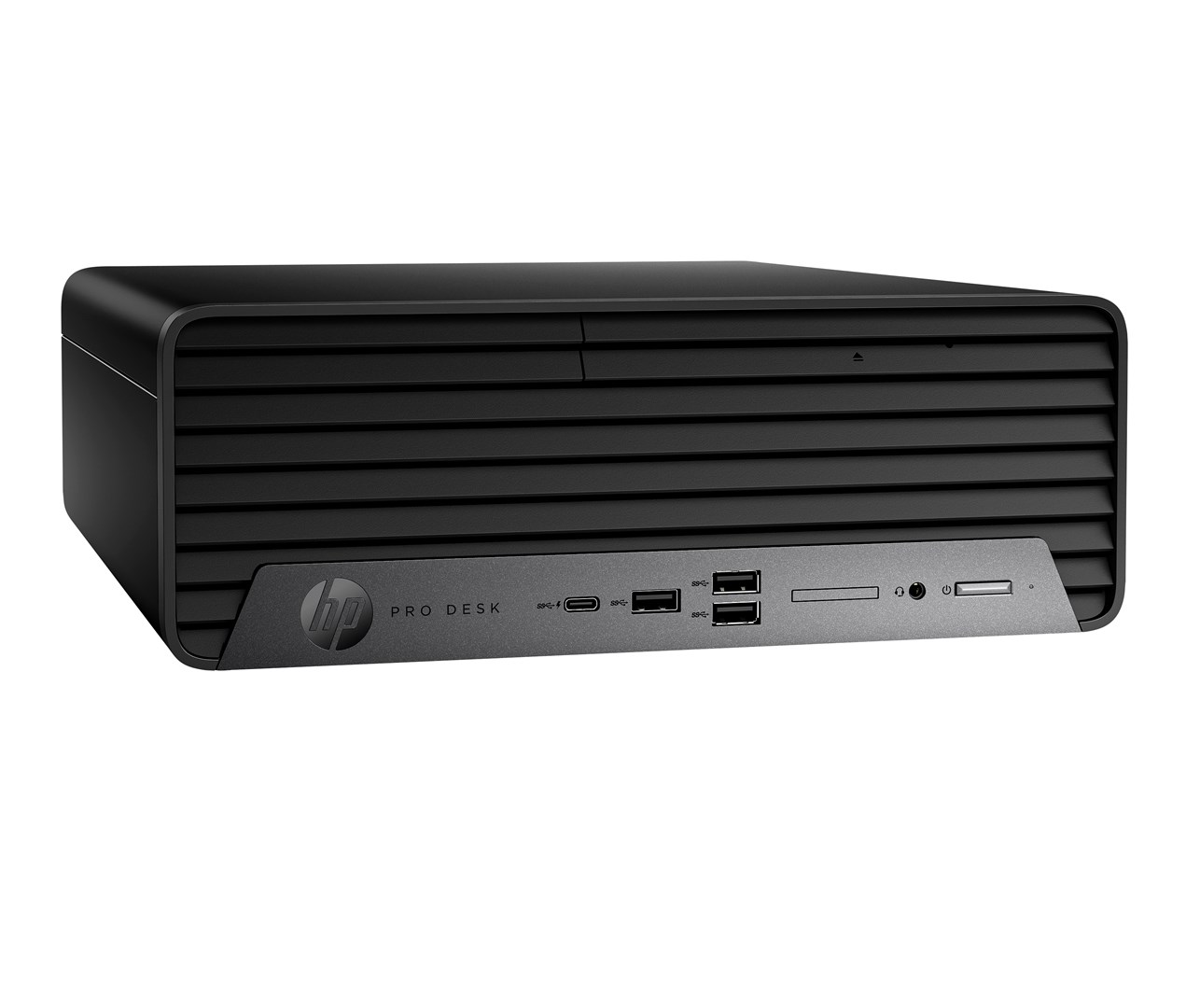

HP Pro 400 G9 Intel® Core™ i5 i5-14500 8 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black

Technical Specifications

Technical details

General Product Safety Regulation (GPSR) URL: https://kaas.hpcloud.hp.com/pdf-public/pdf_11069394_en-US-1.pdf

:

:

:

:

:

:

:

:

:

Processor

Efficient-core base frequency: 1.9 GHz

Performance-core base frequency: 2.6 GHz

Efficient cores: 8

Maximum turbo power: 154 W

Processor generation: Intel® Core™ i5 (14th gen)

Efficient-core Max Turbo Frequency: 3.7 GHz

Processor base power: 65 W

Processor family: Intel® Core™ i5

Performance-core Max Turbo Frequency: 5 GHz

Processor model: i5-14500

Processor cores: 14

Processor threads: 20

Processor manufacturer: Intel

Processor cache: 24 MB

Processor cache type: L3

Graphics

On-board GPU manufacturer: Intel

Discrete graphics card model: Not available

Discrete graphics card: No

On-board graphics card: Yes

On-board graphics card model: Intel UHD Graphics 770

On-board graphics card family: Intel® UHD Graphics

:

:

:

:

Memory

Memory layout (slots x size): 1 x 8 GB

Memory slots: 2x DIMM

Internal memory: 8 GB

Internal memory type: DDR5-SDRAM

Memory clock speed: 4800 MHz

Maximum internal memory: 64 GB

:

:

:

:

Design

Colour name: Jack black

Number of 3.5" bays: 1

Chassis type: SFF

Product colour: Black

:

:

:

:

:

:

Power

Power supply input frequency: 50/60 Hz

Power supply input voltage: 100 – 240 V

Power supply: 240 W

:

:

:

:

:

:

:

Operational conditions

Operating relative humidity (H-H): 10 – 90%

Operating temperature (T-T): 10 – 35 °C

:

:

:

:

:

:

:

:

Weight & dimensions

Width: 270 mm

Package depth: 205 mm

Package height: 499 mm

Height: 270 mm

Depth: 95 mm

Package weight: 7.25 kg

Package width: 394 mm

Weight: 4.2 kg

:

:

Network

Mobile network connection: No

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Ethernet LAN data rates: 1000 Mbit/s

Ethernet LAN: Yes

Cabling technology: 10/100/1000Base-T(X)

Wi-Fi: Yes

Bluetooth: Yes

:

:

:

Performance

Password protection: Yes

Trusted Platform Module (TPM) version: 2.0

Audio chip: Realtek ALC3252

Market positioning: Proven productivity

Password protection type: BIOS

Product type: PC

Trusted Platform Module (TPM): Yes

Motherboard chipset: Intel Q670

:

:

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

:

:

:

:

:

:

:

:

Processor special features

Intel® Turbo Boost Technology: Yes

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Display

Display included: No

:

:

:

:

:

:

:

:

:

Software

Operating system architecture: 64-bit

Operating system installed: Windows 11 Pro

:

:

:

:

:

:

:

:

Storage

Total SSDs capacity: 512 GB

Number of SSDs installed: 1

SSD interface: PCI Express

Total storage capacity: 512 GB

NVMe: Yes

Number of storage drives installed: 1

SSD capacity: 512 GB

Storage media: SSD

:

:

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

HDMI ports quantity: 1

Line-out: Yes

HDMI version: 1.4

DisplayPort version: 1.4

DisplayPorts quantity: 1

USB 2.0 ports quantity: 2

Combo headphone/mic port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

Brand-specific features

HP Support Assistant: Yes

HP segment: Business

HP Management tools: HP Client Catalog (download); HP Driver Packs (download); HP Cloud Recovery; HP Image Assistant Gen 5 (download); HP Client Management Script Library (download); HP Manageability Integration Kit (down

:

:

:

:

:

:

:

Sustainability

Sustainability certificates: EPEAT

Sustainability compliance: Yes

:

:

:

:

:

:

:

:

Carbon footprint

Total carbon emissions, w/o use phase (kg of CO2e): 5

Carbon emissions, end-of-life (kg of CO2e): 3

Carbon emissions, manufacturing (kg of CO2e): 28

Carbon emissions, logistics (kg of CO2e): 2

Total carbon footprint (kg of CO2e): 10

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
